Marine 4 Blades Alloy Hydraulic Bow Thruster

Product details
Sprint:0-7.7 tonsDiameter (mm):620~1300MM
rated power:50~500HPPerformance:Continuous, Stable and Reliable
part:marine propellerport:Shanghai
payment terms:L/C, D/A, D/P, T/T, Western Union, MoneyGramCertification:ISO9001:2000
4-Blade Alloy Hydraulic Bow Thruster:Marine 4 blade alloy hydraulic bow thrusterPackaging Details:The package will be suitable for long-distance sea shipping.
blade:4Supply capacity:100 pieces per month



Product Description

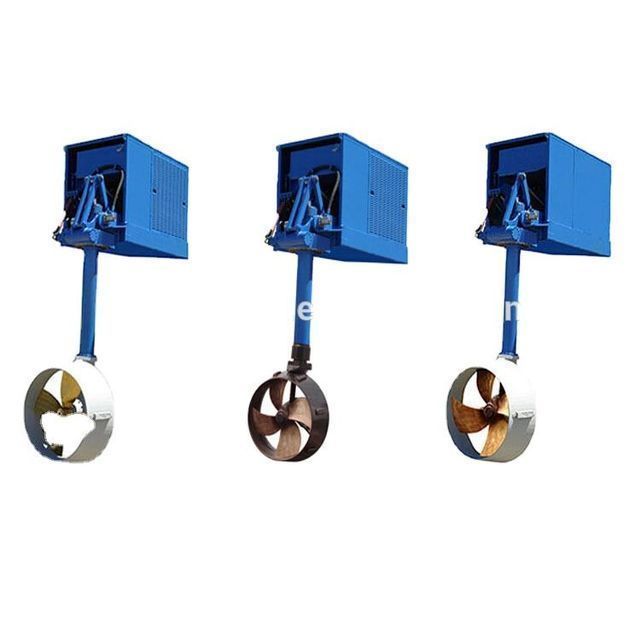

Marine 4 blade alloy hydraulic bow thruster



The hydraulic omnidirectional thruster is powered by a hydraulic source, and the propeller is directly driven by a hydraulic motor. It has the advantages of compact structure, convenient installation and maintenance, low cost and short production cycle.



Product power ranges from 50HP to 500HP. Used for yachts, open-body mud ships, simple engineering ships, etc.





feature



1. Compact structure, easy installation and maintenance

2. Lower cost and shorter production cycle

3. High efficiency and good flexibility

4.Good performance and long service life



parameter





Model

rated power
(life value)

propeller diameter
(mm)

thrust
(t)

RFHP50

0-50

620

0-0.7

RFHP100

50-100

830

1-1.4

RFHP200

100-200

950

1.5-3.2

RFHP300

200-300

1000

3.4-4.4

RFHP400

300-400

1180

4.7-6.2

RFHP500

400-500

1300

6.5-7.7
