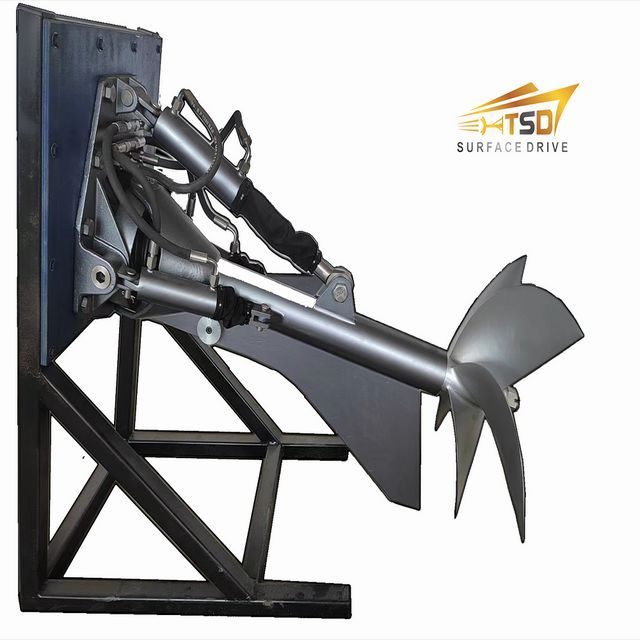

TOFOO high quality high speed semi submersible propeller production design boat surface drive boat stern drive

Supplier: Xiamen Tofoo Electronic Engineering Co., Ltd.
Region: Fujian, China
Contact: Mr Allen chen
Price: $3499.00 /set
Min. Order: 1 set

Click here to contact

Product details

application:	Marine thrusters for boats/barges/ships/fishing boats	QC:	ISO 9001
Supply capacity:	2000 sets per month	blade:	4
strength:	electric diesel engine	payment terms:	L/C, Western Union, T/T
model:	black/black	brand:	TSD
type:	Accessories	port:	Xiamen Port
pack:	wooden box	Diameter (mm):	400mm-850mm
Function:	Marine propulsion for driving	Control System:	tiller control
Material:	Stainless steel \ copper	weight:	65-300
Certification:	China Classification Society

Product Description

Semi-submerged propeller (Semi-Submerged Propeller, referred to as SPP) refers to a high-speed ship sailing at the design speed, part of the blades are exposed to the water surface, and the propeller can still operate normally.

mobile semi-submersible propeller

	BH400	BH450	BH500	BH550
Adapt to blade diameter	400	450/500	500/550	550/600
Number of Adaptive Blades	4,5,6	4,5,6	4,5,6	4,5,6
normal gear ratio	1,2,1.5,2/:1	1,2,1.5,2/:1	1,2,1.5,2/:1	1,2,1.5,2/:1
Maximum input torque Nm	375N m	450N m	800N m	1200N m
Host maximum power Kw/Ps	110Ps	140Ps	200Ps	300Ps
The minimum output speed of the host r/min	2000	2000	2000	2000
The maximum output speed of the host r/min	5000	5000	5000	5000
left and right steering angle	45°	40°	40°	40°
up and down angle	37°	37°	37°	37°
Single machine maximum applicable ship weight (T)	1 ton	3T	5 tons	8 tons
Maximum Applicable Ship Weight for Twin Engines (T)	2T	6 tons	10 tons	16 tons
Stand-alone weight (KG)	30Kg	40Kg	50Kg	60Kg
Standard drive shaft length (mm)	300mm	400mm	500mm	600mm
body shield	have	Elective	No	No
steering hydraulic cylinder	Internal	External	External	External
According to the actual ship type, ship weight and purpose, choose the appropriate model and blade
