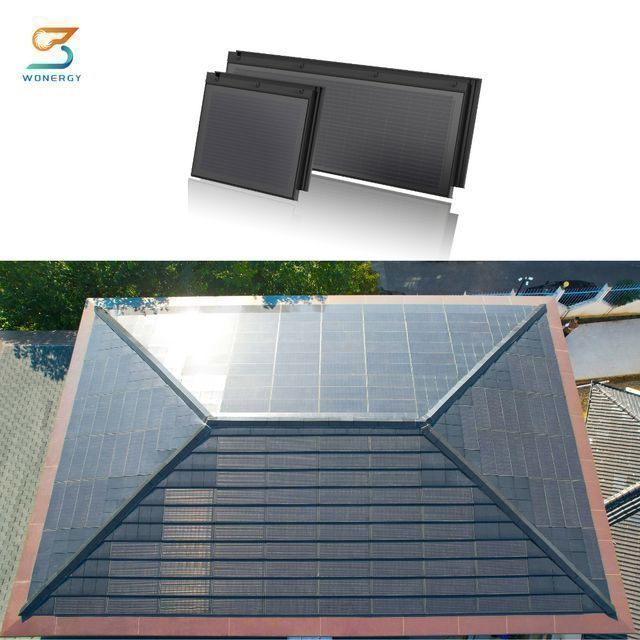

Wonergy Solar Roof Tile Photovoltaic Roof Your Solar House Integrated Roof Generates Electricity

Supplier: Singer-Ruser (HZ) Building Materials Tech. Co., Ltd.
Region: Zhejiang, China
Contact: Ms Leila Liu
Price: $1.55 / 100 - 999 pieces
$1.35 / 1000 - 9999 pieces
$1.15 / 10000 - 99999 pieces
$0.95 / >=100000 pieces
Min. Order: 100 pieces

Click here to contact

Product details

port:	Ningbo	Power output:	87 W/block
model:	Titan One	payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram
Package preview:		Material:	Monocrystalline silicon
Anti-hail level:	D25mm/23m/s	Fire-proof level:	Class A
Panel size:	1220x410mm	type:	PERC, half-cell, double glass, all black
Roof tile size:	1260mm*480mm	Unit size:	182mmx182mm
thickness:	30mm	Coverage:	0.50 square meters / piece
waterproof level:	Class A	brand:	SANGO Architecture + WONERGY
Certificate:	IEC61215, IEC61730, CE	weight:	16.5kg/piece
life:	over 60 years	Supply capacity:	3,000,000 watts per month
Packaging Details:	Fumigated export standard wooden box packing	Origin:	Zhejiang, China

Technical data

physical characteristics
Model	JS87DG	tile size	1260*480 mm
tile weight	16.5 kg	Glass	Tempered/3.2MM
cell size	18291MM (512)	Junction Box	≥IP67
cable	PV 4 mm 2	cable connector	MC4

Electrical Performance Parameters (in STC)
cell type	single crystal	battery efficiency	23.1%
Maximum power	87W/unit	power density	174W/square meter
Voltage	13.7V	current	6.35A
open circuit voltage	16.2V	short circuit current	6.75A

rating feature
color	black+customizable	load class	2400 Pa
Fire-proof level	Class A	Anti-hail rating	25MM/23M/S
Operating temperature	-40℃ ~ 85℃	Working humidity	0-80%

certified
IEC61215, IEC61730, CE, CGC, MCS, UL, SII, BIS, INMETRO, SNI, CEC, JET, carbon footprint, etc.

Advantages of Solar Roofs

more colors available

How Solar Roofs Work

How does a solar roof work and how can it benefit your home?

Solar energy is becoming more and more popular and common in our life these days, you may have seen some neighbors houses covered with solar roof tiles.

Let's briefly explain how it works here:

*1)* Sunlight shines on the solar cell to obtain electricity, which is then converted into direct current.

*2)* Electricity goes into the inverter and is converted to AC power to run home appliances.

*3)* Excess electricity generated can be sold to utilities through net metering to reduce electricity bills or make money.

*4)* Excess power can also flow through an inverter, turning it back into DC, which can be stored for later use.

*5)* If the house needs to use the energy stored in the battery, that part of the electricity will flow through the inverter again to become AC.

*6)* The mobile monitoring app will show how much electricity your solar roof system is generating and how much your home is using, as well as how much you are saving.

In the next few years, with the urgent need for clean energy, solar roofs will become very common. People won't just settle for traditional solar panels on their roofs. What people will appreciate is a solar roof that combines power generation and home protection.

Solar Roof with Solar Panels

Solar panels are well known to many people. But for most customers, solar roof tiles are relatively new. So we made this video to briefly analyze the difference between solar panels and solar tiles.

The video is analyzed from the following four aspects:

00:30 installation
01:30 aesthetics
02:00 durability
02:25 fee

This is a good choice if

you are passionate about design

The appearance of your roof is important to you. You want to harness the power of the sun, but don't want to put regular solar panels on your roof. The Sangobuild Solar Roof has a clean, sleek look and the solar cells are virtually invisible from a distance.

You are renovating or building a new roof

If you are renovating or about to replace your roof, you may want to save on materials and labor costs. Sangobuild Solar Roof gives you roofing material and powerful solar panels in one.

If your building is listed

If your building is listed as historic or architecturally significant, you may not be able to install standard types of solar panels on your roof. On the other hand, the Sangobuild solar roof is usually accepted by the authorities because it looks like a conventional roof.

Why us?

It's a roofing material!

Sangobuild Solar Roof Tile is a roofing material just like traditional roof tiles. Not only does it generate electricity, but it also acts as your roof cover, protecting your house from rain, wind, hail, and more.

It saves you roofing costs. You don't need to install any traditional roofing materials. And there is no need to set a mounting frame on the roof to install solar tiles, which will affect the aesthetics of the roof to a certain extent.

Excellent product characteristics

As building-integrated photovoltaic solar roof tiles, our products not only have strong power generation characteristics, but also have excellent weather resistance.
- Efficient full roof coverage
- Class A waterproof
- Anti-hail
wind resistance
- More than 60 years of service life
- beautiful

professional team

Our team started BIPV business in 2007, and the technology is in the leading position in the industry. We not only have the most professional solar team, but also the most professional roofing team.

We combine solar panels and roof tiles into one new product to save cost and make your roof more beautiful and functional!

Send us an inquiry and let us add luster to your roof
