500w bipv double glass transparent sunshine room panel

Product details
size:customer requirements, customizedPanel Efficiency:custom made
color:dark blue or blackglass thickness:4mm, 5mm, 6mm, 8mm
Supply capacity:500,000 watts per weekpayment terms:L/C, Western Union, T/T

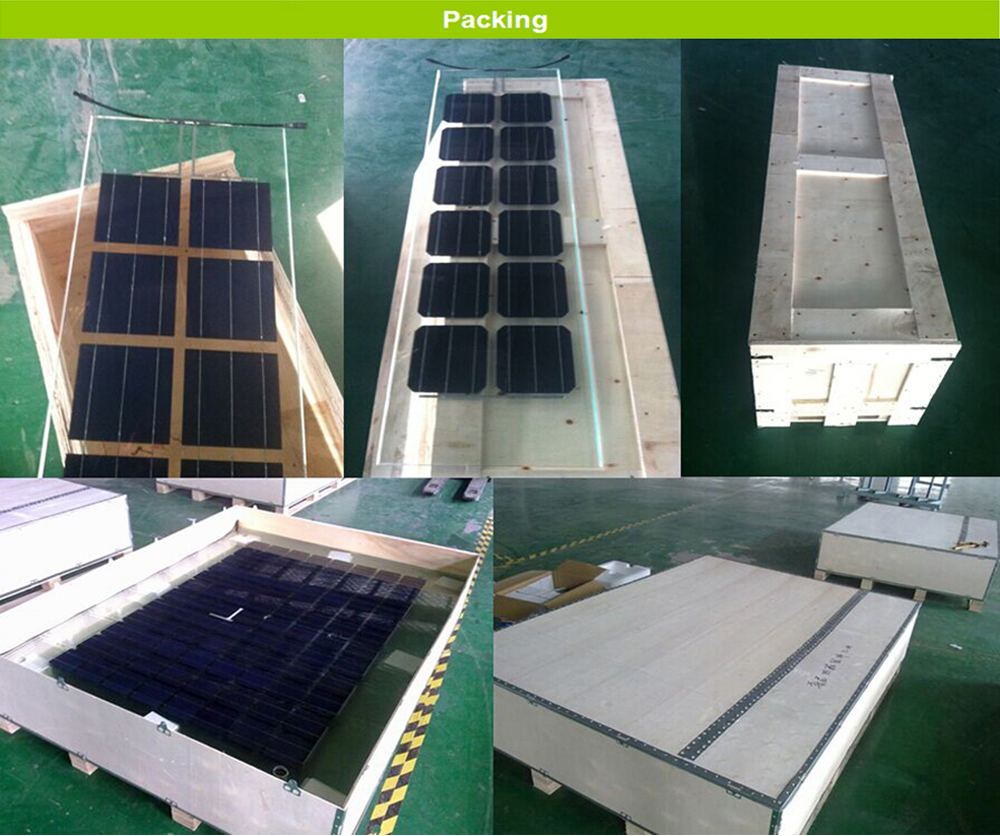

Packaging Details:wooden boxport:Shanghai
place of origin; place of origin:ChinaWarranty:10 years, 10 years
Material:Tempered Glass Solar CellCertificate:TUV,CE,ISO,TUV,CE,ISO
transparent:30%, 40%, 50%, 60%model:Fengyun BIPV
application:Curtain Wall/Transparent/Colored/Reflective/Tempered/Laminated/Argon/Low-Ebrand:wind and cloud
type:Building Integrated PhotovoltaicMaximum power:500W

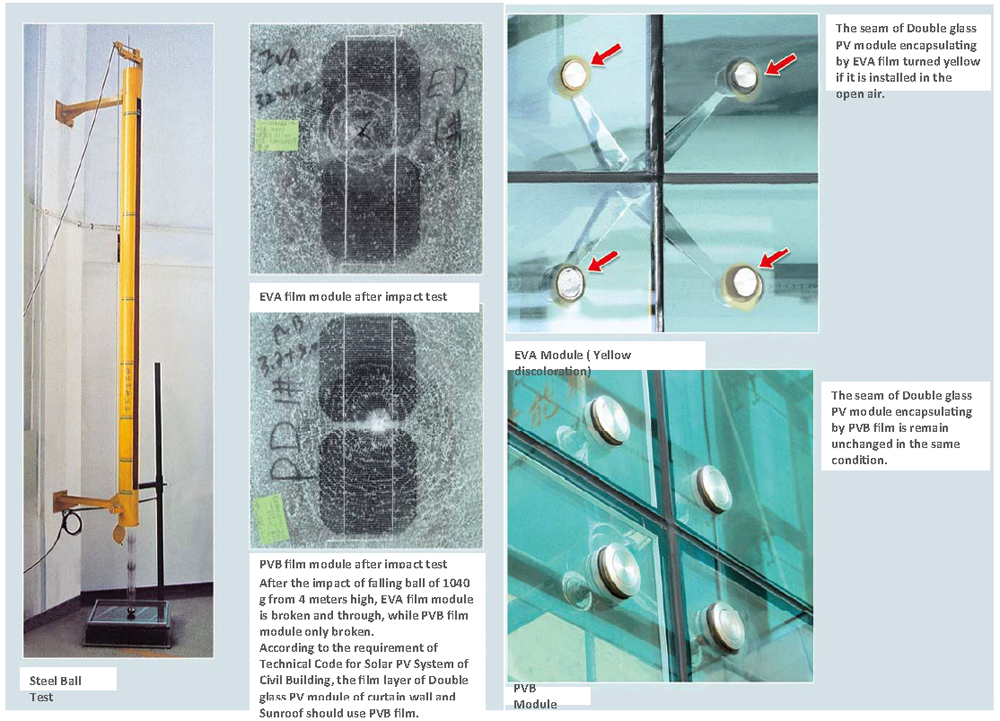

module:Glass+PVB and battery layer+glass

module:Minimum 300*300 mm

Max 2300*3600 mm

Glass type:Tempered Glass/Heat Resistant Glass/Chemical Tempered Glass

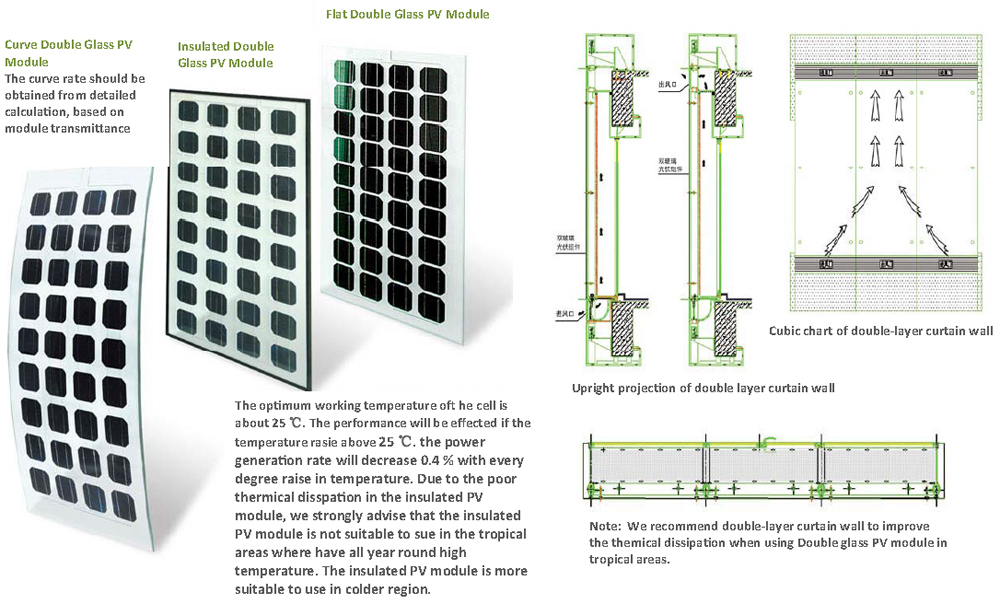

Module type:Planar photovoltaic modules, curved photovoltaic modules, insulated photovoltaic modules (Uvalue: 1.2W/m)

Typical module types:

3.2mm glass + 2.28mm PVB + 6mm glass

4mm glass + 2.28mm PVB + 6mm glass

6mm glass + 2.28mm PVB + 6mm glass

6mm glass + 2.28mm PVB + 8mm glass

8mm glass + 2.28mm PVB + 8mm glass

8mm glass + 2.28mm PVB + 10mm glass

10mm glass + 2.28mm PVB + 10mm glass

Cell type:Single crystal, polycrystalline, amorphous

Battery color:Blue, bronze, grey, black, brown, red and other colors available on request

Battery Dimensions (mm):

Crystallization: 125*125 (semi-transparent), 156*156 (can be chamfered)

Amorphous: 1400*1100, 2500*2240 (maximum)

Battery efficiency:

Monocrystalline: 15 - 21%

Polycrystalline: 14 - 17 %

Amorphous: 6 - 9 %

Glass transmittance (front panel):>91%

Front glass type:Low Iron Solar Glass; Patterned Glass

Back glass color:Blue, brown, gold, green, other colors upon request, enamel patterned glass in various colors

Transmittance of standard crystal modules:

5%, 10%, 20%, 25%, 30%, 35%, 40%, 50%

Transmittance of standard amorphous modules:

10%, 20%, opaque.

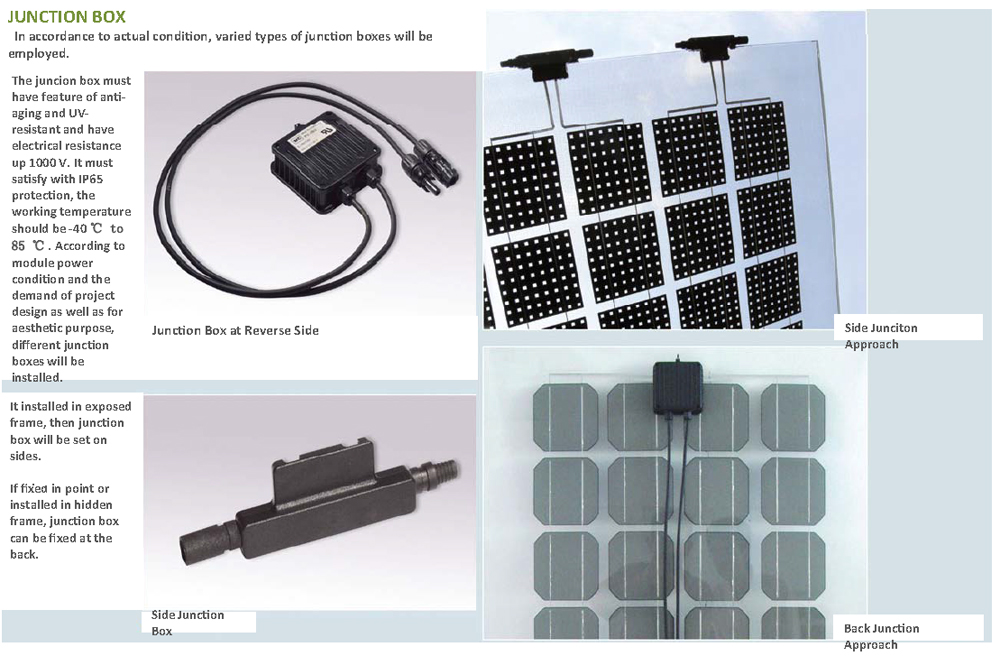

Connection Type:

The junction box is on the back and the junction box is on the side.



Standard crystal module power:

150 W/m² (5% transmittance)

140 W/m² (10% light transmittance)

130 W/m² (20% light transmittance)

120 W/m² (25% light transmittance)

110 W/m² (30% light transmittance)

100 W/m² (35% light transmittance)

90 W/m² (40% transmittance)

80 W/m² (50% light transmittance)

System voltage:maximum. 1000W

Typical value:26%

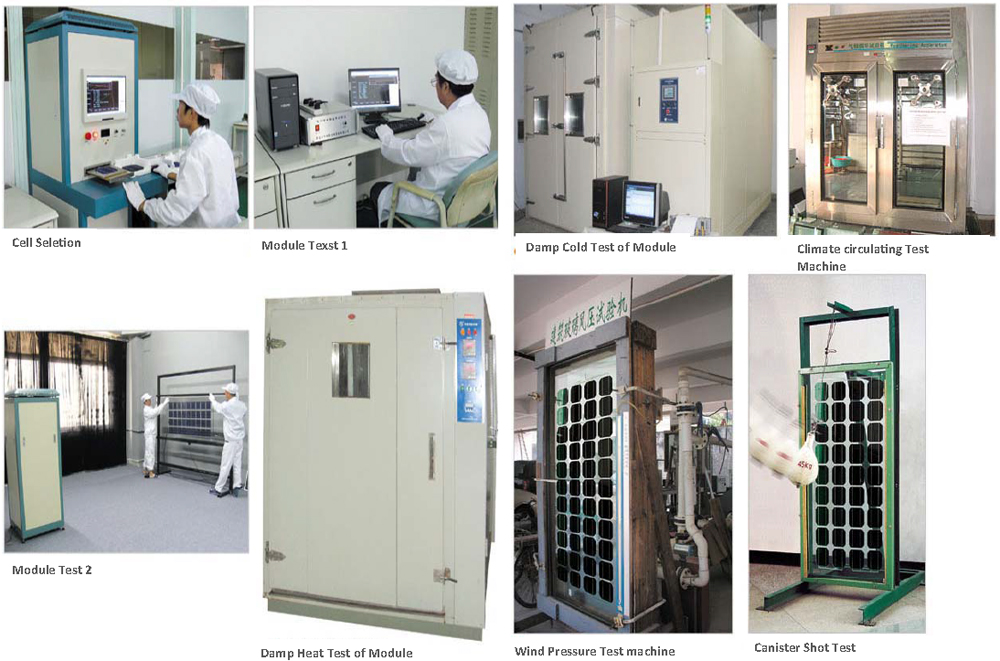

Executive standard:IEC 61215, GB/T 9536-1998

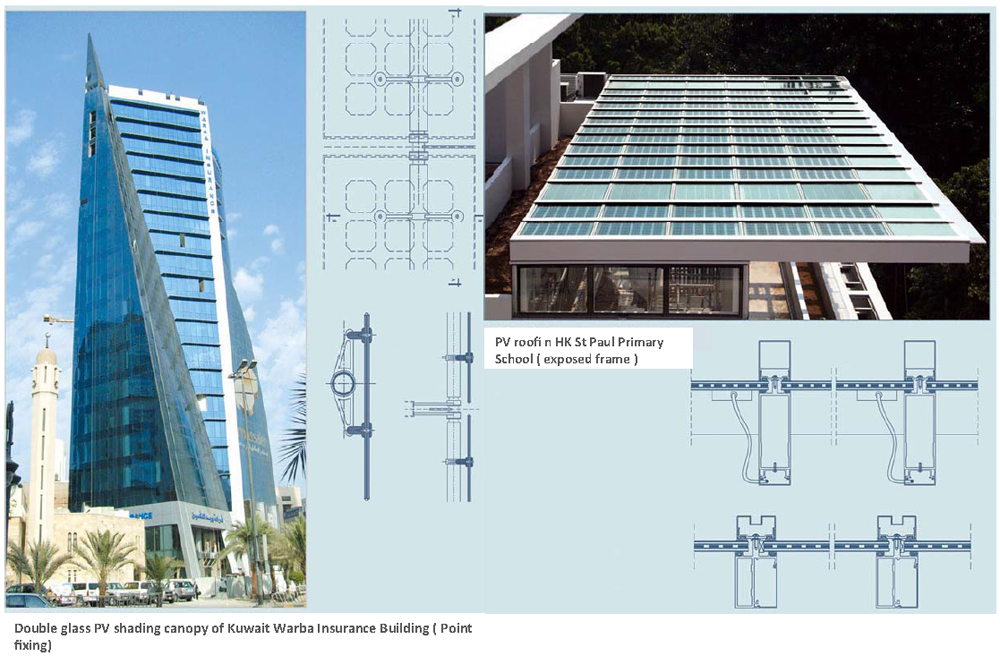

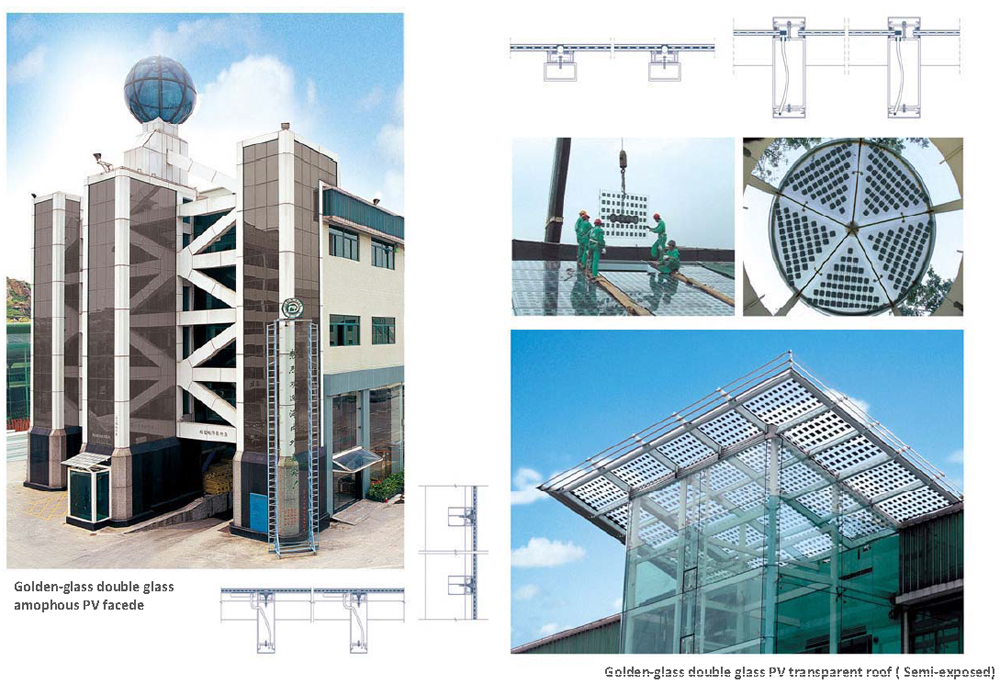

Support fixing method:fixed point, hidden frame, semi-bright frame

Other functions:

safety protection;

Custom panes;

sound insulation;

Anti-glare protection;

shade;

Whether to protect;

Product Warranty:5 years

Performance Guarantee:

90% power performance for 10 years;

80% power performance for 25 years;

(1) Glass load calculation and personal certificate The case must be verified by the contractor;

(2) upon request;

(3) Individual projects are subject to approval;

(4) With limitations.
