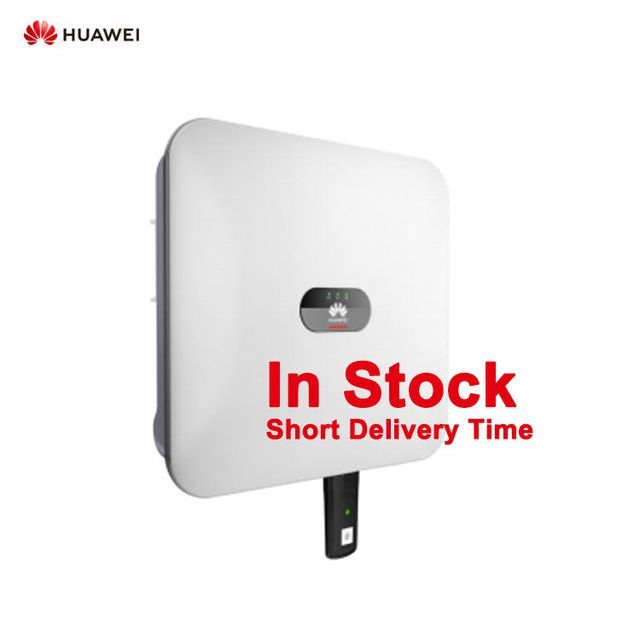

Smart solar inverter 10kw Huawei hybrid 3 phase Huawei sun2000-10ktl-m1 smart photovoltaic controller 5kw 6kw 10kw 12kw grid-connected inverter

Product details
brand:HuaweiCertificate:CE/TUV
color:whiteweight:16kg
product name:Huawei inverter, grid-connected inverterPackaging details:Carton + wooden box + pallet
The output voltage:230 VAC/400 VACInput voltage:1,100V
payment terms:L/C, Western Union, D/P, D/A, T/T, MoneyGramapplication:Grid-connected solar systems, home appliances, industrial solar systems
Place of origin:ChinaOutput current:8.6A, 10.3A, 13.6A, 17A, 18.5A

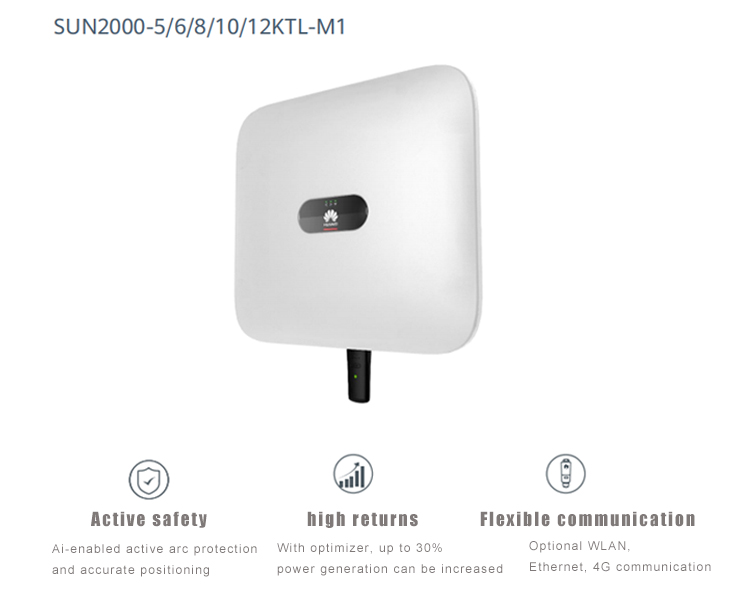

Inverter efficiency:98.65%model:Special price for the whole series, SUN2000-5/6/8/10/12KTL-M1
Warranty:5 years, 10 years, 5 yearsOutput type:Single phase, three phase
type:DC/AC inverter, DC/AC invertersize:525×470×160 mm
Key words:Huawei solar inverterOutput frequency:50Hz/60Hz
Product Description
About FusionSolar Smart Photovoltaics
Huawei takes the lead in cross-border integration of digital information technology accumulated over more than 30 years with photovoltaics to launch leading smart photovoltaic solutions. On the power generation side, new ICT technologies such as artificial intelligence and cloud are further integrated with photovoltaics to create smart photovoltaic power stations with "efficient power generation, intelligent operation and maintenance, safety and reliability, and grid-friendliness", helping photovoltaics become the main energy source. In terms of electricity consumption, based on the concept of "active safety and better cost of electricity", Huawei has launched green electricity solutions for enterprise and home users to increase the rate of self-consumption. It is the first to realize 24-hour clean power in home scenes, leading users into a new era of electricity consumption.
Main specifications
Technical Parameters
SUN2000-5KTL-M1
SUN2000-6KTL-M1
SUN2000-8KTL-M1
SUN2000-10KTL-M1
SUN2000-12KTL-M1

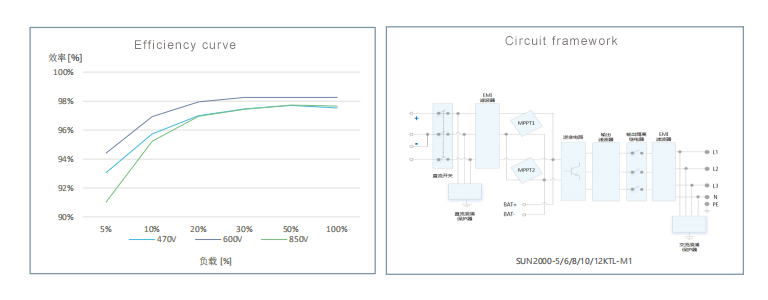

efficiency
Maximum efficiency
98.4%
98.6%
98.6%
98.6%
98.6%
enter
Recommended maximum photovoltaic power generation1
7500wp
9000wp
12000wp
15000wp
18000wp
maximum. Input voltage 2
1100V
Starting voltage
200 volts
maximum. Input current of each MPPT
11A
Maximum short circuit current
15A
285Vdc~850Vdc
380Vdc~850Vdc
470Vdc~850Vdc
550Vdc~850Vdc
Working voltage range 3
140V~980V
Rated input voltage
600V
Maximum number of inputs
2
maximum. Number of inputs per MPP tracker
2
Input (DC battery)
Compatible battery
Huawei Smart String ESS 5kWh – 30kWh
Working voltage range
600V~980V
Maximum working current
16A
Maximum charging power
10,000 watts
Maximum discharge power
5,500 watts
6,600 watts
8,800 watts
10,000 watts
10,000 watts
output
Grid connection
Three phases
Rated output
5,000W
6,000 watts
8,000W
10,000W
12,000W
Maximum apparent power
5,500 VA
6,600 VA
8,800VA
11,000 VA
12,000 VA
Maximum active power
5,000W
6,000 watts
8,000W
10,000W
12,000W
Rated output voltage
220Vac/380Vac,230Vac/400Vac,3W/N+PE
Output voltage frequency
50Hz/60Hz
Maximum output current
8.5A
10.1A
13.5A
16.9A
18.4A
maximum. total harmonic distortion
<3%
Output (backup power provided via Backup Box-B1)
Maximum apparent power
3,300 VA
Rated output voltage
220V/230V
Maximum output current
15A
Power factor range
0.8 ahead... 0.8 behind
Features and Protection
Input side circuit breaker
Yes
Anti-islanding protection
Yes
DC reverse polarity protection
Yes
Insulation monitoring
Yes
DC surge protection
Yes, TYPE II protection class in accordance with EN/IEC 61643-11
AC surge protection
Yes, TYPE II protection class in accordance with EN/IEC 61643-11
Residual current monitoring
Yes
AC overcurrent protection
Yes
AC short circuit protection
Yes

AC overvoltage protection
Yes
Arc fault protection
Yes
Ripple receiver control
Yes
Integrated PID recovery
Yes
Battery reverse charging from grid
Yes
Nighttime electricity consumption
Yes
More projects

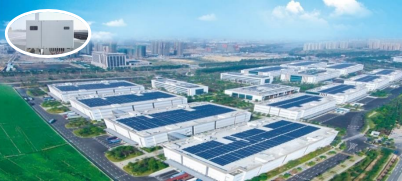

Project capacity: 300MV
Grid type: 10KV
Equipment model: SUN2000-40KTL

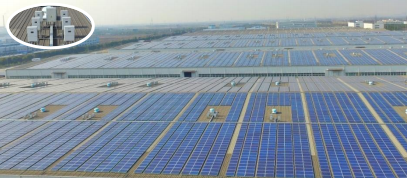

Project capacity: 2.8MV
Grid type: 380KV
Equipment model: SUN2000-36KTL

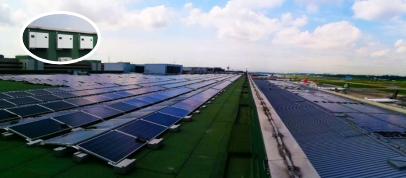

Project capacity: 1.2MV
Grid type: 380KV
Equipment model: SUN2000-36KTL

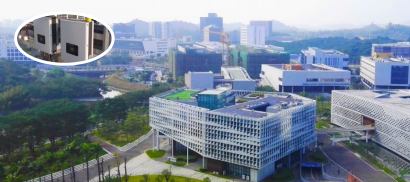

Project capacity: 17.5MV
Grid type: 380KV
Equipment model: SUN2000-28KTL/33KTL
36KTL/50KTL
