Certificate: | CE ROHS FCC | Test service: | 100% AOI testing |
Inverter Efficiency: | 3000W/2200W/1600W/1000W | weight: | 2KG |
Input voltage: | 12V/24V/48V | payment terms: | L/C, D/P, T/T, MoneyGram |
Output current: | 50A | brand: | Core China |
Warranty: | 12 months | model: | 3000W/2200W/1600W/1000W |
Origin: | Guangdong, China | The output voltage: | 110V/220V |
color: | red/custom | Serve: | 24 hours technical service |
Package preview: | | type: | DC/AC Inverter |
size: | 295*113*60MM | MOQ: | 1 |
Output frequency: | 50Hz/60Hz | output type: | single |
application: | Boost Switching Regulators | | |

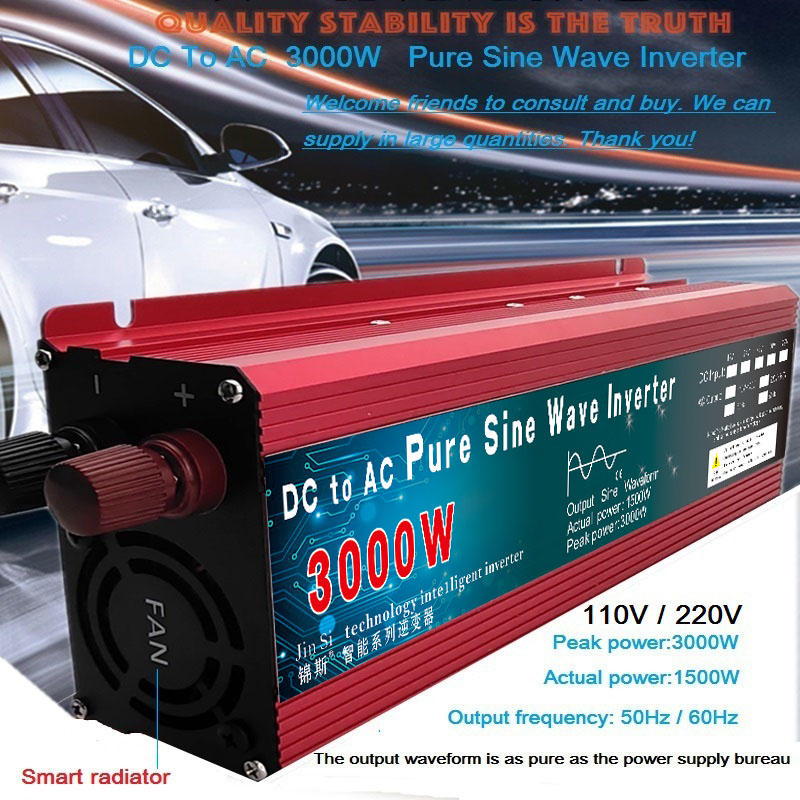

Product Description
product name | inverter |
type | brand new |
statue | stock available |
MOQ | 1 |
delivery time | 7 days |

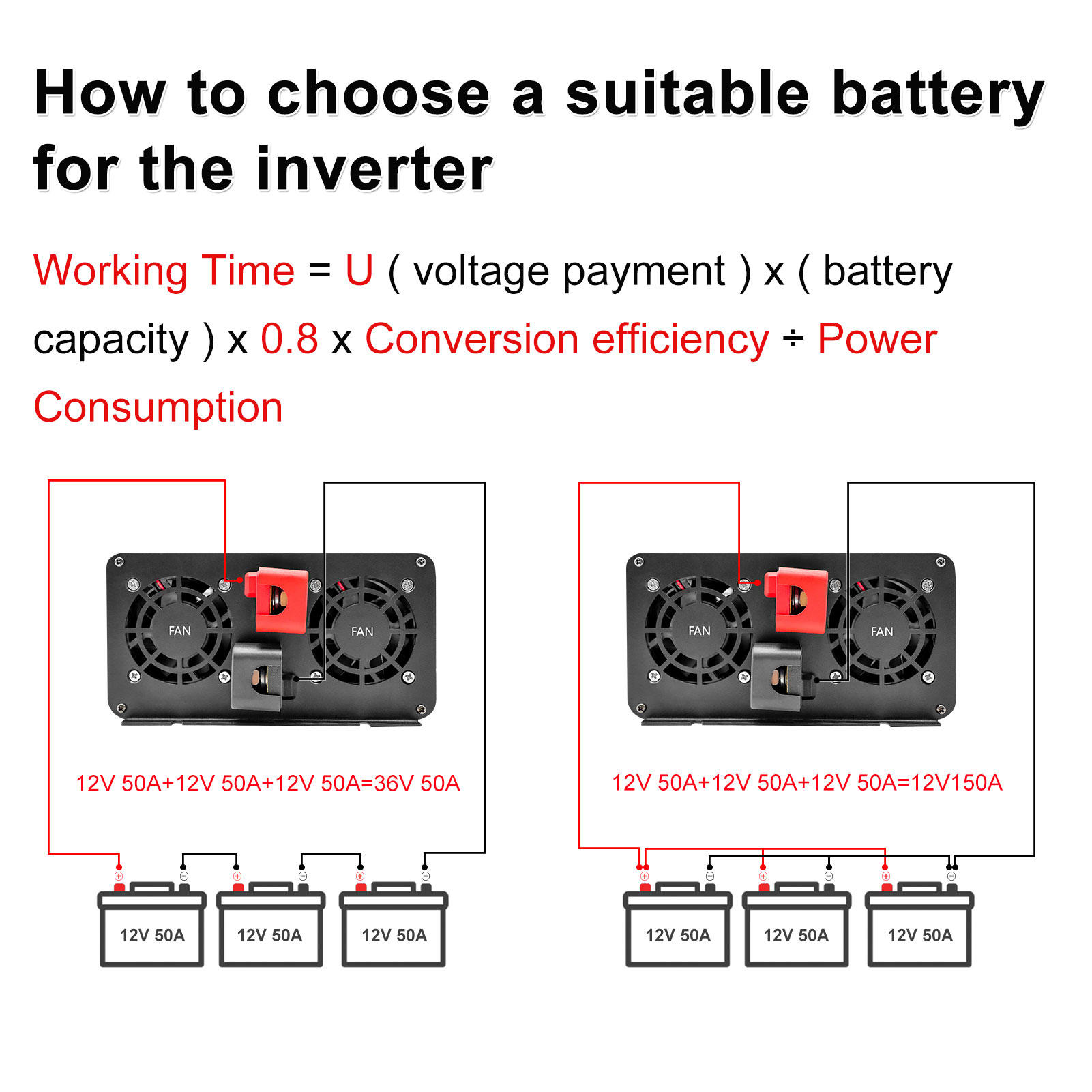

notes:Our pure sine wave inverter has an inductive load capacity of 95%, and the battery output DC power has very high requirements on the wire, please do not use it to increase the length of the wire. From the battery output to the inverter, use the original wiring. Unauthorized line extensions may cause insufficient input voltage/current. If an extension cord is to be used, it must be twice as thick as the original wiring. It is recommended not to exceed 1 meter. How long will the battery last? For car batteries, the voltage of a family car is generally 12V, and the voltage of a truck battery is 24V, so select an inverter with the corresponding voltage. 1. The formula for calculating battery power: p (power) = U (voltage volts) | (battery weight) 2. For example, a car 12V80AH battery, the power output power = 12V*80=960W, the conversion efficiency of the inverter is 90? Using 960*90?, it can be calculated that the maximum power of the battery is 864W. Working time = U (voltage volts) * 1 (battery capacity) * 0.8 * 0.9 Electric power example: battery 12V80AH battery with 220V100W light bulb Working time = 12V * 80AH * 0.8 * 0.9 / 100W = 6.912 hours Note: 0.8 is the battery discharge coefficient ( constant) 0.9 is inverter conversion efficiency (constant) Specifications: Type: pure sine wave Inverter output voltage waveform: pure sine wave Peak power: 3000W / 2200W / 1600W / 1000W Continuous power: 1500W / 1100W / 800W / 500W output Voltage: 110V, 120V, 220V, 230V, 240V (±10%) Input voltage: 12V/24V/48V/ Output frequency: 50Hz±2H/ 60Hz±2H Socket: Universal (common for sockets in various countries) Conversion efficiency: >90% overheating : Automatic shutdown of output and input low-voltage protection: 20Vdc±0.3V Input high-voltage protection: 30Vdc±0.3V Recovery voltage: 24V (25.5V±0.3) Over-temperature protection: 80°±5° Start: Soft-start start Fuse: Short-circuit protection: Overload , short circuit, over temperature, reverse polarity, undervoltage/overvoltagenotes:1. When using 12V/24V to connect the cigarette lighter wire in the car, please do not exceed 300W (12V car). 400W (24V truck). If this power is exceeded, please connect the battery output to the inverter, otherwise the car fuse will blow. 2. Please make sure the rated power is higher than the electrical appliances you want to apply. 3. If you want to run multiple devices at the same time, please refer to the total wattage. 4. If you want to run inductive loads for a long time, please choose a pure sine wave inverter. 5. Please use the standard battery cable we provide, otherwise the full power output may not be guaranteed. The spare fuse in the package is only for use when the original fuse is burnt out accidentally. 6. Do not connect the inverter to the mains, and it is strictly forbidden to reverse the positive and negative poles. 7. Do not overload. If your application is an inductive load, choose an inverter with a continuous power 3-7 times higher than the wattage of your appliance. Such as refrigerators, freezers, electric drills, washing machines, water pumps, microwave ovens, ovens, vacuum cleaners, hair dryers and other equipment with built-in motors. Please make sure the constant power of our inverter meets your needs before ordering, or consult us for more details.

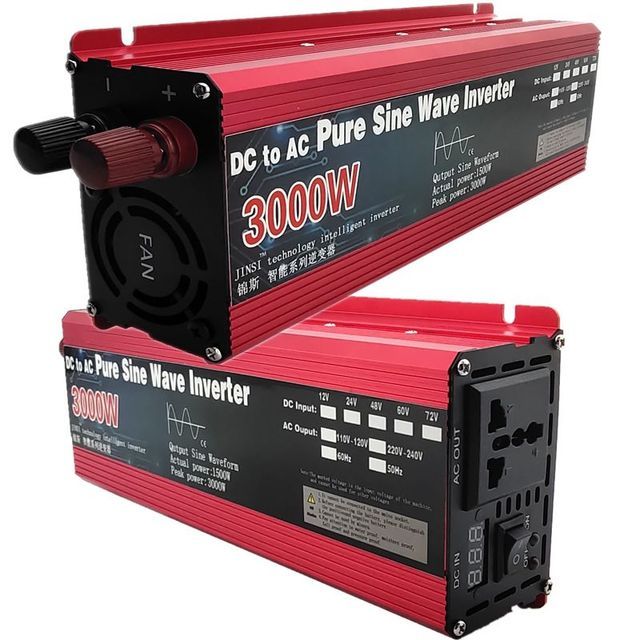

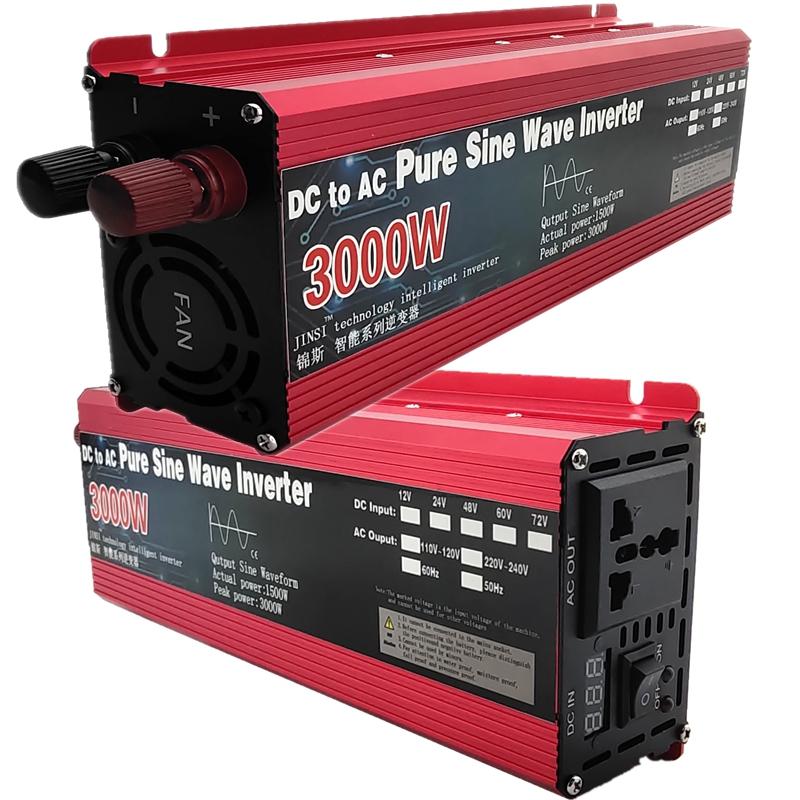

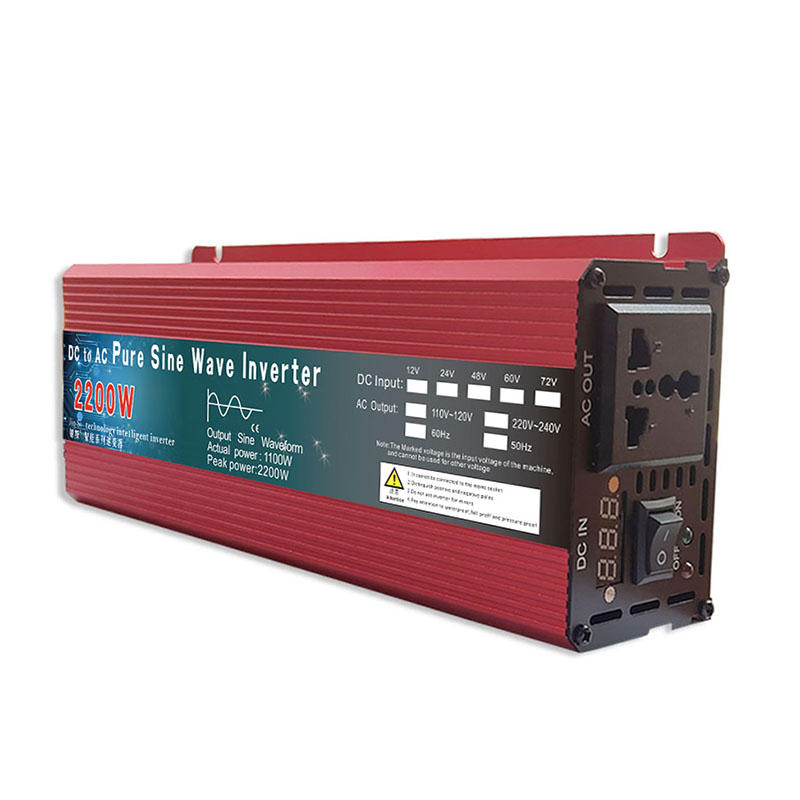

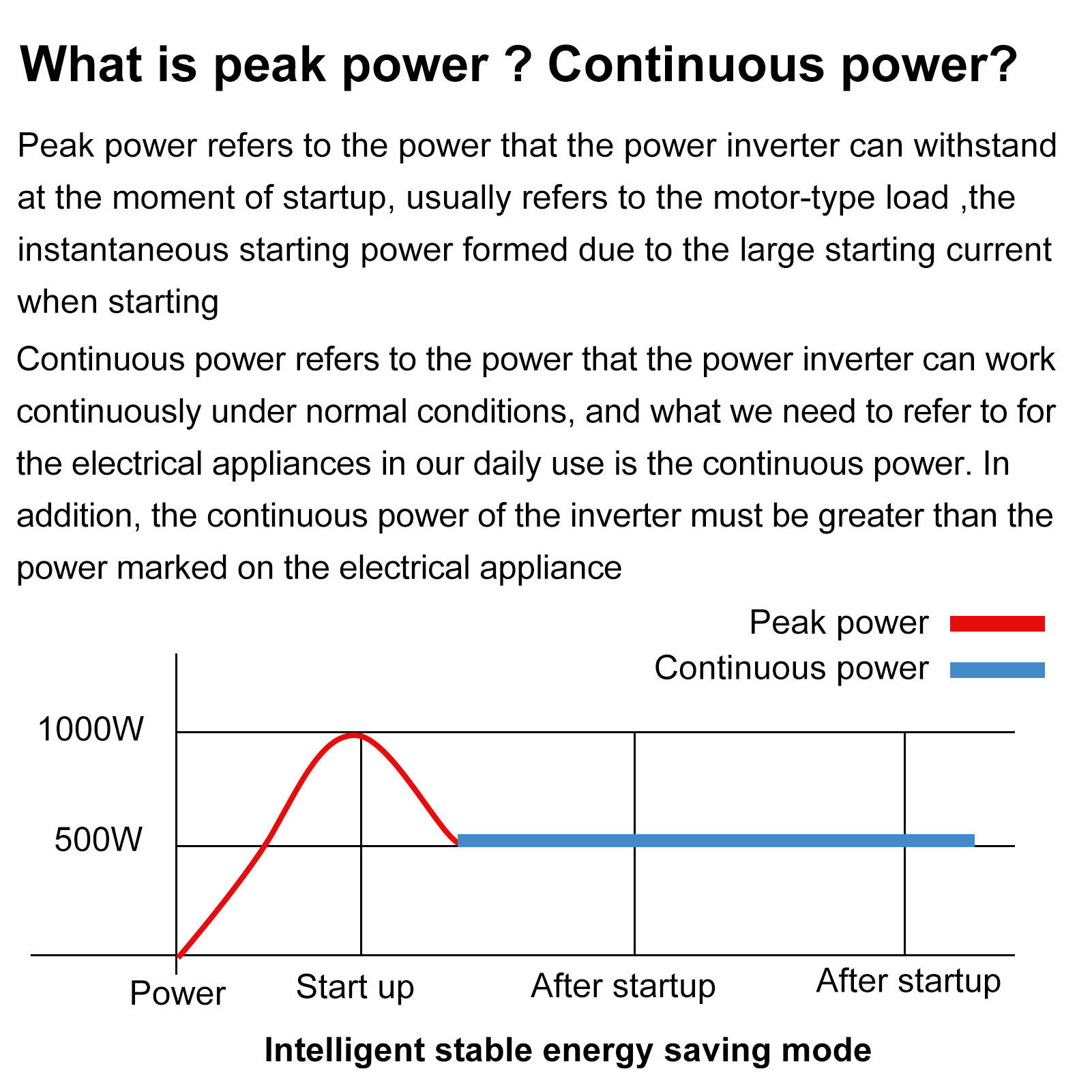

peak power | 3000W | 2200W | 1600W | 1000W |
rated power | 1500W | 1100W | 800W | 500W |

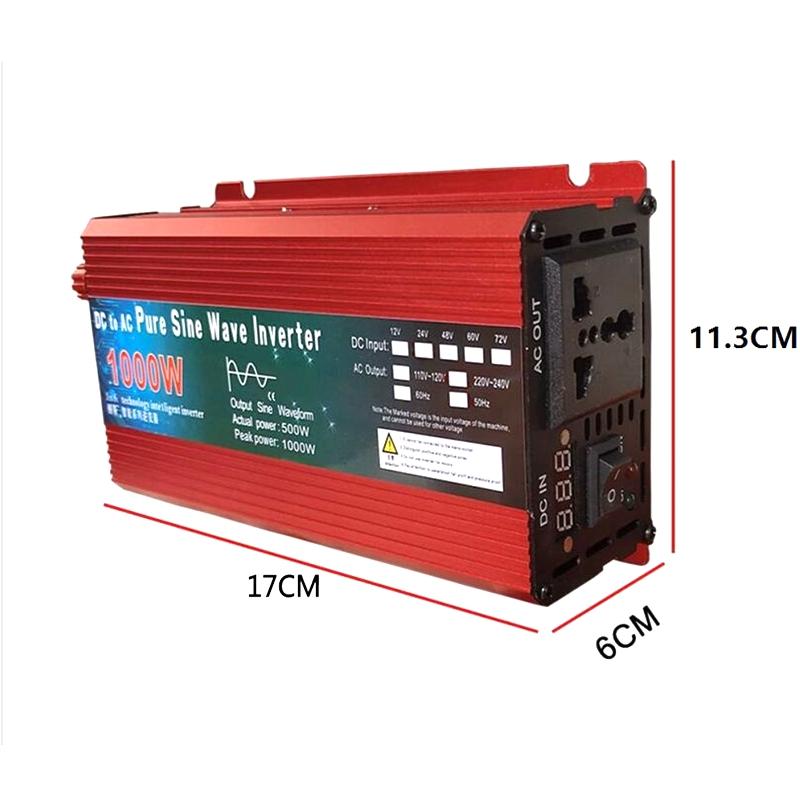

Inverter size | 295×113×6MM | 285×113×6MM | 250×113×6MM | 195×113×6MM |
weight | 3 kg | 2KG | 1.6 kg | 1.4 kg |
