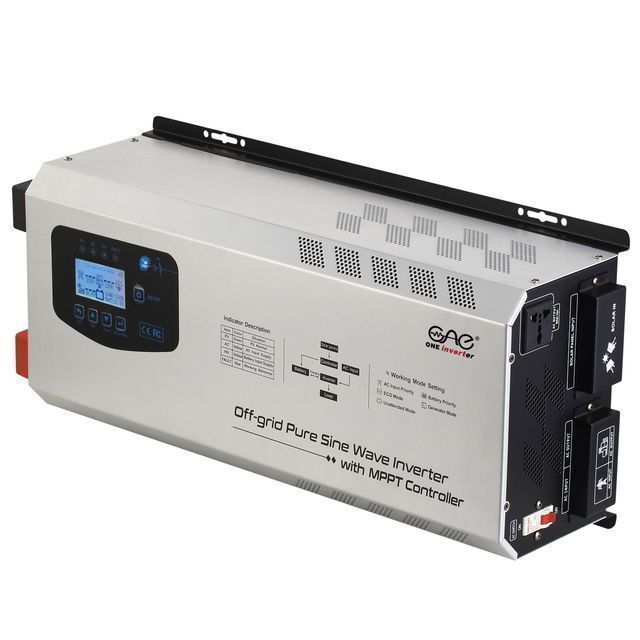

6KW 6000W 8KVA 8000VA Low Frequency Off Grid Hybrid Solar Inverter for Solar System

Click here to contact
Product details
brand:an inverterTransit time:4 milliseconds
rated power:6KWCertificate:CE FCC ROHS, CE FCC EMC ISO
output type:singleport:Guangzhou, China
Output current:35Atype:DC/AC Inverter
The output voltage:110/220VACPackaging Details:Carton
Warranty:12 months, 12 monthssize:65*44*22 cm
model:FTS-602place of origin; place of origin:Guangdong, China
payment terms:wire transfer, paypalweight:27.5KG
Input voltage:12/24/48VDCefficiency:92%
Inverter Efficiency:>92%exhibit:LCD + LED display
Output waveform:pure sine waveOutput frequency:50/60
Supply capacity:999999 sets per dayapplication:home solar system

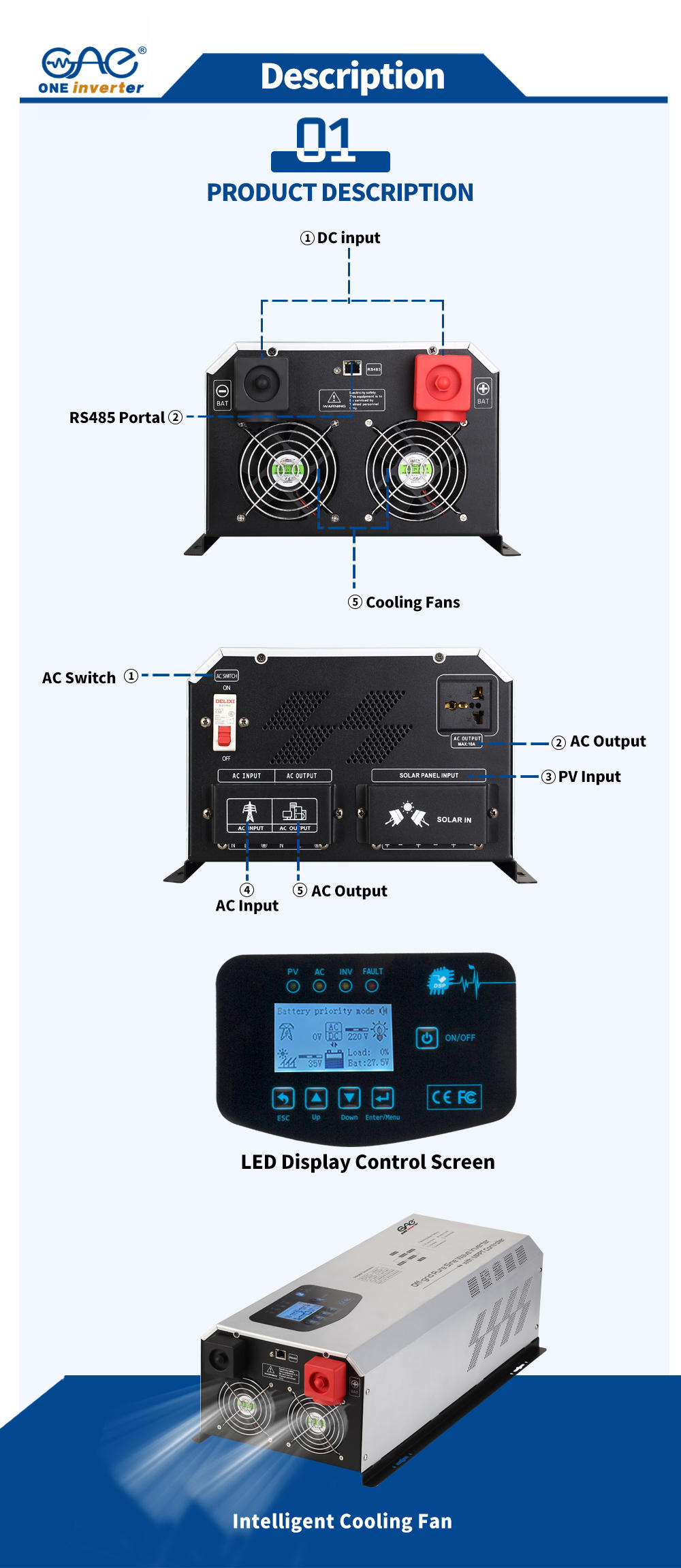

Product Description
Specification
Model
FTS-152
FTS-202
FTS-302
FTS-402
FTS-502
FTS-602
rated power
1.5KW
2KW
3KW
4KW
5KW
6KW
surge power
4.5KW
6KW
9KW
12KW
15KW
18KW
AC input and output
Voltage
220VAC
Selectable voltage range
165-275VAC (220VAC)
Frequency Range
50Hz/60Hz automatic identification
AC stabilized voltage
(DC Batt.mode) 220vac±3%
connecting time
≤4ms
waveform
pure sine wave
transformer type
ring
transmission efficiency
≥85%
Battery
battery voltage
12V/24V/48V
24V/48V
type
Gel/SLA/AGM/water/lithium (lifepo4) battery
DC charging voltage
12~16VDC(12V)/20~32VDC(24V)/40~64VDC(48V)
overcharge protection
Battery voltage≧16VDC (12V)≧32VDC (24V)≧64VDC (48V), stop charging after 60s alarm
Solar charging and AC chargers
type
MPPT solar charger controller
Maximum photovoltaic array operating circuit voltage
150VDC
Maximum photovoltaic array power
30A: 420W(12V)/840W(24V)/1650W(48V)
60A : 900W(12V)/1700W(24V)/3400W(48V)
60A:1700W(24V)/3400W(48V)
Maximum AC charging current
35A (adjustable)
Maximum Solar Charging Current
30/60A MPPT (optional)
60A Maximum Power Tracking
Maximum charging current
65A/95A
95A
Operating mode
01 mode
Mains priority mode
02 mode
eco mode
03 mode
DC Battery Priority Mode
04 mode
generator mode
05 mode
unattended mode
communication port
type
RS485, can be used for wifi box and external control screen
packaging details
aspect,
L*W*H(mm)
600*380*270
780*380*280
Gross weight (kg)
19
twenty one
twenty three
30
32
36
surroundings
humidity
0~95% (no condensation)
Operating temperature
0~60℃
Storage temperature
0~60℃
*Product specifications are subject to change without notice
