HSS Hexagon Broaches

  • Supplier: DEDICATED IMPEX COMPANY
  • Region: Punjab, India
  • Contact: Mr. Nitin Nath Mittal
  • Price: $15.00 / >=5 pieces
  • Min. Order: 5 pieces
Click here to contact
Product details
Place of Origin:Punjab India;HSS:M-2, M-35, M-42, ASP 2030, ASP 2052;
Model Number:HexagonalBroachingTool200;Port:NEW DELHI;
Packaging Detail:The packaging details are as under : 1.All the Broaching Tools are firstly cleaned by oil. 2.Then anti rust oil is applied to prevent any kind of rust. 3.Afterwards it is wrapped in a PVC Sheet. 4.Then final packaging is done in the Corrugated boxes or Wooden Boxes.;Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Brand Name:DIC TOOLS;Supply Ability:10000 Piece/Pieces per Month;
Product Description

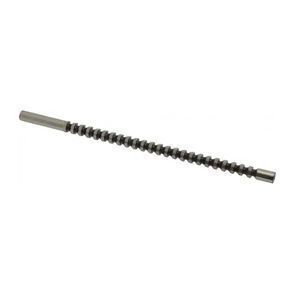

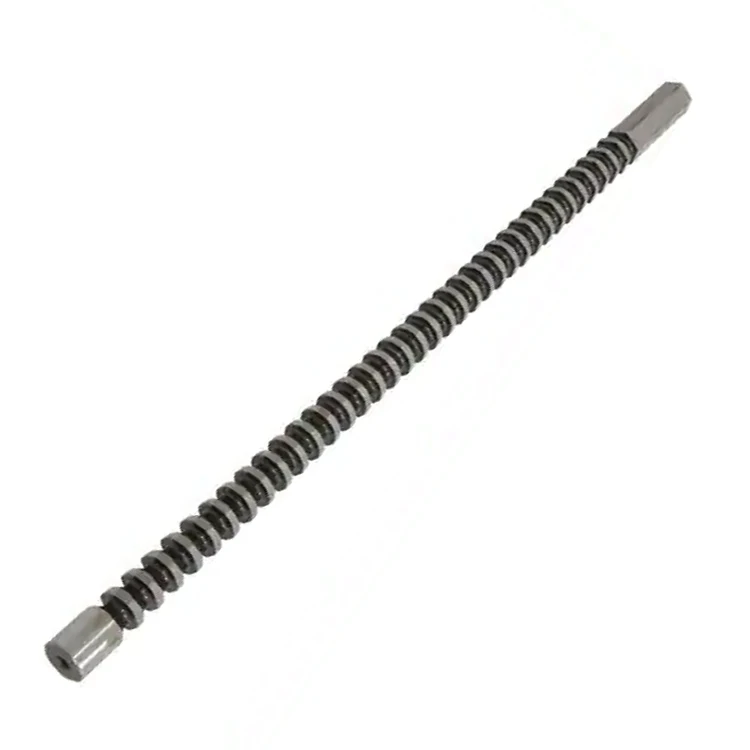

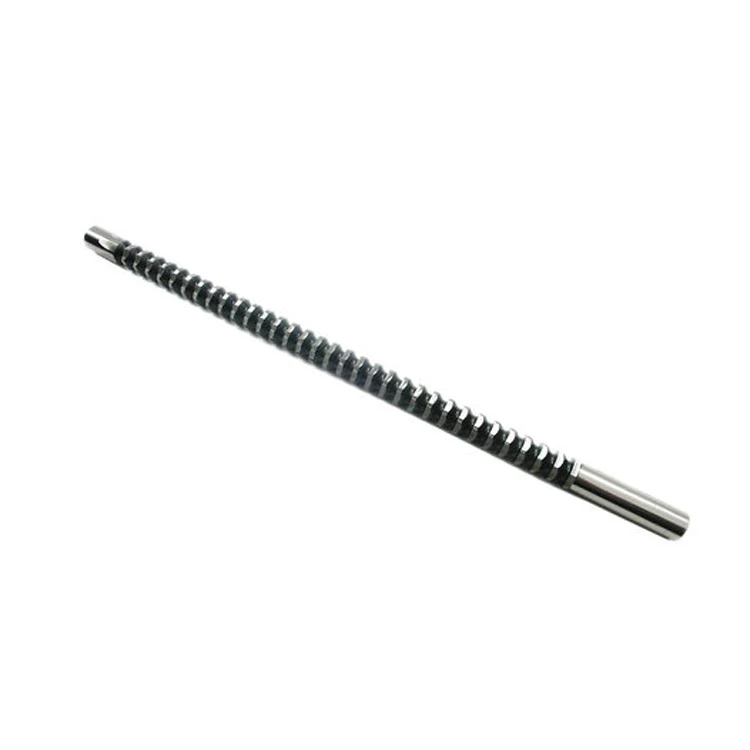

HSS Hexagon Broaches

 Specifications

1.HSS American Standard Inch Hexagon Broaches.

2.hexagon size: 1/8"~1".

3.Broach length:4 1/8~19 3/4.

4.Material: M2/M35.



Hexagon Size

Tolerances (Dec. Equiv.)

Broach Length

Pilot Diameter**

Drill Size (mm)

Dimension Across Corners

Length of Cut*min.-max.

Pressure Req'd for Max LOC*(lbs.)





4mm

.1575-.1580

4 15/16

0.1575

4,0

.1810-.1825

1/4 - 1/2

300



5mm

.1968-.1973

5 3/8

0.1968

5,0

.2260-.2275

1/4 - 3/4

775



6mm

.2362-.2370

6

0.2362

6,0

.2710-.2730

1/4 - 3/4

1025



7mm

.2756-.2764

7 1/4

0.2756

7,0

.3170-.3190

1/4/2001

1290



8mm

.3150-.3158

7 3/4

0.315

8,0

.3620-.3640

3/8/2001

1510



9mm

.3545-.3555

8 1/2

0.3543

9,0

.4090-.4110

3/8 - 1 1/4

2300



10mm

.3937-.3945

9 5/8

0.3937

10,0

.4530-.4550

1/2 - 1 3/8

2790



12mm

.4724-.4732

11 7/8

0.4724

12,0

.5430-.5450

1/2 - 1 3/8

2700



14mm

.5512-.5520

13 3/4

0.5512

14,0

.6350-.6370

1/2 - 1 5/8

4800



16mm

.6302-.6310

16 1/4

0.6299

16,0

.7250-.7270

5/8/2002

5400





Packaging & Shipping

The packaging details are as under :

1. These Tools are firstly cleaned by oil.

2. Then anti-rust oil is applied to prevent any kind of rust.

3. Afterward, it is wrapped in a PVC Sheet.

4. Then final packaging is done in the Corrugated boxes or Wooden Boxes.

Company Information



 Dedicated Impex Company is well-reputed manufacturer and exporter of HSS & Carbide Cutting Tools. Our products are manufactured by using best material and modern techniques, which make them extremely up to the standard in this challenging domain. The offered products are highly appreciated among customers due to their corrosion resistance, robust design, optimum finish, and high tensile strength. Also, these are available in various sizes, dimensions, and patterns in order to meet the requirements of customers.

DIC TOOLS consider quality as an integral aspect of our process as it's not only for satisfies customers but also imparts us with a feeling of contentment. Quality is our mission. We maintain a strict quality management policy, which is religiously practiced within the organization.

FAQ

Q1: Are you manufacturer & exporter??

A1: Yes, we are manufacturer & exporter.



Q2: What is your Core Products?

A2: Our Main Product is HSS & Carbide Cutting Tools.



Q3: What’s Warranty of your product?

A3: One year Warranty for all products



Q4: How long is your delivery time??

A4: 15 days to 20 days for normal order, Delivery time depends on order Qty.



Q5: free of cost sample?

A5: Depending on your order quantity, after confirmed order.
