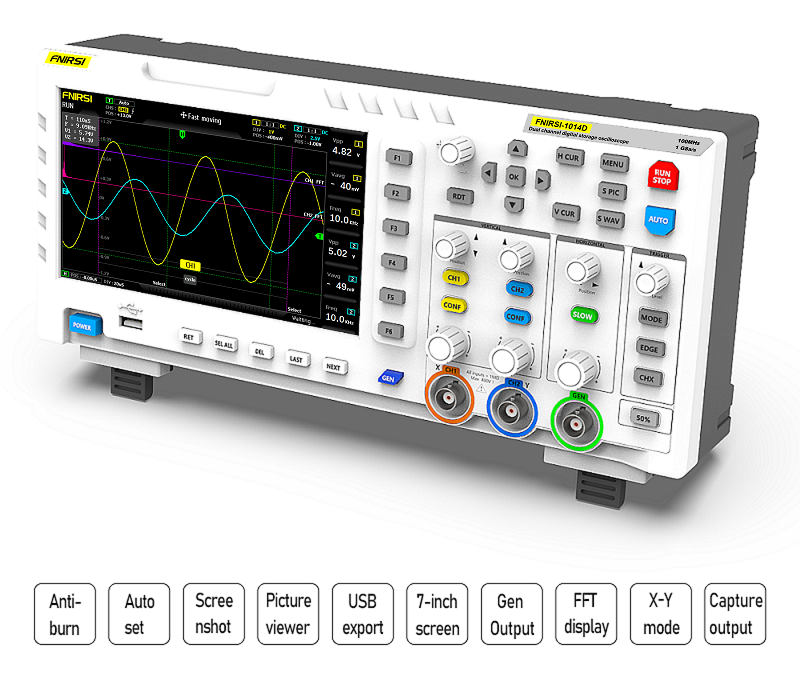

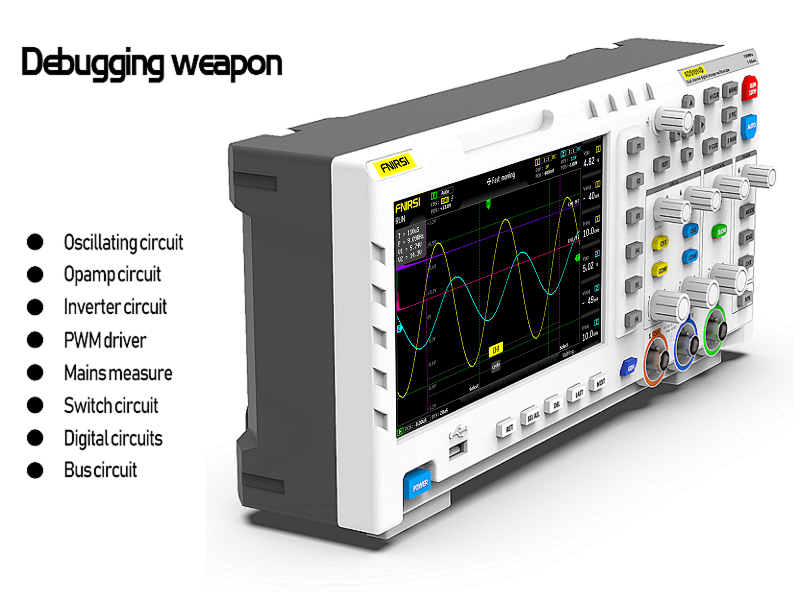

FNIRSI-1014D Digital Oscilloscope 2 in 1 Dual Channel Input Signal Generator 100MHz* 2 Analog Logarithmic Bandwidth 1GSa/s Sampling Rate

FNIRSI-1014D Product Brochure:

https://www.mediafire.com/file/ppeajlhbdm1szo4/FNIRSI-1014D+Product+Manual.pdf/file

introduce:

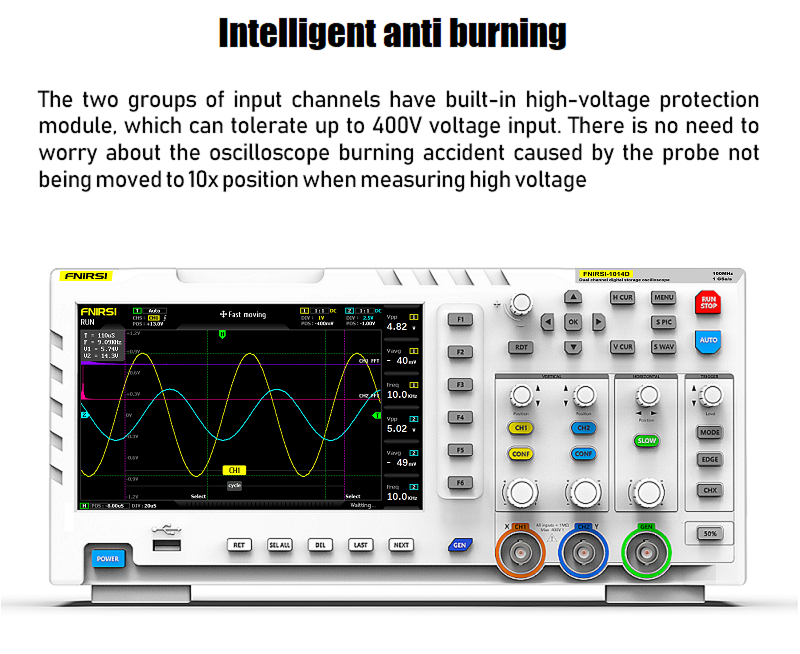

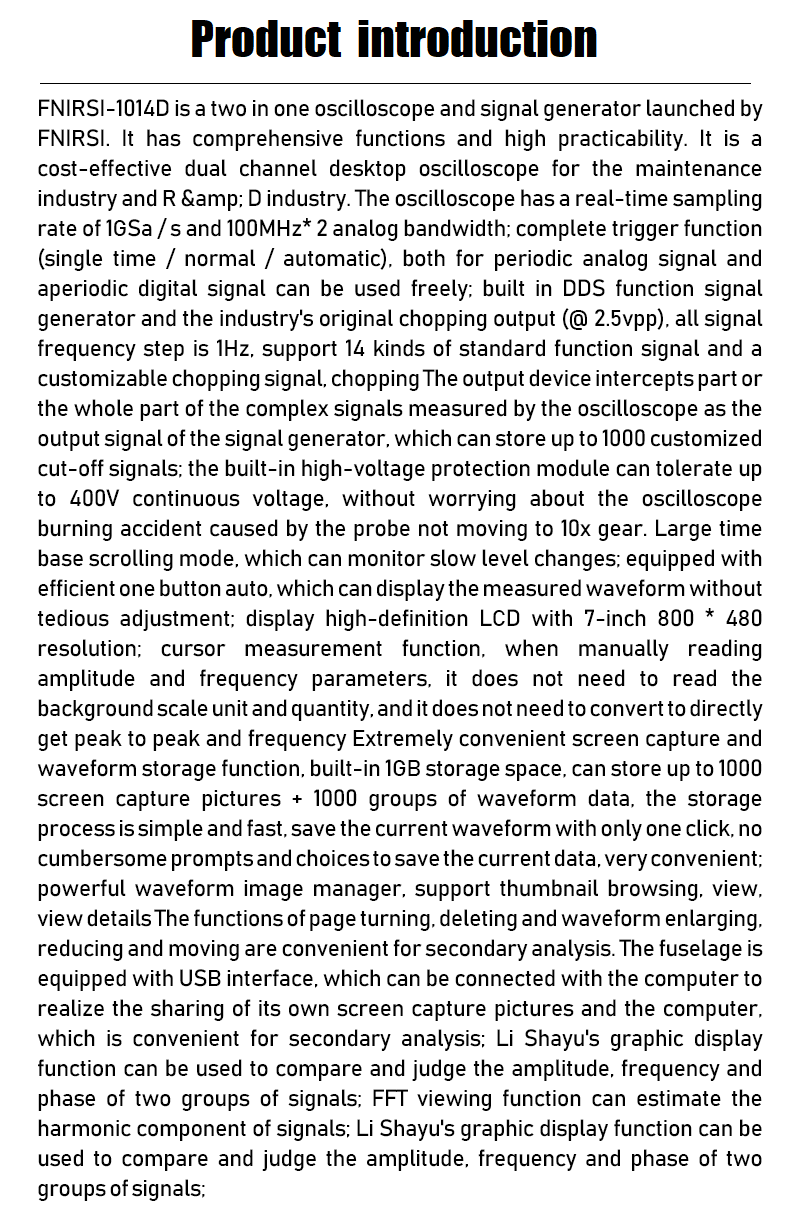

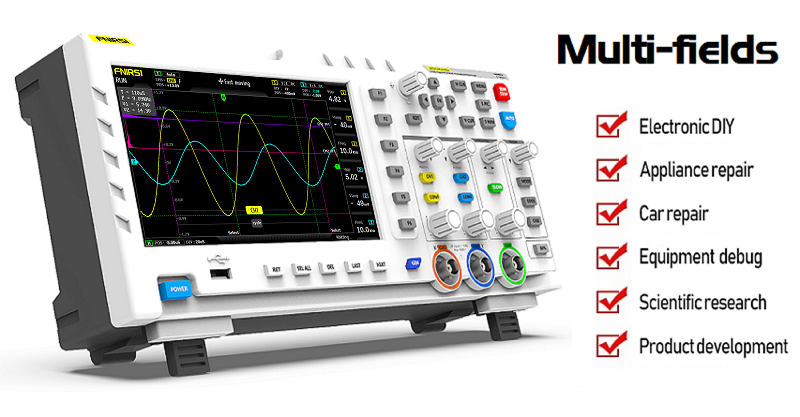

FNIRSI-1014D is a two-in-one oscilloscope and signal generator launched by FNIRSI. Comprehensive functions and strong practicability. It is a cost-effective dual-channel desktop oscilloscope for the maintenance industry and R&D industry. The oscilloscope has a real-time sampling rate of 1GSa/s and an analog bandwidth of 100MHz*2; complete trigger functions (single/normal/automatic), both periodic analog signals and non-periodic digital signals can be used freely; built-in DDS function signal generator And the industry's original chopping output (@2.5vpp), all signal frequency steps are 1Hz, support 14 kinds of standard function signals and a customizable chopping signal, the chopping output device intercepts part or all of the complex signals measured by the oscilloscope As the output signal of the signal generator, it can store up to 1000 custom cut-off signals; the built-in high-voltage protection module can withstand continuous voltage up to 400V, so there is no need to worry about the oscilloscope burning accident caused by the probe not moving to the 10x position. Large time base scrolling method, which can monitor slow level changes; Equipped with an efficient one-key automatic display of measurement waveforms, without cumbersome adjustments; 7-inch 800*480 resolution high-definition LCD display; Cursor measurement function, manual reading of amplitude and frequency When parameterizing, there is no need to read the background scale unit and quantity, and there is no need to convert, and the peak-to-peak value and frequency can be obtained directly. Very convenient screen capture and waveform storage function, built-in - 1GB storage space, can store up to 1000 screen capture pictures + 1000 sets of waveform data, storage The process is simple and fast, save the current waveform with one key, without cumbersome prompts and options to save the current data, very convenient; powerful waveform image manager, supports thumbnail browsing, viewing, viewing details page turning, deletion and waveform zoom in, zoom out, Mobile and other functions are convenient for secondary analysis. The fuselage is equipped with a USB interface, which can be connected to the computer to realize the sharing of screenshots of itself and the computer, which is convenient for secondary analysis; Li Shayu’s graphic display function can compare and judge the amplitude, frequency, and phase of two groups of signals; FFT viewing function Can estimate the harmonic component of the signal; Li Shayu's graphic display function can compare and judge the amplitude, frequency and phase of two groups of signals;

feature:

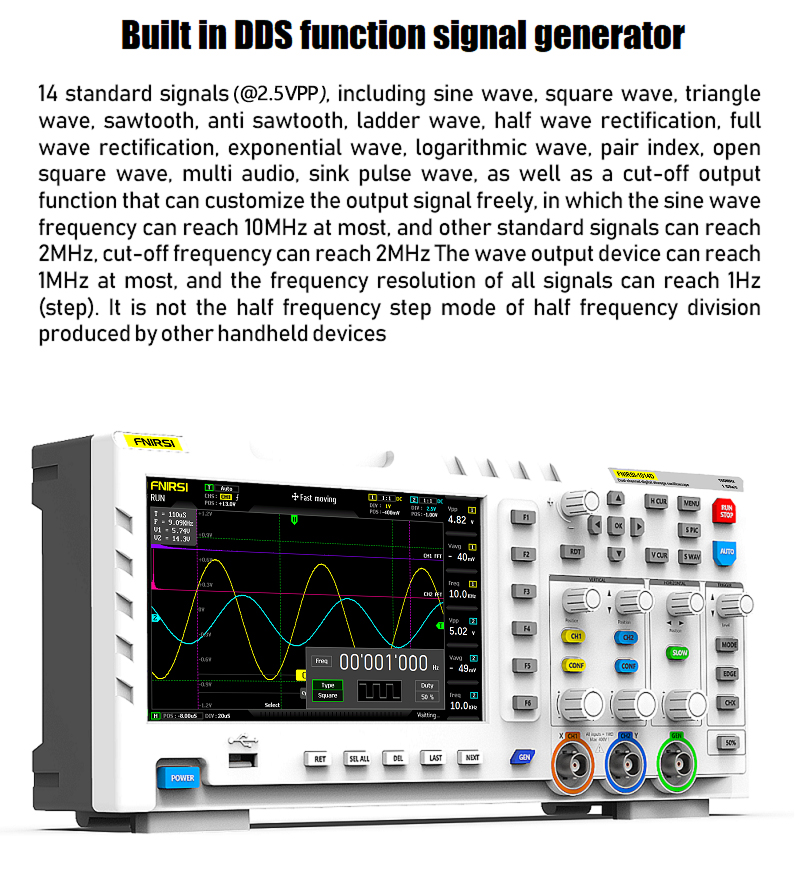

Built-in DDS signal generator, supports 12 kinds of function signals.

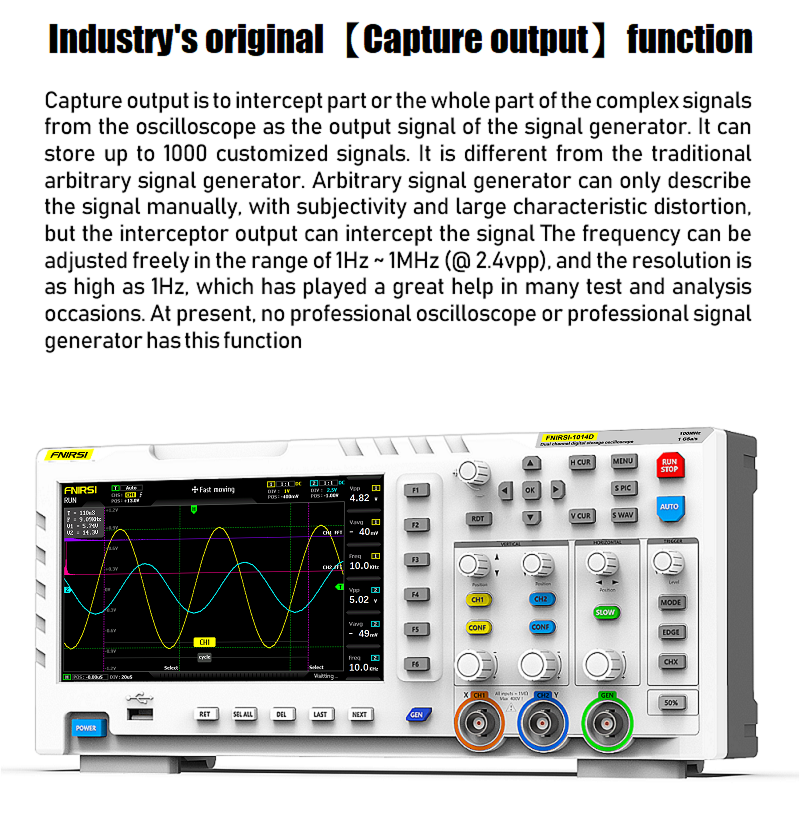

Capture output signal function, can store up to 1000 captured signals.

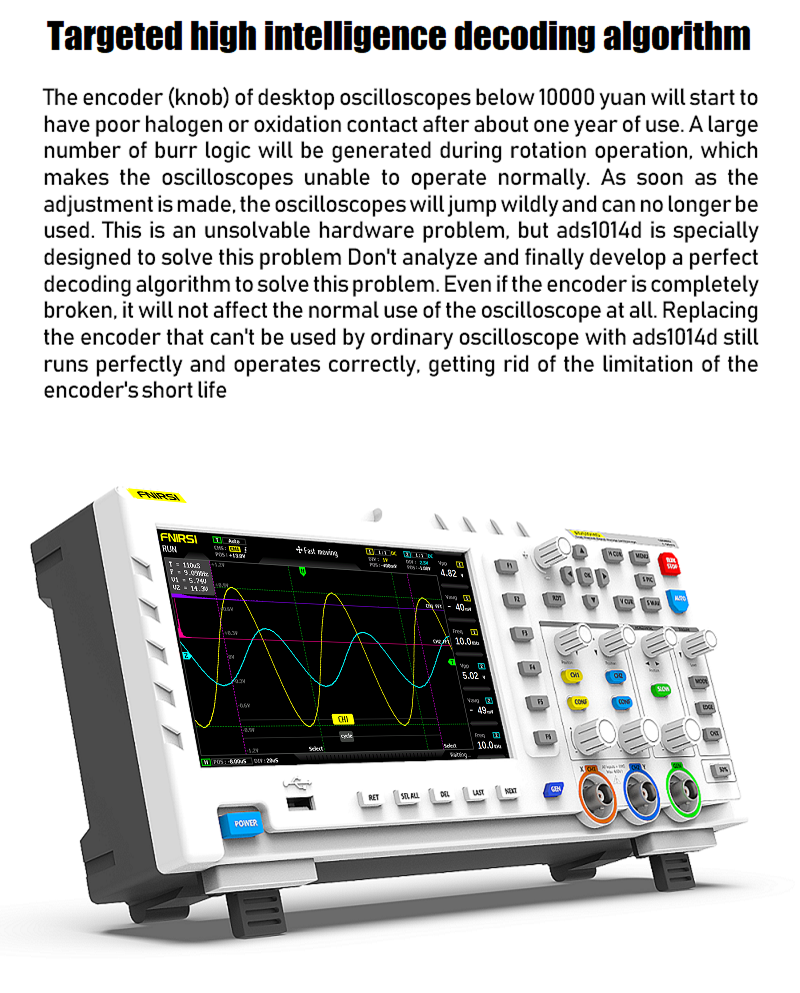

For the highly intelligent decoding algorithm, the encoder has unlimited life, intelligent anti-burn function, and 1X can withstand a maximum voltage of 400V.

With 100MHz * 2 analog log bandwidth and @1GSa/s sampling rate (1X = 5MHz, 10X = 100MHz).

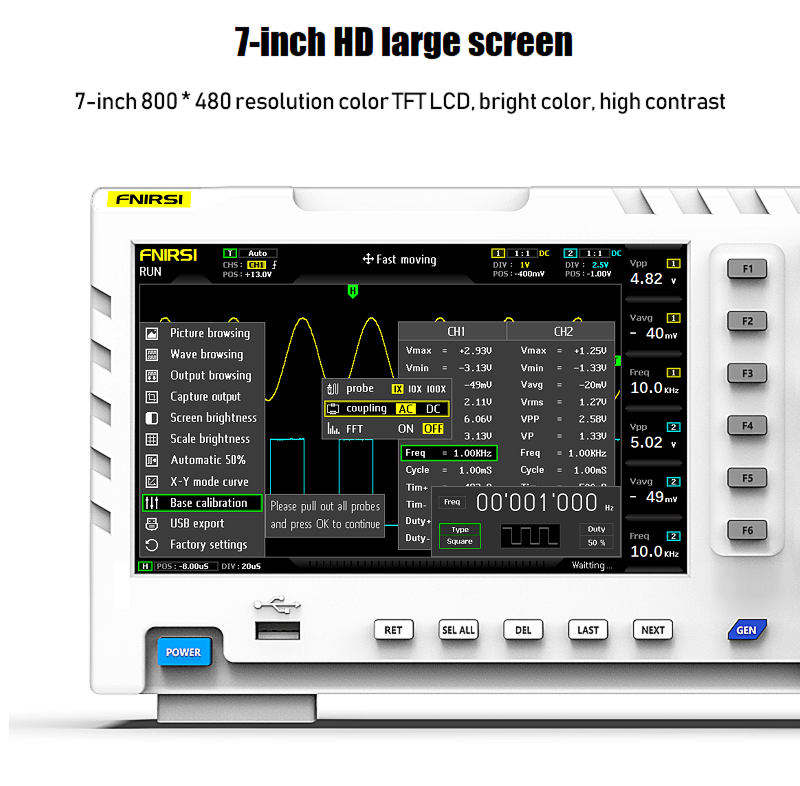

Fully fit the 7-inch 800*480 resolution color TFT LCD screen with bright colors and high contrast.

High measurement voltage range: 1X can measure 0~40V, 10X can measure 0~400V.

Up to 12 parameter measurements: VPP VP Vmax Vmin Vavg Vrms Frequent Duty+ Duty- Time+ Time- Period.

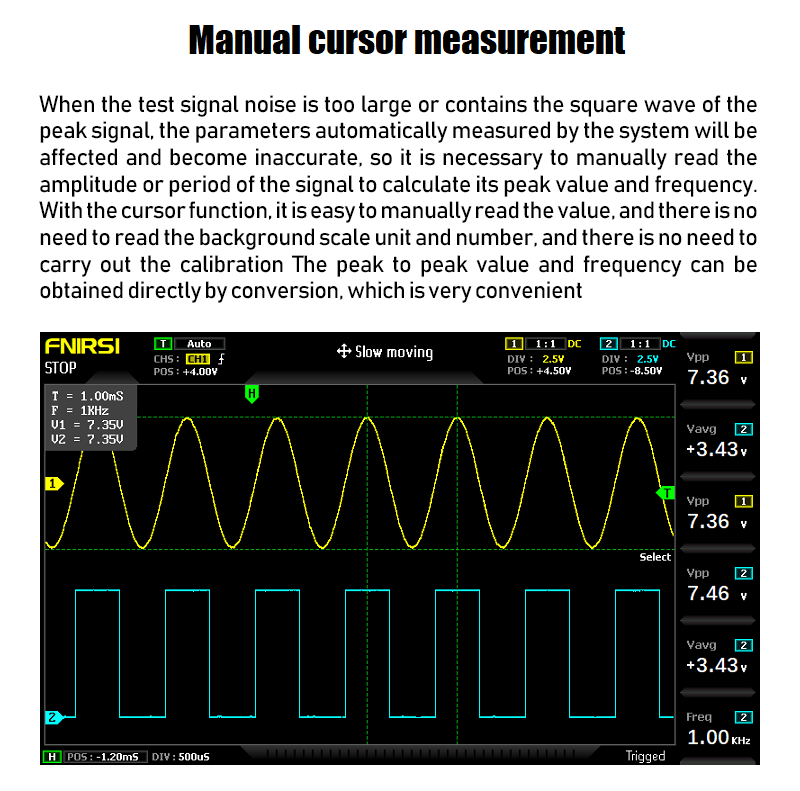

Cursor measurement function: convenient for manual measurement of period, frequency and voltage.

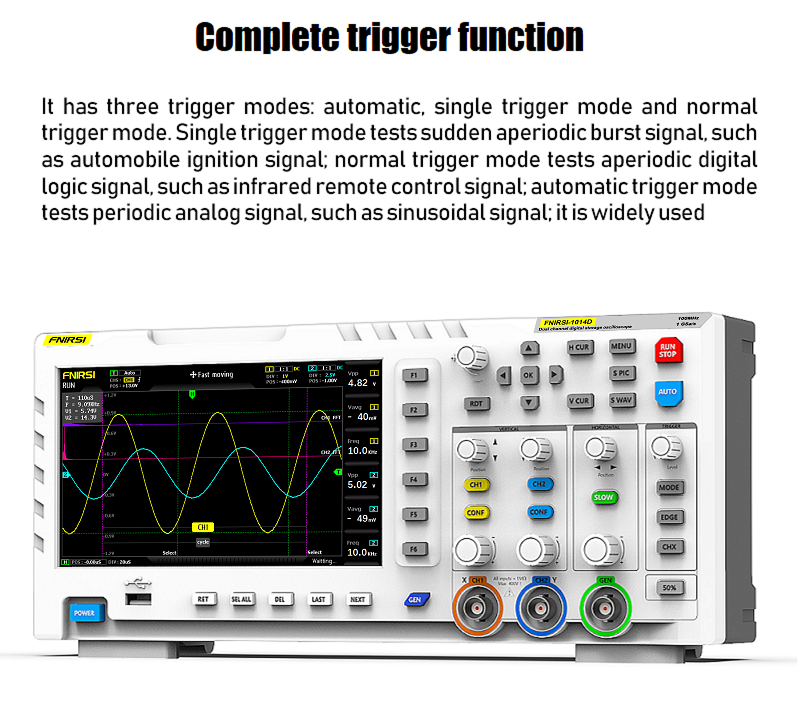

Perfect trigger function (single, normal, automatic), freeze waveform display at any time (pause function).

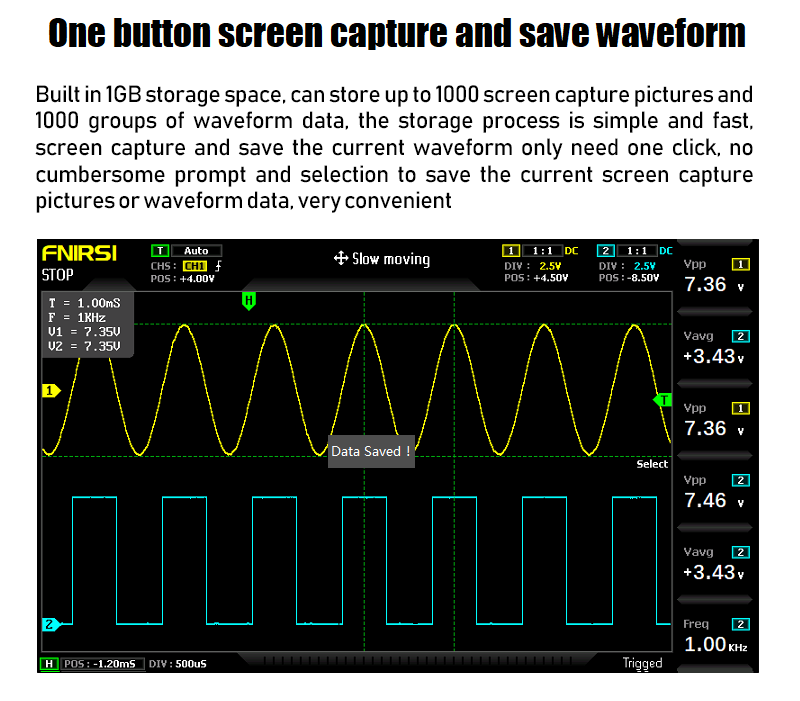

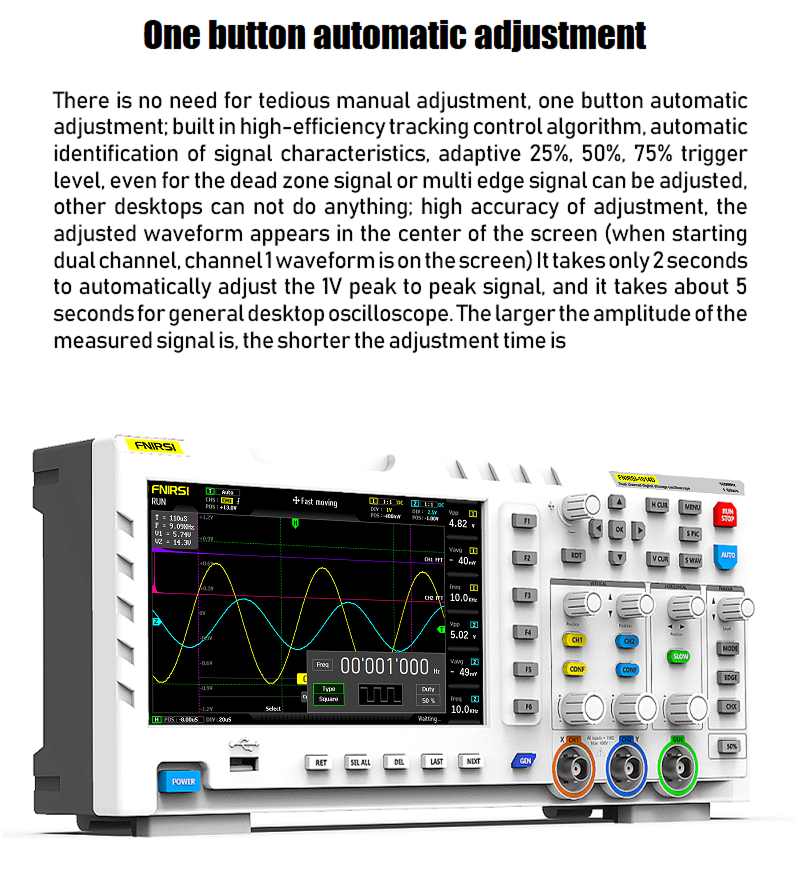

Equipped with efficient one-key AUTO, one-key waveform storage and screenshot functions.

Built-in 1GB storage space, can store up to 1000 screenshots + 1000 sets of waveform data.

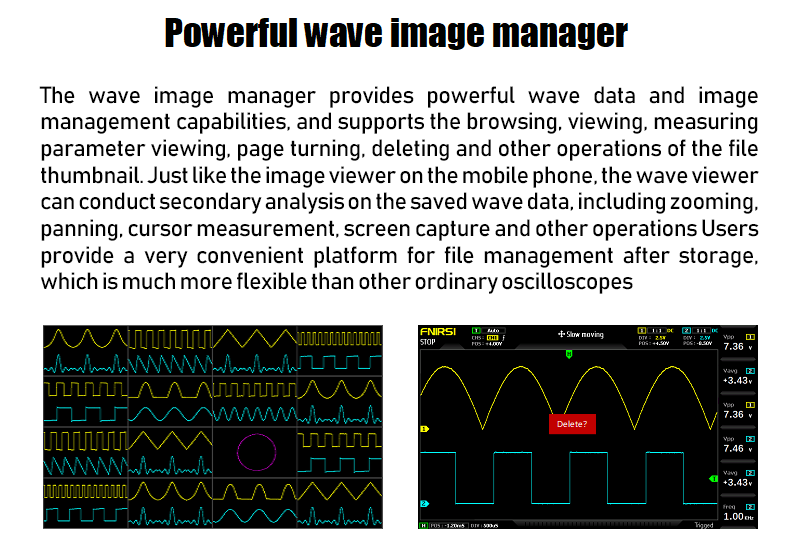

Powerful waveform image manager, supports thumbnail browsing, viewing, detailed viewing, page turning, deletion and waveform zooming in, zooming out, moving, etc.

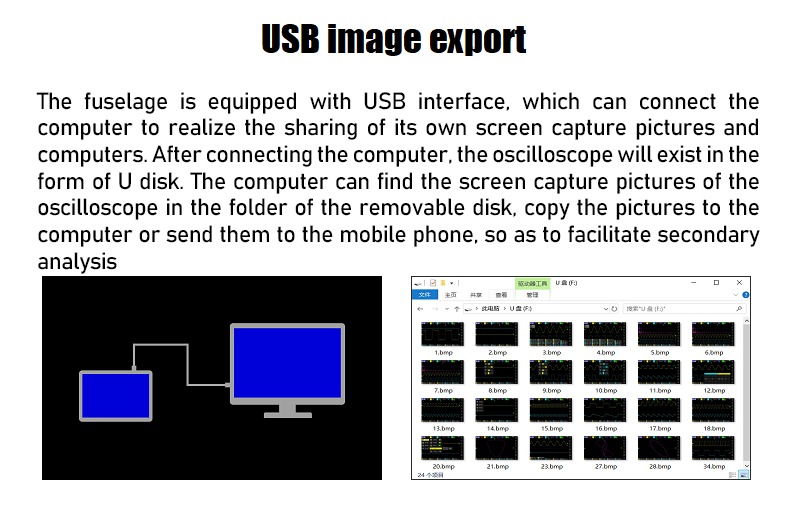

Equipped with a USB interface, it can be connected to a computer to share screenshots with the computer, which is convenient for secondary analysis.

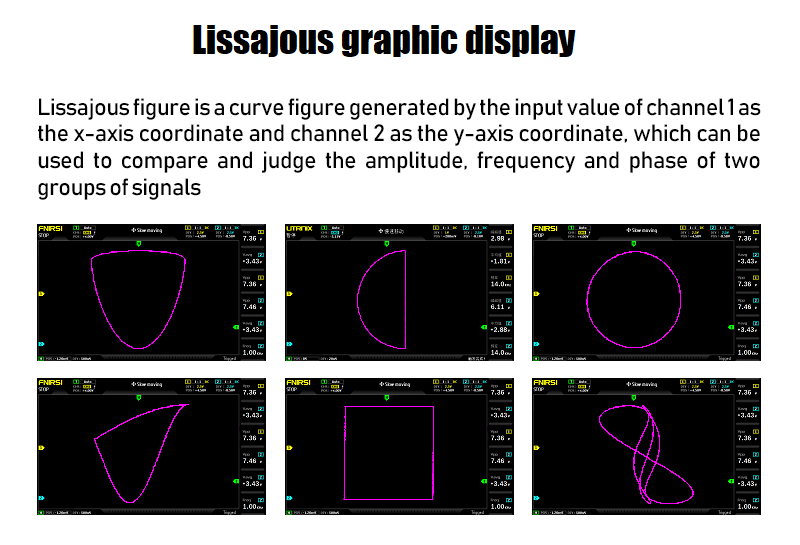

The Lissajous graph display function can be used to determine the magnitude, frequency and phase comparison of two sets of signals.
FFT display function, can analyze the spectrum characteristics of the signal, memory compression technology, the waveform refresh screen does not flicker.
With screen brightness adjustment function and background grid brightness adjustment function, it is easy to carry.

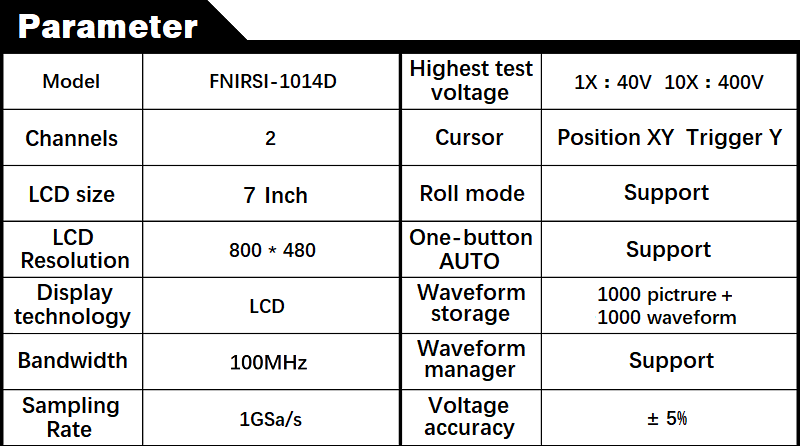

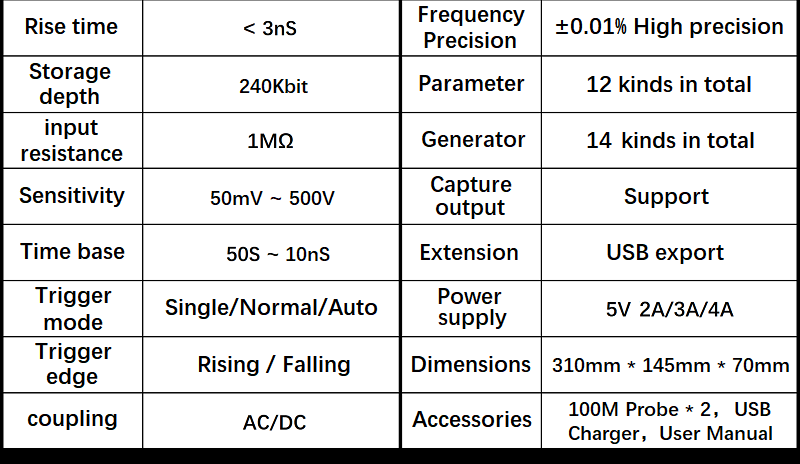

Specification:

Material: ABS

Analog log bandwidth: 100MHz * 2

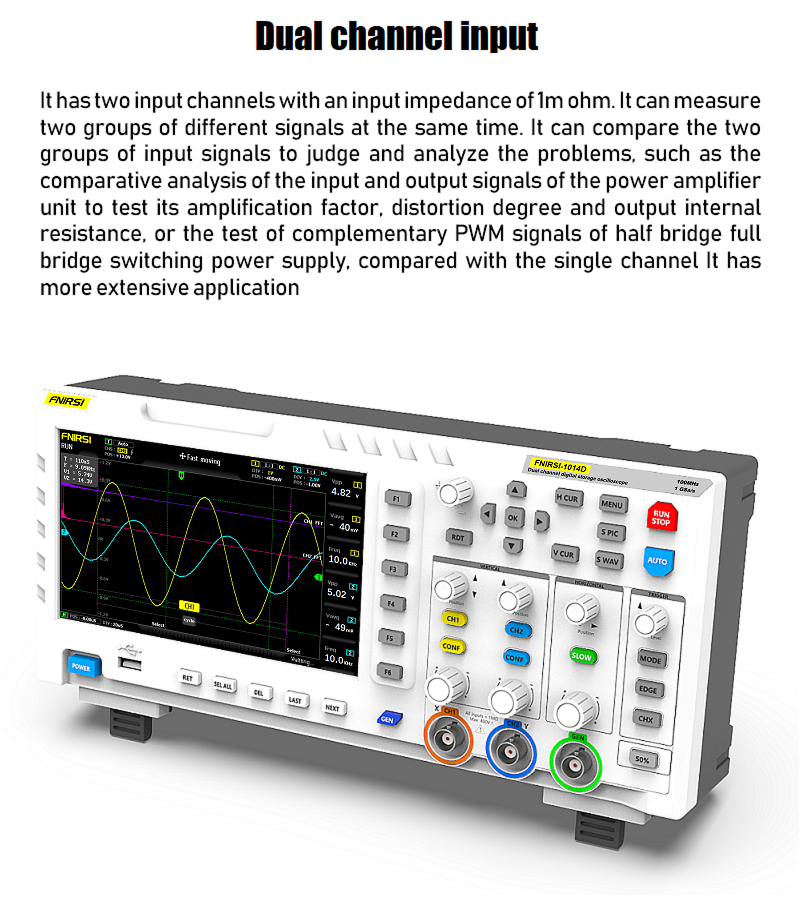

Number of channels: 2 channels

Maximum real-time sampling rate: 1GSa/s

Vertical sensitivity: 50 mV/div ~ 500 V/div

Horizontal time base range: 50S/div～10nS/div

Maximum test voltage: 40 V (1X probe), 400 V (10X probe)

Storage depth: 240Kbit

Input resistance: 1M

ADC precision: 8bits

Coupling method: AC/DC

Trigger mode: single, normal, automatic

Trigger edge: rising edge/falling edge

External trigger voltage 0~40 V

Expansion port: USB picture export

Package size: 340 * 140 * 70mm / 13.4 * 5.5 * 2.8in

Package Weight: 1500g/3.3lbs

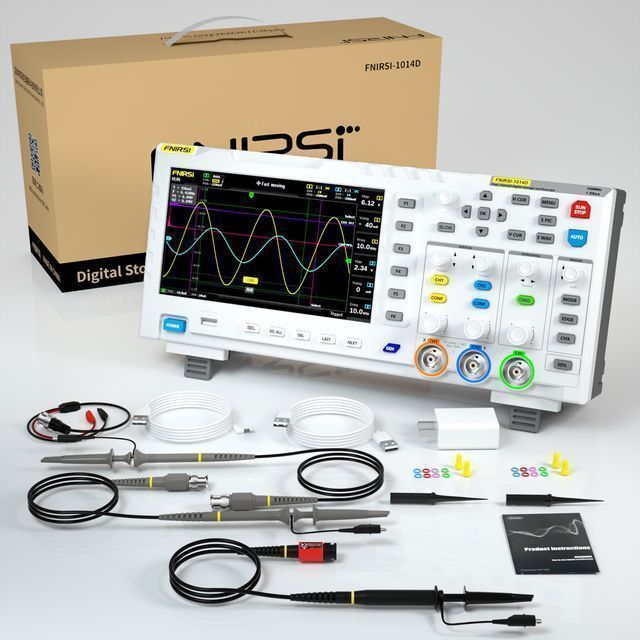

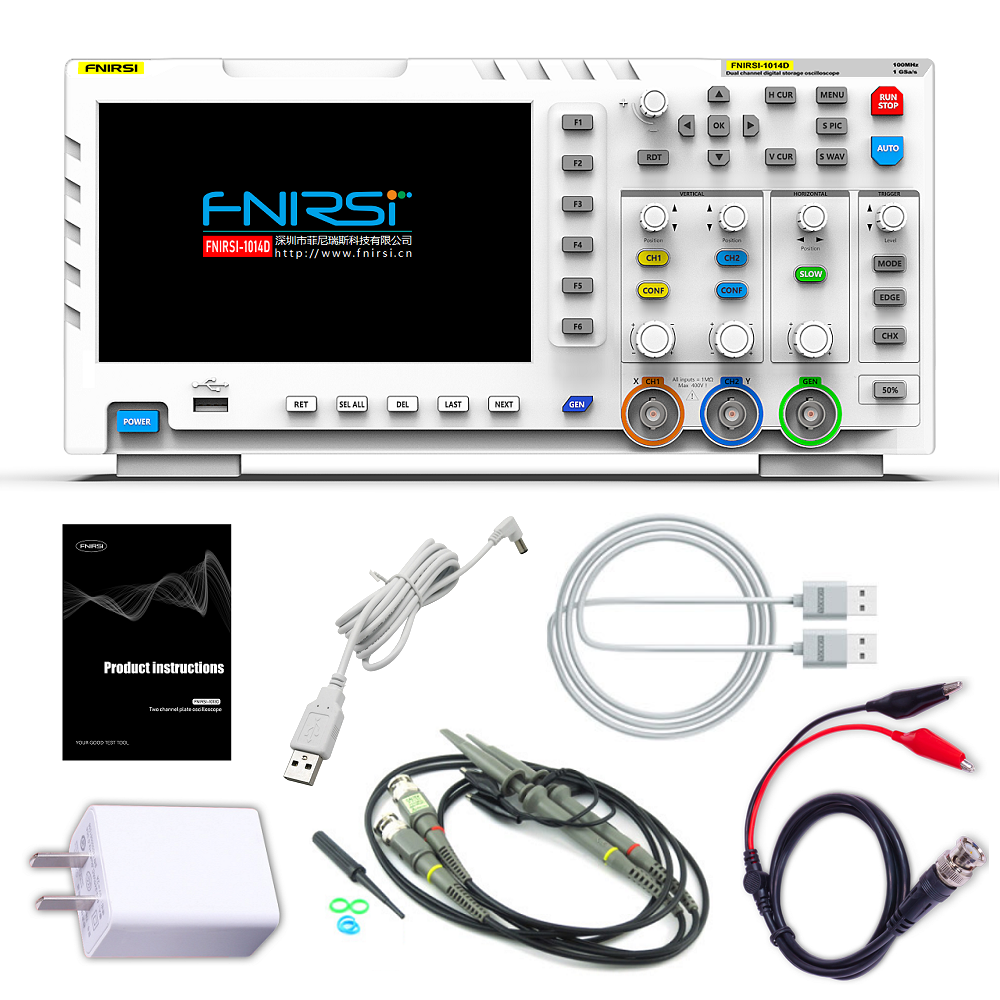

packing list:

1 * FNIRSI-1014D oscilloscope host

2 * matched 100MHz probes (1X and 10X

1*clip

1 * 5V2A power adapter

1 * USB data cable

1 * English User Manual
