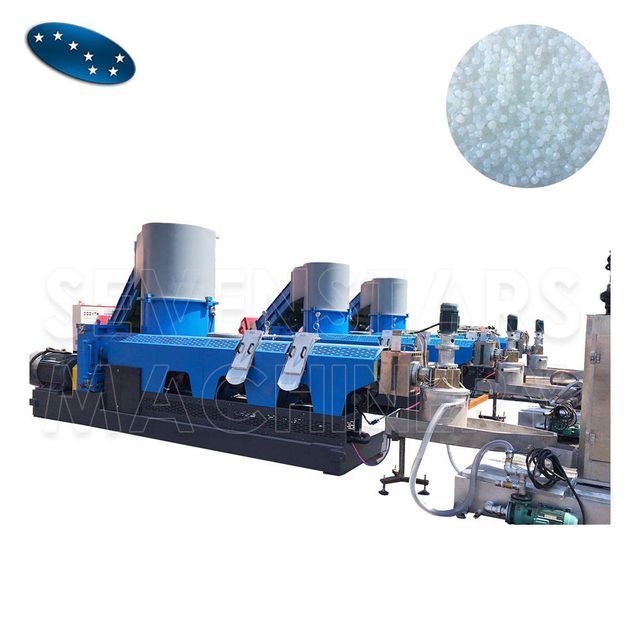

Pp Pe Plastic Film Recycling/Pelletizing/Pelleting Machine

Product details
capacity:100-1000kg/hourCore components:PLC, engine, bearing, gearbox, motor, pressure vessel, gear, pump
Applicable industries:plastic recyclingMaterial:Polypropylene/polyethylene
Weight (kg):3600Core component warranty:1 year
Function:make particlesWarranty:1 year
brand:BDXGranulation type:Water Ring Cutting / Strand Cutting
Health status:newMain selling points:automatic
Package preview:Dimensions (L*W*H):machine model
Number of extruders:one-stage or two-stageFeeder type:Force feeder or compactor
Mechanical test report:ifRecycled material:PE PP film bag
Showroom location:Saudi Arabia, Morocco, Chile, Colombia, Romania, UzbekistanPackaging Details:Seaworthy packaging
Origin:Jiangsu, Chinastrength:37-200kw
Plastic Type:Bopp,PP/PE,PC,ABS,PET,PScolor:custom made
Marketing Type:2019 Hot Productspayment terms:L/C, T/T
Video shipment inspection:ifElectrical components:Siemens, ABB, Schneider
Product Description
application:
The compacting granulator is suitable for the recycling and granulation of various plastic wastes, such as
PE, HDPE, LDPE, PP, BOPP plastic film, bags, fibers, rope waste, etc. Films can be compressed in a compressor and then
be granulated.
1. Applicable plastic materials: PE, HDPE, LDPE, PP, BOPP, PET, PA/Nylon, etc.
2. Material shape: film, bag, fiber, rope scraps.
3. Material type: roll, bulk, bundle.
4. The materials come from leftover materials, industrial defective materials, washed materials and printing materials.
Note: Depending on the material properties, different downstream equipment is required.
Process flow:
Belt conveyor→metal detector→film agglomerator/compactor→single screw extruder→hydraulic filter exchanger→die head→water ring cutting→dehydrator→vibrator→air dryer blowing system→storage hopper → Finished product packaging.
Detailed description of each item:

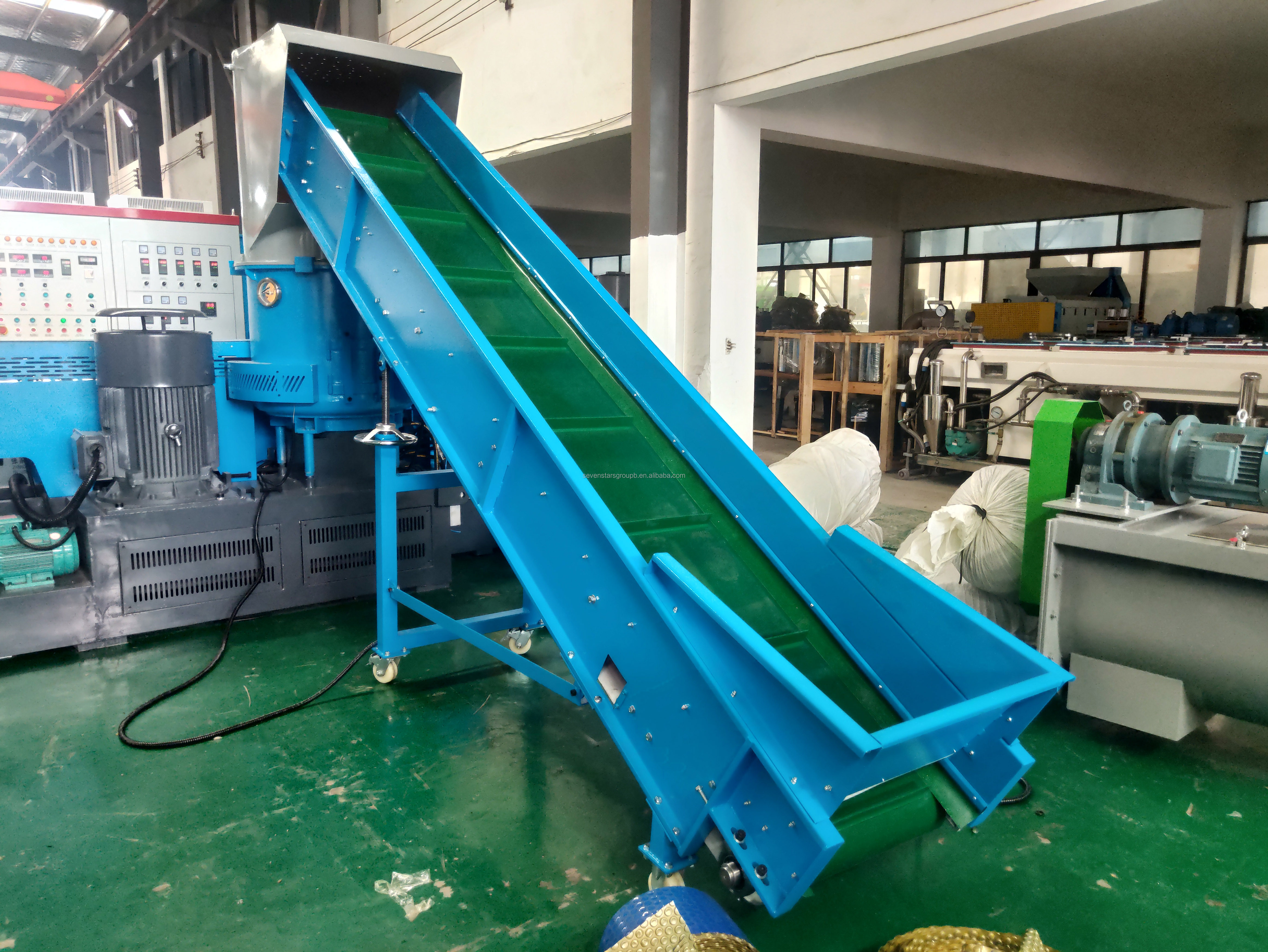

1. Belt conveyor: convey PP PE film or sheet to the compactor.

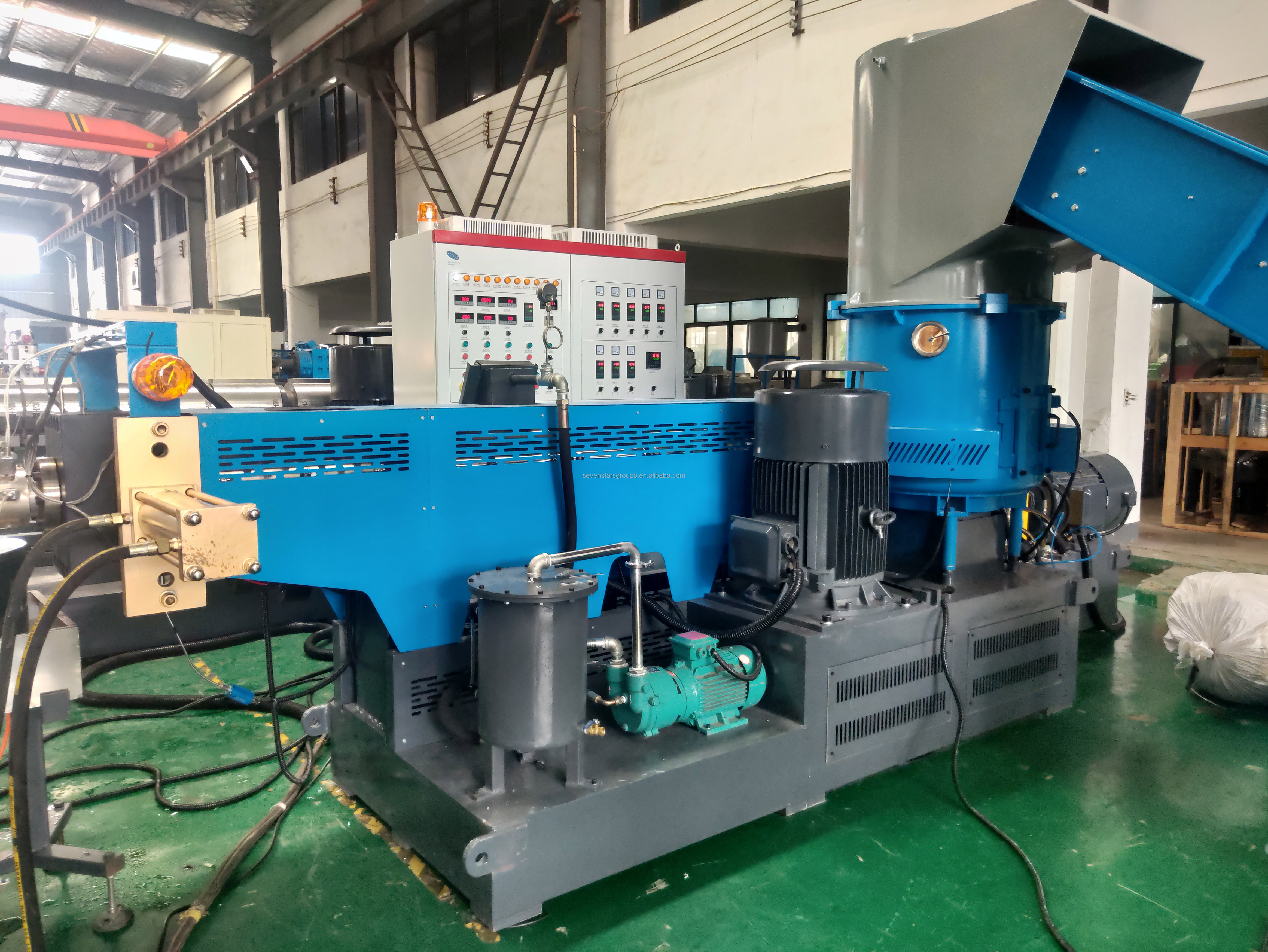

2. PE film granulator/tablet press machine: crush and compress the film, and force the compressed film into the extruder to make
High and stable production capacity.
3. Single-screw extruder: plasticizing materials and exhausting.
4. High-speed screen changing system and die head: secondary filter material impurities to make production more stable.
5. Water ring granulator: granulate in water.

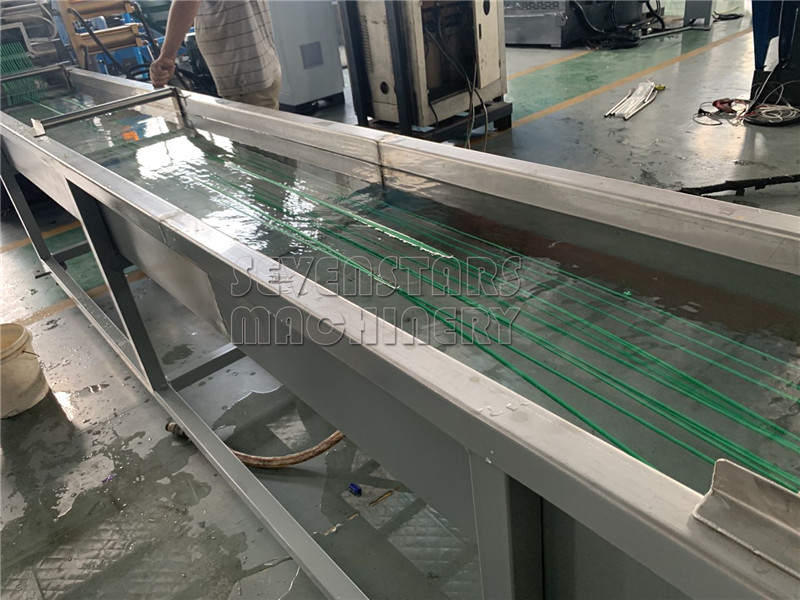

6. Water tank: cooling particles.

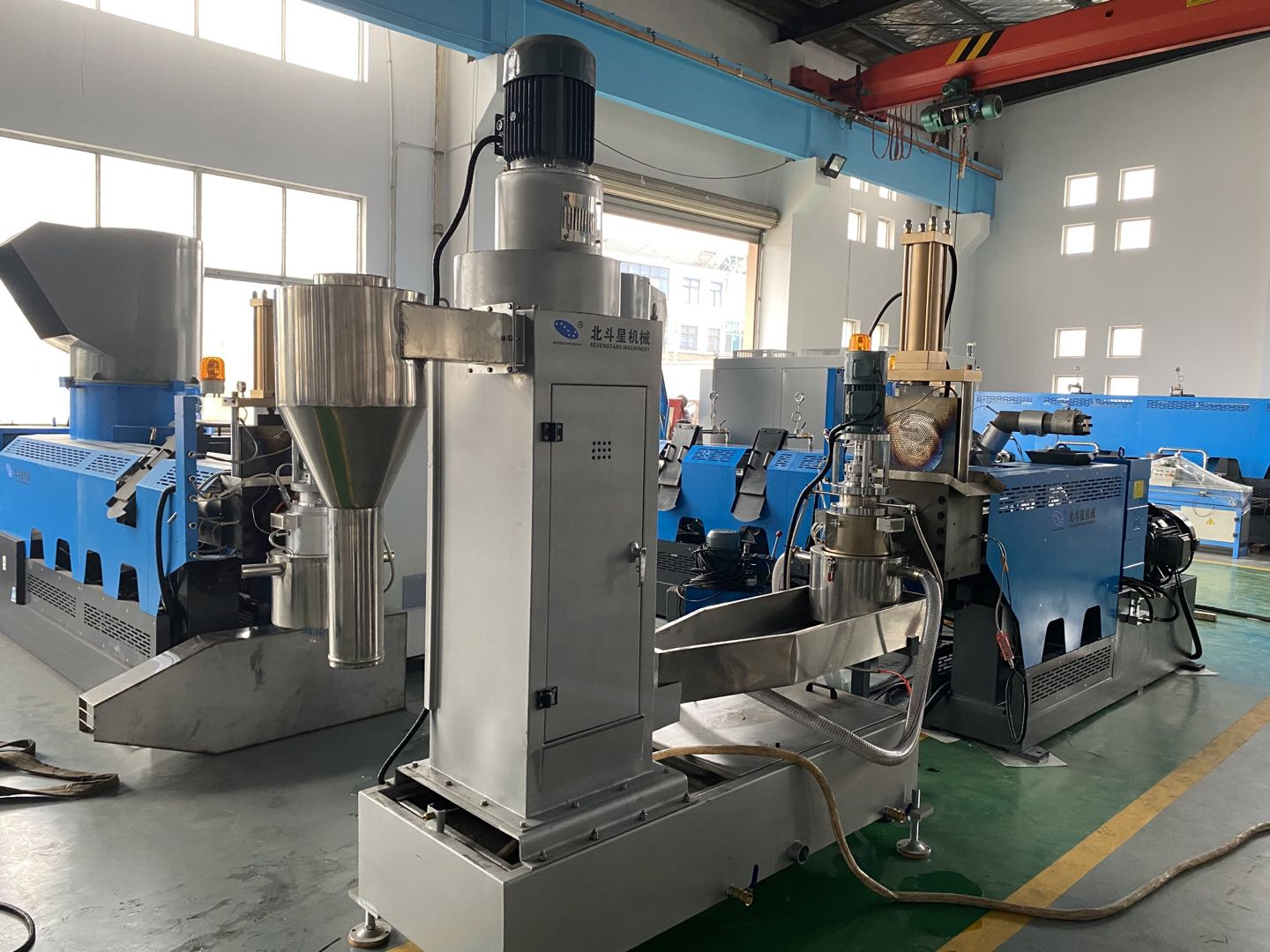

7. Dehydrator: to dry the particles.

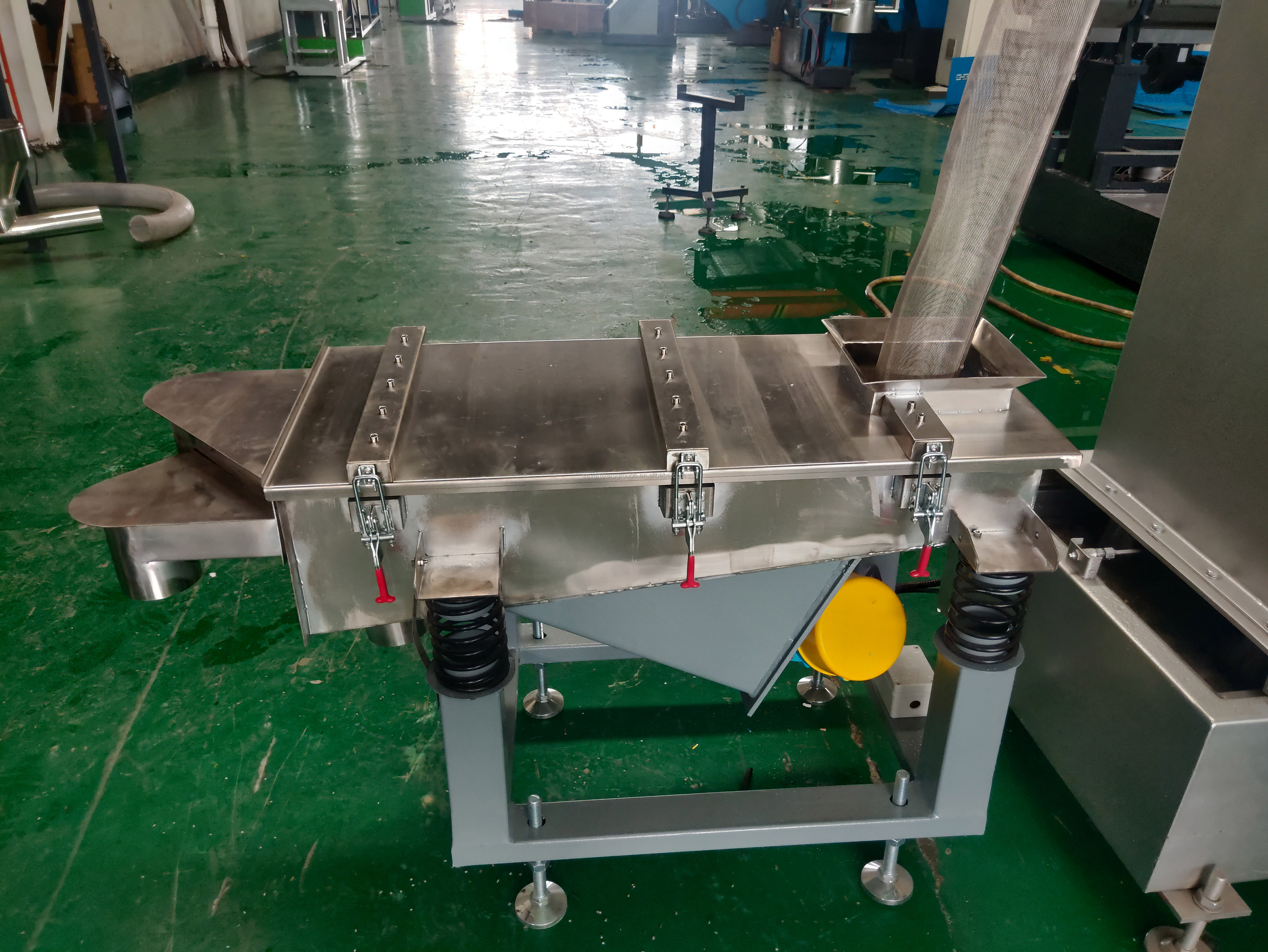

8. Vibrating screen: remove bad particles and keep good particles.
9. Blower: The conveyed particles enter the silo.
10. Storage bin: store particles.

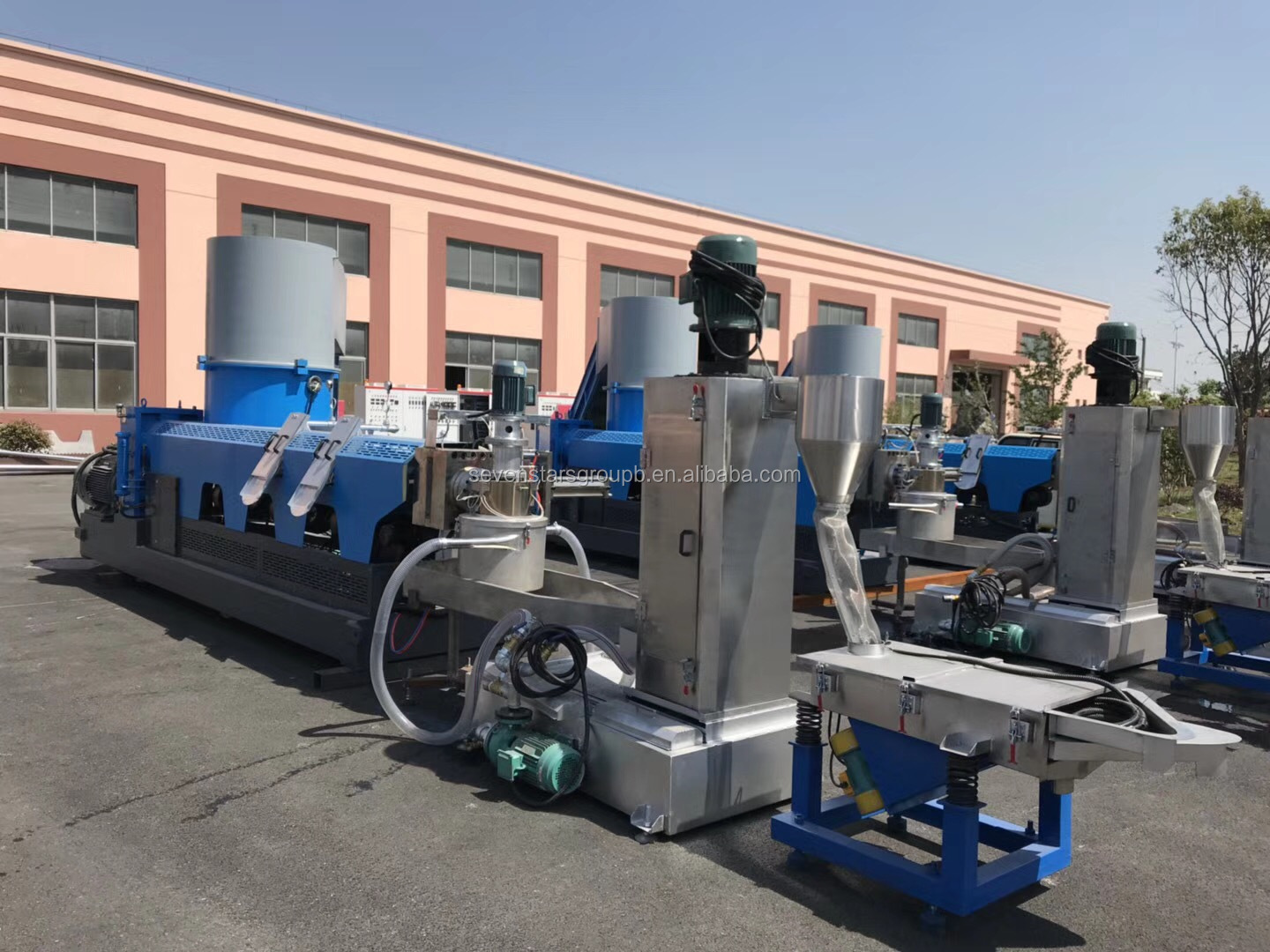

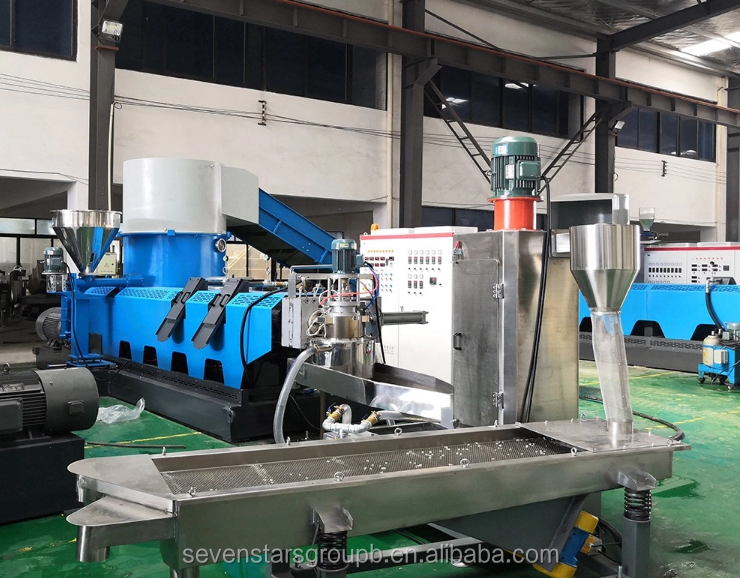

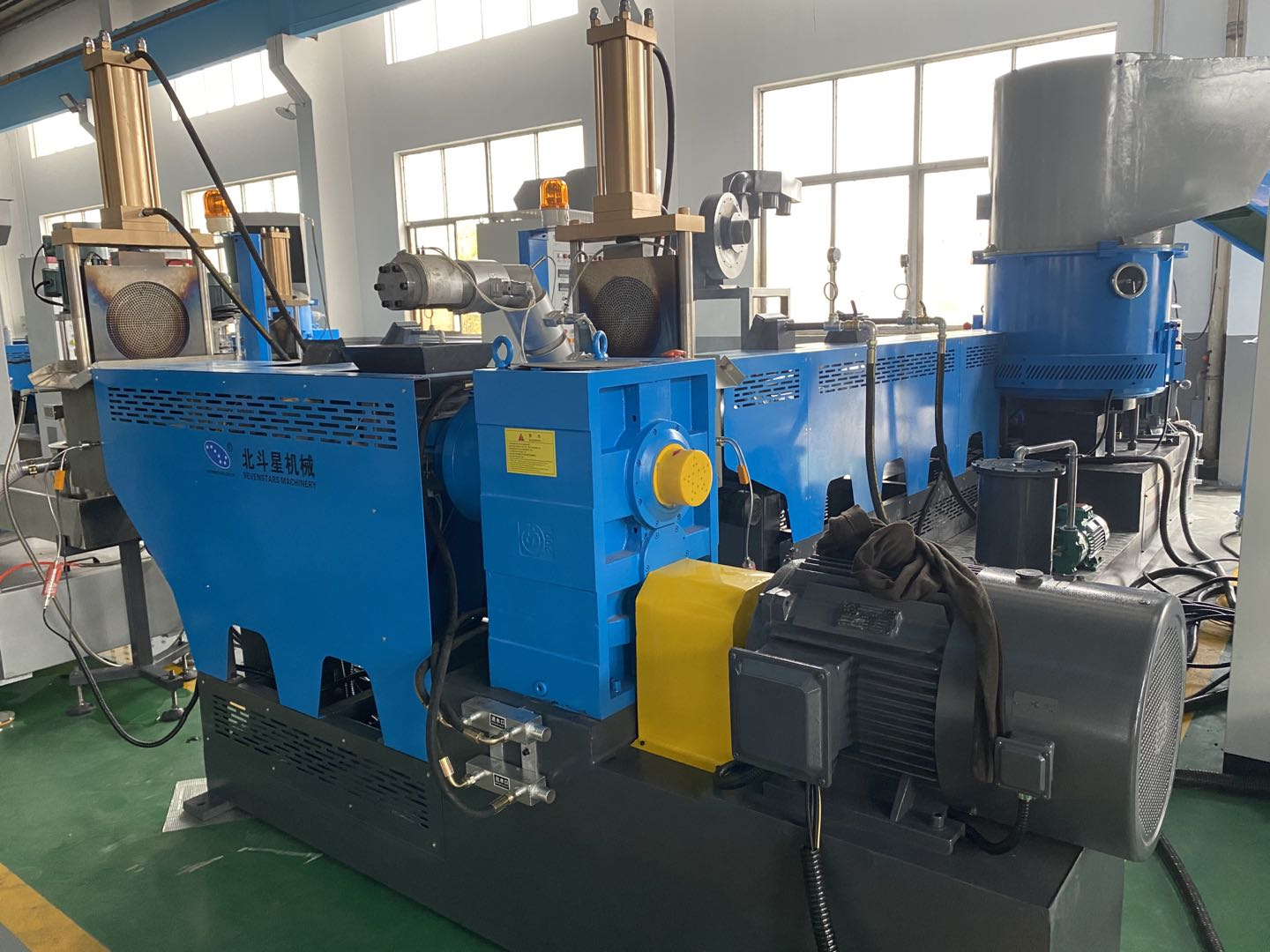

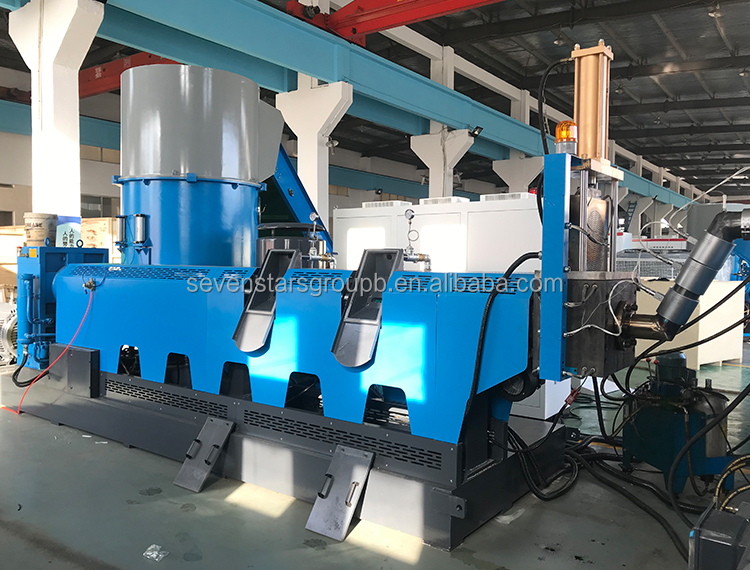

detailed drawing

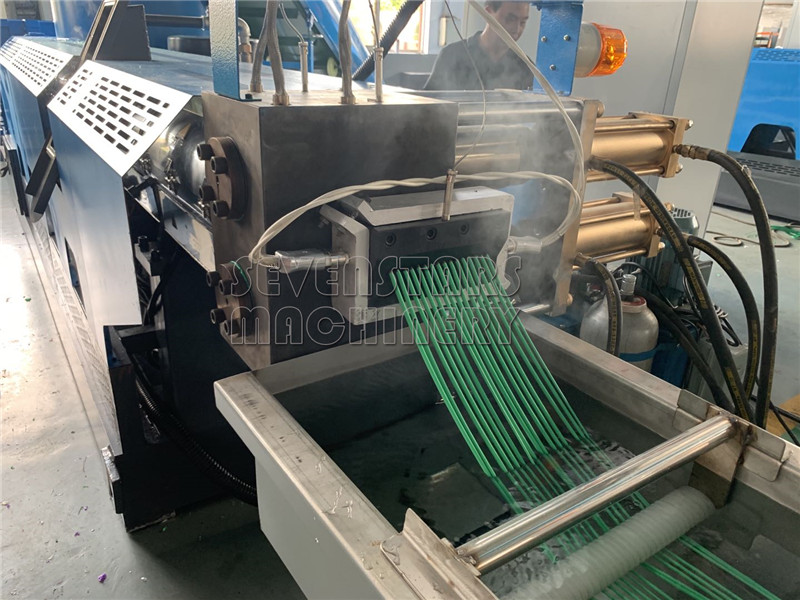

In addition to the water ring cut type, we also have a facet type:
Specification
Model
Screw diameter
(mm)
speed(rpm)
Main motor power (kw)
Compactor power (kw)
Output (kg/h)
SJ85/36
Φ85
10-120
55
37
150-200
SJ100/33
Φ100
10-120
Post-90s
55
250-300
SJ120/33
Φ120
10-120
110/132
75/90
400-500
SJ160/33
Φ160
10-120
160/185
110/132
500-700
SJ180/33
Φ180
10-120
250
160
800-1000
