Control panel: | Metal | exhibit: | LED LCD graphic display |
Battery internal or external: | External | type: | DC/AC Inverter |
weight: | 8.1 kg | output type: | single |
Customization support: | software reengineering | battery voltage: | 12V DC |
Inverter type: | online interactive | color: | white |
Output frequency: | 50Hz/60Hz | size: | 230x145x180mm |
Output current: | 3.18A | model: | EPSI-1000 |
Package preview: | Warranty: | 1 year | |
Packaging Details: | 1pc/gift box, 2pcs gift box/carton; it is best to ship by sea in a full container. Carton size 415x410x245mm GW/CTN: 17.2Kgs. | Origin: | Guangdong, China |
transformer: | CRGO Toroidal Transformer | brand: | Super hero |

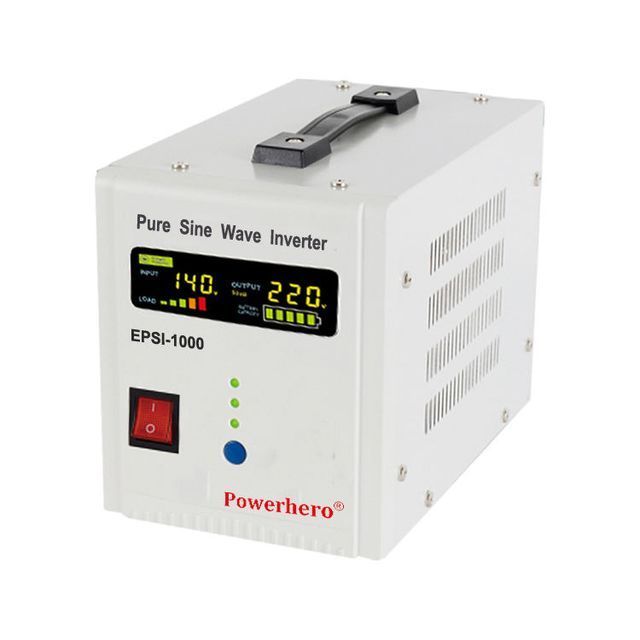

1. Popular Design Inverter 1KVA Single Phase Output Power Pure Sine Wave Inverter UPS
EPSI series are pure sine wave inverters, also known as pure sine wave UPS. Why is it called "UPS" again? Because it has the same function of providing backup power in the event of a grid outage. Therefore, the main function of a pure sine wave inverter is to convert DC to AC.
The power range of our EPSI series is 500VA-5000VA. Output voltage, socket, chassis color, etc. can be customized according to different customer needs. So OEM is available. Now our this type is widely used in Europe, Africa, Middle East.
Model | EPSI-500 | EPSI-800 | EPSI-1000 | EPSI-1500 | EPSI-2000 | EPSI-2500 | EPSI-3000 | EPSI-5000 | |
Rated Capacity | 500VA | 800VA | 1000VA | 1500VA | 2000VA | 2500VA | 3000VA | 5000VA | |
rated power | 300W | 500W | 700W | 1050W | 1400W | 1800W | 2100W | 3500W | |
transformer | Full power design CRGO toroidal transformer | ||||||||
interface | LCD graphics | ||||||||
Display state | Working & Loading & Battery | ||||||||
Operating mode | PV (photovoltaic priority) AC priority is optional | ||||||||
enter | Voltage | 140-275Vac | |||||||
frequency | 45-65 Hz | ||||||||
output | Voltage | 220V+-3% Inverter | |||||||
frequency | 50/60Hz +-0.3Hz, slave master | ||||||||
waveform | pure sine wave | ||||||||
Waveform distortion | <=3% | ||||||||
Protect | Overload, high temperature, high output voltage, short circuit, reverse connection, etc. | ||||||||
connecting time | 4 milliseconds | ||||||||
battery voltage | 12V | 12V | 12V | 24V | 24V | 24V | 48V | 48V | |
Charging voltage | 13.8+-0.5V | 13.8+-0.5V | 13.8+-0.5V | 27.6+-0.5V | 27.6+-0.5V | 27.6+-0.5v | 55+-1V | 55+-1V | |
low voltage limit | 10.9+-0.3V | 10.9+-0.3V | 10.9+-0.3V | 21.8+-0.5V | 21.8+-0.5V | 21.8+-0.5V | 42+-1V | 42+-1V | |
Low voltage protection | 10.2+-0.3V | 10.2+-0.3V | 10.2+-0.3V | 20.5+-0.5V | 20.5+-0.5V | 20.5+-0.5V | 41+-1V | 41+-1V | |
recharging current | maximum. 10/15/20A | ||||||||
cooling system | Yes | ||||||||
environmental | Operating temperature | 0-40℃ | |||||||
Relative humidity | 10%-90% RH, non-condensing | ||||||||
Storage temperature | -15-45℃ | ||||||||
Package | Machine size(mm) | 146x340x210 | 220x383x275 | ||||||
Number / Box | 2 | 1 | |||||||
Carton size | 425x420x290 | 470x295x370 | |||||||
kilogram | 13.60 | 14.80 | 17.50 | 19.60 | 27.00 | 15.30 | 16.60 | 22.10 |

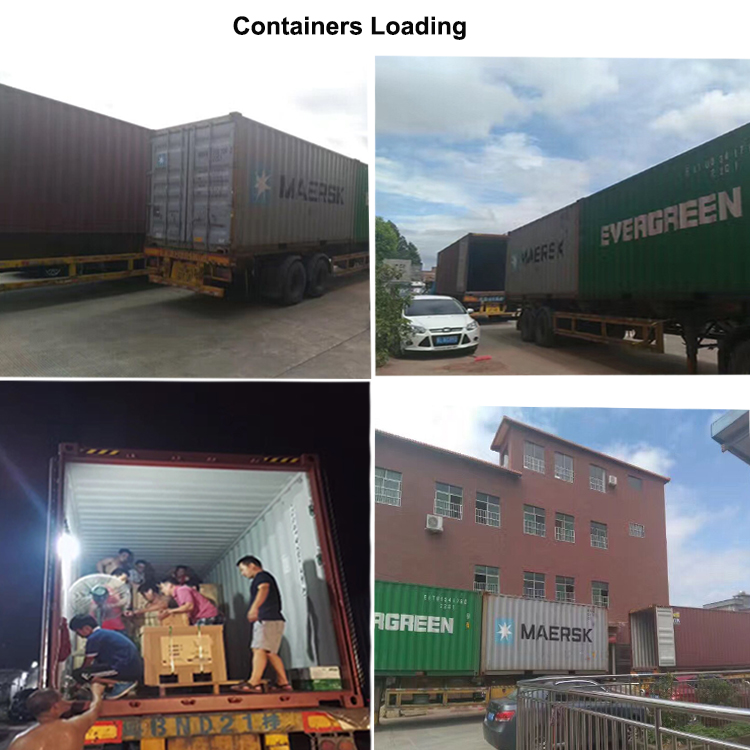

2. Packaging and Shipping
1 pcs/gift box, 4 pcs gift boxes/carton; best to ship by sea in a full container
Carton size: 785x305x240mm
3. Our services
1) We can provide you with tested samples before you place an order
2) We can provide you spare parts according to your order quantity
3) When you have any questions, we can provide you with after-sales service online
4. Company information
Huizhou Yinghua Electronics Co., Ltd. is a professional manufacturer and solution provider of electronic power products, purchasing pure military pedigree.
At the beginning of its establishment, Yinghua Electronics Co., Ltd. adhered to the business philosophy of professionalism, perfection, excellence and strength. We also adhere to the concept of advanced technology, first-class quality, honesty and trustworthiness, mutual benefit and win-win. We have advanced equipment and testing centers, professional and stable skilled workers, and established a military-style quality certification system. In addition, customer-centric is our goal, we always provide customers with professional, high-quality products and pre-sales and after-sales services.
Our main products are AVR/Voltage Regulator, Booster, UPS/Inverter, Solar Inverter, Solar Charger Controller, Voltage Converter and Transformer etc.

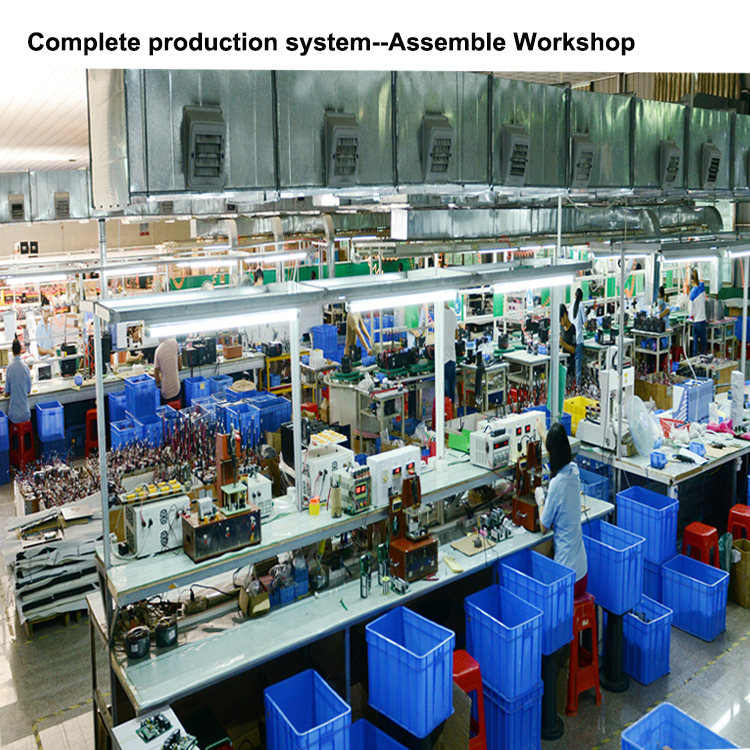

1) With more than 150 well-trained workers, complete production system
2) Factory buildings, staff dormitories, office buildings, etc. cover an area of 19,000 square meters
3) There are strict standards for product quality, timely delivery and service
4) Have our own R&D team for innovation and design
5) The concept of green safety is deeply rooted in the hearts of the people
6) With unique production technology
5. Frequently asked questions
1). Do you have product certification?
Ans: Yes, our products have passed CE, CQC, SONCAP certification
2). How can you prove that your products are of good quality?

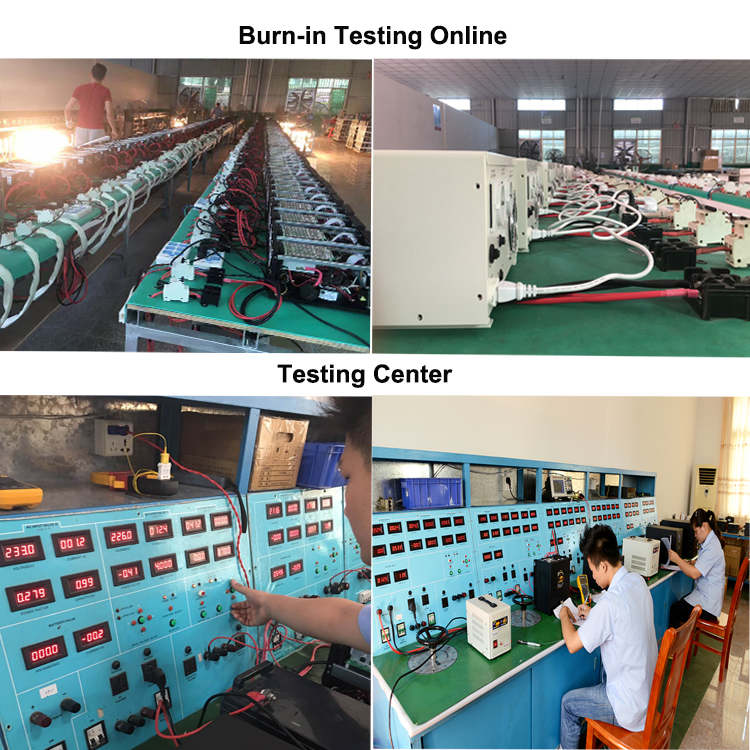

Ans: Our products must pass strict IQC inspection, 100% online test, load and burn-in test
3). How about the warranty?
A: 1 year warranty
4). Can you send us samples?
A: Yes, samples are available when you confirm the payment
5). Where is your factory located?
Ans: Our factory is located in Futian Town, Boluo County, Huizhou City, Guangdong Province. 1.5 hours drive from Guangzhou or Shenzhen.
