Overload protection: | Yes | type: | DC/AC Inverter |
product name: | 1440W 24V 220V power inverter with battery charger | model: | EP1000+ |
Shipping Details: | Shipped within 15 days after payment | size: | 224*225*80mm |
Noise level: | less than 50 decibels | Overcharge protection: | Yes |
DC voltage: | 12V/24V | Output current: | 10Amp max |
Packaging Details: | Packing: Carton MUST POWER LIMITED Ada Ma +86 13259532991 Skype:mustupsw | Output frequency: | 50Hz/60Hz |
gross weight: | 2.5 kg | Efficiency exchange to exchange: | above 95 |
port: | Shenzhen | Supply capacity: | 10000 pieces per day MUST Chinese new invention 1200W Power Inverter 10000 Watt Pow |
brand: | must | payment terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
output type: | single | weight: | 2.0KG |
Output waveform: | Modified sine wave | Origin: | Guangdong, China |
DC to AC Efficiency: | More than 80% | The output voltage: | 220/230VAC |
Input voltage: | 170-280 | Transit time: | 15ms typical 50ms maximum |
Output Power: | 500 - 1000W |
Features: |
1. Modified sine wave inverter
2.Automatic Line-to-Battery Switchover
3. The input voltage range can be configured through LCD settings
4.Double layer PCB board
5. Intelligent three-stage charger control, efficient charging, prevent overcharging
6.MFD (Multi-Function Display) can be programmed on the LCD
7. Automatic restart when AC recovers
8.Overload and short circuit protection, battery reverse polarity protection, deep discharge protection
9. Battery wire 10AWG 60cm (double wire)

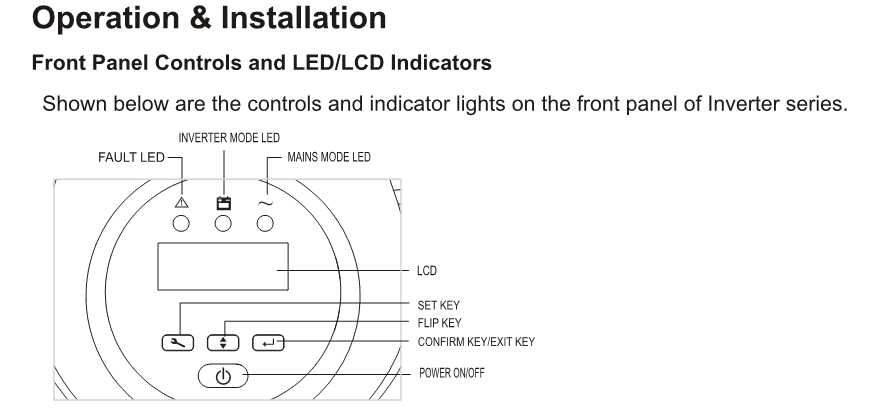

LCD display power inverter EP1000 pro |

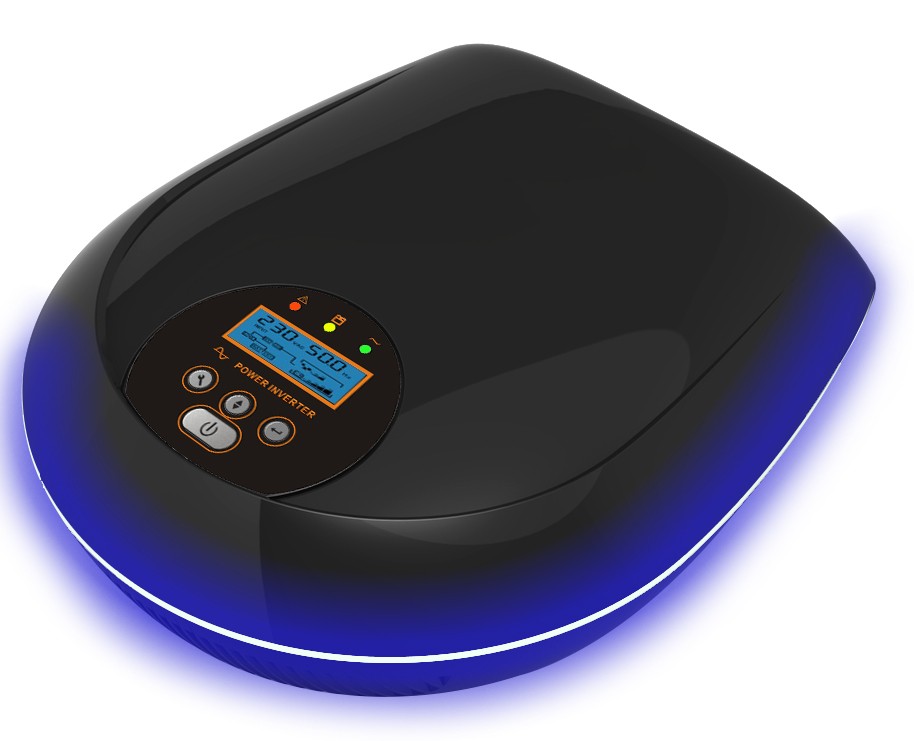

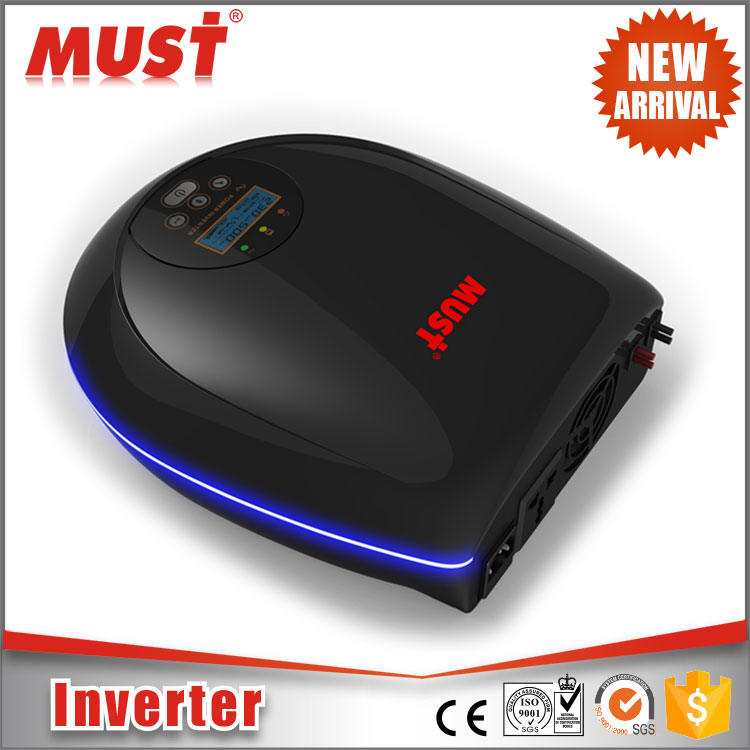

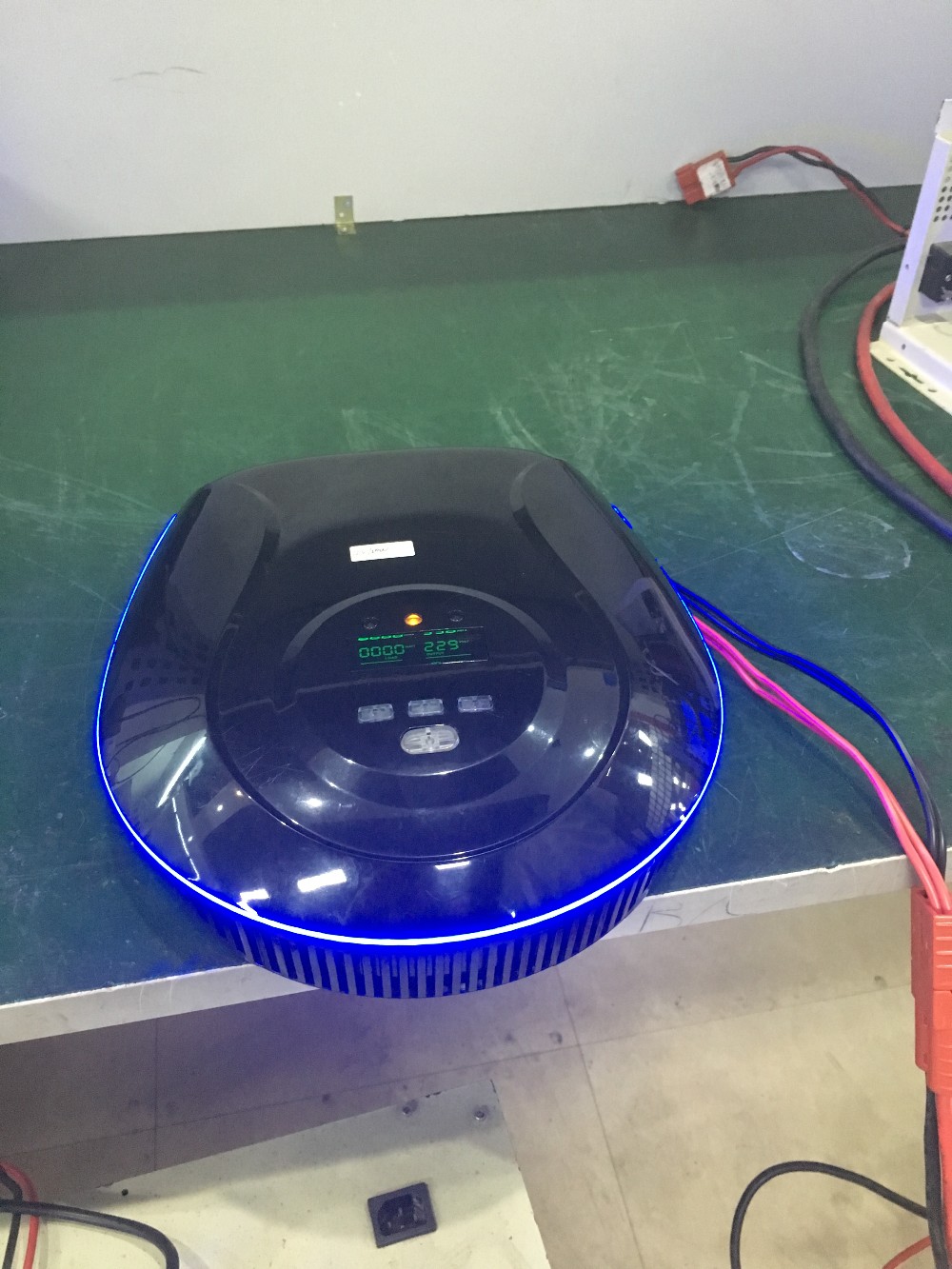

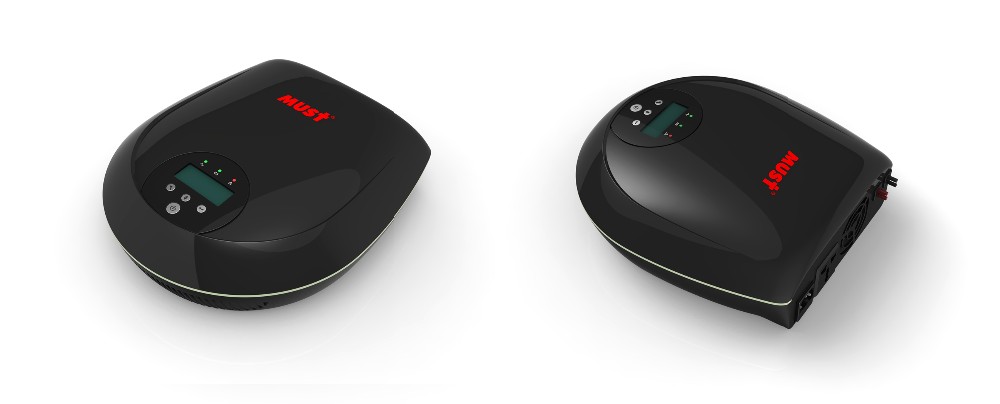

Power inverter EP1000 pro picture |

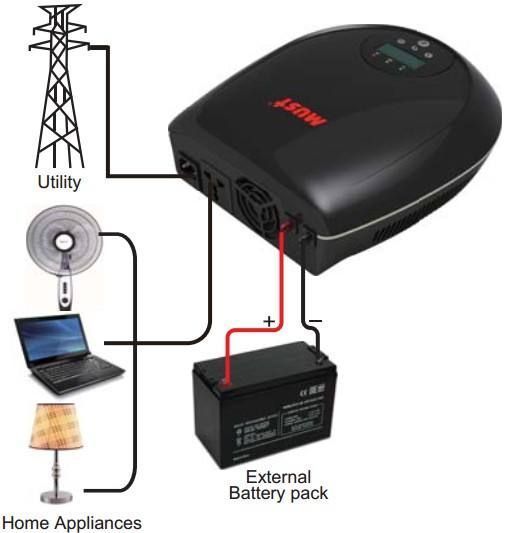

Products for home installation: |
Power Inverter Specifications: |
EP1000 pro series inverter specifications | ||
Model | 1200VA/720W | 2400VA/1440W |
capacity | 1000VA | 2000VA |
AC input | ||
Voltage | 220/230/240VAC | |
Input voltage range | 90-280VAC | |
frequency | 50-60Hz (automatic detection) | |
Input Voltage Range Selector | ||
narrow | 170-280VAC | |
Wide | 90-280VAC | |
Inverter mode output | ||
Voltage | 230VAC + 10% / -18% | |
frequency | 50/60 Hz ±0.5 Hz | |
waveform | Modified sine wave | |
Efficiency (AC to AC) | >95% | |
Efficiency (DC to AC) | >80% | |
Battery | ||
Voltage | 12V DC | 24V DC |
charger | ||
Charging voltage (Vbat< 12.5V) | 14.4±0.4V | |
Charging voltage (Vbat< 12.5V) | 13.7±0.2V | |
Charging current 10A±2A | 10A±2A | |
Charging current 20A±2A | 20A±2A | |
overcharge protection | 16V±0.4V | |
transfer | ||
connecting time | 12-20 ms typical, 40 ms max | |
index | ||
line mode | Green LED flashing or steady on | |
battery mode | yellow led lights | |
overload/failure | Red LED flashing or steady on | |
sound alarm | ||
Low battery voltage in battery mode | beeps every 2 seconds | |
overload | Beep every 0.5 seconds | |
fault | continuous beeping | |
environment | ||
temperature | 0~40℃ | |
physical | ||
Body size (mm) | 246X253X87 | |
net weight/kg) | 2.3 | |
Gross weight (kg) | 2.8 | |
Carton size (mm) | 400*347*596 (6pcs/box) | |
Safeguard | Deep discharge, overcharge, short circuit, overload, battery short circuit, overvoltage, undervoltage. |
Product packaging: |
Product logistics and payment method |
