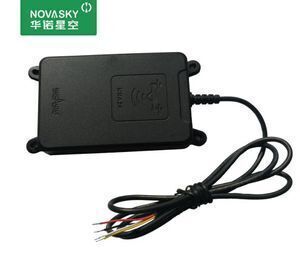

UAV Altimeter, Drone Landing Protection, Drone Height Measurement Radar Sensor NRA24

Supplier: Hunan Novasky Electronic Technology Co., Ltd.
Region: China
Contact: Ms. Halona Peng
Price: $300.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

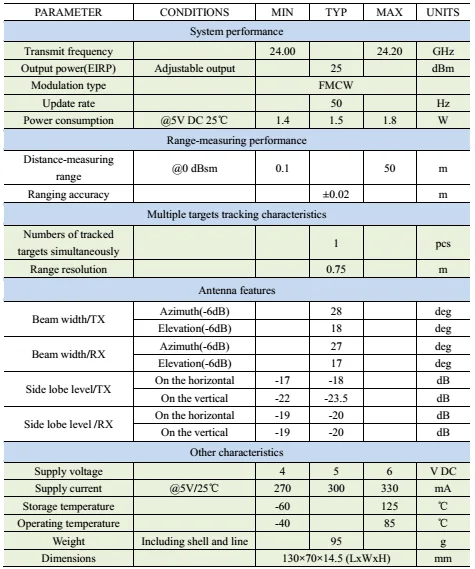

Transmit frequency:	24Ghz;	Application:	UAV Altimeter, Positioning Altimeter;
Weight:	95g;	Demention:	130x70x14.5 mm;
Delivery Detail:	10 working days after payment received;	Brand Name:	Nanoradar;
Place of Origin:	Hunan China (Mainland);	Ranging Accurancy:	±0.02m;
Beam width/TX in Elevation:	18°;	Radar Feature:	FMCW K-band radar;
Port:	changsha/shenzhen;	Supply Ability:	3000 Piece/Pieces per Month;
Beam width/TX in Azimuth:	28°;	Payment Terms:	L/C,T/T,Western Union;
Distance-measuring range:	50m;	Packaging Detail:	Carton box : 275x205x68mm Weight: 200g;
Model Number:	NRA24;	Communication interface:	Micro USB/UART;

UAV Altimeter, Drone Landing Protection, Drone Height Measurement Radar Sensor NRA24

Product Description

MMW radar systems

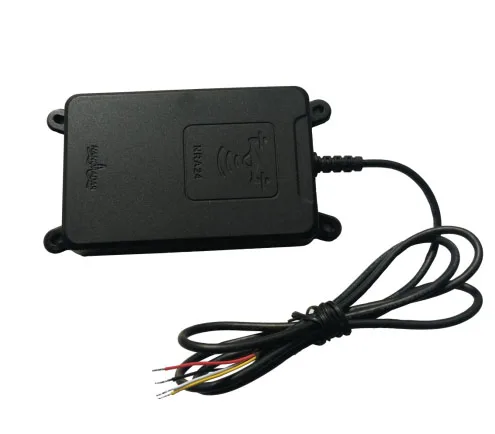

NRA24

NRA24 is a compact K-band radar altimeter developed by Hunan Nanoradar Science and Technology Co., Ltd. It adopts 24GHz-ISM-Band, with the advantages of 2cm measuring accuracy, small size, high sensitivity, light weight, easy integration and stable performance, which satisfies the application requirements in unmanned aerial vehicle (UAV), helicopters, small airships and other field. Its product performance has been recognized by many partners.
