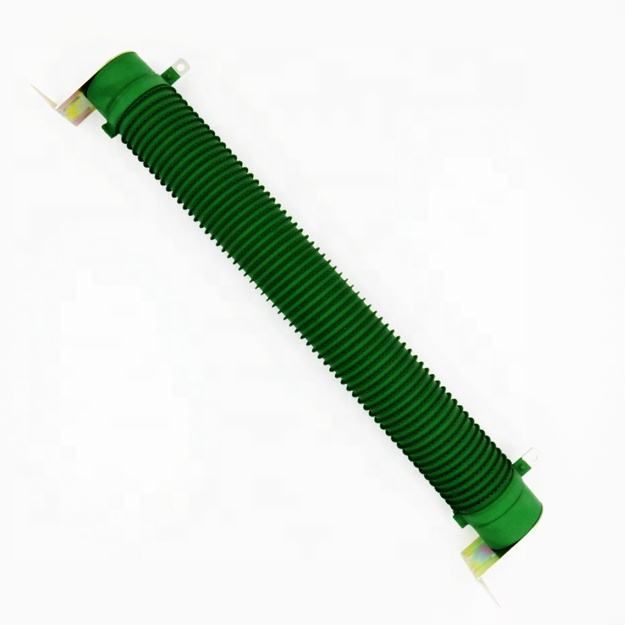

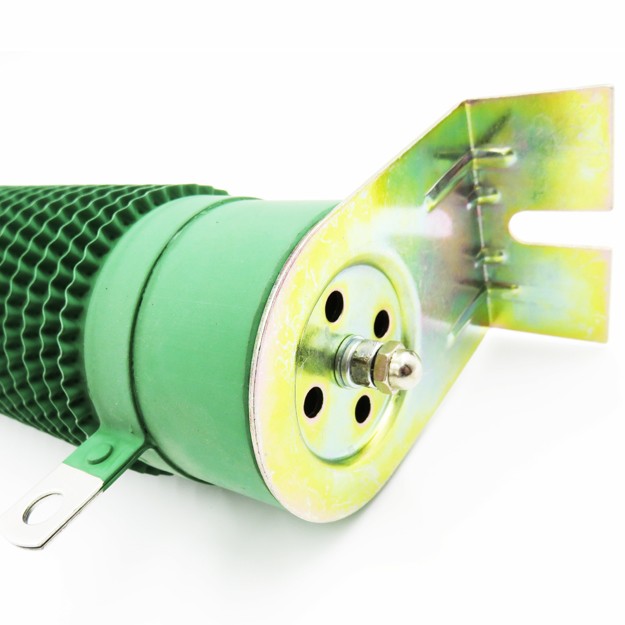

High Power 8 Ohm 1000w Wired Braking Resistor Fix

main feature:

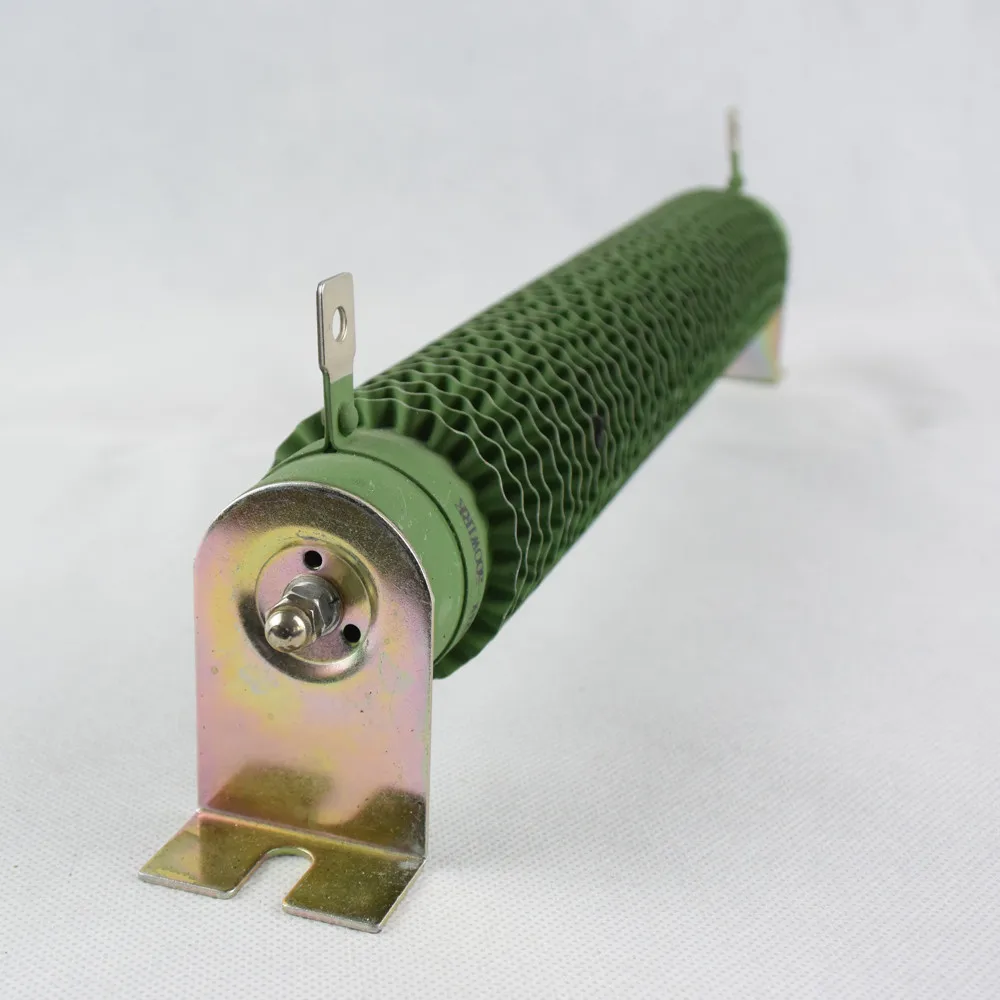

1. Vertical corrugated winding.
2. Save space.
3. Good heat dissipation.
4. Extend the service life.

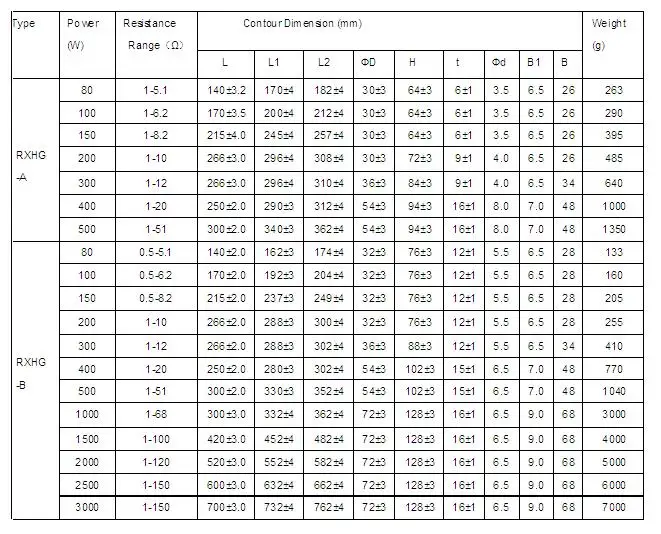

5. Two coating methods are optional: RXHG-A type glass glaze coating; RXHG-B type uses organic materials to coat high temperature resistant circuits.

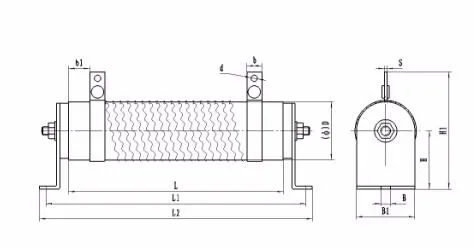

6. The alloy resistance wire is wound on the heat-resistant insulating substrate, and the surface protection layer is coated with the resistance element. A resistor formed with wire wound on a ceramic tube.
7. We can produce 8 ohm 1000w resistor. Can be used as braking resistor.

Country map:

technical standard:

1.GB/T5729-2003
2.Q/QH1636-2014

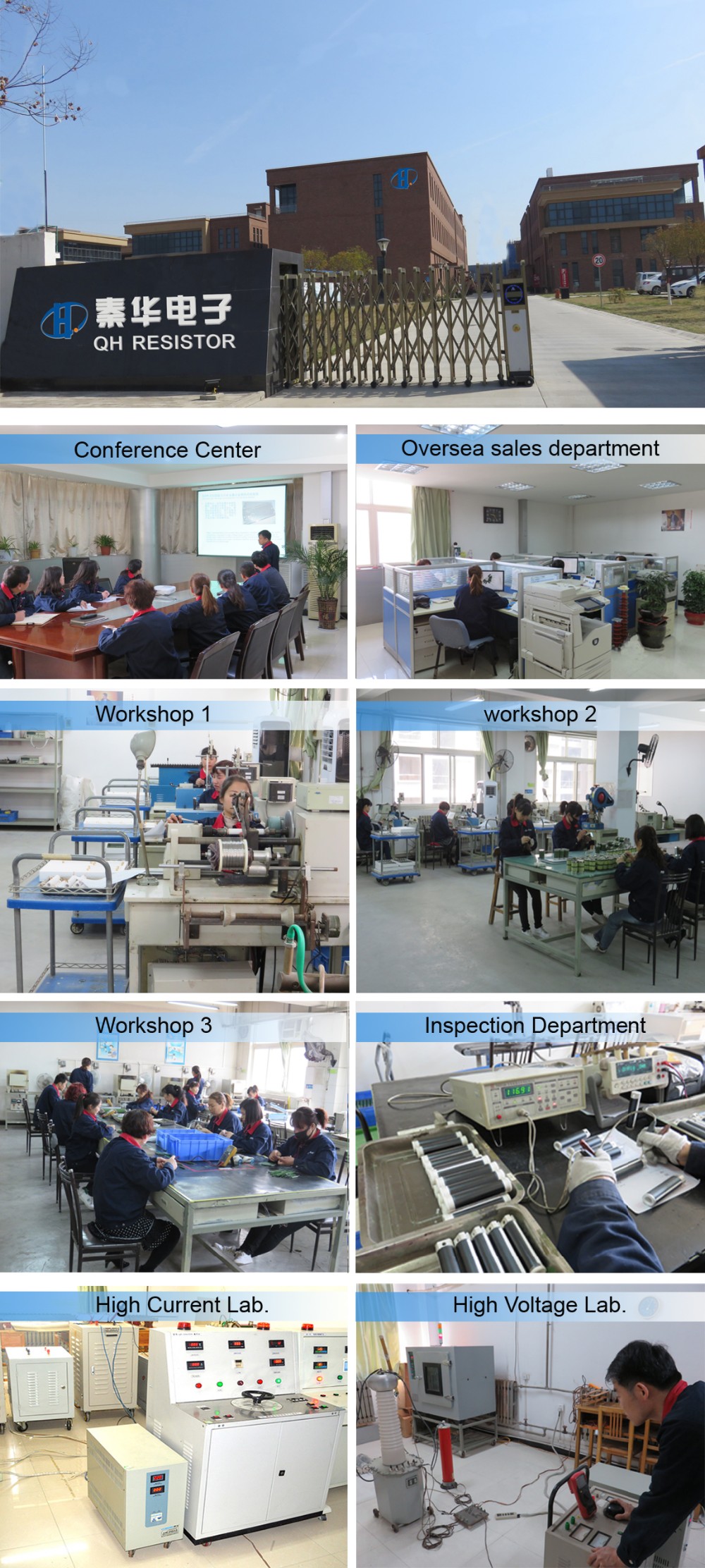

Xianyang Qinhua Special Electronic Components Co., Ltd.

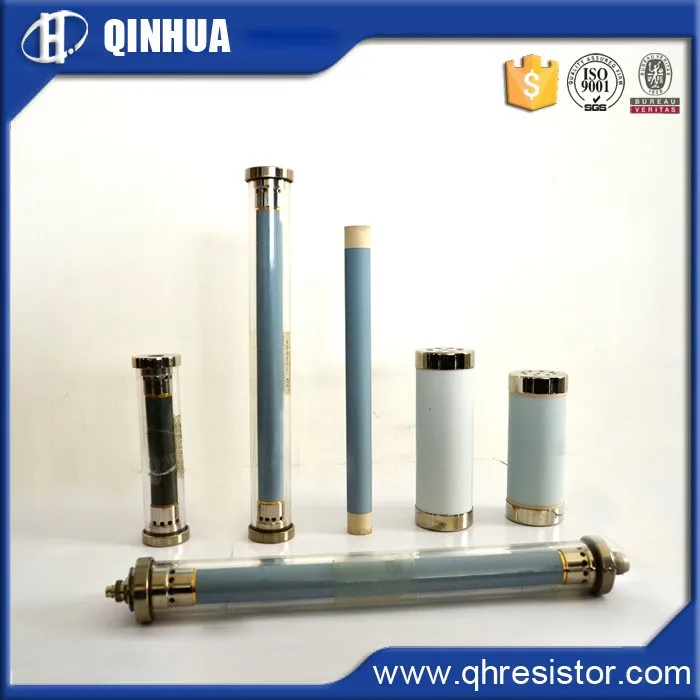

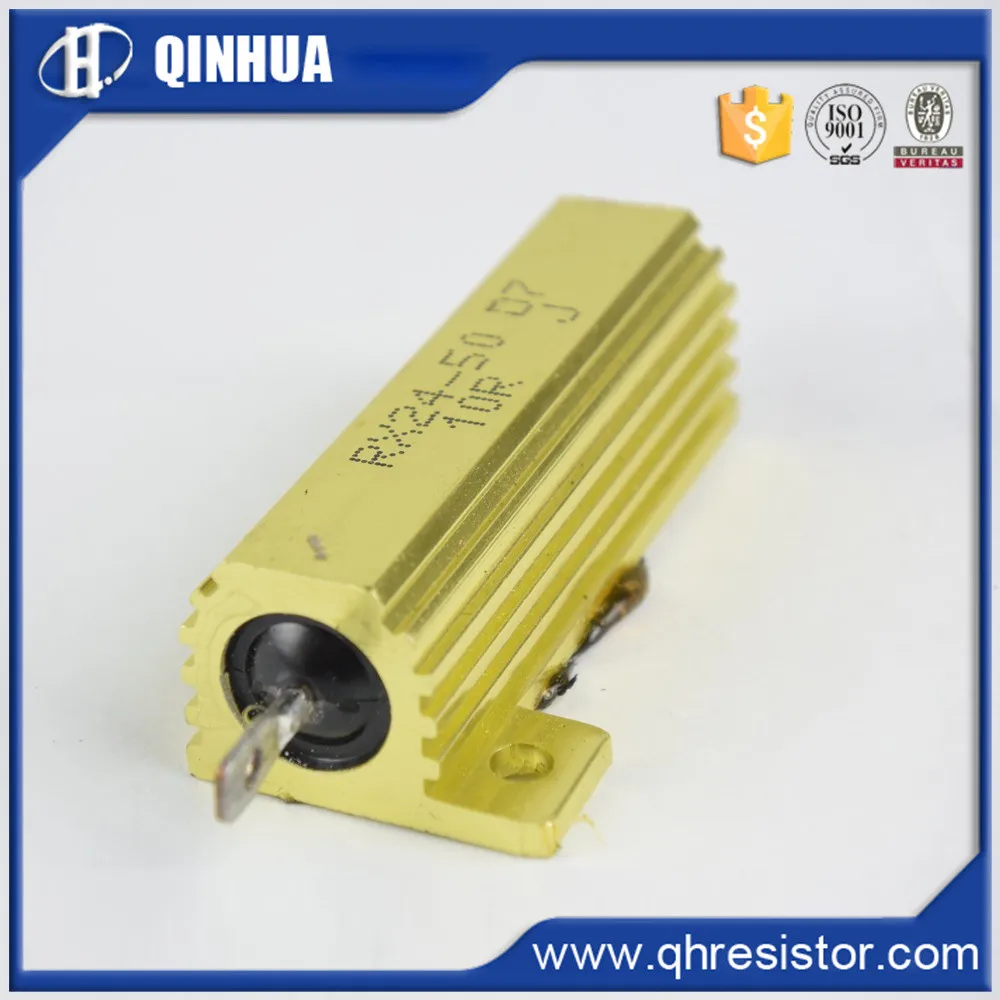

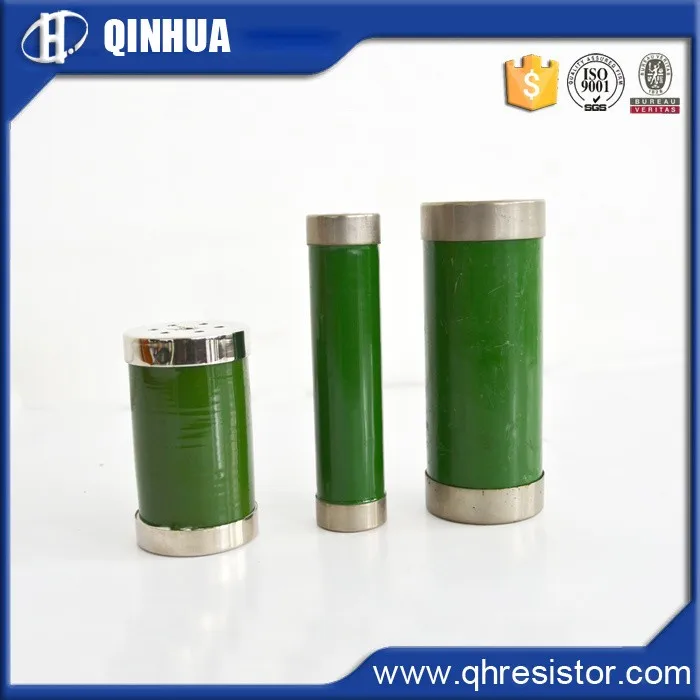

Qinhua factory was founded in 2000, mainly produces: high voltage and high power metal glaze film resistors; high frequency and high current oxide film resistors; painted or glazed & porcelain shell or aluminum shell series wire wound resistors; high voltage high power air-cooled oil-cooled Resistance cabinet.
The products are mainly used in military scientific research institutes, national defense science institutes, teaching and research offices of colleges and universities, electronic testing equipment, high-voltage measurement, high-voltage switches, high-voltage power transportation, and high-power electronics in the electronic power energy department. They are also used in electronic professional precision instruments, new medical equipment manufacturing, high-voltage electrostatic precipitators, etc. Among them, the special resistors for high-voltage inverters and high-voltage soft stars have good high-voltage resistance performance, can evenly distribute voltage, and can maintain stable resistance under high-voltage conditions, reaching the world's advanced level.
In December 2010, our factory passed the GB/T19001-2008 and ISO9001:2008 quality management system certification.
We believe that quality is the soul of a factory. We sincerely look forward to cooperating with you

Serve

1. Pre-sale service: professional technicians will choose the right resistor for you according to the environment in which the resistor is used.
2. In-sale service: If you need, we can provide samples for you to test, and also provide you with technical help and support.
3. After-sales service: Accept any repairs to the product (including damage caused by non-our personnel), help customers improve their technology, and provide you with long-term technical assistance and support!
