High voltage resistor 1M2ohm 3M8J non-inductive thin film resistor

Supplier: Xianyang Qinhua Special Electronic Components Co., Ltd.
Region: Shaanxi, China
Contact: Mr Thomas Zhang
Price:
Min. Order: 1 piece

Click here to contact

Product details

Product Description

High Voltage Thick Film Resistors

feature

*Innocent design

*Voltage up to 100kv

* High resistance range 1R -100G R

*High accuracy: 0.1%-5%

* Delivery time: 3-7 working days

*Samples available

* RoHS Complaint

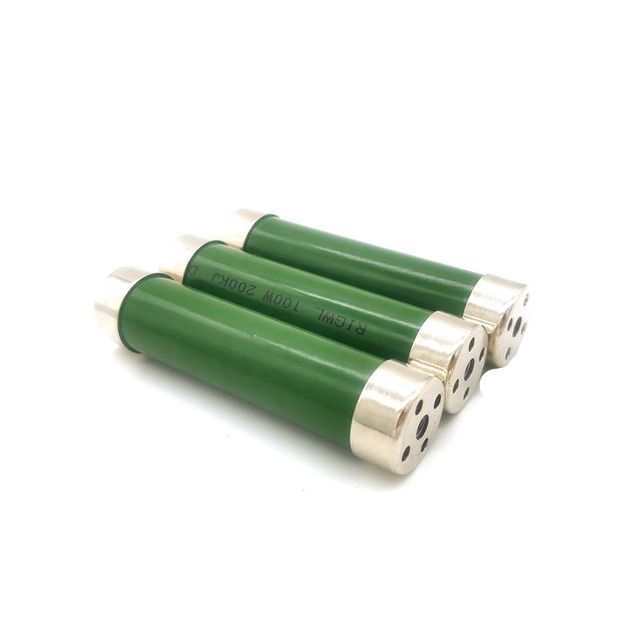

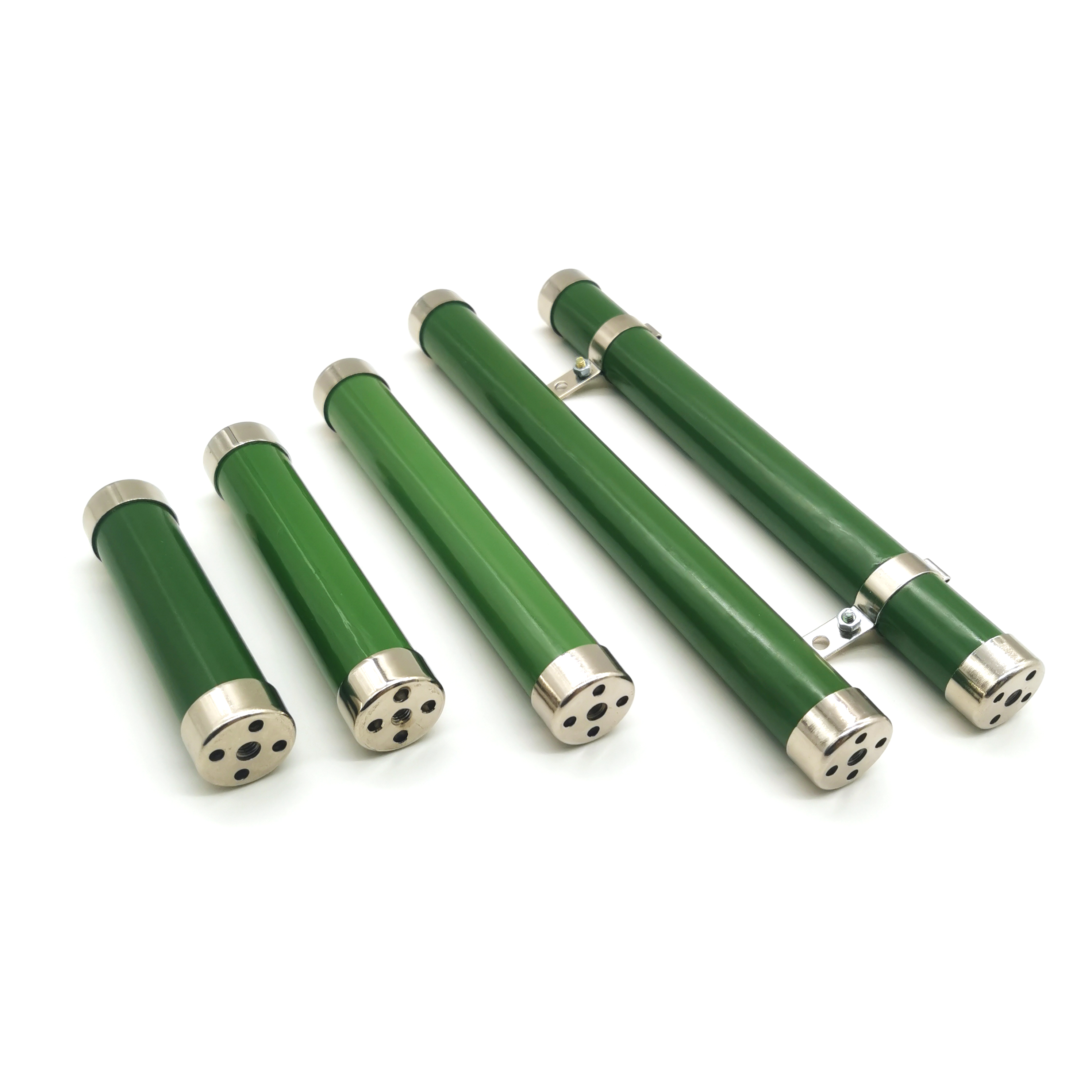

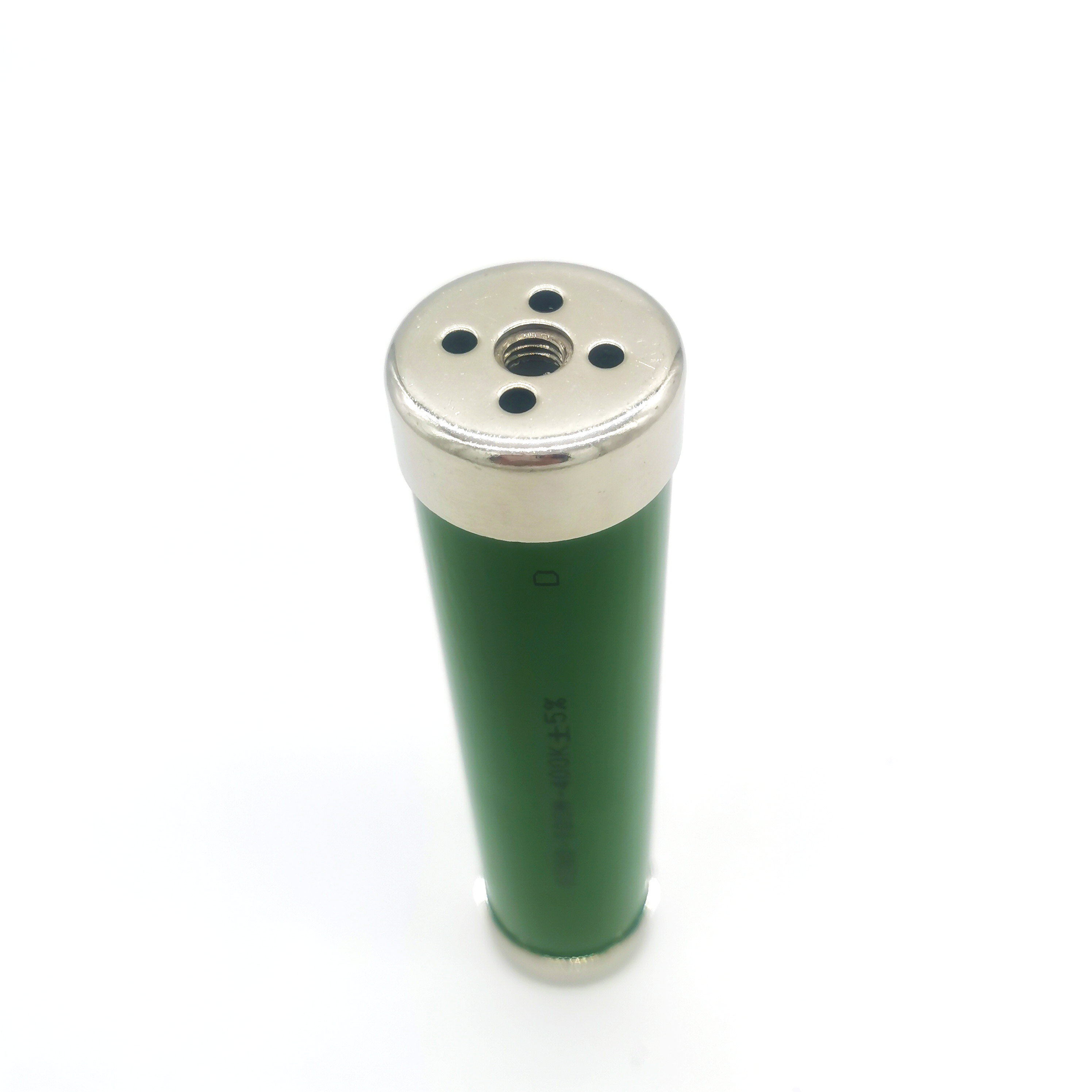

detailed image

organic paint

Low TCR

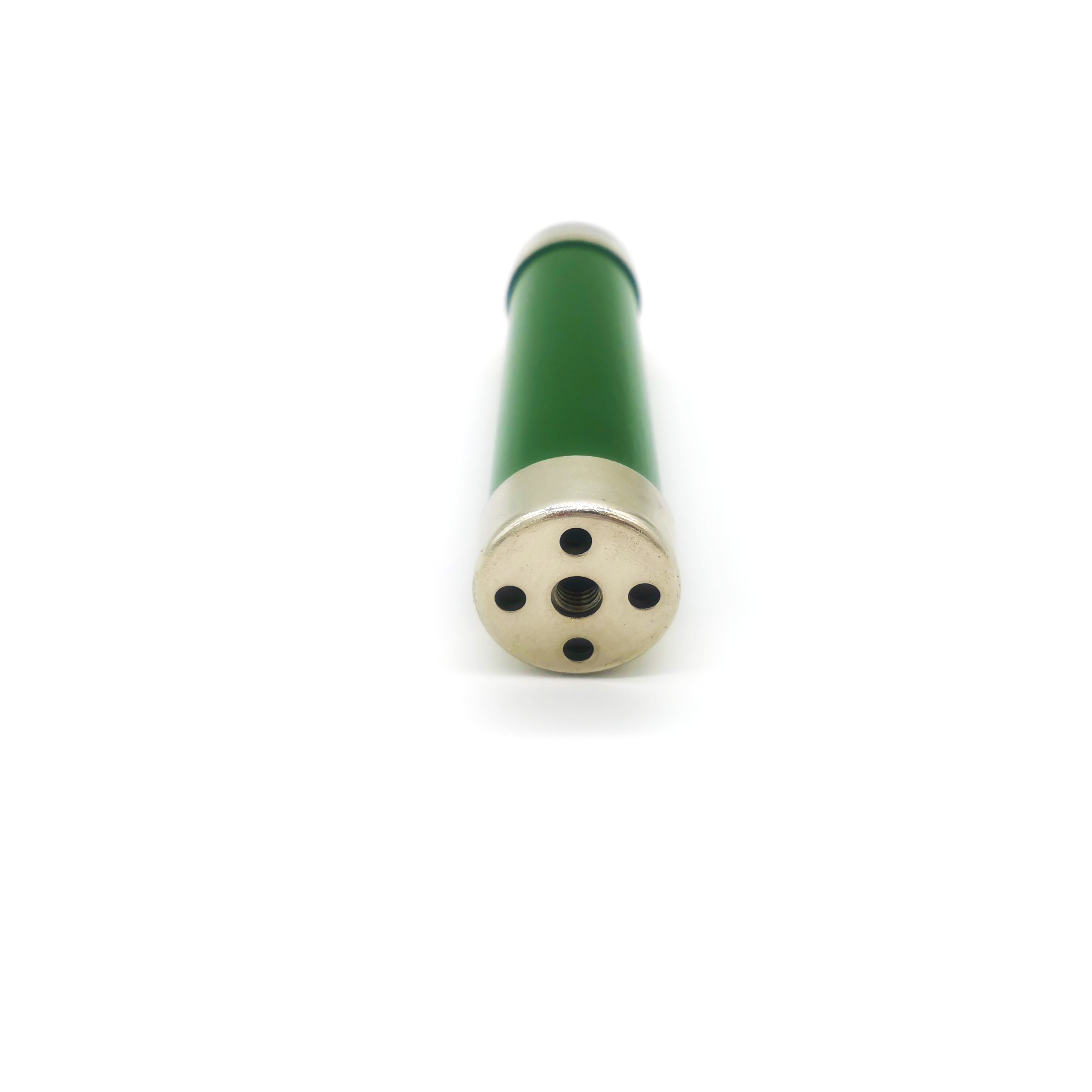

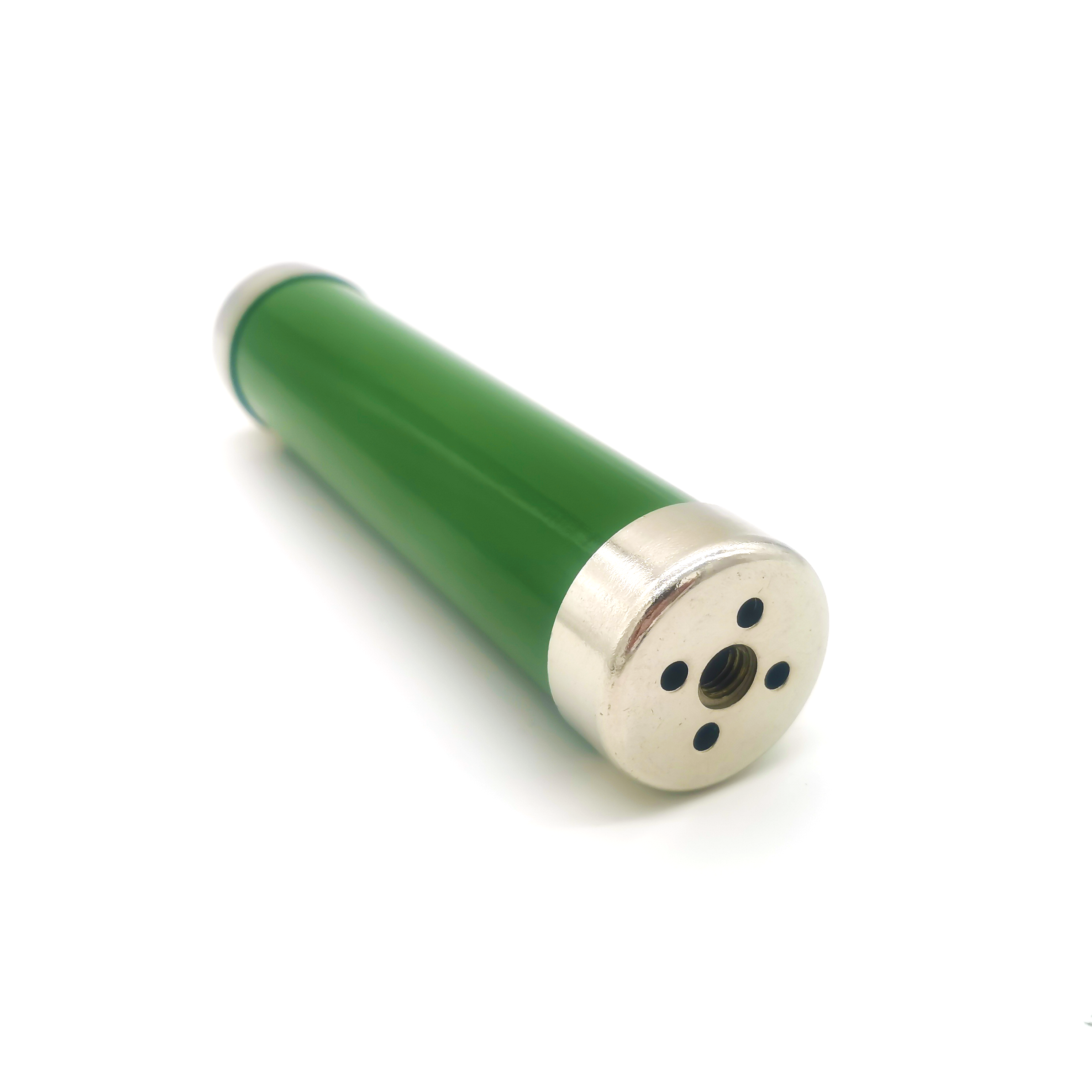

M5/M6 studs with heat dissipation holes

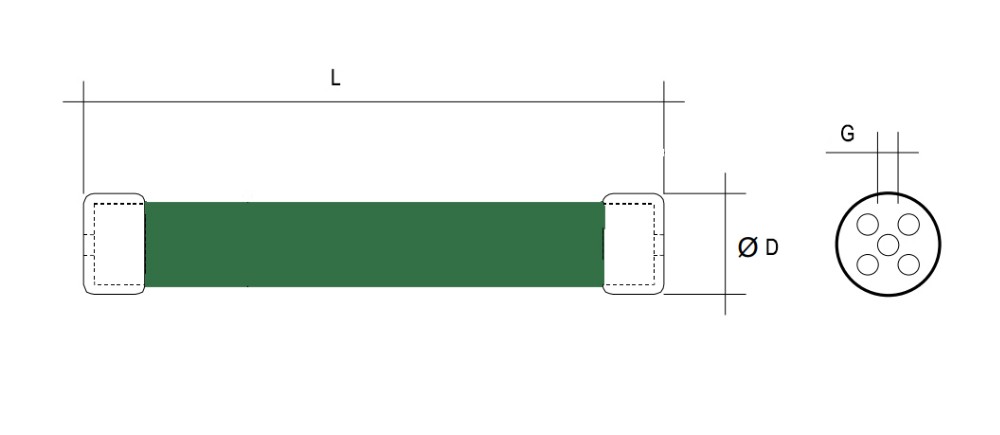

size information

Special high voltage resistor sizes can be customized according to customer usage conditions

Common sizes

Rated power (watts)	Resistance (ohms)	tolerant(%)	Limit voltage (kv)	Diameter (mm)	Length (mm)
40W	10R-10G	0.1%-5%	35KV	27	100
50W	10R-10G	0.1%-5%	45KV	27	133
60W	10R-10G	0.1%-5%	58KV	27	160
70W	10R-10G	0.1%-5%	62KV	27	180
80W	10R-10G	0.1%-5%	75KV	27	200
90W	10R-20G	0.1%-5%	82KV	27	210
100W	10R-50G	0.1%-5%	95KV	27	260
150W	10R-50G	0.1%-5%	150KV	27	310
200W	10R-100G	0.1%-5%	82KV	42	210
250W	10R-100G	0.1%-5%	110KV	42	270
300W	10R-100G	0.1%-5%	100KV	37	310
500W	10R-100G	0.1%-5%	240KV	62	360

Manufacturing specifications

Typical applications: * High voltage voltage dividers * High voltage measurement equipment * Current limiting devices * Electrostatics * Instrumentation * Medical (X-ray) * Power supplies * Motor drives and controls * Converters * Smart grid sensing/metering
