SPS400 automatic coil winding machine

Supplier: Zhangjiagang Huaming Machinery Co., Ltd.
Region: Jiangsu, China
Contact: Mr Steven Chen
Price: $1000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Color:	Custom Made;	Inside Diameter Range:	depend;
Voltage:	380V;	Brand Name:	Huaming;
Applicable Industries:	Manufacturing Plant;	Weight:	1000kg;
Spool Capacity:	depend;	Port:	Shanghai;
Application:	Pipe Winding;	After-sales Service Provided:	Engineers available to service machinery overseas;
Outside Diameter Range:	depend;	Payment Terms:	L/C,T/T,Western Union,MoneyGram;
Packaging Detail:	Packaging Details: stanard export packing - wooden cases Delivery Detail: 20 working days;	Pricing method:	High performance-price rate, competitive price;
Certification:	CE ISO9001;	After-sales Service Provided:	Field installation, commissioning and training;
Arrange Width:	depend;	Warranty:	1 Year;
Condition:	New;	Dimension(LWH):	250011501450;
Power(W):	depend;	Place of Origin:	Jiangsu China (Mainland);
Supply Ability:	30 Set/Sets per Month;

Head

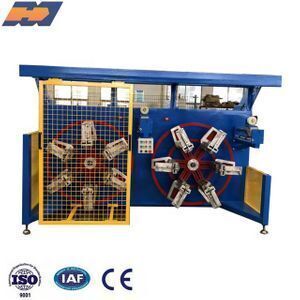

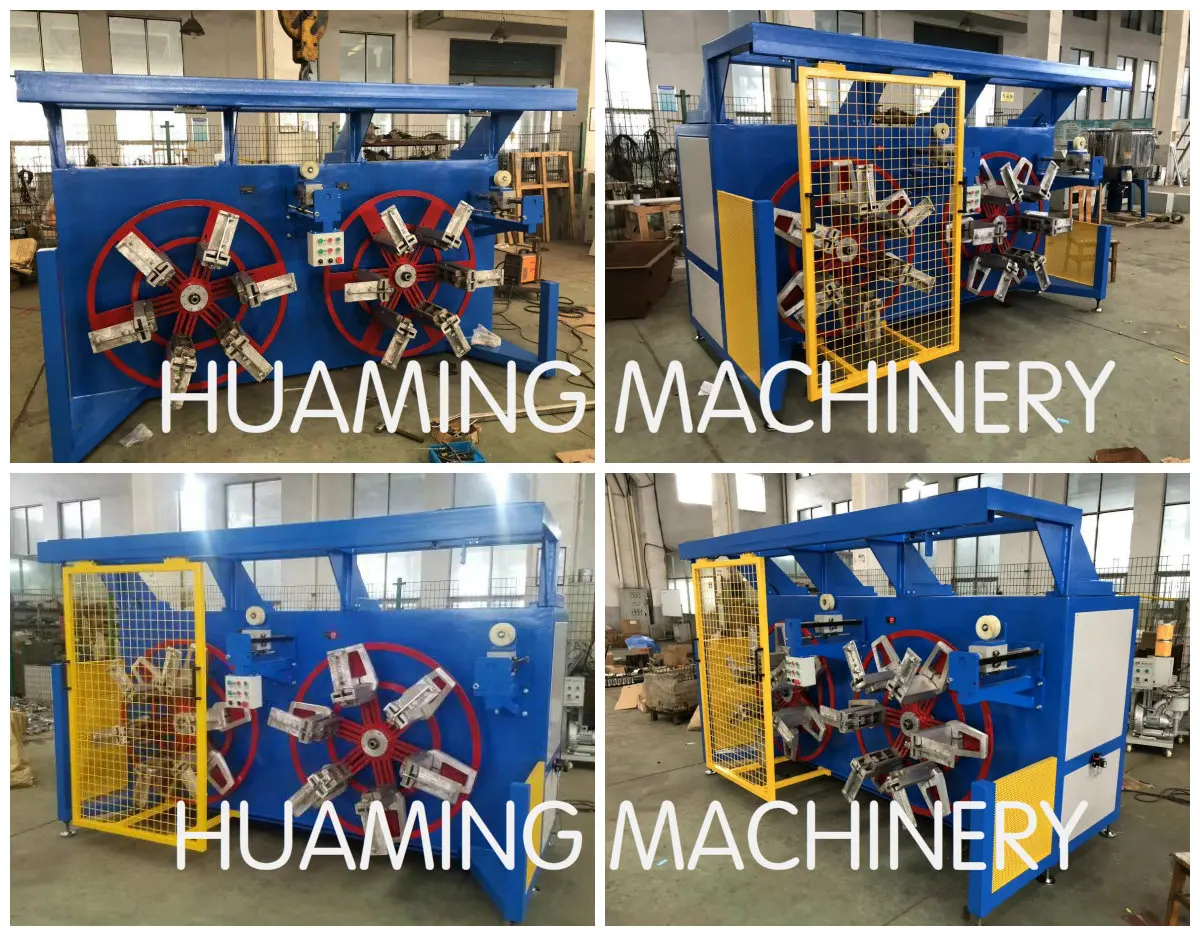

SPS Double Disk Winder

Application:

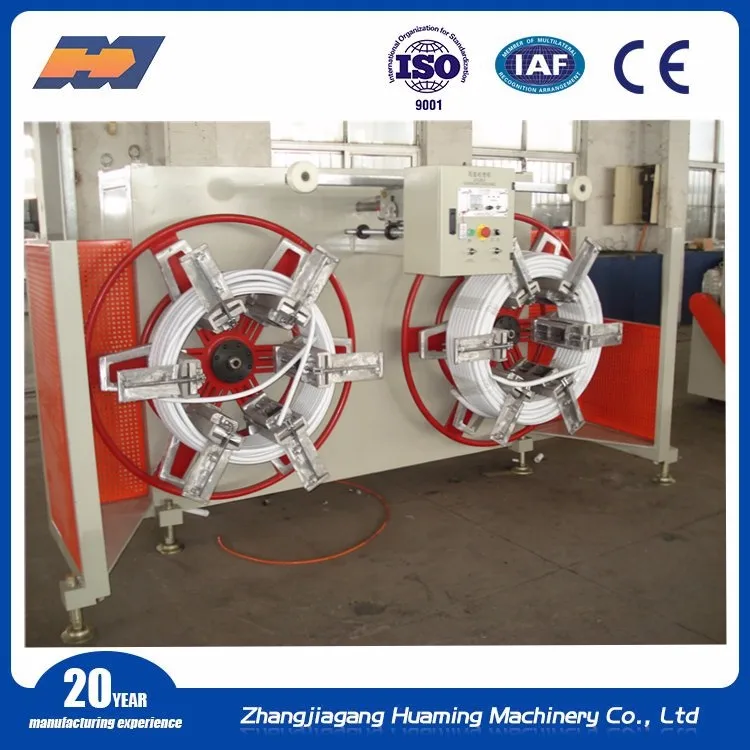

The machine is mainly used in winding-up and packing of aluminium-plastic compound pipe cross-linking compound pipe and other plastic soft pipes. It automatically adjusts winding speed and winding methord. It has two disk for continious winding. It adopts air-operated method. The wheel rib of the winding up wheel adopts air-operated opening and closing. It is equipped with a ray creel stand to automatically wind displacement. It reaches winding up orderly. The machine structure is compact. Its automatication is high. Its appearance is beautiful and its opration is conenient.

Main techinical standards:

model	SPS280	SPS400	SPS700	SPS1250
winding diameter	280mm	400mm	700mm	1250mm
winding speed	0.5-15m/min	0.5-15m/min	0.8-8m/min	0.8-5m/min
winding width	220mm	300mm	400mm	420mm
winded pipe specification	12-16mm	14-32mm	14-63mm	75-125mm
air pressure	0.6Mpa	0.6Mpa	0.6Mpa	0.6Mpa
appearance size	2100x1000x1400mm	2500x1150x1450mm	4350x2100x2315mm	4500x2250x2300mm
weight	700kg	1000kg	1500kg	4500kg
