Maximum power voltage-(VMP): | 39.8V42.5V | Pre-sale project design: | yes |
Operating temperature: | -40°C to +85°C | application: | Home |
Installation type: | Ground installation, roof installation | Supply capacity: | 100000 watts per day |
Short circuit current (ISC): | 9.98A-10.26A | Maximum system voltage: | 1500VDC (International Electrician) |
Controller type: | MPPT | Output voltage (V): | 110/120/220/230V |
Certificate: | CEROHS | Working hours (hours): | 24 hours |
Output frequency: | 50Hz/60Hz | Free installation service: | No |
Battery Type: | lead acid | Peak power in watts - PMAX (Wp): | 500W-600W |

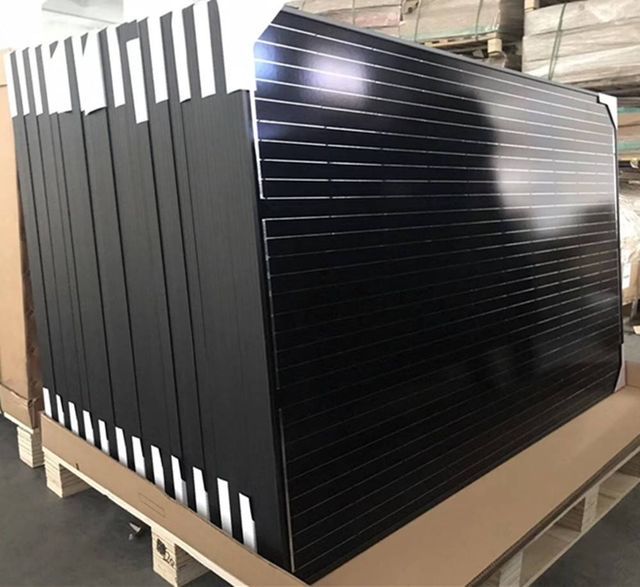

product name: | High-efficiency half-cell solar panels | Module efficiency (%): | 19.58%-20.94% |
brand: | real | Load power (W): | 50kw, 30KW, 1KW-200kw |
Warranty: | 3 months - 1 year | payment terms: | Western Union, T/T, MoneyGram, PayPal |
Package preview: | Open circuit voltage (Voc): | 48.6V-52.9V | |
Nominal Power Current (Imp): | 9.55A-9.88A | OEM/ODM/customization: | support |
port: | Guangzhou/Shanghai | Solar Panel Type: | Monocrystalline silicon, polycrystalline silicon |
Packaging Details: | Carton, wooden box, wooden rack/pallet standard and well protected safe packing | Origin: | Guangdong, China |
Peak Power Watt-PMAX (Wp) | 580W | 585W | 590W | 595W | 600W | |||||
Maximum supply voltage - VMPP (V) | 33.8 | 34.0 | 34.2 | 34.4 | 34.6 | |||||
Maximum power current-IMPP (A) | 17.16 | 17.21 | 17.25 | 17.30 | 17.34 | |||||
Open Circuit Voltage-VOC (V) | 40.9 | 41.1 | 41.3 | 41.5 | 41.7 | |||||
Short circuit current-ISC (A) | 18.21 | 18.26 | 18.31 | 18.36 | 18.42 | |||||
Module efficiency η m (%) | 20.5 | 20.7 | 20.8 | 21.0 | 21.2 | |||||
Power Tolerance-PMAX (W) | 0 ~ +5 | |||||||||
NOCT (Nominal Operating Battery Temperature) | 43°C (±2°C) | |||||||||
VOC temperature coefficient | - 0.25%/°C | |||||||||
Temperature Coefficient of ISC | 0.04%/℃ | |||||||||
STC: Irradiance 1000W/m2, battery temperature 25ºC, air quality AM1.5-measurement error: ±3% |
