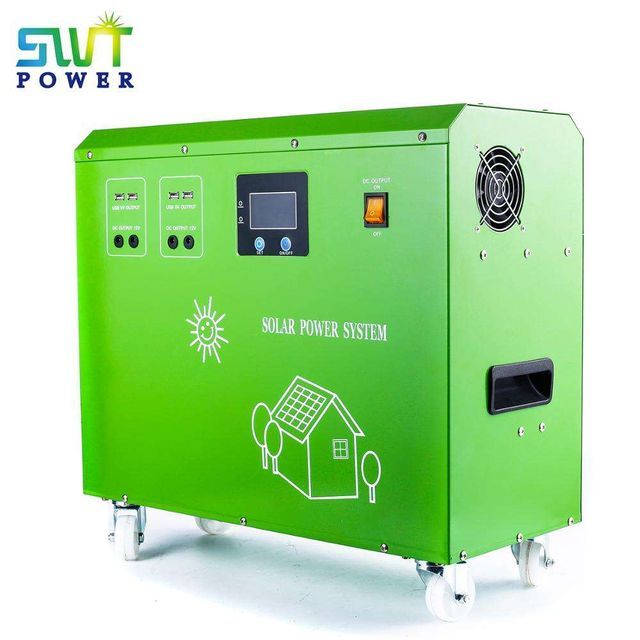

Solar Multifunctional Portable All-in-One Solar Generator Camping Rechargeable Portable Solar Generator

Supplier: Xiamen Sweet Power Tech. Co., Ltd.
Region: Fujian, China
Contact: Mr Kevin Lee
Price: $700.00 /set
Min. Order: 1 set

Click here to contact

Product details

type:	All-in-one, portable	Packaging Details:	Carton and Wooden Box or Pallet for Portable All in One Solar Generator
model:	solar generator	AC charging current:	15A
port:	Xiamen	Specification:	normal
Supply capacity:	10000 sets of 10000 sets of all-in-one solar system with batteries per month	Working hours (hours):	24 hours
Inverter output waveform:	pure sine wave	color:	Green Solar Power System
brand:	SWT Solar Generator	net weight/kg):	10~57
Name:	Portable All-in-One Solar Generator	Solar (watts):	300W~5000W
payment terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal	application:	Home
Output voltage (V):	110/120/220/230±10%	Origin:	Fujian China
Inverter output frequency:	50/60HZ±10%	PWM solar controller:	10A/20A/30A/40A/50A/60A
Conversion time:	≤5ms	Load power (W):	300W~5000W
Temperature protection:	Alarm at ≥85°C, shutdown at ≥90°C

Product Description

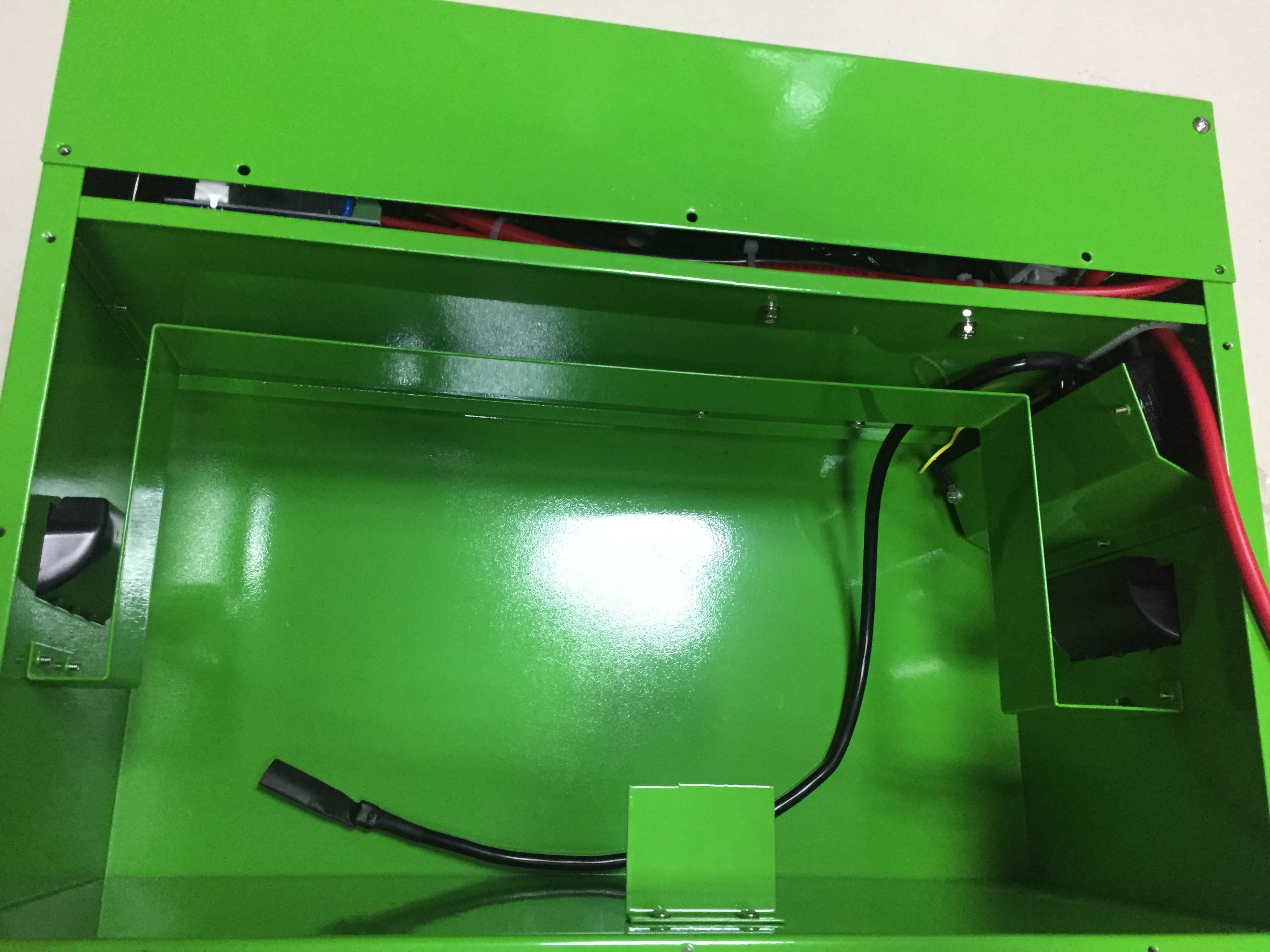

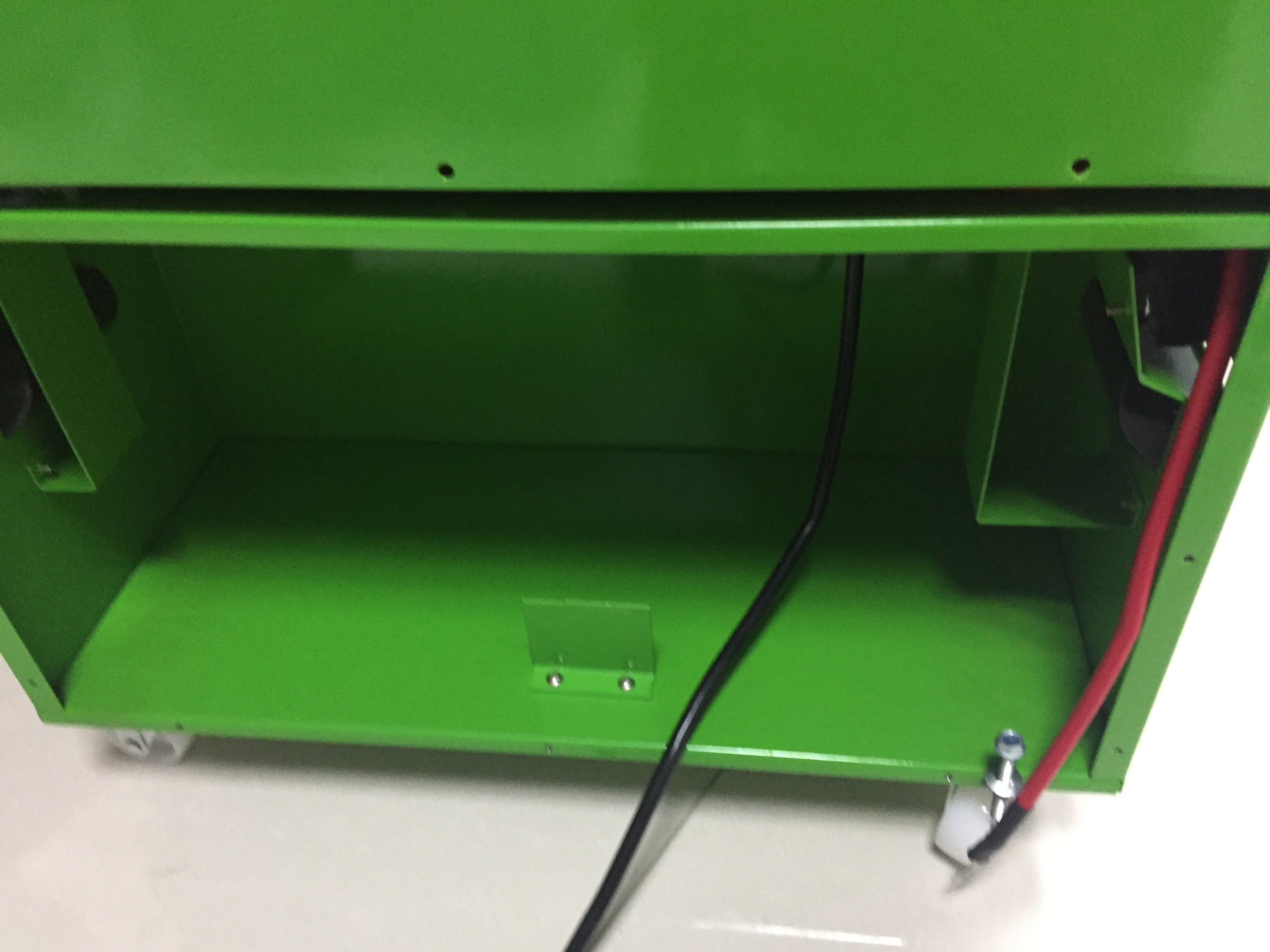

inside the generator

Portable Solar Generator Solar System Truck/Bus Converter Kit for Camping Portable Power Bank

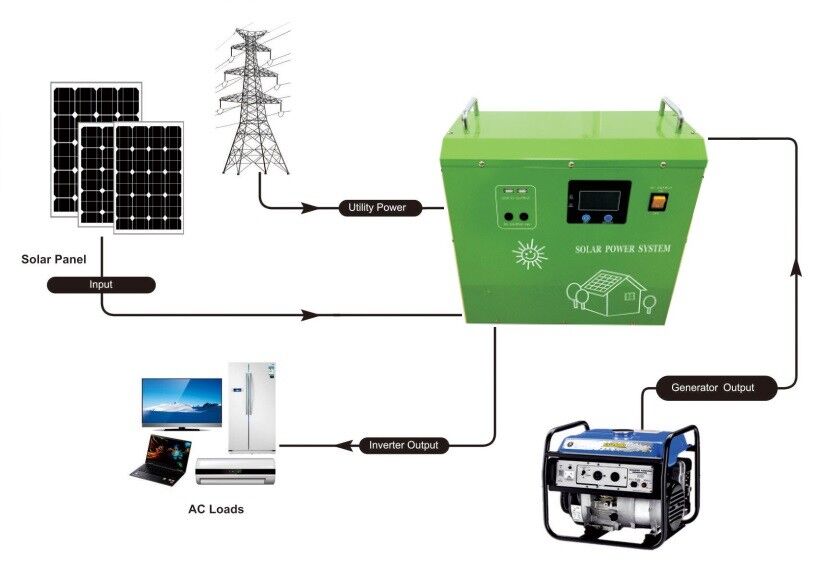

This is a pure sine wave inverter with PWM or high efficiency MPPT solar controller, LCD display provides user configurable and clear data. It can be used in solar power generation systems, electric lights, radios, DVDs, TVs, fans, freezers, computers, small electric drills, communication equipment and other household appliances.

feature:

Rated power 300W to 5000W

Pure sine wave output

Built-in MPPT or PWM solar controller and battery

Different types of batteries are available

High and low voltage protection

Anti-overload, short-circuit protection

Overvoltage, battery reverse polarity (optional)

Undervoltage and Overtemperature Protection

Choice of battery priority or utility priority

With UPS function and 15A AC charging

solar system, solar panel system, home solar power system,The Sun can generate system,solar system,Inverter Solar Power System

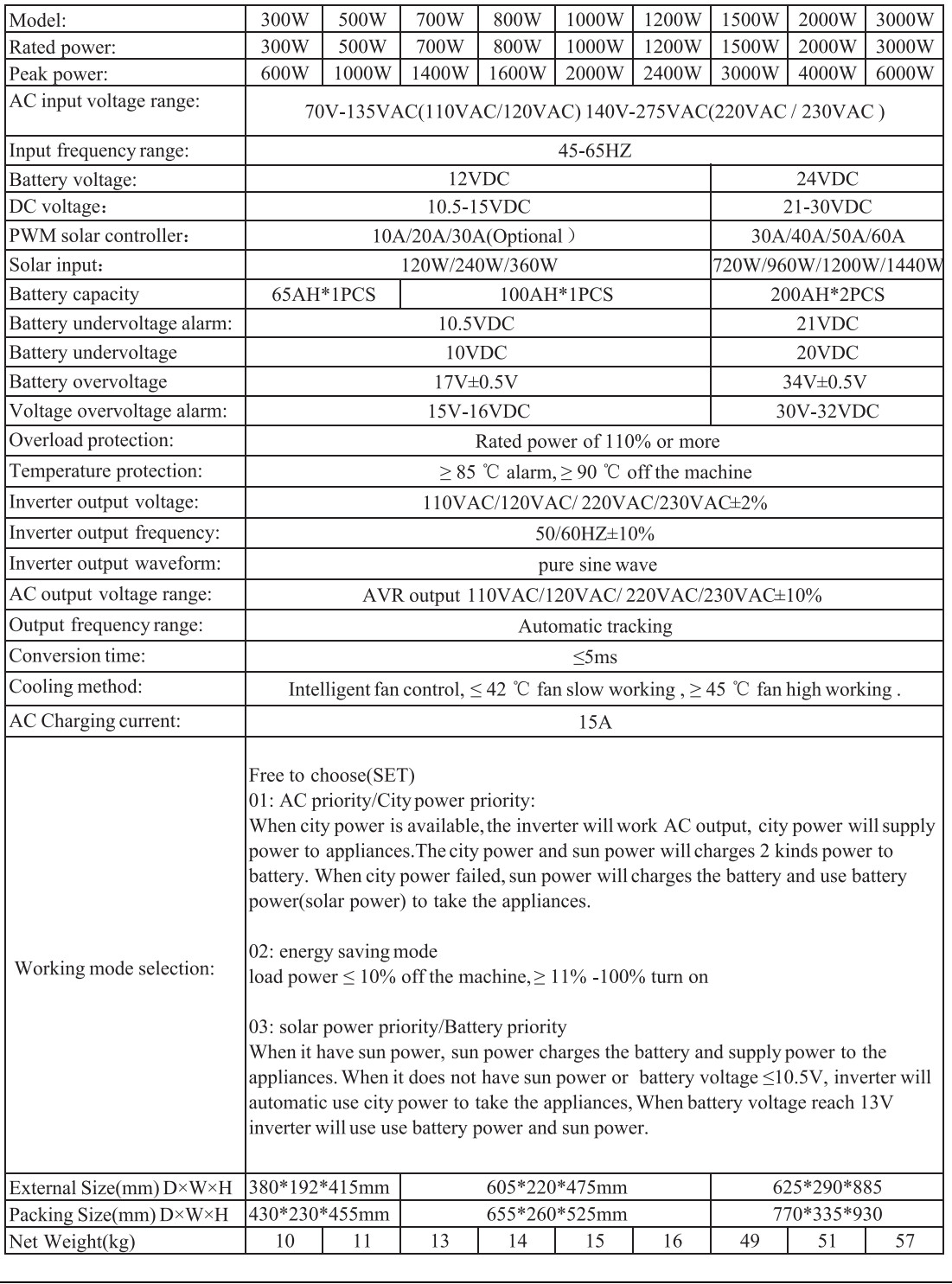

Specification:

Model	300W	500W	700W	800W	1000W	1200W	1500W	2000W	3000W
rated power	300W	500W	700W	800W	1000W	1200W	1500W	2000W	3000W
peak power	600W	1000W	1400W	1600W	2000W	2400W	3000W	4000W	6000
AC input voltage range	70V-135VAC(110VAC/120VAC) 140V-275VAC(220VAC/230VAC)
Input frequency range	45-65HZ
battery voltage	12VDC						24V DC

temperature protection	Alarm at ≥85°C, shutdown at ≥90°C
Inverter output voltage	110VAC/120VAC/ 220VAC/230VAC ±2%
Inverter output frequency	50/60HZ±10%
Inverter output waveform	pure sine wave
AC output voltage range	AVR output 110VAC/120VAC/ 220VAC/230VAC ±10%
Output frequency range	automatic tracking
conversion time	≤5ms
cooling method	Intelligent fan control, fans running slowly at ≤42°C, fans at ≥45°C high work.

AC charging current	15A
Working mode selection	Free choice (SET) 01: AC priority/mains priority: When mains power is available, the inverter will operate on AC output, the mains will supply power to electrical appliances. electricity Power and solar will be 2 power sources to charge the battery. Solar power will charge batteries when utility power goes out And use battery power (solar power) to power appliances. 02: Energy saving mode Load power ≤10% shutdown, ≥11%-100% startup 03: Solar first/Battery first When it has solar power, the solar power charges the battery, Power the appliance. when there is no sun Power supply or battery voltage ≤ 10.5V, the inverter is used automatically Mains power taker, when the battery voltage up to 13V the inverter will use battery power and solar
