High quality automotive hub sputtering vacuum coating machine

Product details
usage:For the manufacture of wear-resistant and decorative coatingsweight:8T customization
Chamber Dimensions:Can be customized according to detailed requirementsCertification:ISO9001:2008 and EU certification
port:Ningbopayment terms:L/C, T/T, Cash
Material:stainless steel 304Supply capacity:20 sets per month
Health status:newAfter-sales service provided:Engineers available to service machinery overseas
coating:Tin, Tic, Ticn, Tialn, Crn, Cu, etc.Packaging Details:Packed in a wooden case, the packing size varies according to the machine ordered by the customer
Matrix:Titanium, chromium, zirconium, titanium aluminum, etc.Warranty:1 year
technology:Magnetron sputtering + multi-arc ion coatingOrigin:Zhejiang, China
type:Coating production lineapplication:Sanitary ware, wheels, hardware products, tableware, etc.
gas:Nitrogen, Argon, Oxygen, AcetyleneDimensions (L*W*H):custom size
control:Automation PLC+ man-machine interfaceCoating Color:Gold, rose gold, black, blue, rainbow colors, etc.
Film layer:single ~ manyVoltage:380V~440V customized
strength:80KWChamber structure:vertical horizontal
brand:Sissel

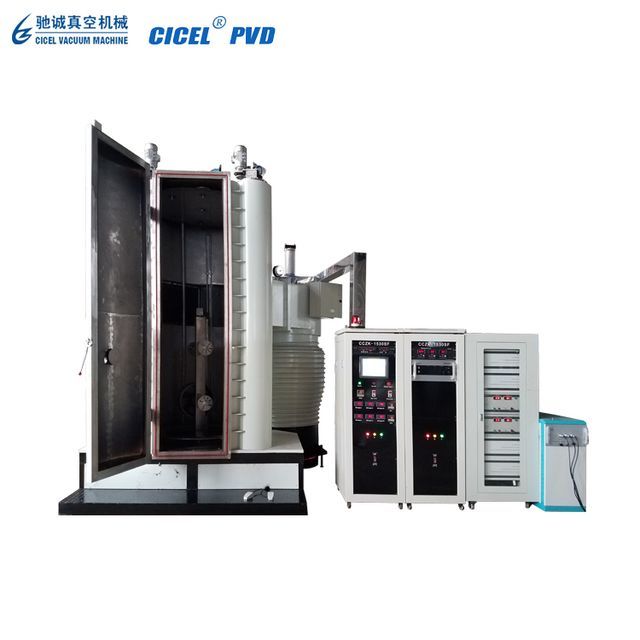

High quality automotive hub sputtering vacuum coating machine



What is magnetron sputtering vacuum coating?

  • One form of PVD coating technology is magnetron sputtering. The vacuum chamber of the PVD coating machine is filled with an inert gas, such as argon. By applying a high voltage, a glow discharge is generated, causing ions to be accelerated from the target to the target surface. Often additional gases are used, such as nitrogen or acetylene, which react with the ejected material (reactive sputtering).
  • Magnetron sputtering uses a magnetic field to increase the plasma density in front of the target. Resulting in increased efficiency, higher sputtering rates and improved ion bombardment during coating growth. These coatings are mainly used in tribological and decorative applications.

How is magnetron sputtering vacuum metallization done?

      The main process includes

  • Primer for parts
  • The parts are racked, the racks are placed into the chamber, and the chamber is then sealed.
  • Argon gas is introduced into the chamber in a continuous flow.
  • The current creates an active argon plasma field in front of the cathode. (The cathode is a component that contains a magnet and provides a mount for the target—a slab of material that will be deposited.)
  • The magnet is located behind the target.
  • Positively charged (ionized) argon atoms are accelerated by a magnetic field (generated by a magnet located behind the target).
  • Positively charged (ionized) argon atoms are accelerated by a magnetic field (generated by a magnet inside the cathode).
  • Positive atoms are attracted to the negatively charged cathode that contains the target.
  • The target is bombarded with each ion particle, which individually destroys atoms of the target material on each collision (target continuous hit).
  • Continuous (directed) sputtering that releases target atoms to be "shot" onto the part surface
  • The base coat material/paint provides a smooth surface for the atoms to deposit together and build up on the part.
  • This part is the top coat

Why Sputtering Vacuum Coating?
     Sputtering/PVD can be used to create wear-resistant and decorative coatings with excellent results on plastic, metal or glass components used in virtually any industry.

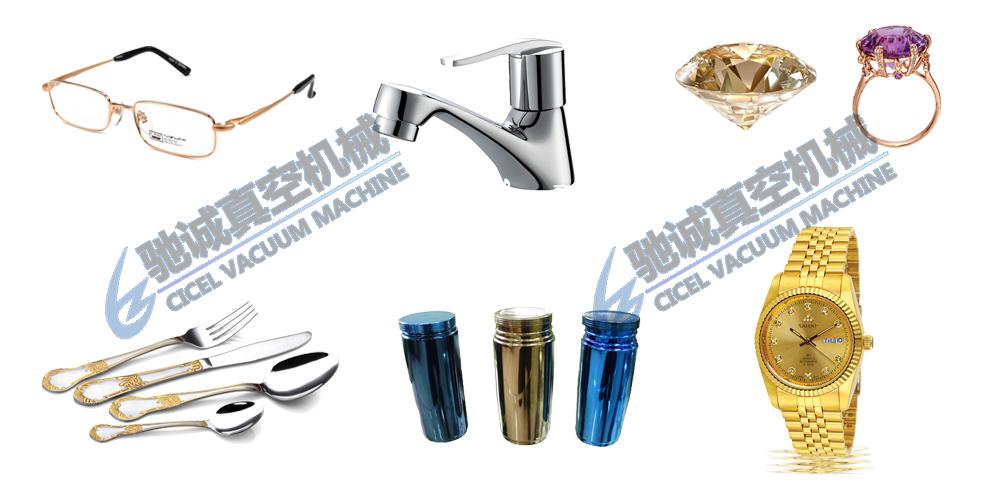

application
    Magnetron sputtering coating machine is suitable for:

  • Metal coating--decorative vacuum coating
  • Solar Control Reflective Glass
  • Low-E glass
  • sputtered aluminum mirror
  • car mirror
  • car wheel
  • Plastic/Metal Cutlery
    With various coating technologies, custom product designs and state-of-the-art manufacturing, CICEL is committed to providing advanced and economical total solutions for glass coating applications. CICEL can design professional coating equipment for customers' professional applications, jointly develop a variety of coating processes, and provide customers with continuous technical support and upgrades

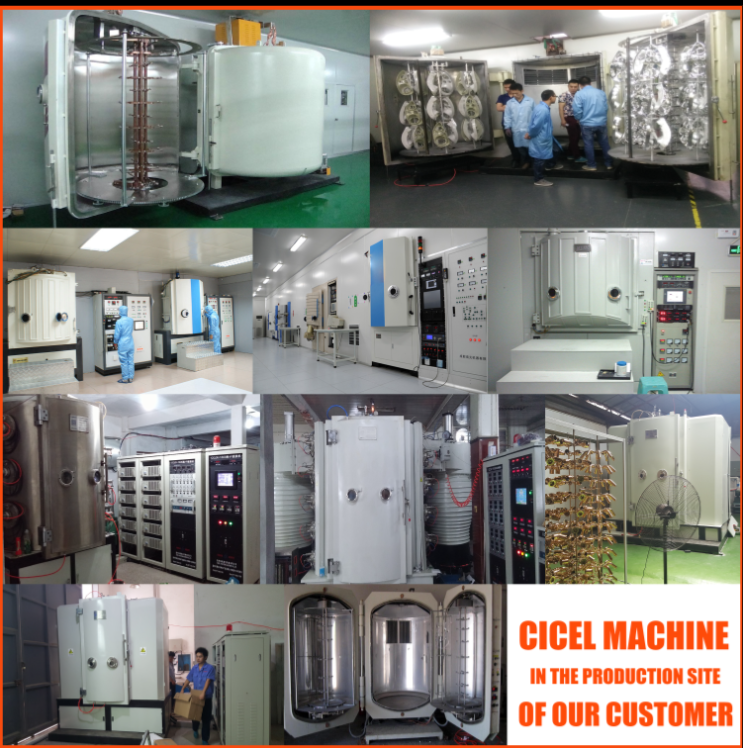

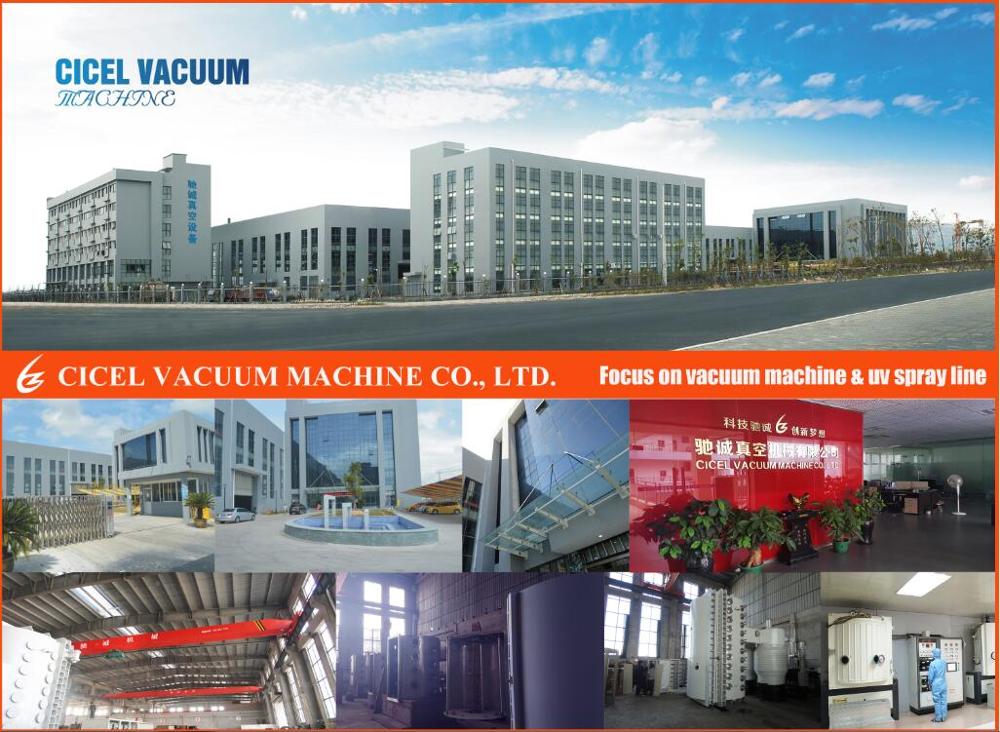

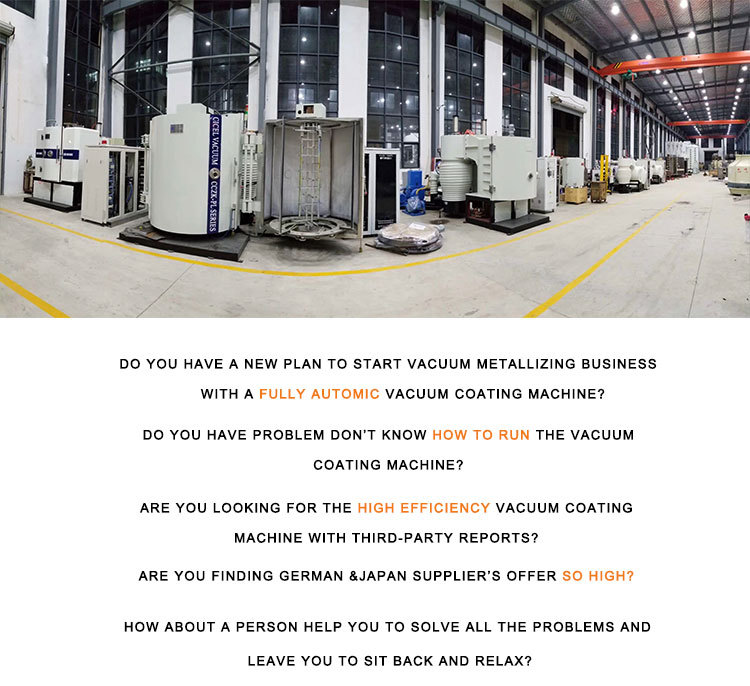

    Our factory

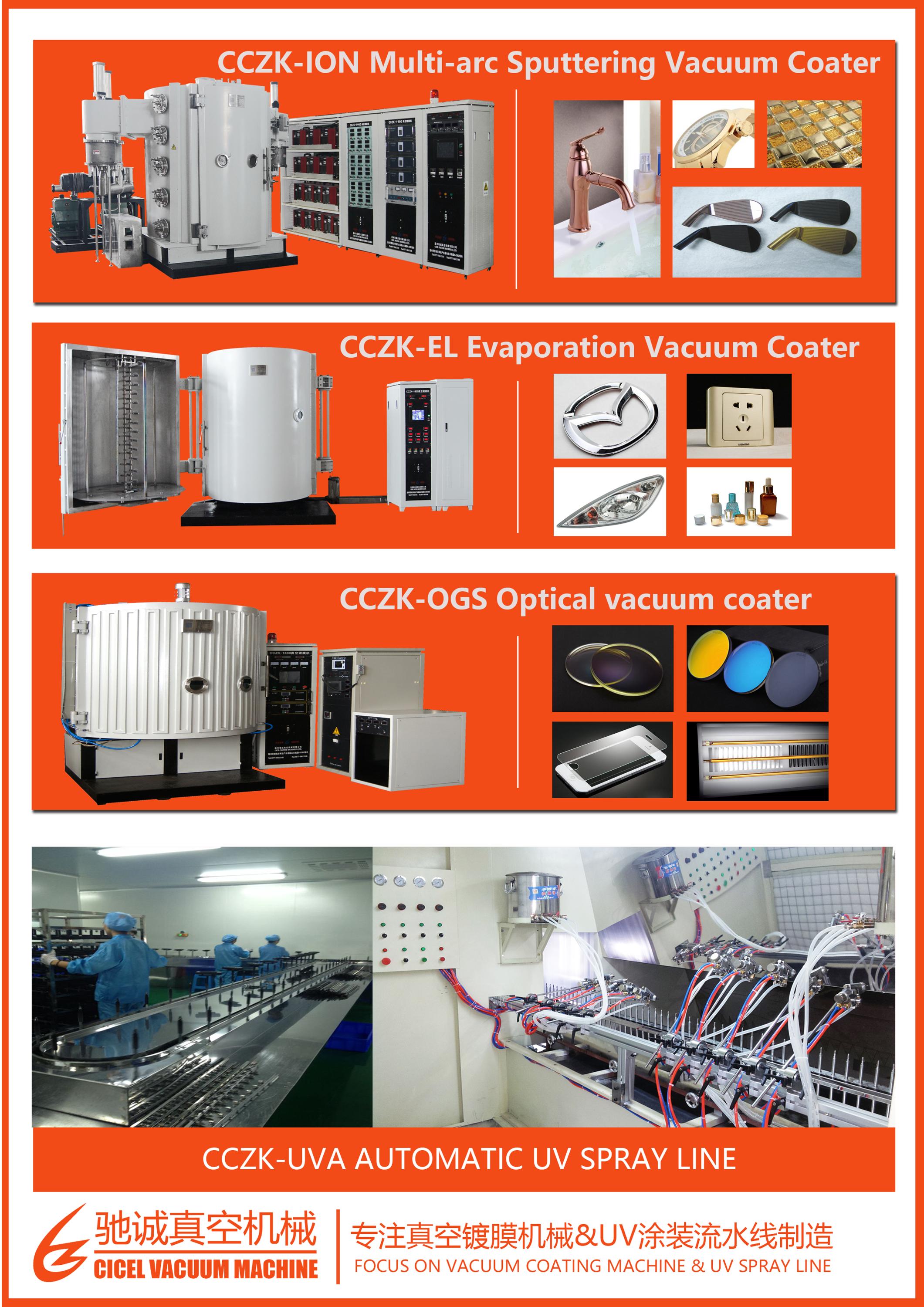

    our products

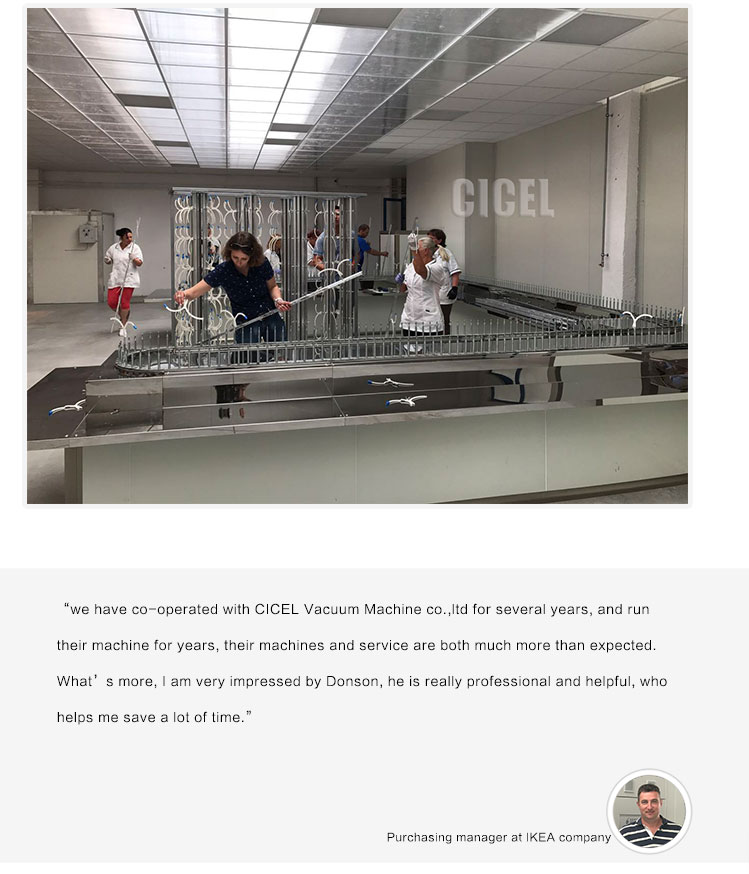

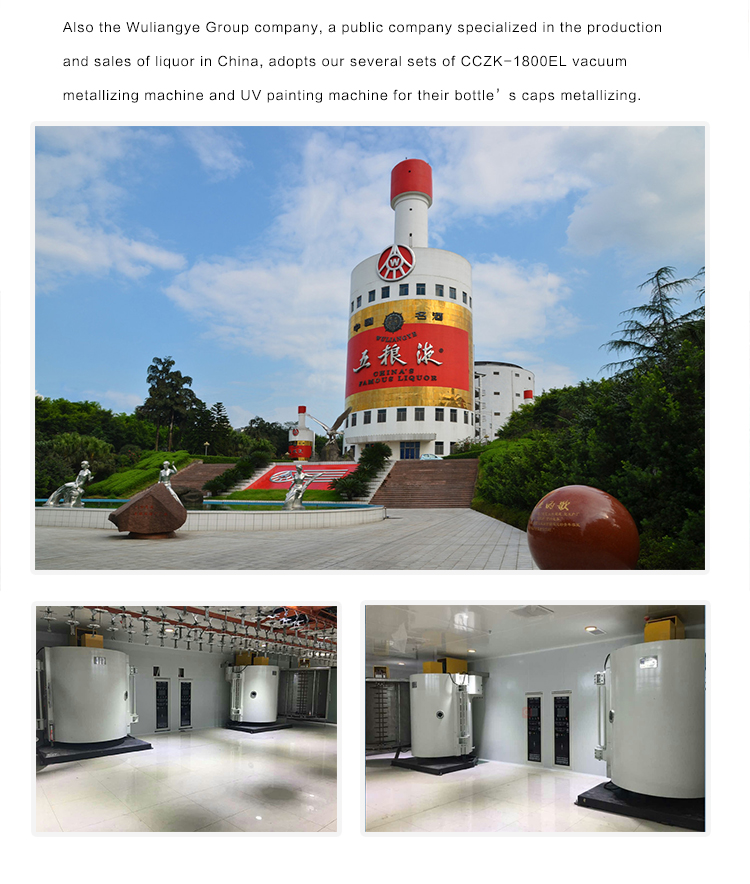

    our customers

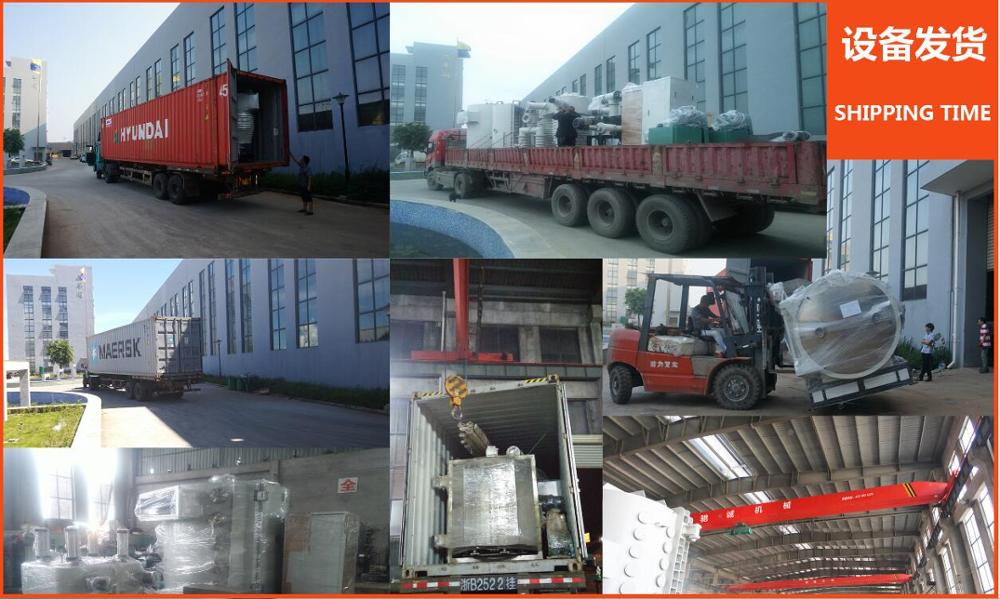

  • Delivery picture




Support Services and Philosophy
At CICEL, our systems are supported by a dedicated service team who can diagnose and provide support when required, maximizing your return on investment. Some of the parts and services we offer include:

  • Respond to your inquiry within 24 working hours
  • Experienced sales engineers will give you professional advice according to your detailed requirements
  • Provide custom design machines and overseas after-sales training. The buyer's engineers can come to our factory for machine and process training before delivery, and our engineers will also visit customers' factories for professional training and machine installation.
  • Supply of replacement parts and consumables for machines
  • Retrofit and Upgrade
  • After-sale maintenance
  • Technical Assistance and Consulting

Our professional service team is available 24/7 to provide quality service and meet customer needs. From initial installation and training to maintenance of existing equipment, we are here for you.
