type: | Electrostatic Powder Coating Machine | Core component warranty: | 1 year |
Marketing Type: | 2019 Hot Products | Supply capacity: | 600 sets per week |
Health status: | new | port: | Ningbo/Shanghai |
Applicable industries: | Hotels, clothing stores, building supplies stores, machinery repair shops, manufacturing plants, food and beverage factories, farms, restaurants, home use, retail, food stores, printing shops, construction, energy and mining, food and beverage stores, advertising agencies | Mechanical test report: | if |
Showroom location: | not any | Warranty: | 1 year |
Core components: | engine | strength: | 45W |
Origin: | Jiangsu, China | Weight (kg): | 26 |
Matrix: | iron | Packaging Details: | XT-101 manual electrostatic powder spraying machine wooden box or carton packaging |
Type of machine: | coating equipment, coating equipment, powder coating machine | Dimensions (L*W*H): | 51*51*66cm |
Voltage: | 110V/220V | payment terms: | L/C, Western Union, D/P, D/A, T/T, Paypal |
Main selling points: | low noise level | Video shipment inspection: | if |
coating: | powder coating | brand: | Xintu |
1. Introduction
WX-101 manual electrostatic powder spraying machine is a stable performance, durable, old model, good reputation, and the most popular powder spraying equipment, suitable for spraying workpieces with rough appearance and simple structure;
2. Apply
2.1 Workpiece requirements: flat (appearance), simple structure or special-shaped products
2.2 Powder requirements: except for metal coated powders, it is applicable to almost all kinds of thermosetting plastic powders;
3. Description and benefits
3.1 Application: planar structure workpiece without too many deep angles;
3.2 The bar display indicator is convenient for workers to control and operate;
3.3 Stainless steel powder hopper;
3.4 The maximum powder spraying amount can reach 550g/min, which greatly improves the production efficiency;
3.5Both the powder tube and the inner powder tube are made of anti-static materials, so that various powders will not stick to the surroundings.
3.6 Good quality and affordable price;
4. Technical Reference
Input voltage |
frequency |
strength |
output high voltage. |
Output current |
110/220 VAC |
50/60 Hz |
45W |
0~100KV |
0~150μA |
The electromagnetic valve |
Intake pressure |
Outlet pressure |
Air consumption |
POWDER-OUT Radio DC |
0-0.6MPA |
0-0.4MPA |
13.2 cubic meters per hour (0.4MPA) |
500g/min |
|
polarity |
Spray gun GW |
gross weight |
Package Size |
delivery time |
negative |
About 750G |
About 35-40KG |
51*51*66CM |
2~3 days |
5. Standard configuration
Control generator 1

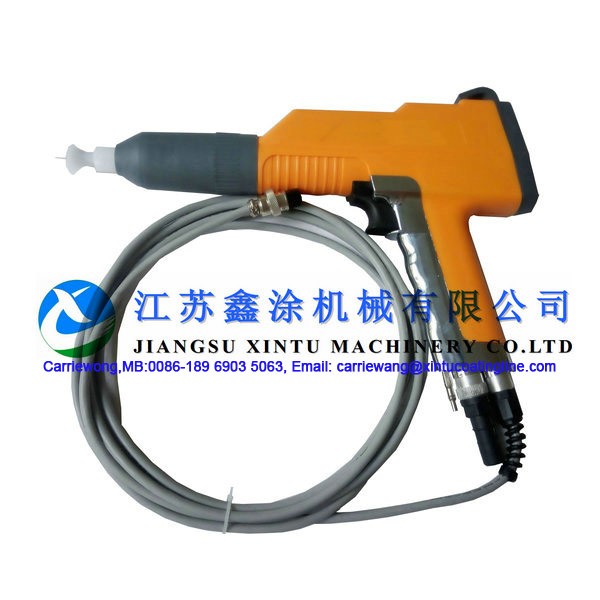

powder spray gun1 set
Powder hopper1 set
mobile trolley1 set
Cables, Hoses and Fittings1 set
Operation Manual 1 set

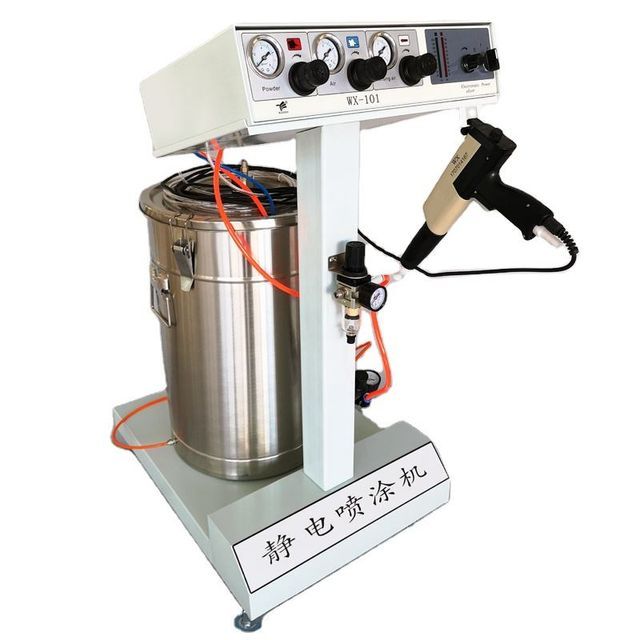

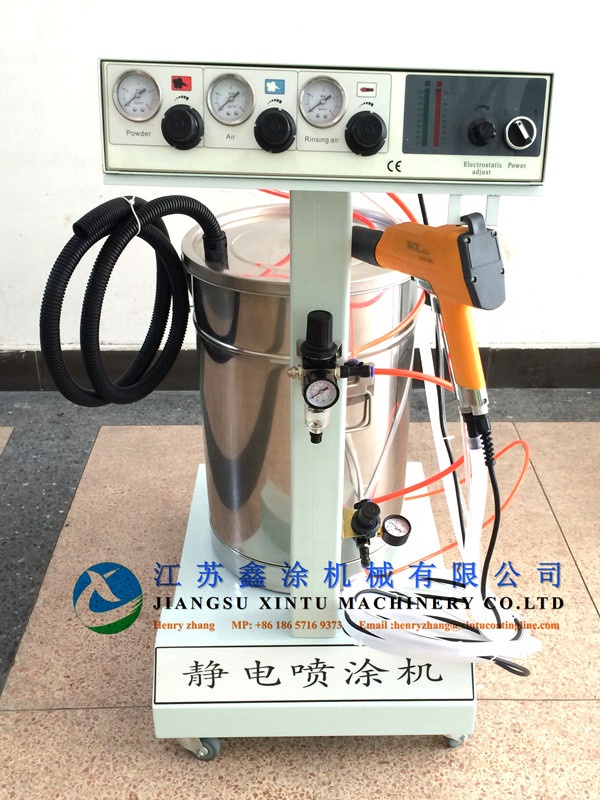

6. Reference photos
