Factory direct sale! 3000-12000BPH juice/drinking juice/juice beverage processing production line plant

Supplier: Jiangmen Tings Drinking Water Equipment Co., Ltd.
Region: Guangdong, China
Contact: Ms Janice Ye
Price: $20000.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Key machines:	Labeling machine, plastic bottle blowing machine, filling machine, capping machine, winding machine, injection blowing machine, sealing machine, coding machine	Year:	2022
heating method:	electro-thermal	weight:	2000 kg
Material:	Stainless steel 304/SUS316/copper	Product Category:	Sparkling water, purified water, spirits, mineral water, beer
Warranty:	1 year	Packaging Details:	1. PVC film + fumigation wooden box + solid wood pallet covering. 2. Wooden boxes suitable for long-distance sea transportation. 3. Small drinking water filling machine/beverage manufacturing equipment/juice filling equipment
Package preview:		Automatic level:	automatic
port:	Jiangmen/Shenzhen/Guangzhou	Bottle type:	PET plastic glass bottle
Applicable industries:	beverage products	Supply capacity:	10 sets per month
Control System:	touch screen	usage:	Beverage equipment
Origin:	Guangdong, China	Machine capacity:	2000 bottles/hour
clean:	CIP system	brand:	Dings
payment terms:	L/C, T/T	After-sales service provided:	Online Video Support
Health status:	new	Filler:	flowing liquid

product specification

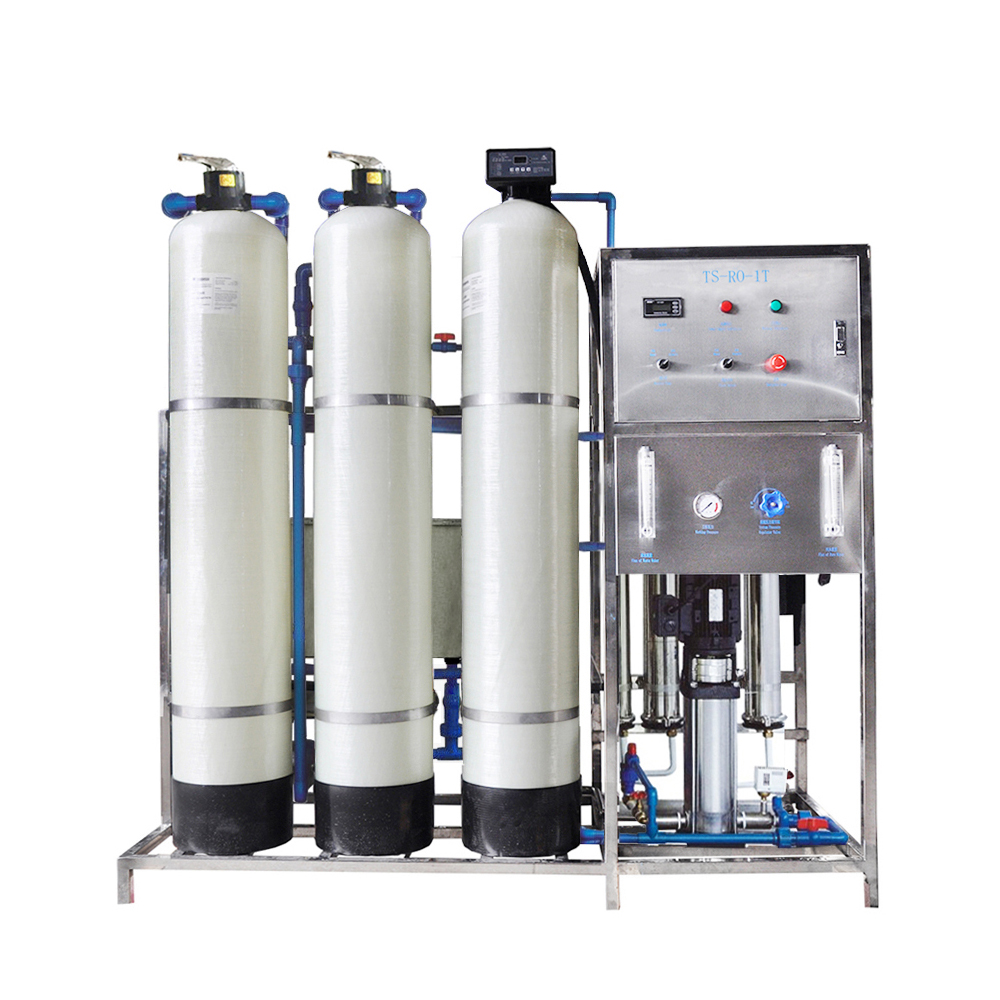

TINGS machine water treatment.

1 raw water tank + raw water pump
2 Silica sand filter + activated carbon filter + sodium ion exchanger + precision filter + safety filter
3 reverse osmosis (level one)
4 UV sterilizers
5 finished water tank + pure water pump

Fully automatic blow molding machine (for making PET bottles)

Composition: bottle blowing host, lifting preform machine, high-pressure air compressor, low-pressure air compressor, dryer, air storage tank, cooler

Control system: PLC+touch screen Control module: according to customer requirements

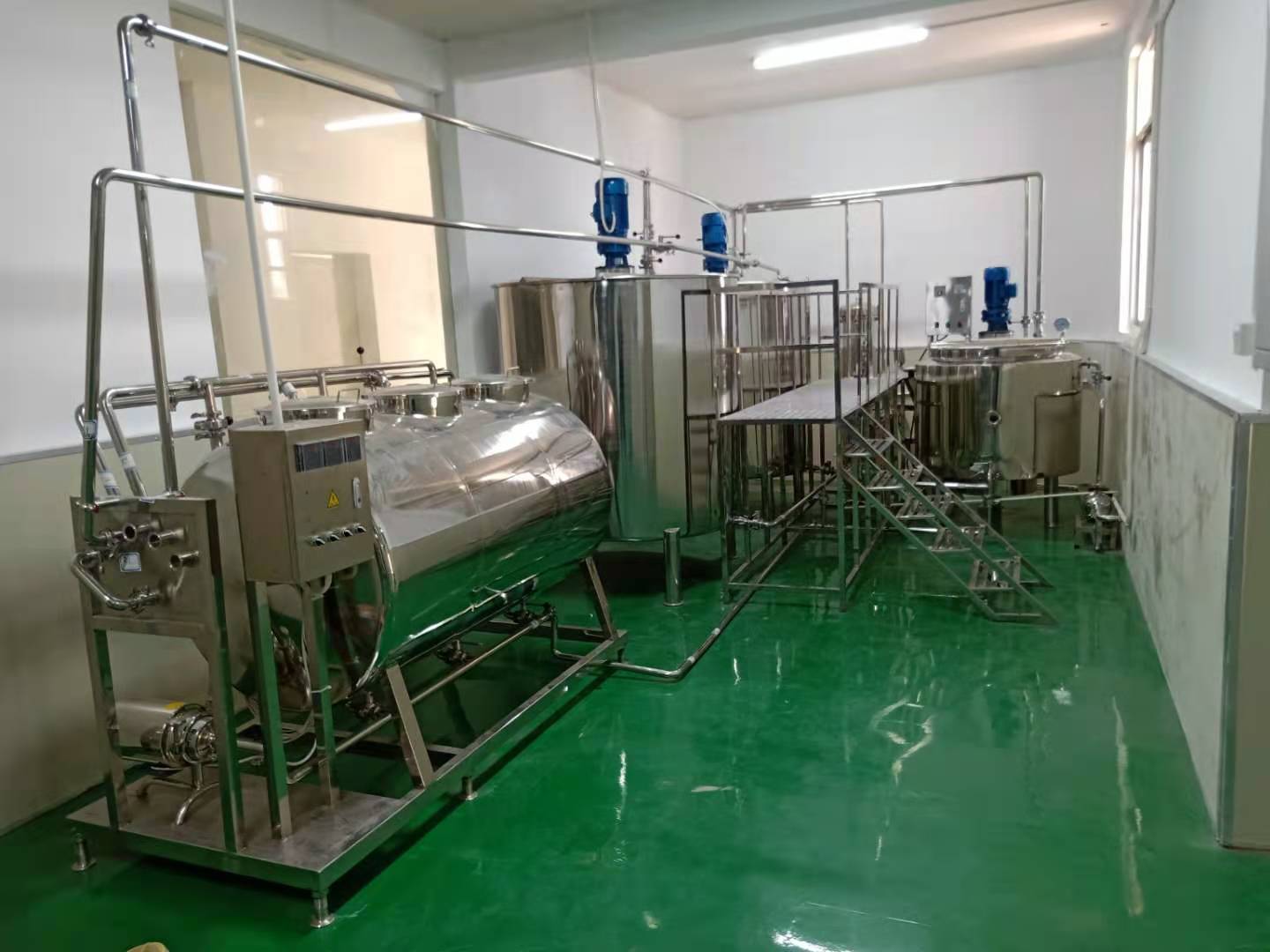

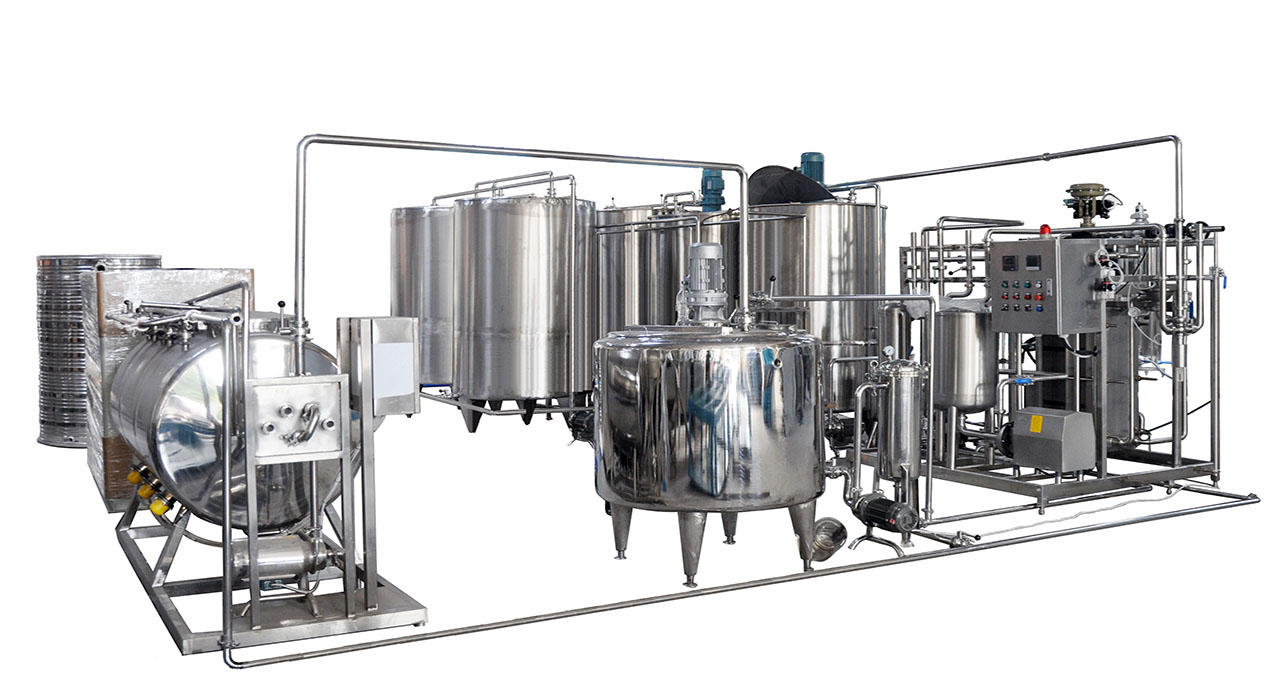

juice making system

operating platform

Stainless steel non-slip platform

Carbonated water production process

Including sugar melting boiler:, syrup filter, mixing tank, chiller, heat exchanger, CO2 purifier, CO2 and beverage mixer, pump, CIP cleaning system, SUS304 pipes and valves

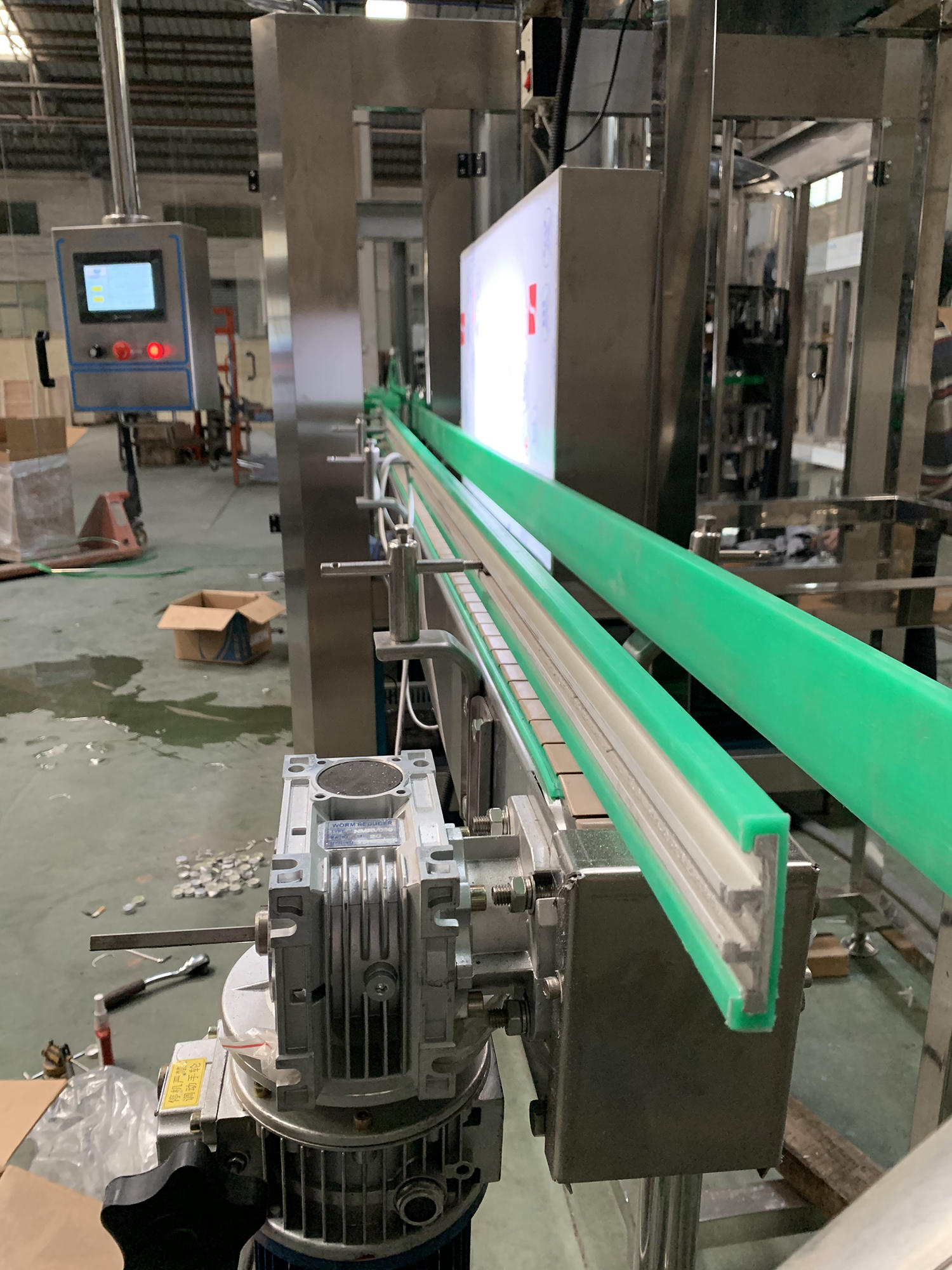

-air conveyorFixed to the floor with the fan mounted on top.
- Air filters are located at each inlet of the fan to prevent dust from blowing into the bottle.

- The bottles are fixed at the neck on the conveyor belt and conveyed into the filling machine by blowing force.

- Made of 304/316 stainless steel.

- High quality carbon steel welded rack and frame

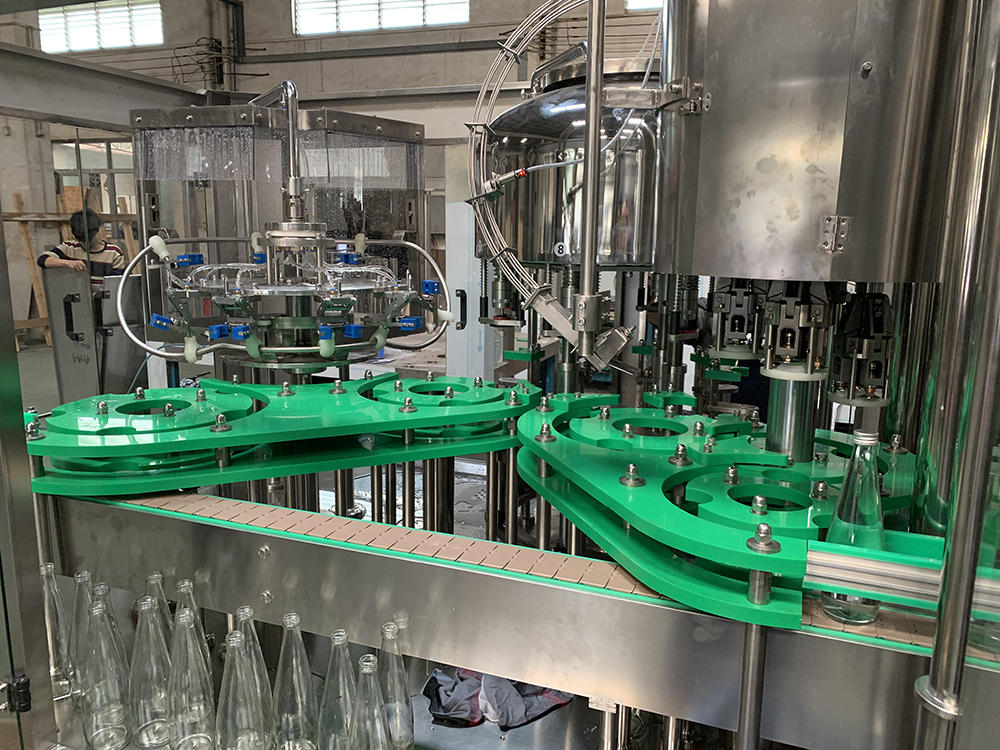

- thiswashingThe working table is directly connected with the air blower, making the working environment cleaner.
- All 304/316 stainless steel nozzles, water injection design, high water injection accuracy and water saving.

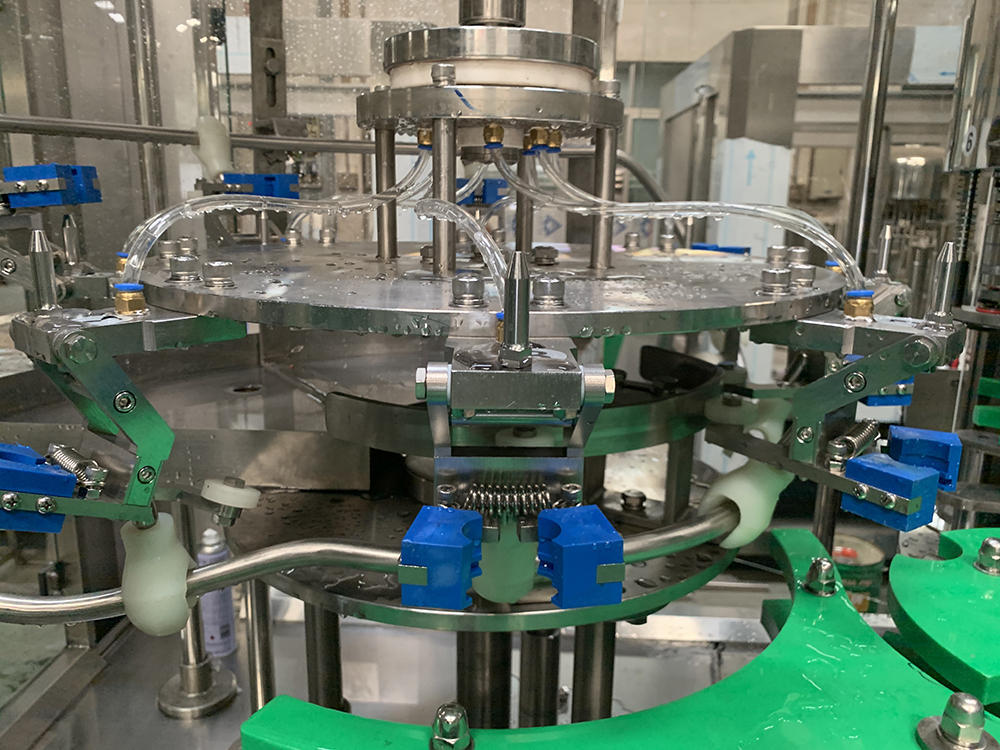

- 304/316 stainless steel pliers, high cleaning precision, to ensure that the bottle does not fall during the cleaning process.

- 304/316 stainless steel cleaning pump, durable and clean

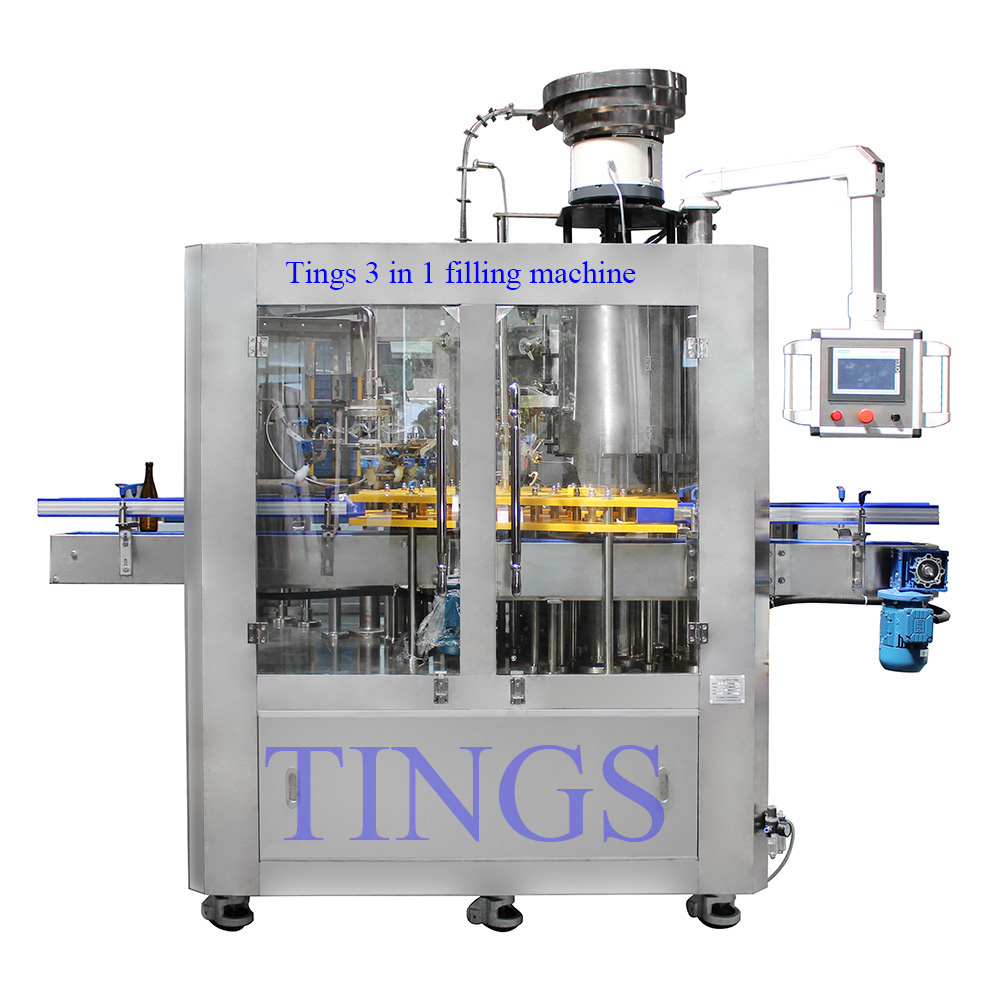

- 304/316 stainless steel high precisionfillingnozzle
- Adjustable filling volume, all bottles are filled with the same amount of liquid

- All 304/316 stainless steel contact parts and liquid tank, finely polished, no solder joints, easy to clean

- 304/316 stainless steel filling pump

- High-precision nozzles save water

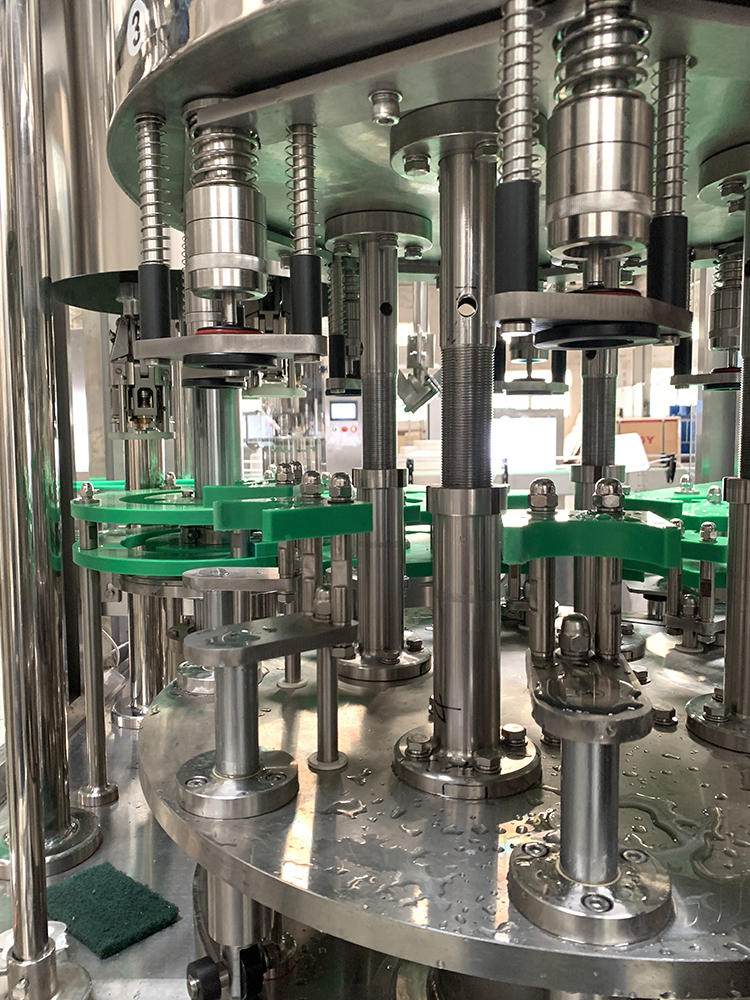

- Electromagneticcaphead to minimize bottle drop during capping
- All 304/316 stainless steel construction

- Capping with high precision and no leakage

- Automatic shutdown if the number of bottles is insufficient

- The capping process is stable and reliable, and the defective rate is ≤0.2%

More models of filling machines with different capacities are available for you to choose:

The following capacity parameters are for reference only. It depends on the size of the bottle.

No.	model.	capacity	cleaning nozzle	Filling mouth	cap nozzle
1	XGF8-8-3	2000-3000 times/hour	8	8	3
2	XGF14-12-5	3000-5000BPH	14	12	5
3	XGF18-18-6	6000-9000BPH	18	18	6
4	XGF24-24-8	10000-12000BPH	twenty four	twenty four	8
5	XGF32-32-10	12000-15000BPH	32	32	10
6	XGF40-40-10	15000-18000BPH	40	40	10
7	XGF50-50-12	18000-22000BPH	50	50	12
8	XGF50-50-15	22000-25000BPH	50	50	15

Dryer:
Composition: fan, conveyor belt, 360° rotatable function: to deal with water droplets on the surface of the bottle

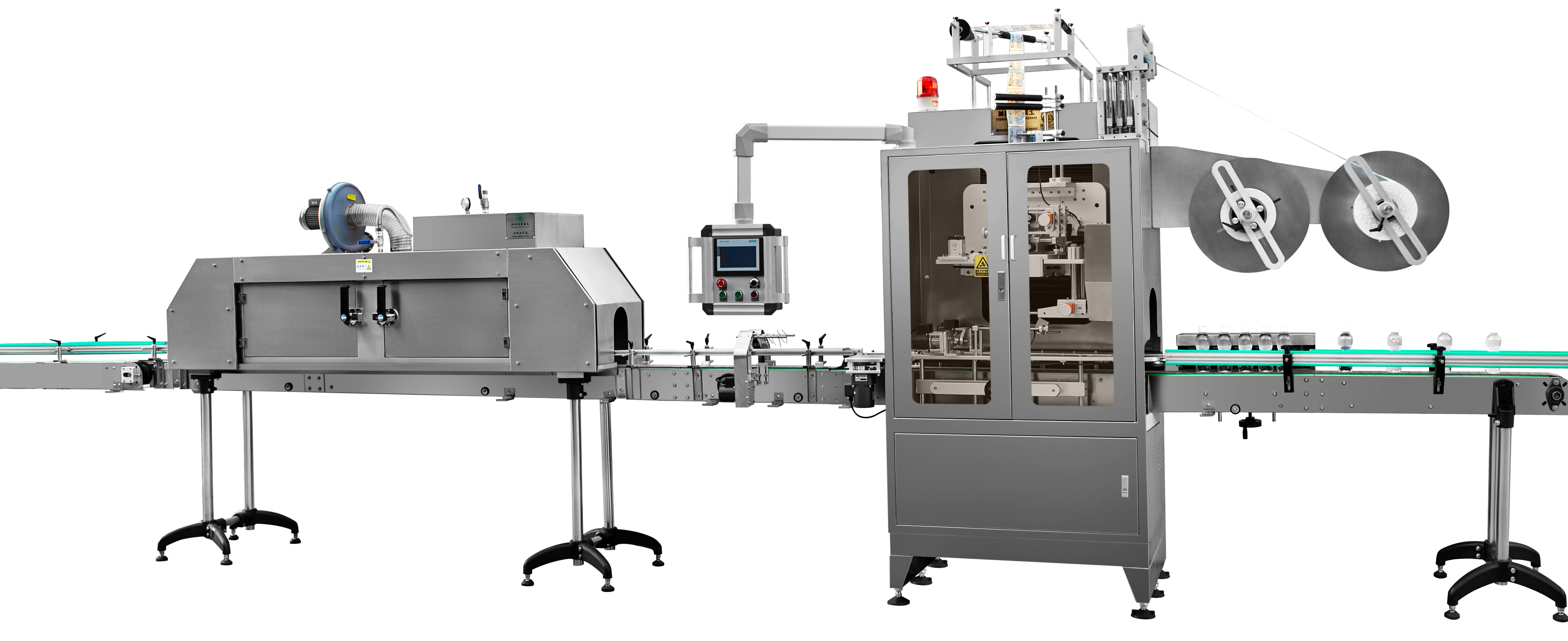

Shrink Sleeve Labeling Machine

Semi-automatic PET bottle blowing machine bottle blowing machine PET bottle making machine is suitable for
Production of PET plastic containers and bottles in various shapes.

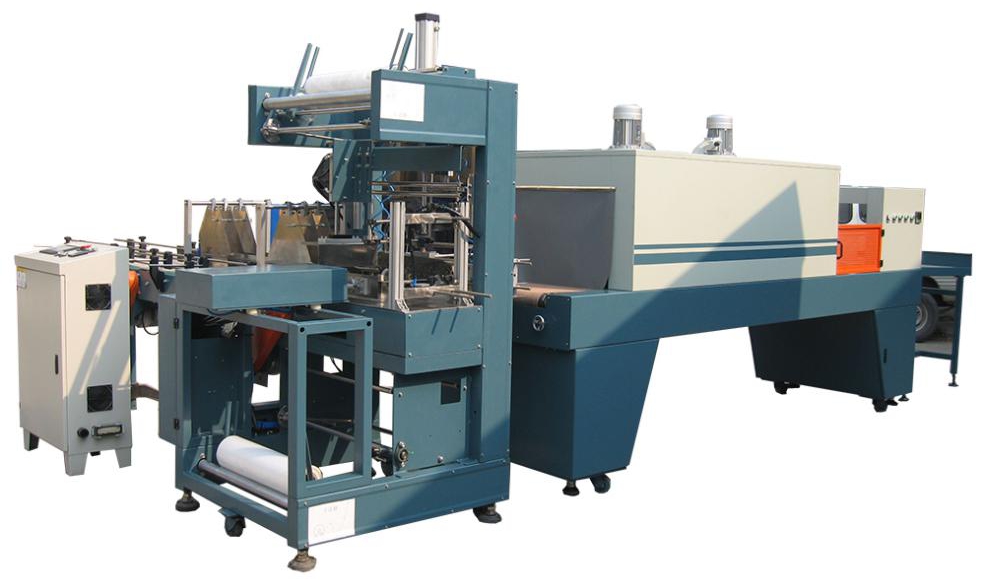

Heat Shrink Packaging Machine

Absorbent material: PE, PVC, POF Film thickness: 0.03-0.15mm

Maximum temperature of heat shrinking furnace: 160 - 260° (variable temperature)

Maximum output: 4-6 bags/min Power: 18Kw;

Actual working power: 15KW Conveying mesh bag: SUS
Function: PLC+touch screen, Chinese and English switching pages, frequency conversion control, double circulation fan to ensure
Cooling system with super high temperature air volume to ensure fast shaping.
