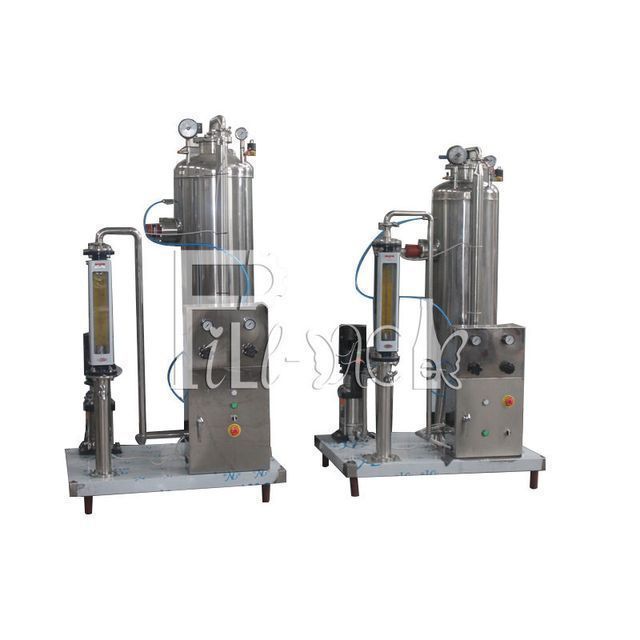

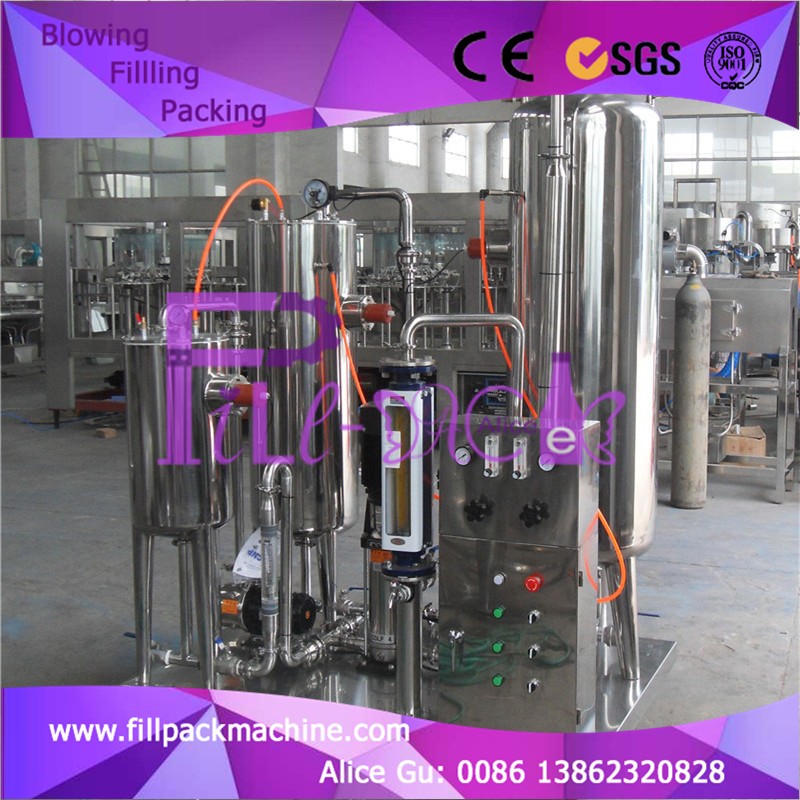

Five-tank CO2 mixer for fully automatic carbonation unit in soft drink processing lines

Five-tank CO2 mixer for fully automatic carbonation unit in soft drink processing lines

Quick Details of Carbonation Plant
1. Capacity: 3000L/H
2. Three tanks for water, CO2, beverage syrup mixing
3. Material: SUS304
4. Carbonated drinks, soft drinks, beer, etc.
Description of Carbonation Plant
QHS series carbonated beverage mixer is designed and manufactured to increase the proportion of water, syrup and carbon dioxide gas in the three tanks of the filling machine. Using foreign advanced technology, the static mixer reduces the water layer, increases the carbonation time, and ensures the mixing effect. The CO2 circulation system is conducive to saving CO2 consumption and controlling the oxygen input.
A complete automatic control system is composed of high-quality water pumps and Siemens electrical equipment.
It has the advantages of action coordination, beautiful appearance, convenient washing and high degree of automation.
Suitable for mixing various beverages, such as soda, cola and other soft drinks. It can also be used for the brewing of thin beer, aerated beer and sparkling wine.
The mixer has advanced technology, uniform mixing, reliable performance, compact structure and convenient operation. It is suitable for large, medium and small aerated beverage enterprises.
Main technical data of carbonization device
Model: QHS-3000
Production capacity: 3000kg/h
Water-sugar mixing ratio: 3:1-10:1
Volume ratio: above 2.6
Intel chilled water temperature: 3-5 degrees Celsius
Working pressure of pre-carbonization tank and syrup tank: 0.05-0.08MPa
Storage container working pressure: 0.2-0.5MPa
Power: 2.5kw
Dimensions: 1500*1000*1800mm
Weight: 400kg

1. Installation and adjustment
After the equipment arrives at the customer's site, the customer is responsible for unpacking and arranging the equipment according to the placement diagram; and under the guidance of our installation and adjustment technicians. The final decision on staff costs.
2. Training
1). We are responsible for providing technical training to users. The training covers the structure and maintenance of the equipment, the control and operation of the equipment. Through training, the user's technicians can master and operate and maintain skills proficiently, and deal with general faults in time. We will appoint qualified technicians for guidance.
2). Buyers can send personnel to study in our company.
3. Quality Assurance
1). We guarantee that the goods supplied are brand new, unused, made of the latest designs and suitable materials, and we guarantee that the specifications of the equipment are consistent with the contract.
2). Through the correct installation and debugging guidance, we ensure that the production line reaches the technical performance indicators within 5 days after the production line is put into operation.
3). We are responsible for production line failures and damages caused by our design, technology, manufacturing, installation, adjustment, material defects, etc., all of which are our responsibility.
4). The warranty period is 12 months after the acceptance of the production line. If the equipment provided by the customer's factory is different from the relevant equipment in the contract, the user has the right to file a claim with the legal department to our company through the inspection certificate during the warranty period of the goods.
4. Warranty
A 12-month maintenance period is provided for problems caused by our company's design, manufacturing, material quality, etc., and related parts and effective services are provided free of charge. After the warranty period, we will provide extensive and favorable technical support, and after-sales service is always the same.

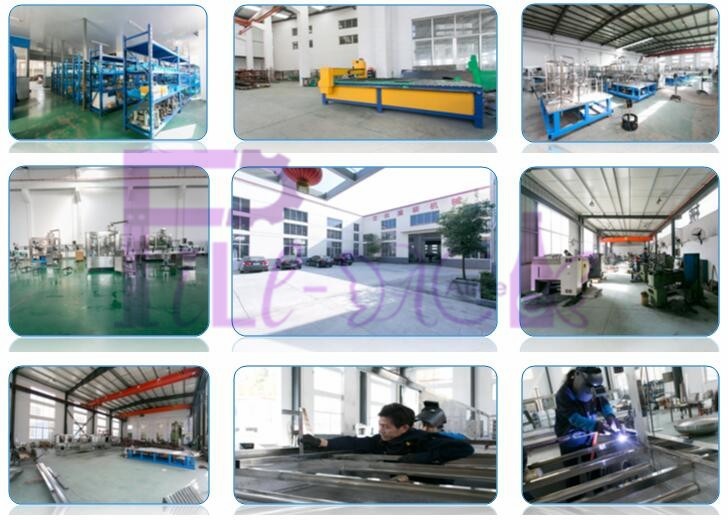

Zhangjiagang Feili Packaging Machinery Co., Ltd. is located in Zhangjiagang City, which is famous for its production of beverage machinery. Combining industry advantages and its own development in R&D, production, sales and after-sales service, FILL-PACK is willing to serve more and more customers with a full range of products and satisfactory services.
FILL-PACK products are critical in the selection of raw materials and spare parts. Korean 304\316 stainless steel plates, ABB, SEW motors, Siemens, Mitsubishi, OMRON electrical control components, FESTO CAMOZZ control valves, and international precision machining centers have laid the foundation for the excellent quality of machine tools.
Current production: 1000-20000 bottles/hour of mineral water, purified water, fruit juice, tea beverages, milk beverages, carbonated beverage production lines; 1000-20000 bottles/hour of vinegar, soy sauce, wine production lines; 3-5 gallons of bottled water, capacity 80-1200 barrels/hour and various water treatment plants; we supply individual machinery or turnkey projects.
Our products pass the quality inspection of the Bureau of Quality and Technical Supervision every year. Our factory complies with ISO9001:2000 certification system standard and has obtained CE certificate for exporting to European countries. Our machines are sold to more than 30 cities in China and exported to the United States, Spain, Hungary, Middle East and African countries.
We help you take the factory as your home with pure heart, we do service, we learn to support!
