heat resistant stainless steel jis 10k flange ptfe lined 2 pc ball valve 150lb ptfe lined

Supplier: Shenyang Taike Fluid Control Co., Ltd.
Region: Liaoning, China
Contact: Mr China tkfm
Price: $55.00 /set
Min. Order: 1 set

Click here to contact

Product details

Material:	Stainless Steel;	Structure:	Ball;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,trade assurance;	O-ring:	FPM;
install:	can be buried directly, save cost;	Media:	Water;
Operation:	Handle;	Certificate:	ISO9001/EAC/CE/API;
Application:	General;	Port Size:	customizable;
Brand Name:	TKFM;	Temperature of Media:	Medium Temperature;
connection:	Flange ends ball valve;	Type:	3 pieces ball valve;
Model Number:	HQG61FC-25;	life:	same as piple;
maintenance:	20 years free maintenance;	Packaging Detail:	export standard plywood package 2 pc ball valve;
Place of Origin:	Liaoning China (Mainland);	Power:	Pneumatic;
Port:	dalian;	Pressure:	Medium Pressure;
Body material:	Stainless Steel 316;	Standard or Nonstandard:	Standard;
Supply Ability:	3000 Set/Sets per Month 2 pc ball valve;

Product Description

Most popular products stainless steel jis 10k flange wcb ptfe lined 2 pc ball valve 150lb

Five Advantages:
1. integral seamless steel tube pressed full-auto welded without leaking outward.
2. PTFE+25% carbon fiber and disc spring feely compensating structure zero leakage.
3. can be directly buried without need of a high ground well,saving the engineering cost.
4. both valve and pipeling are made of the same material, without the condition of uneven sterss.
5. in multiple connection combination, for use with special working conditions.
This series of products are reliable sealing performance, maintenance-free for 20 years, switch torque light,can be installed in heat transfer stations, district heating pipe network, branch pipes, heat exchanger unit, heat transfer equipment or ancillary equipment connected to other.use for cut off . The main use of the urban heat, city gas, city water supply and drainage lines.

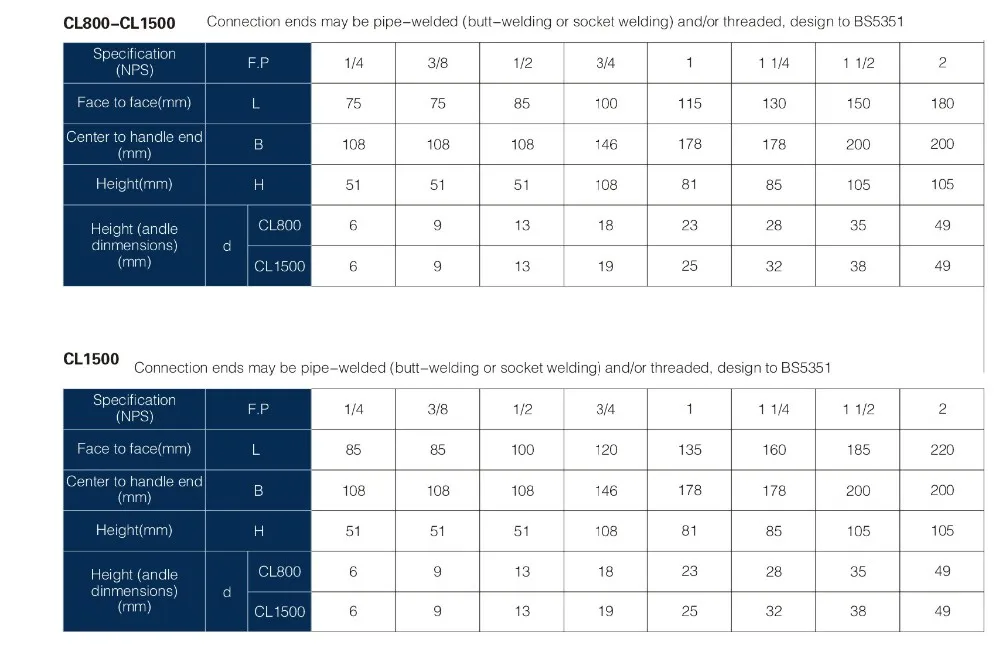

Specification:

Test

(1)Shell Hydrostatic Test

ANSI B 16.34 Section 7.1
Valve Size NPS	Test pressure	Test time. sce
﹤DN50	1.5 times the 1:5 times the 100°F	15 Sce
DN65-DN200	Rating of ANSI Class	60 Sce
﹥DN250	Max. Operating Pressure	180 Sce
Test pressure should be above 1.5 times than the valve's Max work pressure (100F)

ANSI B 16.34 Section 7.2
Valve Size NPS	Test pressure	Test time. sce
﹤DN50	1.5 times the 1:5 times the 100°F	15 Sce
DN65-DN200	Rating of ANSI Class	30 Sce
﹥DN250	Max. Operating Pressure	60 Sce
Test pressure should be above 1.5 times than the valve's Max work pressure (100F)

(2) Seal Hydrostatic Test
The pressure should be more 1.1 times than working pressure by seal hydrastatic test

(3) Seal Air Test
Seal air leakage test is based on 80PSIG(6kgf/cm2) inert-gas or the air reach the test pressure, then close the valve. after that check the valve whether it is leakage or not.

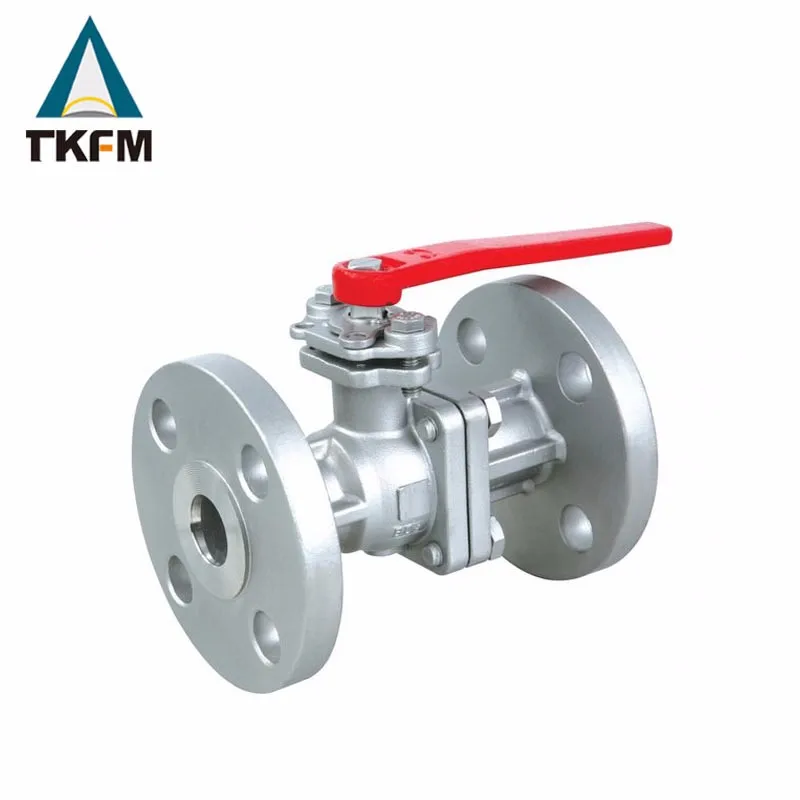

Products Show
