Triple cylinder rotary industrial tube sand dryer machine price humidity granular materials drying plant

Supplier: BH Mortar Industrial Co., Ltd.
Region: Henan, China
Contact: Ms Selina Zhang
Price: $13000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Advantage:	Convenient Operation;	Application:	Chemicals Processing,Building Material Processing;
Condition:	New;	Type:	Triple cylinder sand dryer;
Type:	Rotary Drying Equipment;	Supply Ability:	10 Set/Sets per Month;
Packaging Detail:	standard seaworthy packing: 1)FCL: in nude for standard exporting container 2)LCL: Poly wood case Wire cables are used for fastening the machine Cork wood are placed in front or behind the machine to protect it. Plastic film is covered on the machine as a rain-roof. Crane is used during the whole loading.;	Heating source:	Coal Gas Wood Diesel etc;
Warranty:	12 months;	Place of Origin:	Henan China (Mainland);
Weight:	14Ton;	After-sales Service Provided:	Field installation, commissioning and training,Field maintenance and repair service,Free spare parts,Online support,Video technical support;
Temperature range:	250 Degree/+400degree/+900degree;	Keywords:	Three Cyclinder Rotary Sand Dryer;
application:	River sand quartz sand garnet sand and so on;	Key Selling Points:	Energy saving;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;	Brand Name:	BH;
Port:	Qingdao/Tianjin/Shanghai;	Dimension(LWH):	Customizable;
Product name:	Yellow sand dryer three cylinder rotary drum silica sand dryer;	Certification:	CE,TUV,SGS,ISO;
Voltage:	220V/380V/415V;	Capacity:	5-8t/h;
Power(W):	5.5kw;	Applicable Industries:	Rotary dryer;
Color:	Customer's Request;	After-sales Service Provided:	Engineers available to service machinery overseas;

Product Description

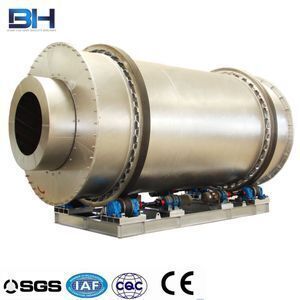

Description of BH Three Cylinder Dryer

Three cylinder sand dryers, commonly known as efficient combined three cylinder drum dryer, it USES the latest European energy saving technology, with embedded type structure. Inner cylinder, middle cylinder and outer cylinder form a self insulation structure. Thermal insulation material and stainless steel plate covered the drum, which effectively reduce heat loss, to improve the thermal efficiency. This three cylinder sand dryer is mainly used for drying certain humidity granular materials, such as yellow sand used in the industries of dry mortar, river sand, quartz sand, garnet sand, as well as use of all kinds of green sand casting industry, building materials industry of blast furnace slag cement, granular viscous soil, no chemical reaction materials, with high temperature resistance in the chemical industry.

BH Three Cylinder Rotary Sand Dryer Features:

1. Triple-drum rotary drier use telescope-feed structure, dry the material quickly.
2. Simple design, self-insulation, improve the heat efficiency to exceed 80%.
3. Using alloy steel plate, wear 3-4 times

than ordinary steel plate.
4. Good drying performance. coal consumption<8kg when drying 1 t material.
5. The fuel can be coal, oil, natural gas etc, dry mass and granule and powder material.

6. Reduce land area for 50% compared to single drum rotary dryer,so construction investment is saved 50%,power consumption saved 60%.

7. Finished product moisture ensured to be 0.5-1%.
8. Finished product temperature lower than 60℃,packing can be done continuously.
Drive by tug not gear and pinion.

BH Sand Dryer Plant Work Process

BH Three Cylinder Rotary Sand Dryer Working principle:

The material to be dried is pushed back immindiately by spiral board when enters the shell from feeding tank and feeding chute. Because the drier is installed in slope, material flows to the back end under gravity and rotation force, meanwhile, it is lifted by board repeatedly and thrown down accordingly, which make the material form even curtain, and exchange heat sufficiently with inner the heat flow. In the end, water in the material is dried by repeatedly scattering.

Model	Cylinder Diameter (m)	Length (m)	Cylinder speed (rpm)	Initial moisture (%)	Final moisture (%)	Max. temp. (℃)	Capacity (t/h)			Motor power (kw)	Weight (Ton)
Model	Cylinder Diameter (m)	Length (m)	Cylinder speed (rpm)	Initial moisture (%)	Final moisture (%)	Max. temp. (℃)	slag	Fly ash	sand	Motor power (kw)	Weight (Ton)
BHS623	1.8	2.2	3-10	6-25	≤1	750-900	1-3	1-3	3-5	4	8
BHS625	2.2	2.6	3-10	6-25	≤1	750-900	4-7	3-4	5-8	5.5	14
BHS6210	2.6	3.1	3-10	6-25	≤1	750-900	10-13	5-8	10-15	7.5	17
φ2.0×6	2	6	3-10	6-25	≤1	750-900	20-25	10-17	20-27	7.5×2	25
φ2.5×6.5	2.5	6.5	3-10	6-25	≤1	750-900	25-30	17-21	25-40	11×2	32
φ2.7×7	2.7	7	3-10	6-25	≤1	750-900	30-35	20-25	27-45	7.5×4	35
φ3.0×7	3	7	3-10	6-25	≤1	750-900	35-40	23-27	30-45	7.5×4	38
φ3.2×7	3.2	7	3-10	6-25	≤1	750-900	40-45	25-30	35-50	11×4	43
φ3.6×8	3.6	8	3-10	6-25	≤1	750-900	50-65	30-45	55-75	15×4	57
φ4.2×8.5	4.2	8.5	3-10	6-25	≤1	750-900	70-85	45-63	75-99	18.5×4	77
