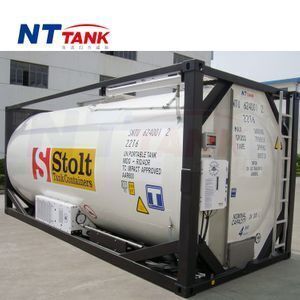

Factory price stainless steel liquid portable reefer tank container

Click here to contact

Product details

Test Pressure:	6 Bar;	Model Number:	RTC-reefer tank container;
Supply Ability:	6000 Unit/Units per Year the price depends on the real required specification;	Port:	Nantong or Shanghai Port;
Place of Origin:	Jiangsu China (Mainland);	M.G.W.:	36,000 kg;
Delivery Detail:	3 Months after receiving your down payment;	Ends Thickness(B.F):	4.5 mm Minimum after forming;
Inspection Agency:	LR or BV;	Certification:	ISO9001;
Corrosion Allowance:	0.2 mm;	Shell Thickness:	4.4 mm Nominal;
Type:	Tank Container;	Brand Name:	NT Tank;
Payment Terms:	L/C,T/T;	Working Pressure:	4 Bar;
Capacity:	From 10,900L to 26,000L;	Length (feet):	20';
Color:	Custom made;	External Dimensions(l x W x H)(mm):	Custom made;
Product Name:	Factory price stainless steel liquid portable reefer tank container;	Size:	Custom made;
Internal Dimensions(l x W x H)(mm):	Custom made;	Packaging Detail:	Nude packing for Factory price stainless steel liquid portable reefer tank container.;

Product Description

Detail:

Specification:

Tank Type	20’ ISO full frame collar tank, Type UN Portable Tank T11 Insulated and fitted with refrigeration unit and pumped glycol cooling system
Frame Dimensions	20’ x 8’ x 8’6”
Capacity	24,000 Litres +/- 2%
M.G.W.	36,000 kg
Tare (est.)	4,150 kgs ets – (with glycol system filled)
Max Payload	31,850 kgs
Working Pressure	4 Bar
Test Pressure	6 Bar
Design Temp	-40°C to +130°C
Vessel Material	SANS 50028-7 WNr 1.4402/1.4404 (C<0.03%), 316L stainless steel equivalent Shell: Cold Rolled 2B finish Dished ends: Internally polished to 1.2 Micron CLA
Shell Thickness	4.4 mm Nominal
Ends Thickness(B.F)	4.5 mm Minimum after forming
Corrosion Allowance	0.2 mm
Frame Material	GB/T 1591-Q345D
Frame to Shell	304 stainless steel
Corner castings	ISO 1161 - 8 off
Vessel Design Code	ASME VIII Div 1
Radiography	Shell Ends	ASME Spot ASME Full
Inspection Agency	LR or BV
Cargo carried	See dangerous cargo lists for UN Portable T11 tank
Design Approvals	IMDG T11, CFR 49, ADR/RID, CSC, TC, TIR, ISO, UIC, US DOT
