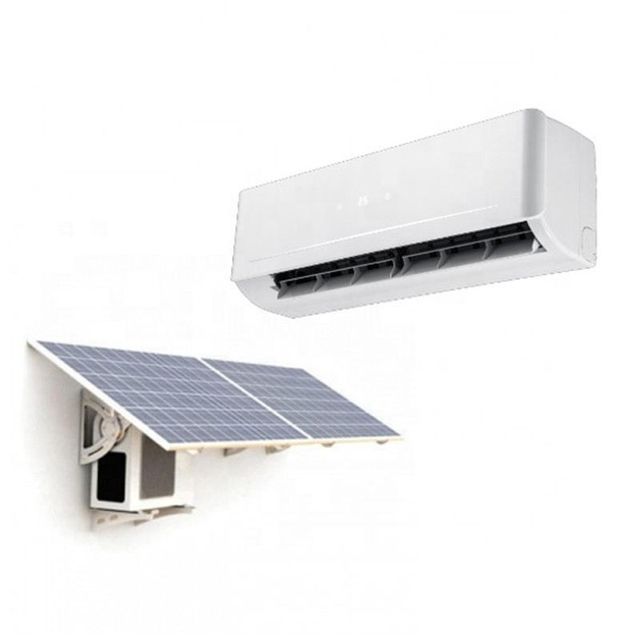

18000 Btu Portable Outdoor Solar Air Conditioner AC DC Split Air Conditioner

Supplier: Anhui Chenxin Teco. Co., Ltd.
Region: Anhui, China
Contact: Ms Sophie He
Price: $250.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

product name:	solar air conditioner	port:	Shanghai, Ningbo, Shenzhen, Guangzhou
Cooling capacity:	9000/12000/18000/24000btu	model:	CXT-JSAC-180
payment terms:	Western Union, D/P, T/T, MoneyGram	Solar panels:	Elective
police:	2	application:	family, family
Packaging Details:	Color box/master carton	Origin:	China

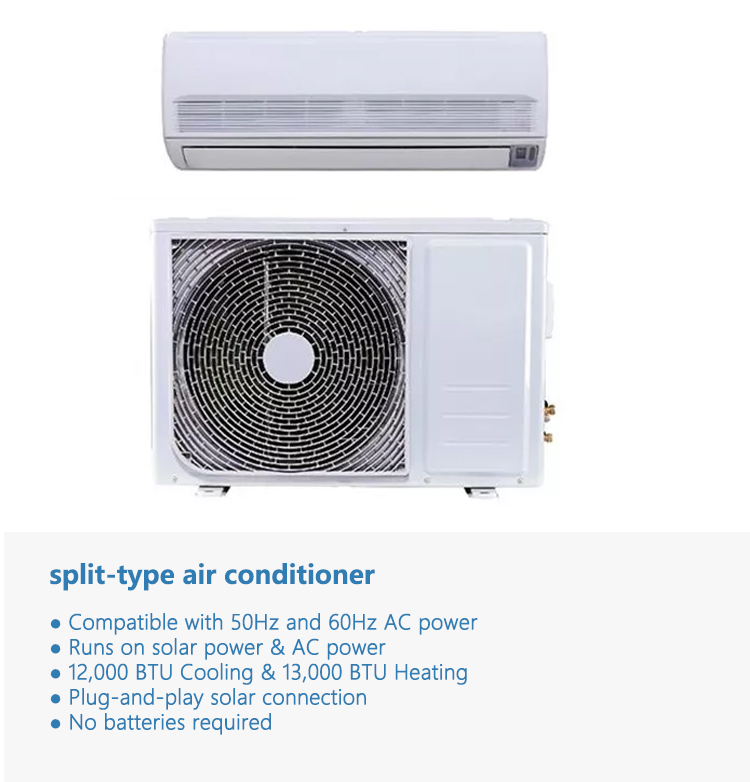

efficiency:	3	type:	Split wall-mounted air conditioner
Refrigerant:	R410a	Certificate:	EU Directive
Capacity (BTU):	18000Btu	Supply capacity:	100000 pieces per month
brand:	CT	feature:	100% solar
Cooling/Heating:	cooling/heating	Warranty:	2 years
Energy source:	solar

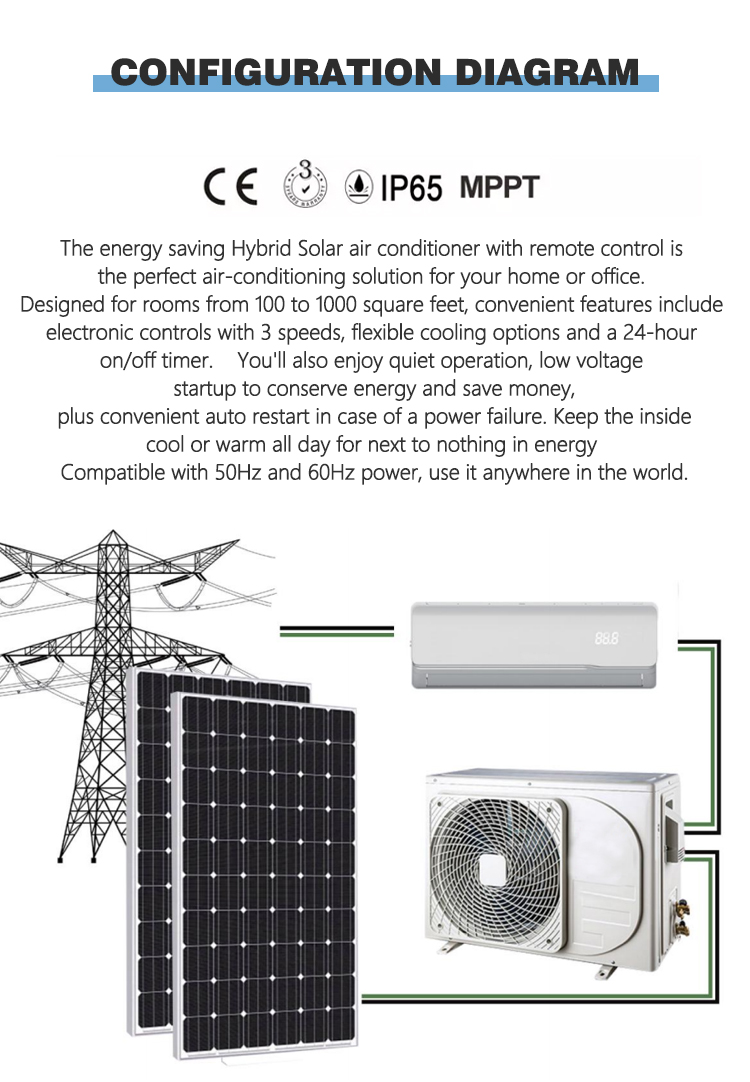

Suggested Configuration of Solar & AC Hybrid Air Conditioning System
Model	Power input (w) Average	Working hours (hours) solar time	Solar panels	Application field (square meter)
JNSAC-HS-12000BTU	800	9	340W*4	15~20
JNSAC-HS-18000BTU	1300	8	340W*6	20~30
JNSAC-HS-24000BTU	1700	8	340W*8	32~42 years old

Model	unit		CTSAC12000-V2	CTSAC18000-V2	CTSAC24000-V2
power supply	alternating current	Ph-V-Hz	1 phase 208V-240V/50-60HZ	1 phase 208V-240V/50-60HZ	1 phase 208V-240V/50-60HZ
		DC power supply (photovoltaic series connection)	V	80-380V	80-380V	80-380V
		DC supply current	A	＜/=12A	＜/=12A	＜/=12A
Suggested solar panels			pieces	(3-4)*330W in series	(3-6)*330W in series	(3-8)*330W in series
rated cooling	capacity	W	3510(900-3900)	5070(1200-6000)	6450(1800-7900)
	capacity			BTU	12000(3000-13300)	17300(4100-20400)	22000(6100-27000)
		power input	W	940(190-1270)	1400(220-2100)	1790(300-3200)
Rated heating	capacity	W	4100(1000-4500)	6100(1200-6800)	7800(1800-9100)
Rated heating		power input	W	1170(190-1700)	1770(220-2500)	2290(300-3500)
T1 energy efficiency ratio (W/W)/ (BTU/W)			/	3.75/12.75	3.60/12.35	3.60/12.30
COP (W/W)/ (BTU/W)			/	3.50/11.95	3.45/11.75	3.40/11.60
Dehumidification capacity			L/h	1.3	1.7	2.5
Indoor Noise Level (Turbo)			decibel (A)	42.5	46	50
indoor unit	Dimensions (width × height × depth)	mm	840×205×295	1080×330×237	1080×330×237
		Package (width x height x depth)	mm	920×290×360	1140×300×382	1140×300×382
		Net weight Gross weight	Kilogram	9.0/12.5	15.0/18.5	15.0/18.5
outdoor noise level			decibel (A)	52	55	58
The outdoor unit	Dimensions (width × height × depth)	mm	802×564×323	802×564×323	900×700×337
		Package (width x height x depth)	mm	910×622×405	910×622×405	1006×755×418
		Net weight/Gross weight	Kilogram	33.5/37.5	37/42.0	50/54.5
Refrigerant type			/	R410A	R410A	R410A
maximum design pressure			MPa	4.3/1.5	4.3/1.5	4.3/1.5
Refrigerant copper pipe	Gas side/Liquid side (inches)	inch	3/8 1/4	1/2 1/4	1/2 1/4
		maximum. Refrigerant pipe length	rice	15	20	25
		maximum. level difference	rice	8	10	10
Refrigerant connection copper pipe length			rice	3	4	4
cable length			rice	4	5	5
Electronic expansion valve			/	Yes	Yes	Yes
Loading Quantity 40" Hq/ 20"GP			set	200/85	160/75	115/50
Application field			square meter	15~20	20~30	32~42 years old

welcome to visit us

Anhui Chenxin Taike. Co., Ltd., headquartered in Anhui Province, China, is a large professional manufacturer of various solar products with 15 years of rich experience in the renewable energy industry. We export to more than 60 countries, including USA, Brazil, Mexico, Germany, Spain, UK, South Africa, Iran, Israel, Pakistan, etc. By adhering to our mission of creating value for customers, providing opportunities for employees and bringing wealth to society, we hope to achieve outstanding success with all partners through excellent products, reputation and service.
