Boom Type High Speed Metal Laser Mold Welding System Laser Welding Machine

Supplier: Jinan Changtai CNC Technology Co., Ltd.
Region: Shandong, China
Contact: Mr JNCTlaser zhang
Price: $6900.00 /set
Min. Order: 1 set

Click here to contact

Product details

Laser wavelength:	1064nm	Laser source brand:	Raycus
Mechanical test report:	if	Certification:	ce
maximum. Output Power:	400w	Origin:	Shandong China
Processing materials:	Metal stainless steel products	Weight (kg):	300 kg
After-sales service provided:	online support	Name:	laser welding machine
Warranty:	3 years	Focal Spot Diameter:	0.2-3MM
Laser power:	200w/300w/400w	Pulse Width:	0.1--20MS
Pulse Depth:	0.3-20ms adjustable	Core components:	Pressure vessels, motors, others, bearings, gears, PLCs, pumps, engines, gearboxes
color:	custom color	Applicable industries:	Hotels, Clothing Stores, Building Materials Stores, Manufacturing Plants, Machinery Repair Shops, Food and Beverage Plants, Farms, Restaurants, Home Use, Retail, Food Stores, Printing Shops, Construction, Energy and Mining, Food and Beverage Stores, Other, Advertising company
Marketing Type:	other	Core component warranty:	3 years
payment terms:	Western Union, T/T, MoneyGram	Main selling points:	easy to operate
wavelength:	1064 nautical miles	Packaging Details:	Plywood packing box
Video shipment inspection:	if	Pulse Width:	0.3nm
Single pulse energy:	100 joules	Health status:	new
brand:	Jiangnan Laser	usage:	Laser Die Welding
application:	Mold laser welding	aspect:	7007201030mm

Boom Type High Speed Metal Laser Mold Welding System Laser Welding Machine

advantage

Advantages of mold laser welding machine

1) Accurate and precise welding machine, which can weld small and complex fonts and LOGO, fast speed, no color difference, no trace after welding, no need to deal with, beautiful appearance.
2) There are no raised solder joints on the welding surface. No polishing and grinding process is required, saving working time. It looks beautiful.
3) Laser welding process has no noise and no pollution
4) Dedicated to the advertising industry, with a long optical path, 360-degree rotation, and a larger range.

5) The welding machine is equipped with CCD monitoring, and the welding effect is clearer and more intuitive.

Product Description

Die laser welding machine parameters

strength	200W/300W/400W
laser working substance	Nd3+: YAG ceramic cavity
maximum. single pulse energy	70J/90J
maximum. peak power	6kW/12kW
Laser wavelength	1064nm
focal beam diameter	0.2-3.0mm adjustable
Rated output power	200W/300W/400W
Minimum molten pool	0.3mm
Pulse Width	0.3-20ms adjustable
pulse depth	0. 5-1.5mm
Pulse frequency	≤50Hz adjustable
electricity	220V, 50HZ, 60A/380V, 50HZ, 80A
power cooling system	internal air cooling
YAG cavity cooling	External Chiller
Control System	PLC programming
observation system	Microscope/CCD
weight	250Kg~300kg

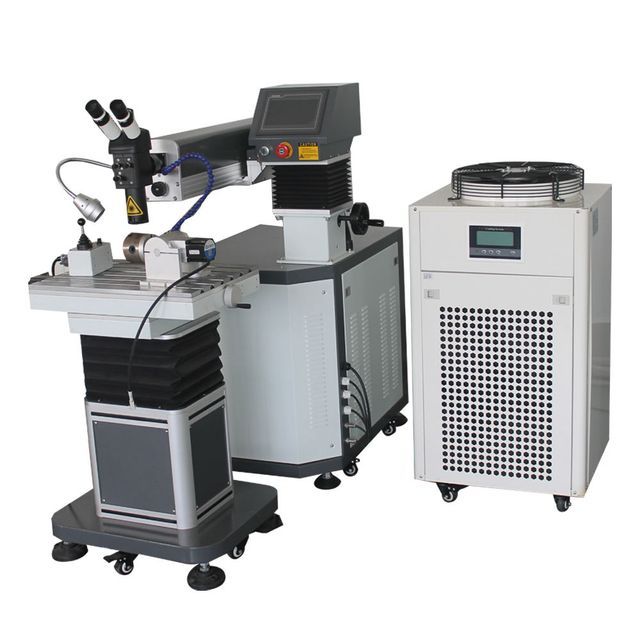

Mold laser welding machine picture

Packaging and Shipping

Mold laser welding machine packaging

1. The standard plywood box has better compressive strength and bearing quality.
2. The board area is small, the soil structure is good, and the leak-proof and waterproof performance is better.
3. When importing, plywood boxes are exempt from fumigation, and the procedures are simple.
4. Delivery details: within 3-5 days after receiving your payment

our service

Mold Laser Welding Machine Service

1. Warranty

1 year warranty for this mold laser welding machine
After the order is confirmed, our customers will receive comprehensive operation and maintenance technical training.
24-hour full after-sales service: When problems arise, our skilled engineers will help customers solve problems in time through MSN, SKYPE, QQ, etc., and provide overseas services when necessary.

2. Quality control

There are skilled and strict quality inspection teams in the process of material procurement and production.
All finished machines we deliver are 100% strictly tested by our QC department and engineering department.

3. OEM service

Due to our rich experience, customized and OEM orders are welcomed.
All OEM services are free, customers just need to provide us with your logo drawings, functional requirements, colors, etc.
No MOQ required.

4. Privacy

None of your personally identifiable information (such as your name, address, email address, banking information, etc.) will be disclosed or shared with any third party.
Contact: All your inquiries or questions or assistance will be answered within 24 hours, even on holidays. Also, if you have any urgent questions, please feel free to call us.
