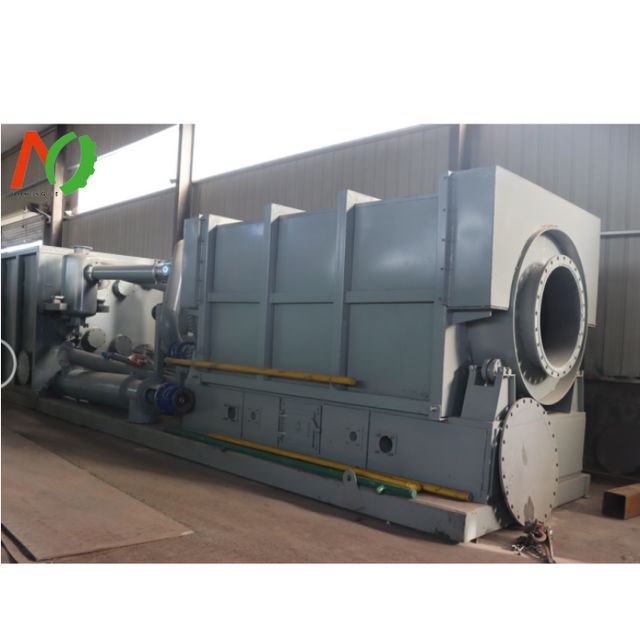

Small batch waste tire/plastic/MSW pyrolysis plant to convert solid waste into fuel oil pyrolysis machine 1-2 tons

Supplier: Henan Mingjie Environmental Equipment Co., Ltd.
Region: Henan, China
Contact: Mr Lucien Hou
Price: $32550.00 /set
Min. Order: 1 set

Click here to contact

Product details

Core components:	PLC, engine, bearing, gearbox, motor, pressure vessel, gear, pump	capacity:	1-20 tons/day
Main selling points:	competitive price	payment terms:	L/C, T/T
Packaging Details:	20 HC , 40 HC, 40 FR container	Core component warranty:	1 year
Mechanical test report:	if	Health status:	new
Video shipment inspection:	if	Weight (kg):	15000 kg
Showroom location:	Thailand	Oil yield:	40%~75%
port:	Qingdao Shanghai Lianyungang Guangzhou	Steel:	Carbon steel
Finished product:	fuel steel carbon back	Heating material:	LPG/syngas/natural gas/diesel/pyrolysis oil
Warranty:	1 year	Package preview:
energy consumption:	18Kw	raw material:	Scrap tires/plastics/garbage/sludge
After-sales service:	Online Video Support	Marketing Type:	normal product
Supply capacity:	5 sets per month	Origin:	Henan, China
brand:	Mingjie	Name:	Environmentally friendly waste tire recycling machine
Equipment capacity:	1-2 tons	cooling method:	water cooling
Applicable industries:	manufacturing plant

Company Profile

Henan Mingjie Environmental Protection Equipment Co., Ltd. is a high-tech environmental protection enterprise integrating R&D, manufacturing, sales and export. It is committed to providing comprehensive solutions for solid waste recycling, specializing in waste tires, waste plastics, and sludge reprocessing equipment. Access to fuel oil and other renewable energy sources.

product specification

thing	content
Model	No.	capacity	Reactor size	Operation
	capacity	MJ-2	1-2 tires	*14004000mm**	batch
	Operation	MJ-6	6 TPD	2200*6600mm
	energy consumption	MJ-10	8-10 tons/day	2600*6600mm
	diesel consumption	MJ-12	12 TPD	2800*8000mm
	Rotating speed	MJ-15	13-15 tires	2800*8000mm
	internal pressure	MJL-15	16-20 tons/day	2800*7100mm	semi-continuous
	need land	MLL-20P	30 tons/day	16000*26000mm	completely continuous
	need workers	MLL-30T	35-40 tons/day	16000*26000mm	completely continuous
Accepted material			Waste tire/plastic, rubber/greasy sludge/domestic waste/medical waste
End products			Pyrolysis oil, carbon black, steel wire, combustible gas
Applicable fuel			Coal/natural gas/liquefied petroleum gas/diesel/wood/pyrolysis oil
Reactor thickness			16mm/18mm
cool down			water cooling
need land			300-400m2

detailed drawing

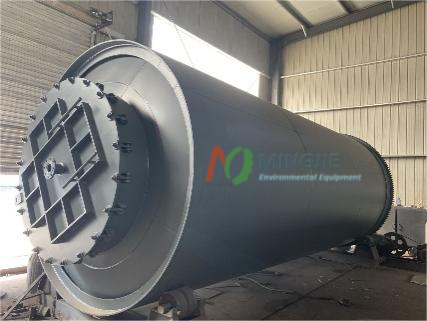

reactor

Material: Q245R boiler steel

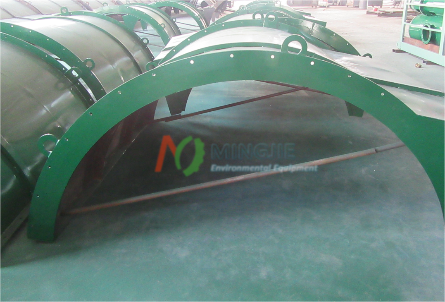

Reactor shell

The insulation layer of the reaction kettle, which contains high-temperature ceramic wool and refractory materials

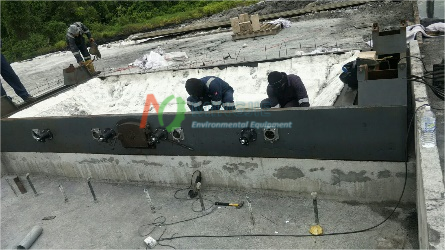

reactor base

Reactor support, heating burner, reduce civil works and shorten installation time

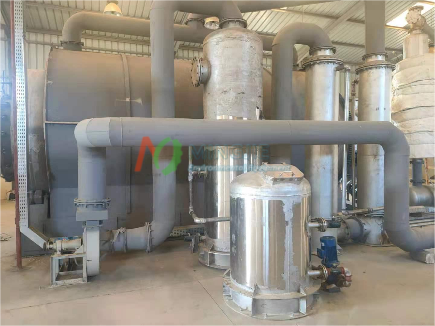

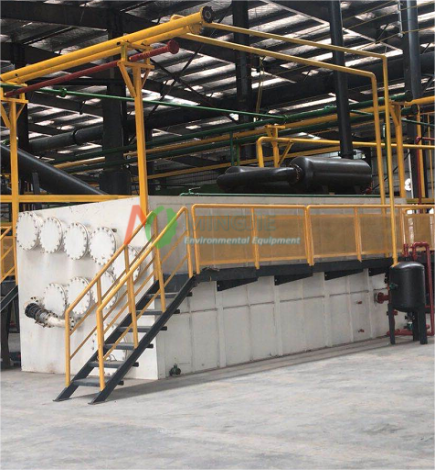

integrated condenser

It contains the oil and gas condenser, oil storage tank and water seal.

gas separator

Separation of heavy oil and light oil and gas.

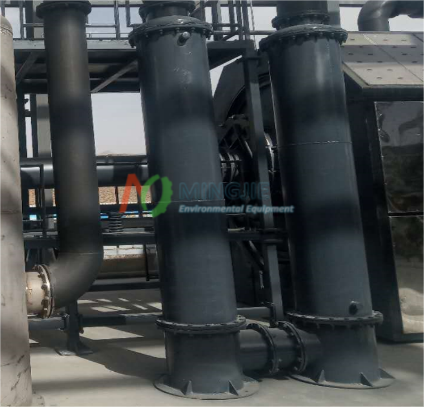

flue gas pipecondenser

Cool down the flue gas, protect the fan, and better meet environmental protection standards.

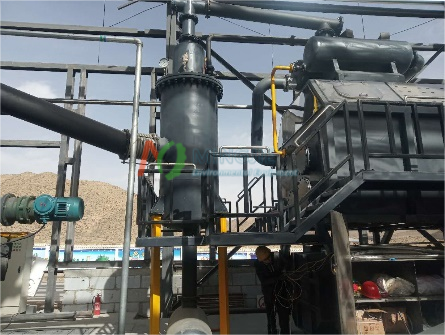

Dust removal system

The dust removal system can cool down and purify the high-temperature waste gas generated during the pyrolysis process. It keeps plants pollution-free.

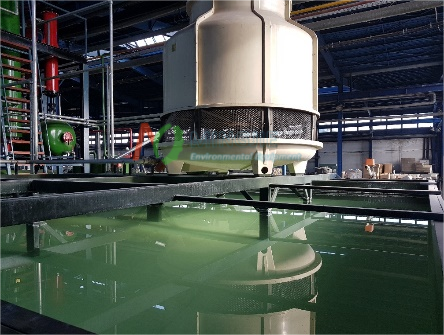

Cooling Tower

cooling water

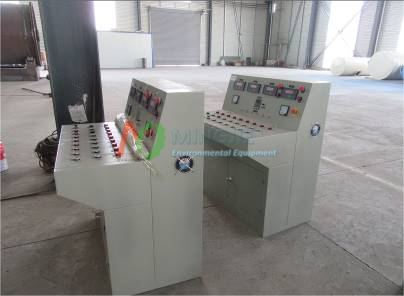

Electric control cabinet

Complete control over electrical components in the system
Temperature and pressure display, over-temperature and over-pressure alarm
