Beston Group does not need to install a small pyrolysis machine for batch pyrolysis of 1-3T/D plastic tire oil sludge

  • Supplier: Beston Group Co., Ltd.
  • Region: Henan, China
  • Contact: Mr Carl Xing
  • Price: $40000.00 /set
  • Min. Order: 1 set
Product details
application:fuel oilOrigin:Henan, China
Packaging Details:The outside of the packaging machine is a wooden frame, and the inside is a waterproof membrane.Mechanical test report:if
product name:Small pyrolysis machineCore components:PLC, engine, bearing, gearbox, motor, pressure vessel, gear, pump
Finished goods:fuel oil; carbon blackMain selling points:automatic
Reactor life:5~8 years oldVideo outbound inspection:if
Operating pressure:micro positive pressureraw material:waste tires; plastics; sludge
Health status:newpayment terms:L/C, T/T
advantage:Environmental friendlybrand:beston
Warranty:1 yearEquipment capacity:1.5-3 tons/day
Marketing Type:normal productType of machine:semi-automatic
port:Lianyungang/Qingdao/ShanghaiWeight (kg):19000 kg
Supply capacity:30 sets per monthDaily capacity:1.5-3 tons
Showroom location:Egypt, Turkey, France, Vietnam, Philippines, Brazil, Peru, Indonesia, Pakistan, India, Russia, Spain, Thailand, Morocco, Kenya, Argentina, Chile, UAE, Bangladesh, South Africa, Kazakhstan, Nigeria, Uzbekistan, Malaysia ,AustraliaCore component warranty:1 year
Applicable industries:Manufacturing Plants, Energy & Mining, Other, Scrap Tire RecyclingCertificate:CE
Product Description

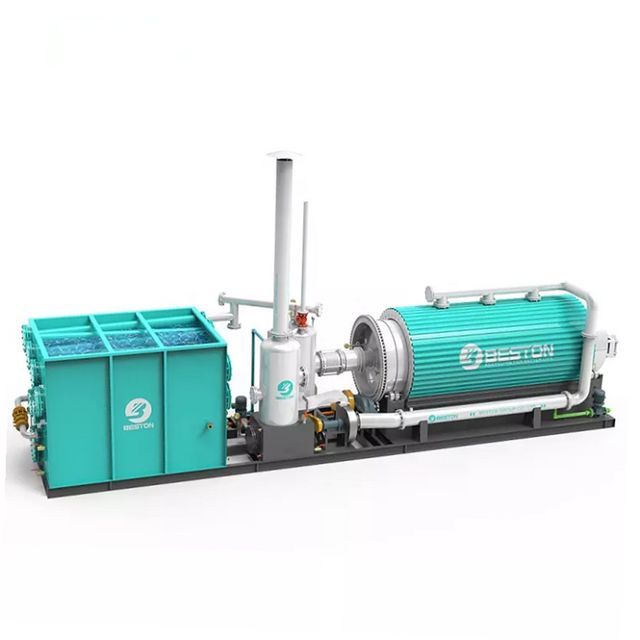

Skid-mounted pyrolysis device
The skid-mounted pyrolysis equipment is a new type of small pyrolysis equipment developed and designed by Beston Group. It is easy to operate, requires no installation, and has a high processing capacity.1.5-3 tons/day,It is no different from ordinary pyrolysis equipment and can be used to treat wastes such as tires, plastics, and sludge.
Here are his parameters:
Model
Processing capacity/D
Reactor size
Total power/hour
cool down
BLJ-3
1.5-3T
D1.4m*L5m
16.6 kW
Column tube water cooling

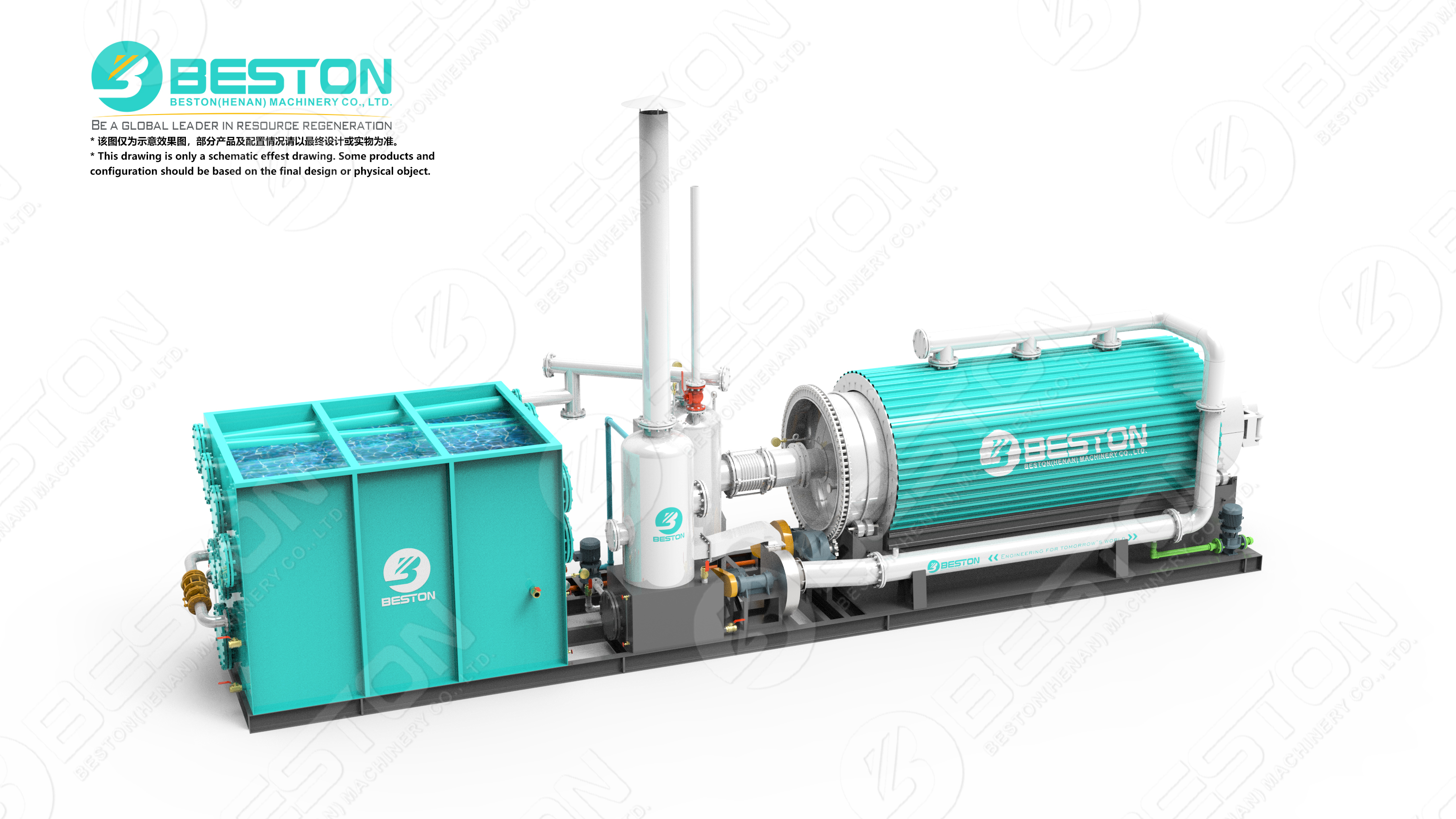

What is a skid-mounted pyrolysis unit?
Skid-mounted pyrolysis equipment is aSmall pyrolysis machineIt is smaller than usual pyrolysis plants and can be moved by truck at any time. It is an integrated pyrolysis device that has been installed at the factory. After that, you only need to connect and turn on the device according to our drawings and instructions, and then it can be used normally.
Raw materials and final products of containerized pyrolysis plants

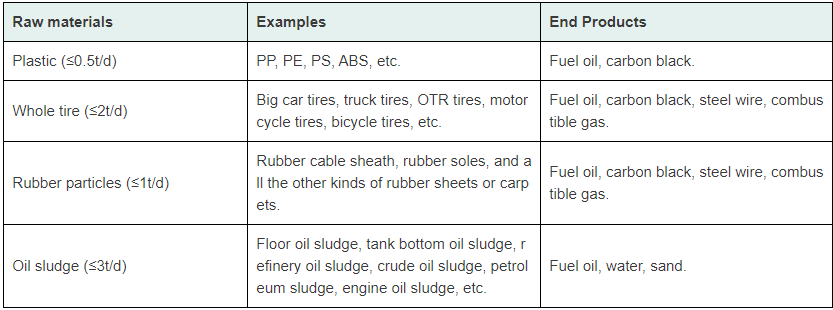

raw material:

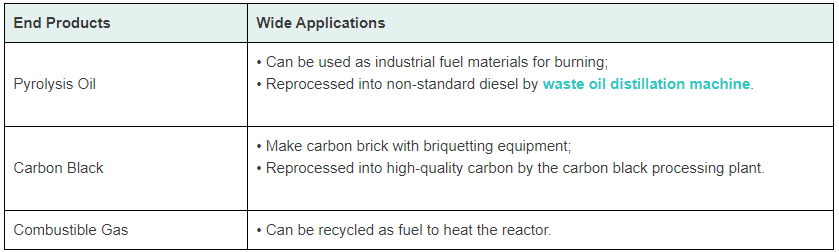

Final product:
detailed picture

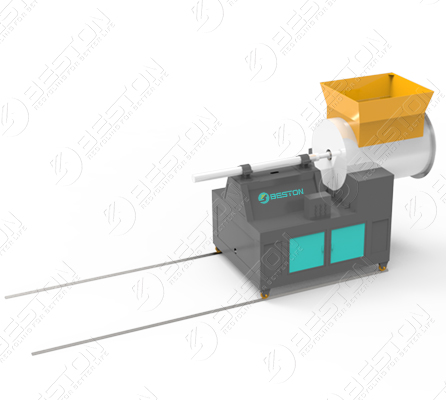

feed
You can choose manual or automatic feeding to put the waste into the reactor.

Automatic document feeder can help you save
Labor and more feeding time.

The device is our patented product, works well and is not expensive.

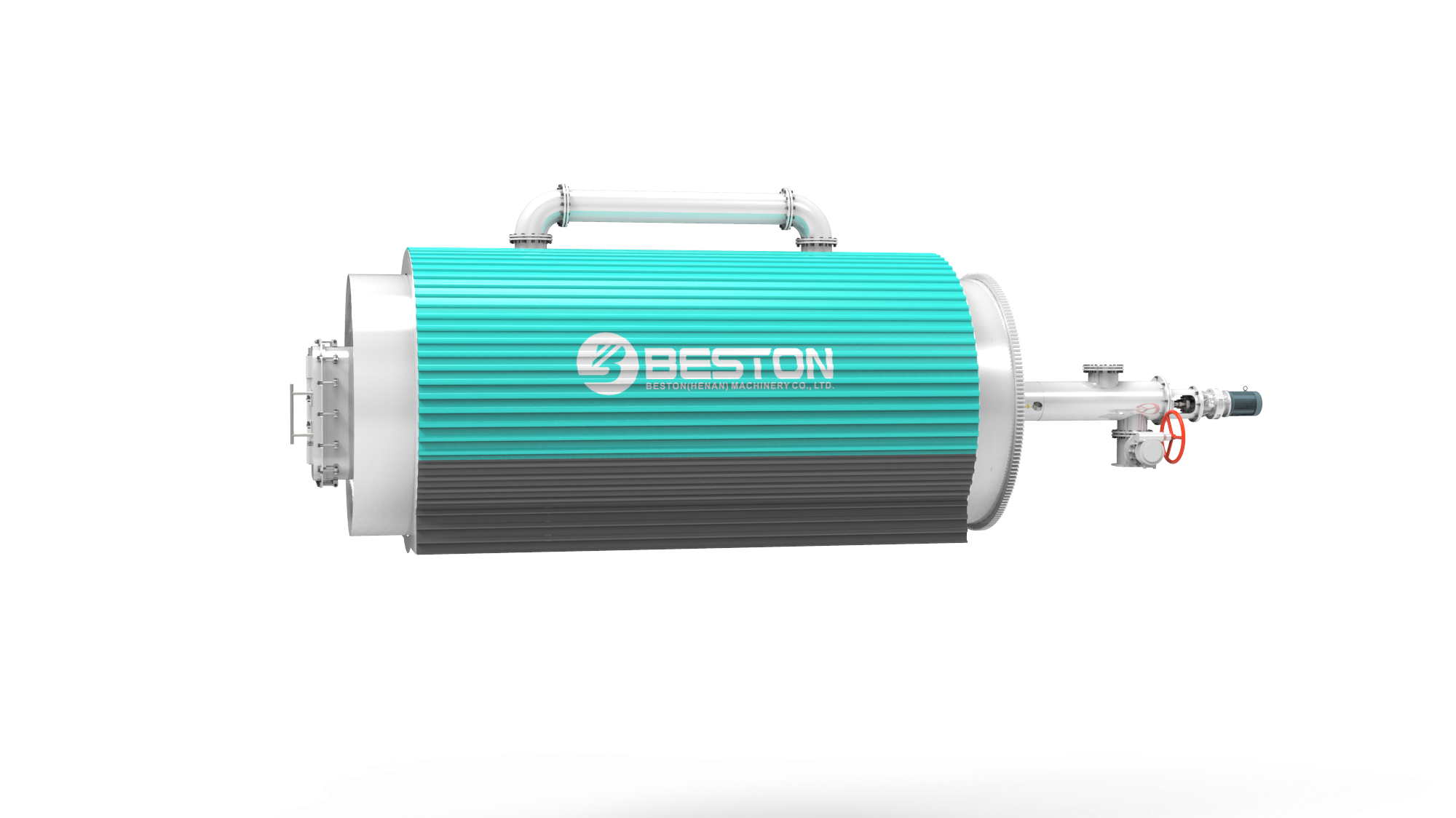

reactor
It is made of national standard special boiler steel Q345R/Q245R/310S/12crlmov to ensure heat conduction efficiency and equipment service life.

The main body of the furnace body and the front and rear heads are all subjected to ultrasonic flaw detection to prevent unqualified welds and
Products flow into finished goods warehouses.

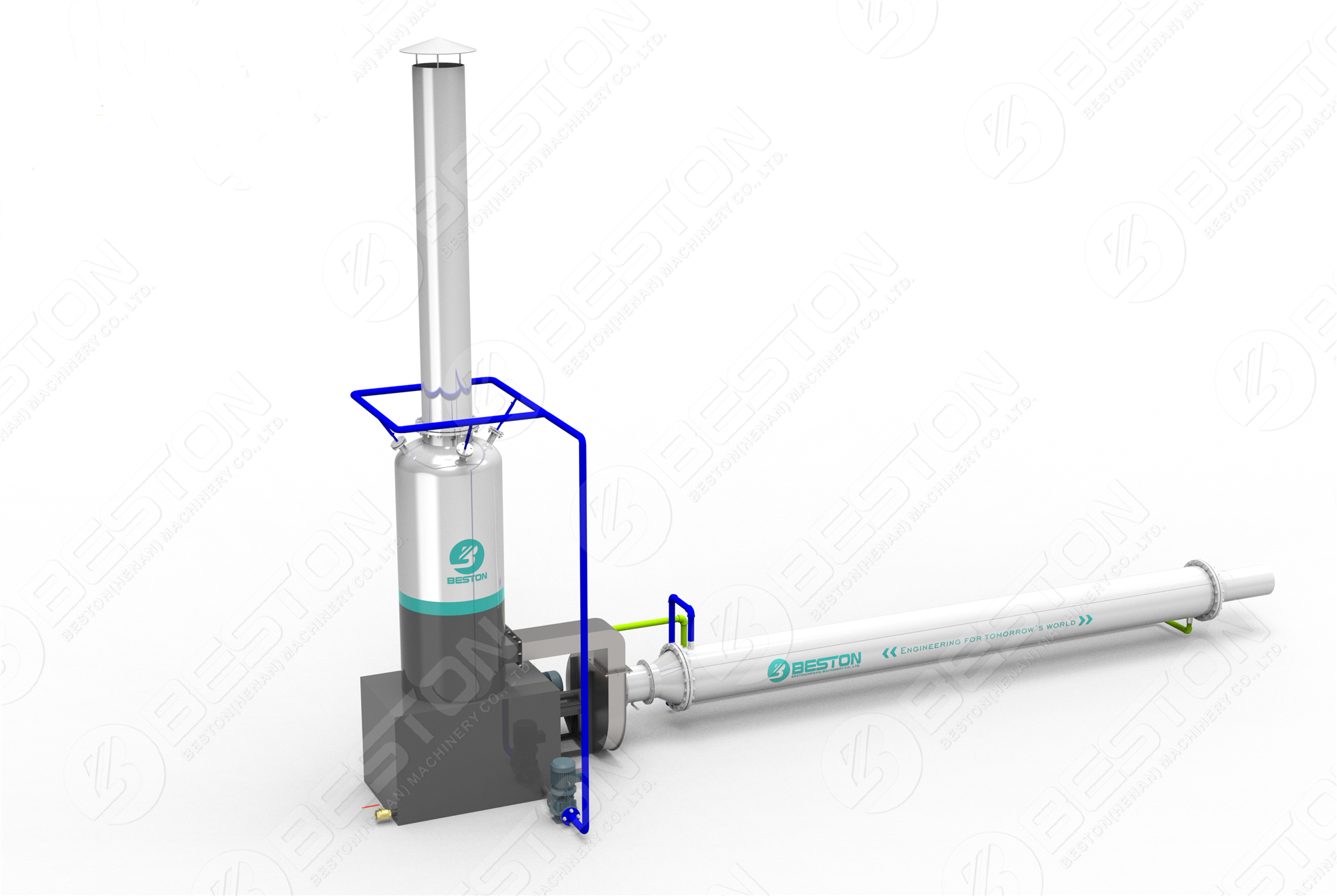

Dust removal
The dedusting tower consists of three parts: water tank, spray tower and chimney.

In order to meet emission standards, the hot flue gas will be released after being absorbed by two layers of ceramic rings and sprayed with water in the tower.

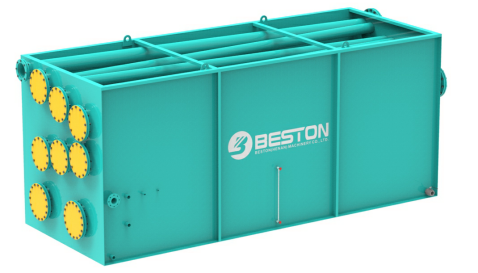

cool down
The three-in-one cabinet is water-cooled.

Condensation inside the tube, larger condensation area, better effect.

Beautiful appearance, convenient installation and transportation.

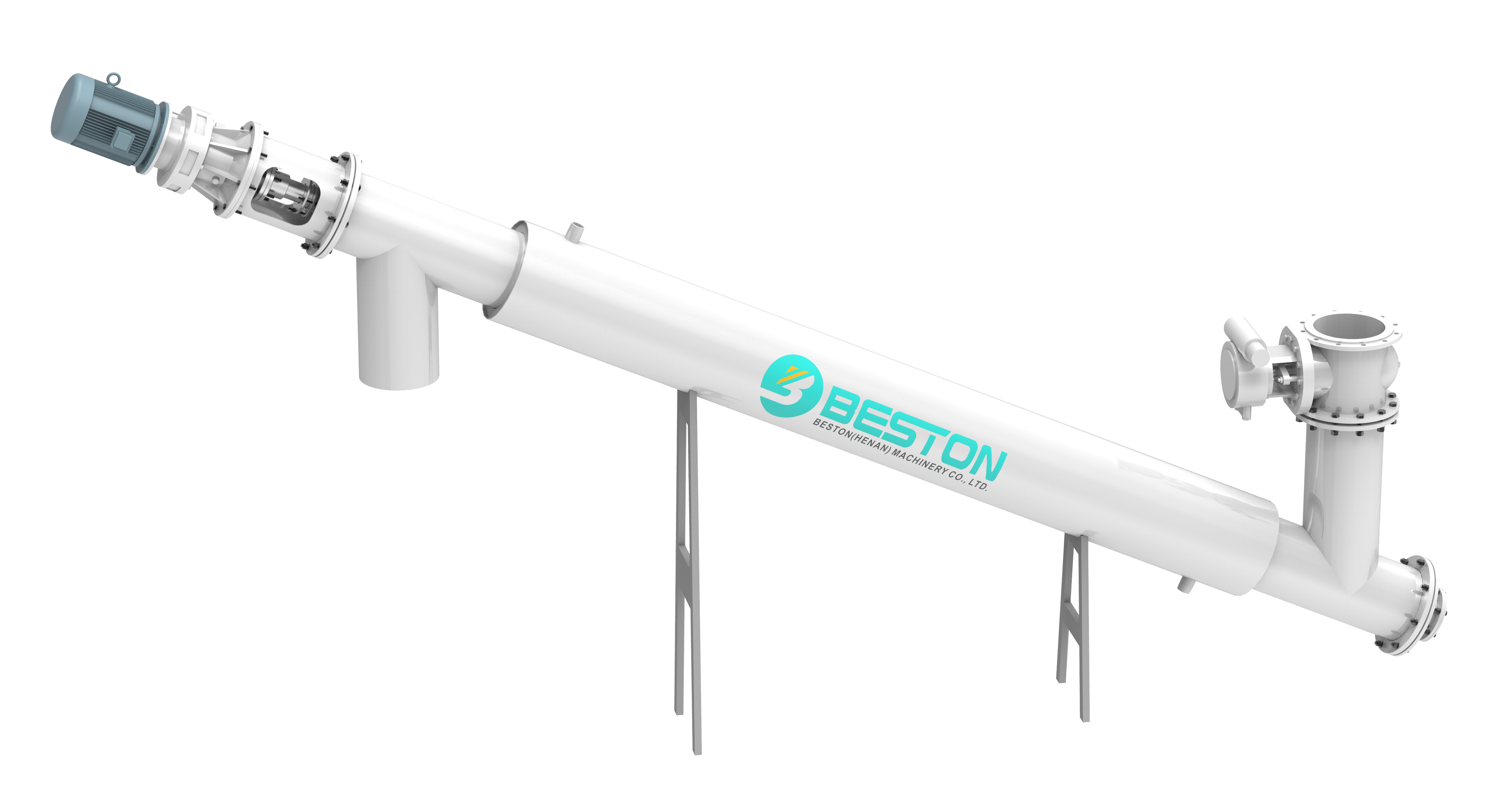

Unloader
Shorten the cooling time to achieve high temperature discharge.

Water-cooled and pollution-free.

Automatic screw unloader unloading.
