Hydroseeding Sprayers Grass Pumps Hydroseeeders For Sale

Supplier: Zhengzhou Gaode Equipment Co., Ltd.
Region: Henan, China
Contact: Ms Dany Duan
Price: $18200.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

type:	Slope Water Seeder	Production capacity:	120 cubic meters / hour
Health status:	new	strength:	190KW
Stirring drive:	hydraulic motor drive	Core components:	Pump
Supply capacity:	10000 pieces per year	port:	Qingdao, Shanghai, Tianjin, etc.
payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram, Trade Assurance	application:	hydraulic water seeder
Marketing Type:	2019 Hot Products	Video shipment inspection:	if
color:	customer request	Work efficiency:	120 cubic meters / hour
Fuel tank capacity:	15000L	Dimensions (LWH):	72002500x915mm
Core component warranty:	1 year	weight:	8500 kg
Fence height:	1100mm	Package preview:
Mechanical test report:	if	Stirring shaft speed:	0-130rpm
Applicable industries:	construction project	product name:	Hydraulic Covering Machine
Voltage:	380V	Engine type:	Dongfanghong
Origin:	hen	Showroom location:	Malaysia
Warranty:	1 year	Maximum horizontal conveying distance:	85 meters
Packaging Details:	Nude package or for slope seeder according to customer requirements

Why choose us

Our advantage

* Safety and strict quality control
* Maneuverability and operator comfort
* Reliability
* Mature technology & comprehensive after-sales support

Product Description

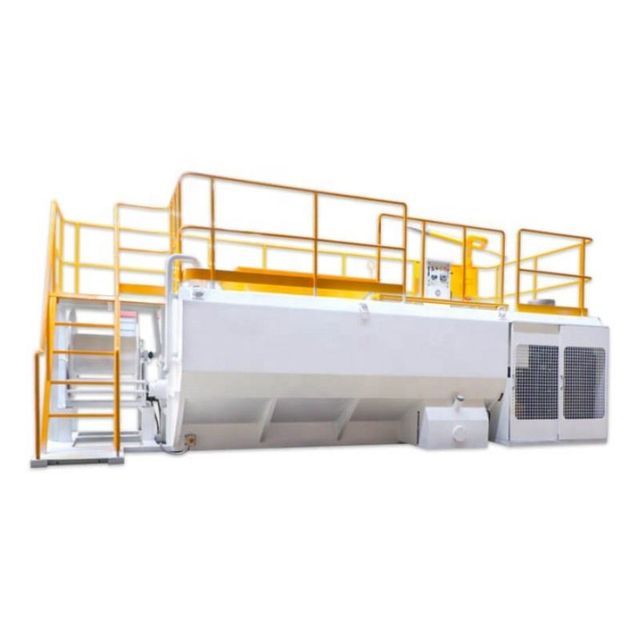

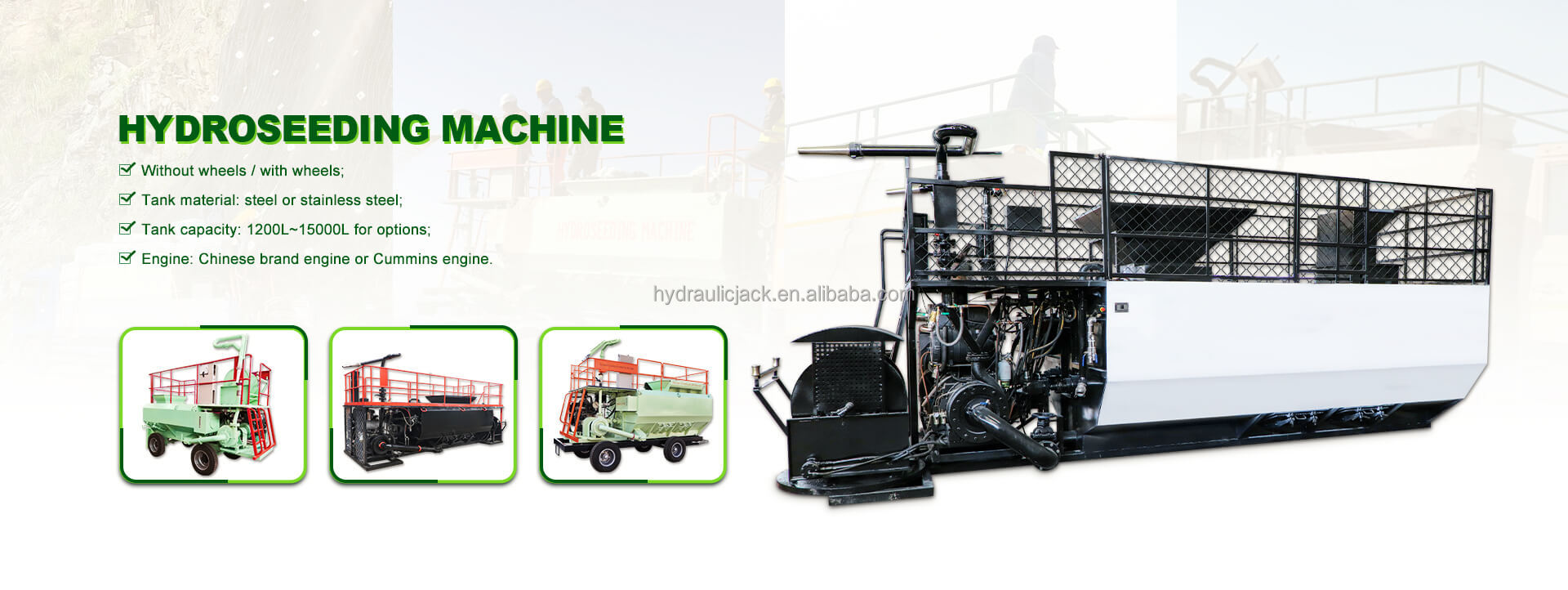

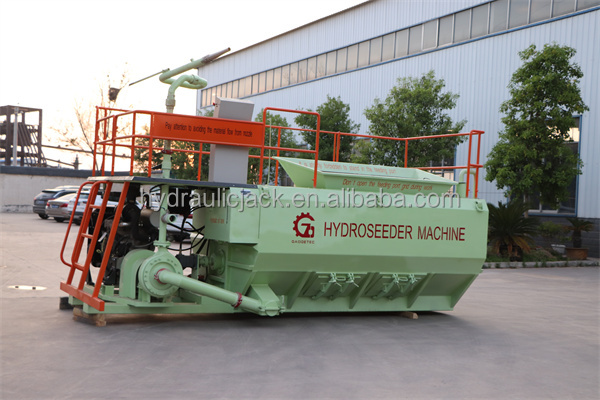

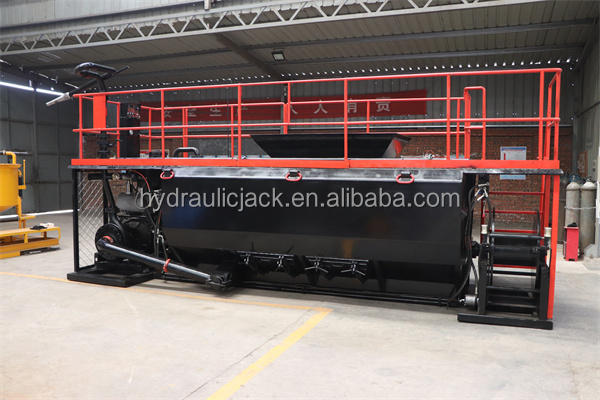

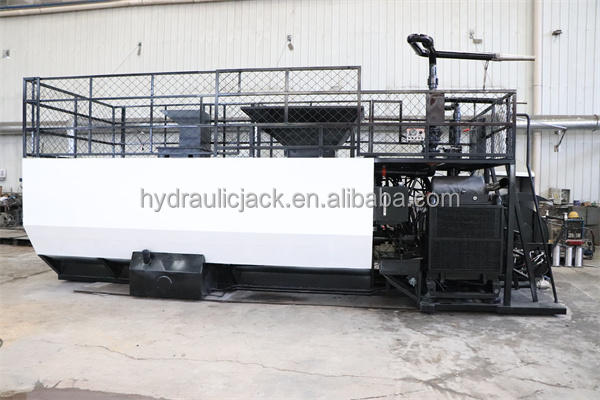

GHS Series Hydraulic Seeder

The GHS series water seeder is driven by a diesel engine, and the tank capacity is 1300L, 2000L, 3000L, 6000L, 8000L, 13000L, 15000L tank capacity to choose from. They come with dedicated pumps to handle the thickest slurries.

main feature

1. High-power diesel engine: famous brand diesel engine such as Cummins or Yuchai. Strong power, low fuel consumption and low maintenance cost.
2. Strong stirring shaft: strong stirring shaft, also suitable for thicker materials.
3. High output: wear-resistant centrifugal pump, the highest working efficiency.
4. Long spraying distance: suitable for long distance and high spraying distance. The solid content is up to 60%, and the liquid level distance through the hose can reach 100m.
5. High configuration: 1200L-15000L or larger hydraulic seeder, double agitator, double cannon, etc.

Product parameters

Model	GHS0353	GHS08100A	GHS0883	GHS15190
strength	53KW, China Yuchai diesel engine, water cooling	103KW, domestic brand diesel engine, water cooling	83KW, Chinese brand diesel engine, water cooling	190KW, Cummins engine, water cooling
tank size	Liquid capacity: 3000L, working capacity: 2550L	Liquid capacity: 8000L, Working capacity: 7300L			Liquid capacity: 15000L Working capacity: 13500L
Pump	Centrifugal pump: 4''x2'' (10X5cm),	5”X2-1/2” (12.7cmx6.4cm)	Centrifugal pump: 5''x2.5'' (12.6X6.3cm),	Centrifugal pump: 6''x3'' (15.2X7.6cm),
Pump		70m³/h@7bar, 10mm solid gap	100m³/h (440gpm) @ 10bar (145psi), 1” (2.5cm) solids clearance	80m³/h@10bar, 20mm solid gap	120m³/h@14bar, 32mm solid gap
agitation	Mechanical agitator with propeller orientation and liquid recirculation	Mechanical paddle stirrer and liquid recirculation	Mechanical agitator with propeller orientation and liquid recirculation	Dual mechanical agitators with propeller orientation and liquid recirculation
Stirring shaft speed	0-110rpm	0-130rpm	0-110rpm	0-130rpm
Maximum horizontal conveying distance	60 meters	70m	65 meters	85 meters
spray gun type	Fixed Standing Gun					Stationary vertical guns and barrel guns
fence height	1100mm
aspect	3350x2030x2600 mm	5875x2150x2750 mm	5800x2150x2750mm	7200x2500x2915 mm
weight	2950 kg	4850 kg	5000 kg	8500 kg
options	The whole machine is made of stainless steel Hose reel with hose remote control device
