1000 Liter Water Tank Grass Seed Seeder Hydraulic Seeder Grass Planter

Click here to contact
Product details
strength:-port:Shanghai or Qingdao or Tianjin or Ningbo or Guangzhou or any port as needed
Dimensions (length*width*height):2300x1450x1250mmPlace of origin:Henan, China
volume:1 cubic meterSupply capacity:80 sets per month
Frame material:steelApplicable industries:farm
Core component warranty:1 yearCore components:Engine, gearbox, pump
Pump capacity:80 cubic meters/hourpayment terms:L/C, Western Union, D/P, D/A, T/T, MoneyGram
Packaging details:Large-capacity mulched hydroseeders for highway slope applications are typically shipped in 20-inch containers.Voltage:13 HP gasoline engine, electric start
brand:Wardtekengine:13 HP gasoline engine, electric start
application:Slope protection and greeningVideo outbound inspection:if
Hose length:60mTank material:polyethylene
Pump:centrifugal pumpPackage preview:
Production capacity:80 cubic meters/hourMechanical test report:if
Marketing type:New products for 2023Coverage:320㎡/can
Model:WHS0110PT Jet Mixing Hydraulic SeederShowroom location:Malaysia
Engine speed:0-3600 rpmHealth status:new
Warranty:1 yearweight:400kg
Product Description

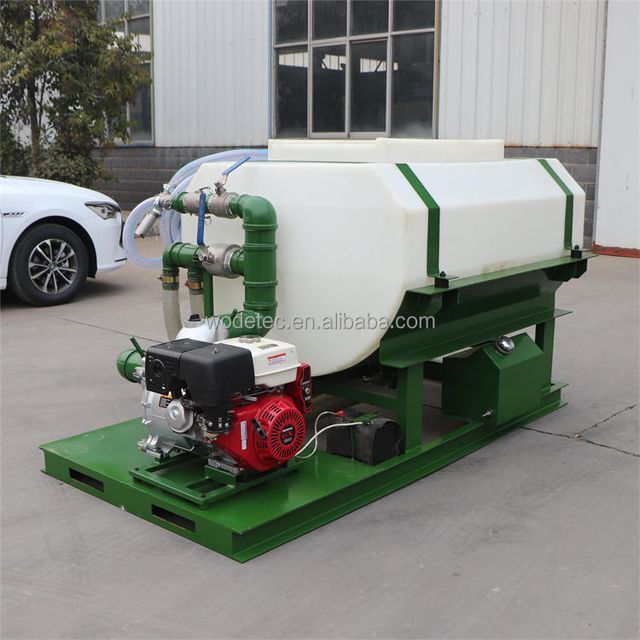

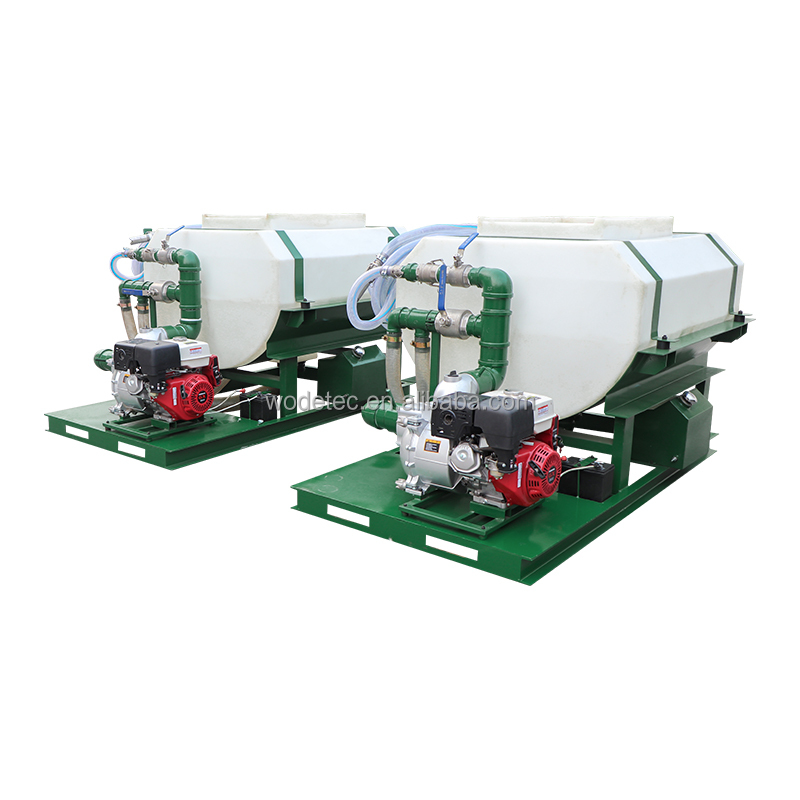

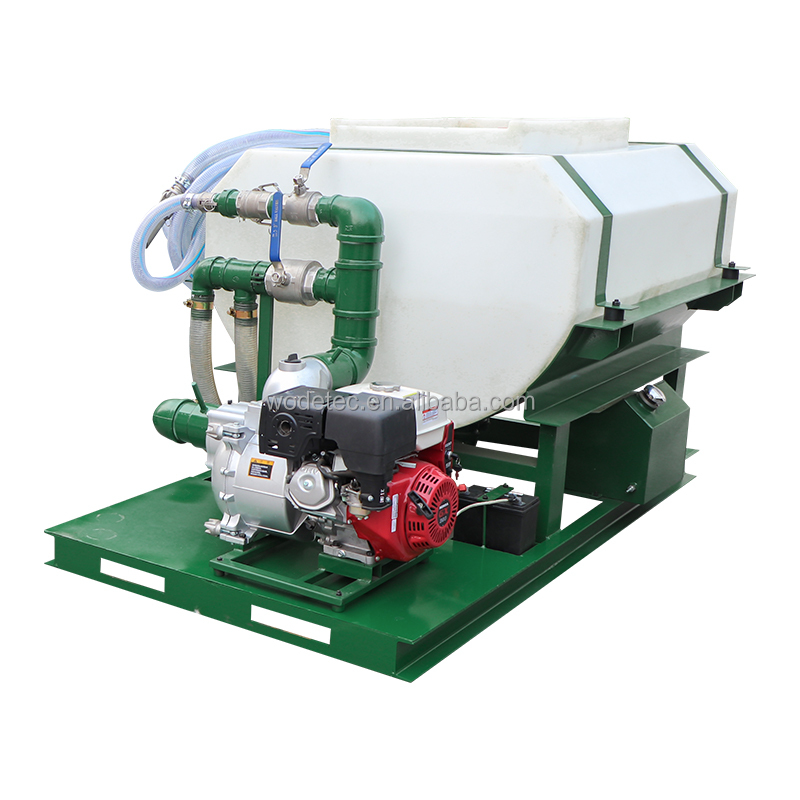

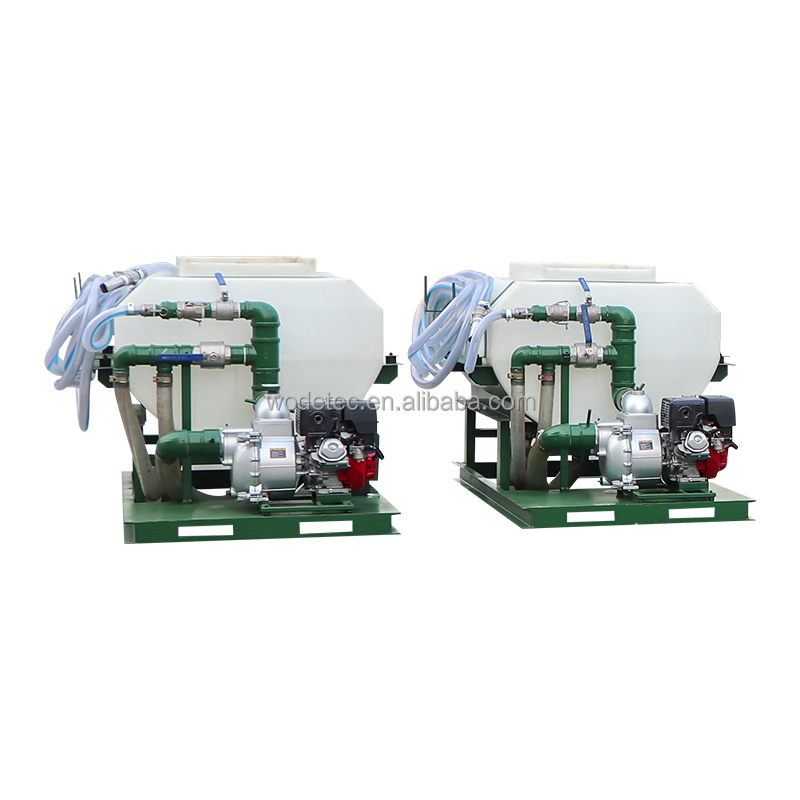

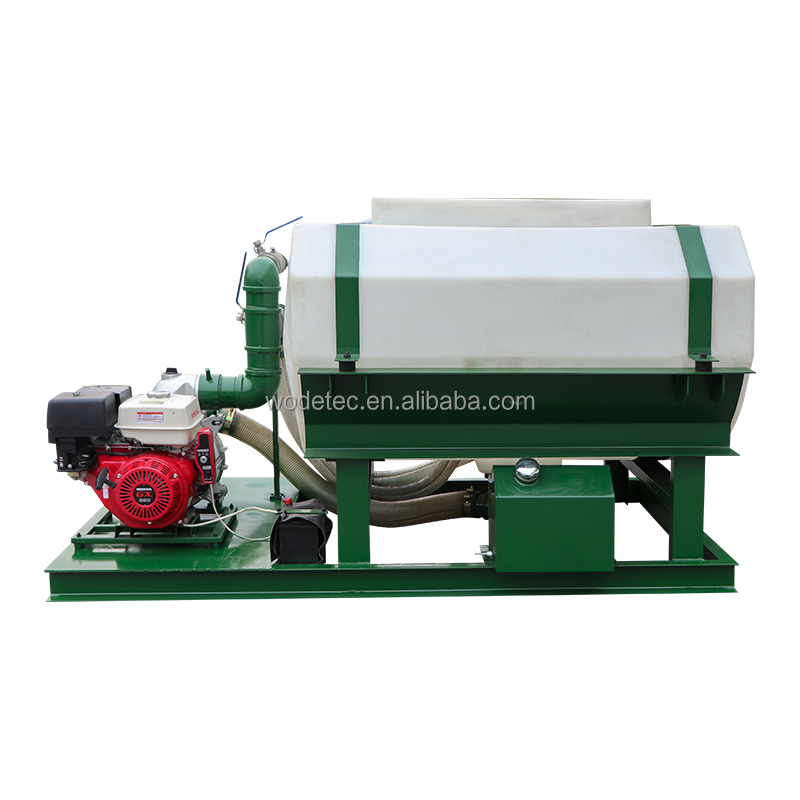

The WHS0110PT is a skid-type jet agitation hydraulic seeder, which is an ideal hydraulic seeder for landscapers with general working areas of 185 square meters to 4000 square meters for residential and commercial seeding. It takes about 15 minutes to spray a full can. Mixing time is 1-20 minutes, depending on materials. Each load can sow 350 square meters. It is equipped with a 13 HP Honda (electric start engine) connected directly to a 4" X 4" high capacity centrifugal pump. The unit also comes with a 60m DN32 discharge hose and 3 nozzles (1 wide hydroseeding nozzle, 1 medium nozzle and 1 straight nozzle with a spraying distance of approximately 28m). They can be mounted on the back of a truck with adequate load capacity or can be easily operated via a trailer.
Product parameters
Model
WHS0110PT Jet Mixing Hydraulic Seeder
volume
1 cubic meter
Tank material
polyethylene
engine speed
0-3600 rpm
Frame material
steel
Pump capacity
80 cubic meters/hour
Coverage
370 cubic meters/tank
Pump channel cross section
4″ X 4″ Centrifugal Pump
hose length
60m
engine
13 HP gasoline engine, electric start
Empty weight
400kg
Loading weight
1480kg
total measurement
2300×1450×1250mm
1. All data are tested by water.
2. We can customize products according to your requirements.

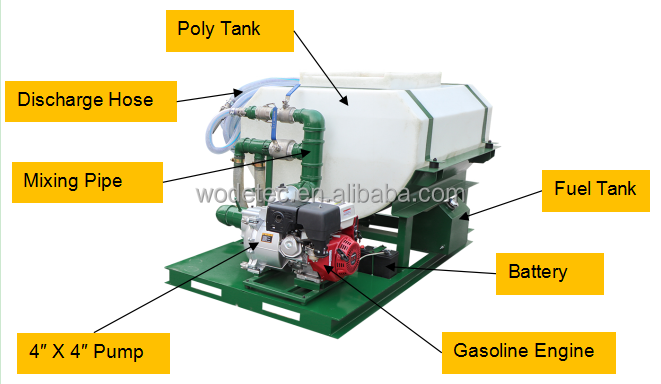

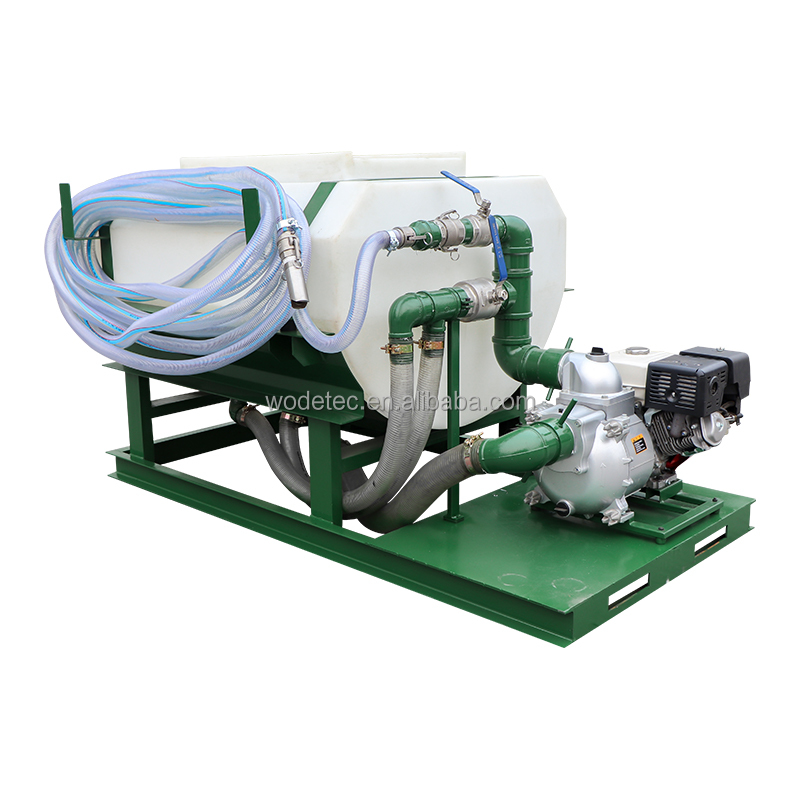

product structure
1. Poly tank: only used as a carrier of fluid, quick to clean and never rusty.
2. Hose discharge: The hose is lightweight and easy to operate.
3. Mixing system (reliable and more uniform): Using a 4-inch X 4-inch centrifugal pump specially designed for hydraulic seeding. 4. Power unit: Honda 13 horsepower, electric start. The ability to fully control pressure lets you mix faster, trim with precision, and spray further. 5. Nozzles: Using large nozzles means faster mixing and no clogging. 6. The 2-inch ID nozzle features a quick connector for easy repair in the unlikely event of a problem.
7. Control system (safe, easy to operate)

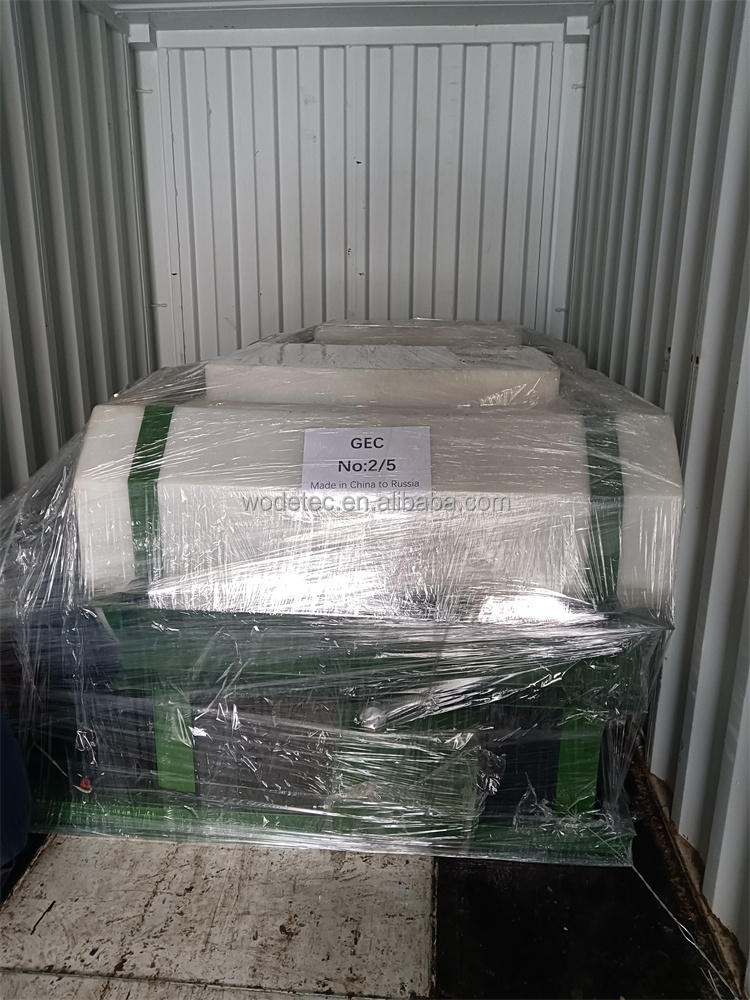

Packaging and shipping

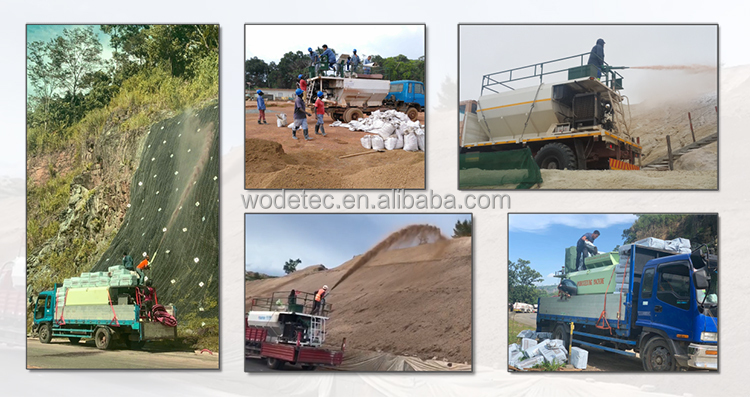

Applications
WHS series hydraulic seeders are increasingly used inRoad Greening, highway slope greening, erosion prevention, landfill coverage, mine reclamation, dust control, landscaping projectsIt also involves planting permanent vegetation, spraying mud, protecting slopes, planting grass and preventing erosion.
