factory supplier diesel drive shotcrete machine for sale

Supplier: Zhengzhou Wode Heavy Industry Co., Ltd.
Region: Henan, China
Contact: Ms Linda Zhang
Price: $3500.00 /set
Min. Order: 1 set

Click here to contact

Product details

Hose Inner Diameter:	51 mm;	Applicable Industries:	Manufacturing Plant,Construction works ;
Max. Conveying Distance:	200m;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,Trade Assurance;
Output Capacity:	3-5.5m3 /h;	Supply Ability:	1000 Set/Sets per Year shotcrete machine;
Max. Horizontal Conveying Distance:	200m;	Power(W):	18hp;
Suitable Mix Ratio:	≤1:4~5;	Warranty:	1 year;
Air Consumption:	9m3/min(325CFM);	Air Consumption:	8~9m 3 /min(285-325CFM);
After-sales Service Provided:	Video technical support,Field installation, commissioning and training,Field maintenance and repair service,Online support;	Rotor Speed:	11r/min;
Max. Aggregate Size:	Dia.15 mm;	Dimension(LWH):	1.350.751.2m;
UNIQUE SELLING POINT:	High operating efficiency;	Port:	Shanghai or Qingdao or Tianjin or Ningbo or Guangzhou or other;

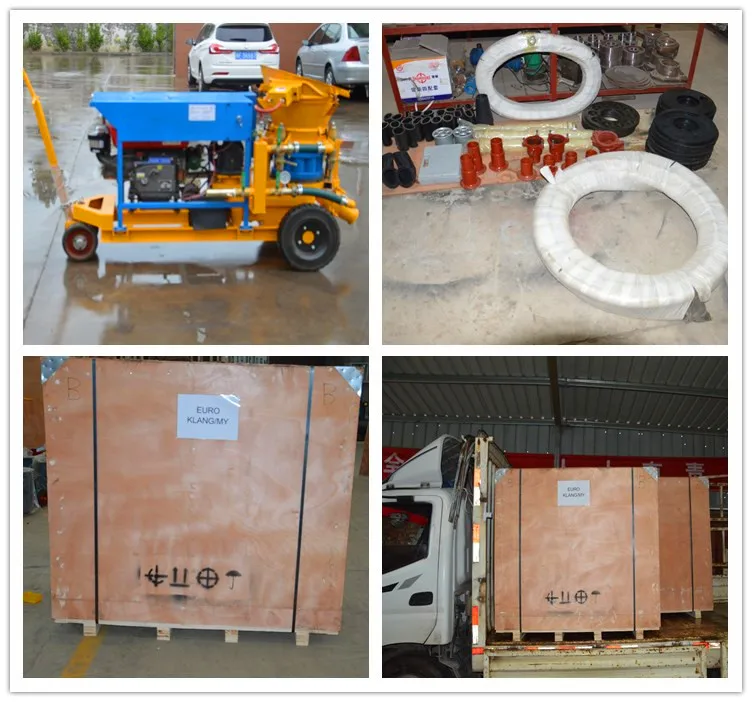

Voltage:	220V,380V, 440V,660V;	Packaging Detail:	shotcrete machine for sale: plastic wrap, plywood case, free-fumigation, standard export packing. as shown below. Or customized. Free-fumigation case;
Water cement ratio:	<0.4;	Brand Name:	WODETEC;
Showroom Location:	Malaysia;	Material Charging Height:	1.1m;
Place of Origin:	Henan China;	Max Aggregate Size:	15mm;
Operating air Pressure:	0.2-0.4MPa(29-58PSI);	Power:	13kw/18hp;
Certification:	ISO CE;	Weight:	850kg;
Condition:	New;	After Warranty Service:	Video technical support,Online support,Field maintenance and repair service;
Local Service Location:	Malaysia;

factory supplier diesel drive shotcrete machine for sale

Product Description

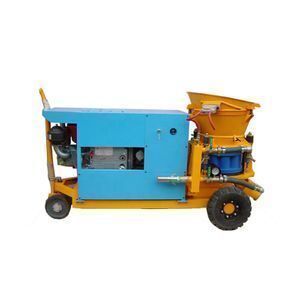

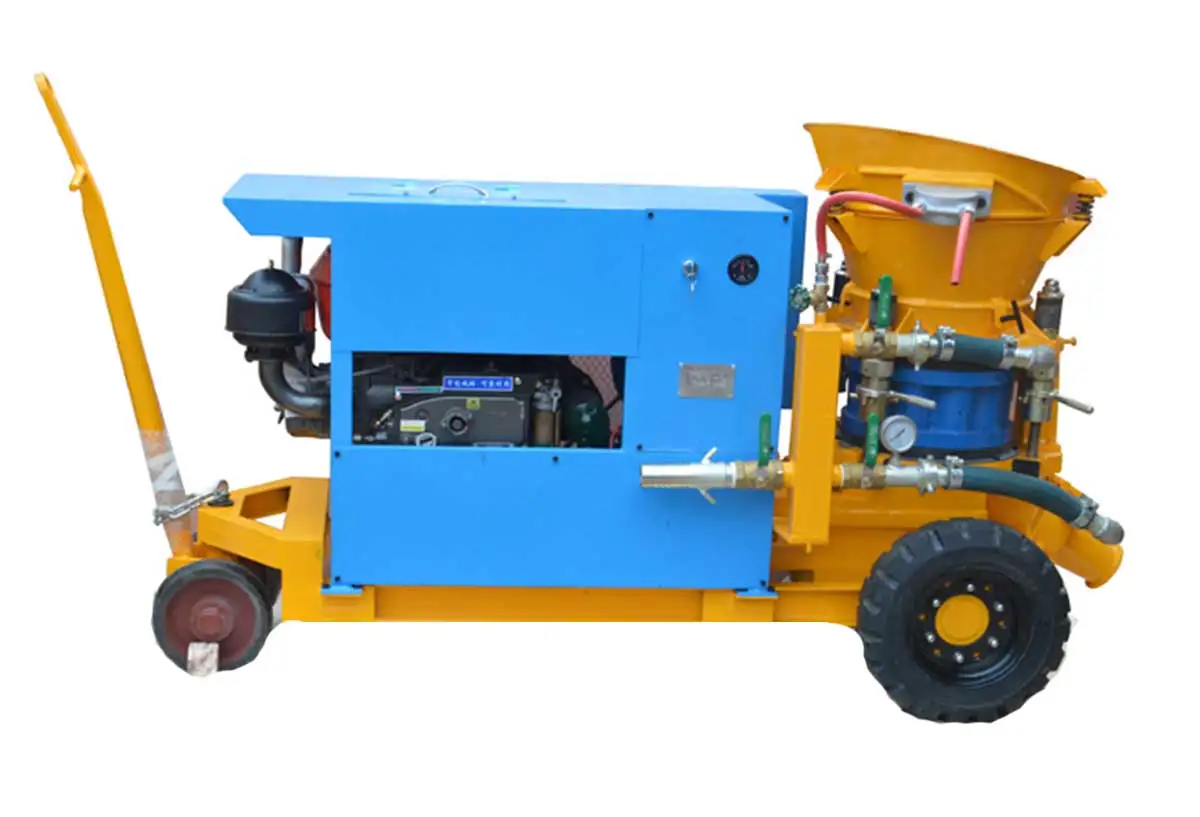

WZ-5D concrete spray machine description:

WZ-5D shotcrete machine is medium-sized shotcrete machine for the processing of dry mix. And it is widely used by so many contractors.

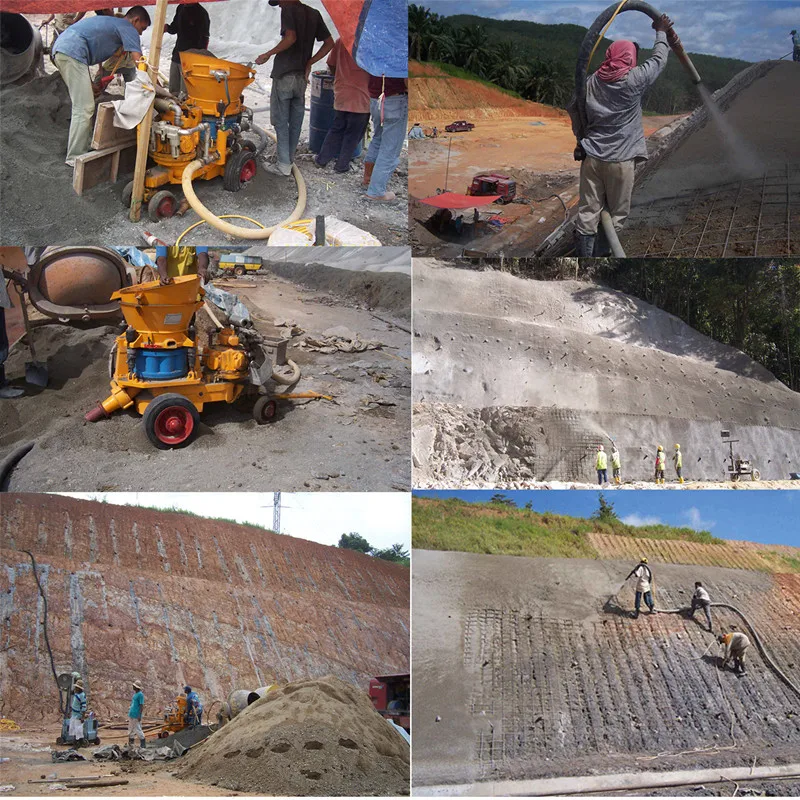

WZ-5D shotcrete machine can be used for tunneling, mining operations, hydropower projects and hillside protection, etc.

Technical Data

WZ-5D concrete spray machine data:

Output Capacity	3-5.5m³ /h
Max. Horizontal Conveying Distance	200m
Suitable Mix Ratio(Cement/Sand)	≤1:4~5
Water cement ratio	<0.4
Max. Aggregate Size	Dia.15 mm
Conveying Hose Inner Diameter	Dia.51 mm
Operating air Pressure	0.2-0.4MPa(29-58PSI)
Air Consumption	9m³/min(325CFM)
Material Charging Height	1.1m
Rotor Speed	11r/min
Diesel Type	CF1105M
Power	13kw/18hp
Overall Dimension(L× W× H)	2.2×0.96×1.2m
Net Weight	850kg

Advantages

WZ-5D concrete spray machine advantage:

1. High quality, reliable performance.

2. Good seal performance, little dust.

3. Reasonable design, convenient to move.

4. Convenient operation and longevity of service.

5. Non-adhesion going-through rotor with new material chamber, completely eliminate bonding and blocking during operation so as to reduce clearance and maintenance period.

6. Thin flow conveying method with vortex flow, so the spraying flow is even, continuous and steady, to improve the shotcrete quality.

7. Four-point clamping device make it easy to adjust the press between sealing plate and rotor disk so as to no air and dusk leak and prolong consumption parts life.

8. Widely used in mining, tunnel, culvert, revetment etc.

Contact Supplier

We are the concrete gunning machine factory, we can customize according to your requirements. If you have any questions, please contact us and we will provide you with the corresponding product parameters and quotations.

Contact us for more information.

1. What's the project you will use the machine do, for slope protect, or other ?
2. Do you need dry-mix shotcrete machine or wet-mix shotcrete machine ?
3. What's the output you need, 3m3/h, 5m3/h, 9m3/h, or other ?
4. What's the maximum particle size of the material, less than 10mm, 15mm, or 20mm ?
