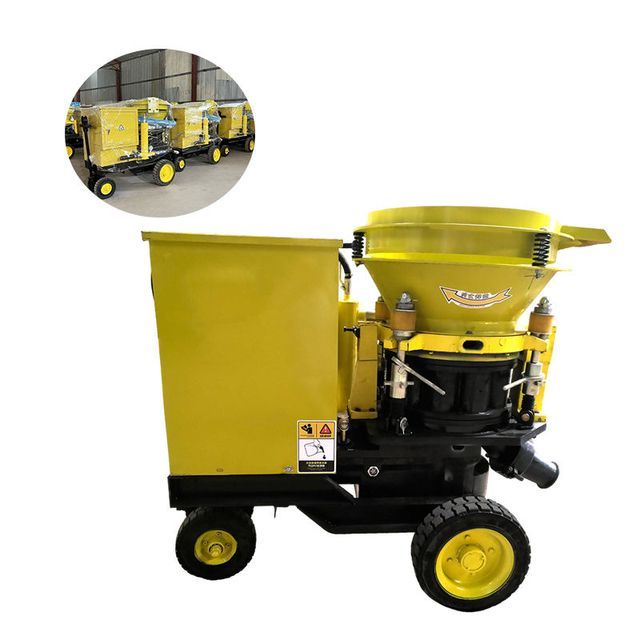

High-quality concrete spraying refractory dry spraying machine for tunnels

Supplier: Zhengzhou Sinogrout Machinery Co., Ltd.
Region: Henan, China
Contact: Ms Jessica Jia
Price: $1500.00 /set
Min. Order: 1 set

Click here to contact

Product details

Key words:	shoe mending machine	weight:	600 kg
Applicable industries:	Construction Engineering, Energy and Mining, Concrete Spraying	Dimensions (LWH):	13007051300mm
Showroom location:	not any	type:	Shotcrete Equipment
Sealing plate service life:	800 square meters	Packaging Details:	Standard export wooden packaging or according to customer requirements
Core components:	Engines, gearboxes, pressure vessels	Hose inner diameter:	51 mm
Maximum aggregation size:	20mm	port:	Qingdao/Shanghai or as your request
After-sales service provided:	online support	Wet spray machine:	available
payment terms:	Western Union, L/C, D/P, D/A, T/T, MoneyGram, Cash	product name:	Dry Mix Shotcrete Machine
Drive mode:	electric motor	application:	building, slope, reinforcement, basement, wall
working pressure:	0.4-0.6Mpa	Voltage:	220V/380V/400V/415V/440V/660V/50Hz
brand:	medium size	Core component warranty:	1 year
Marketing Type:	New Products 2022	Warranty:	1 year
maximum. Conveying distance:	Distance: 200m Height: 20m	Video shipment inspection:	if
Gas consumption:	6-8 cubic meters per minute	Unique selling point:	High operating efficiency
Voltage:	220V/380V/400V/415V/440V/660V/50Hz	Origin:	Henan, China
Supply capacity:	500 sets per year	Health status:	new
strength:	5.5kw	Mechanical test report:	if

Product Description

Zhengzhou Huaqiang Machinery Co., Ltd.

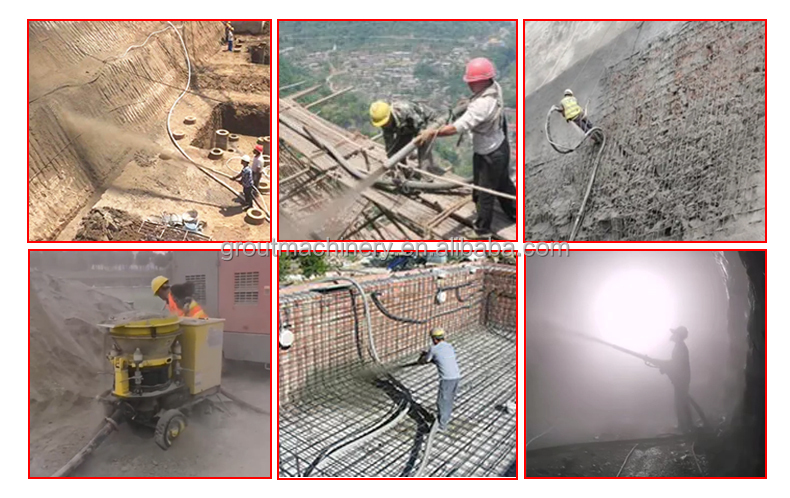

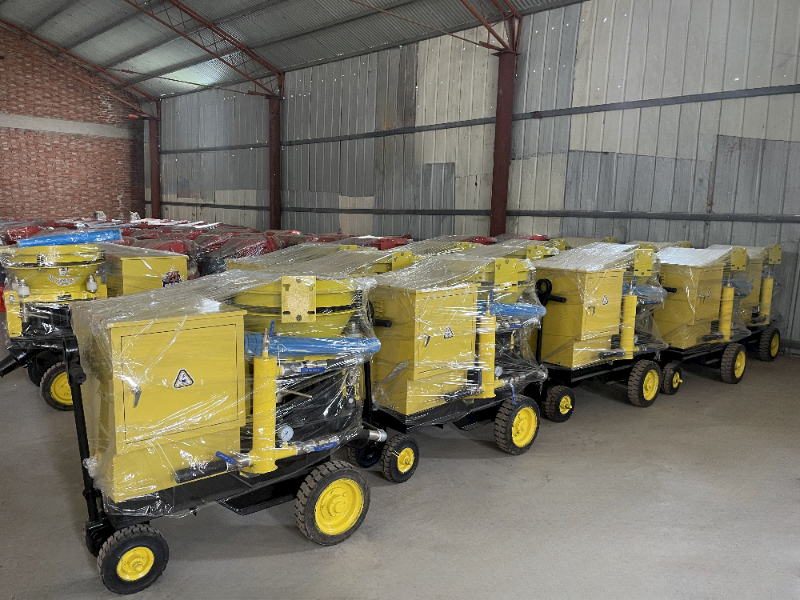

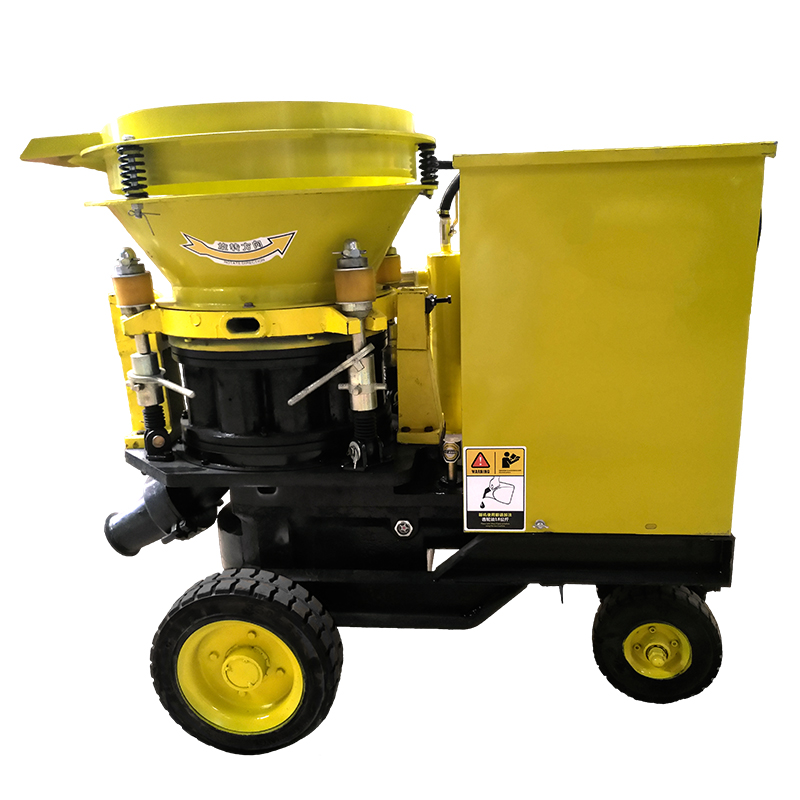

SPZ series concrete shotcrete machine is a kind of anchor shotcrete support equipment, which has the characteristics of reasonable structure, perfect performance and stable performance. Easy to use and maintain, durable. It is suitable for sprayed concrete construction of mines, tunnels, culverts, subways, slope support, underground engineering of hydropower projects and roadways of high gas mines.

Working principle of SPZ series concrete sprayer:

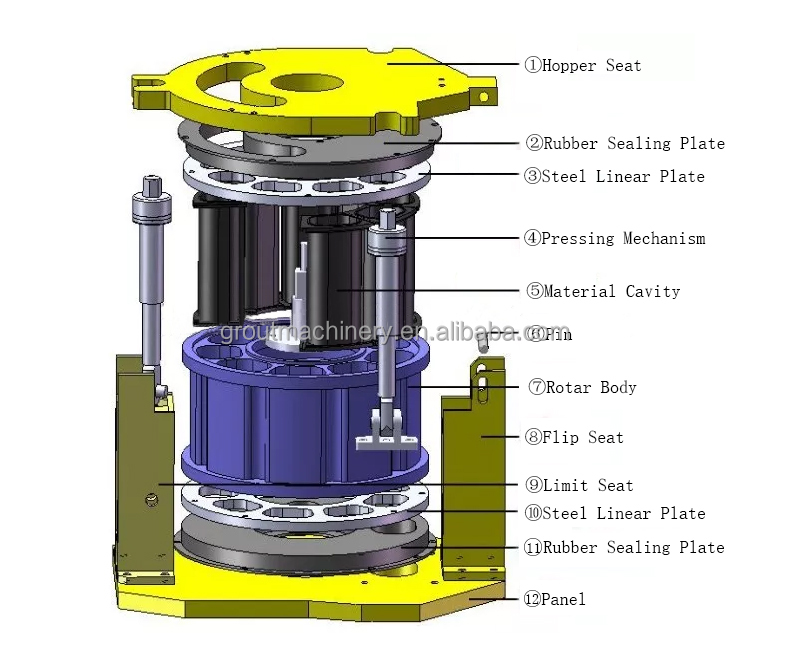

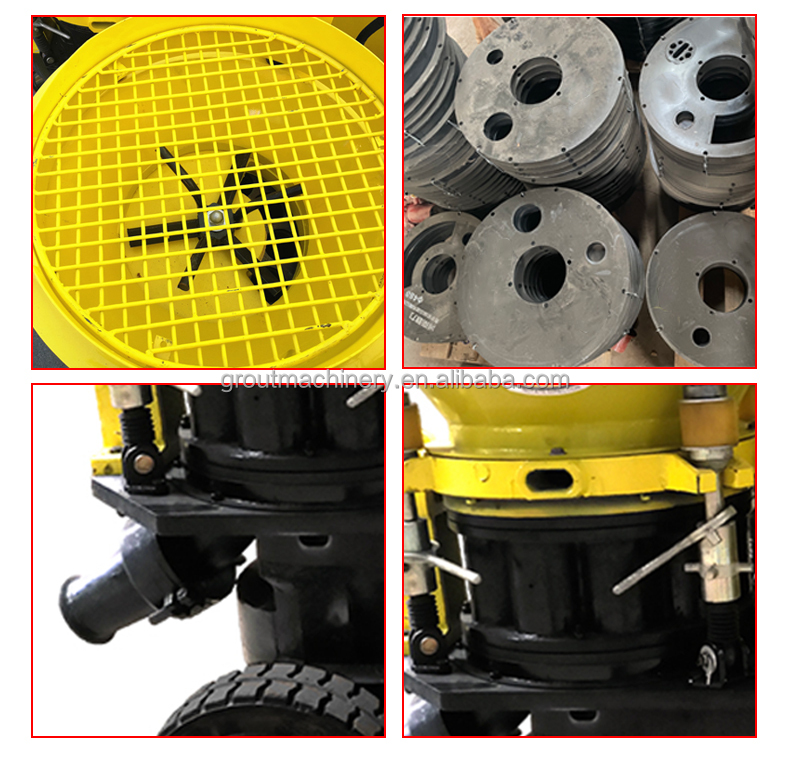

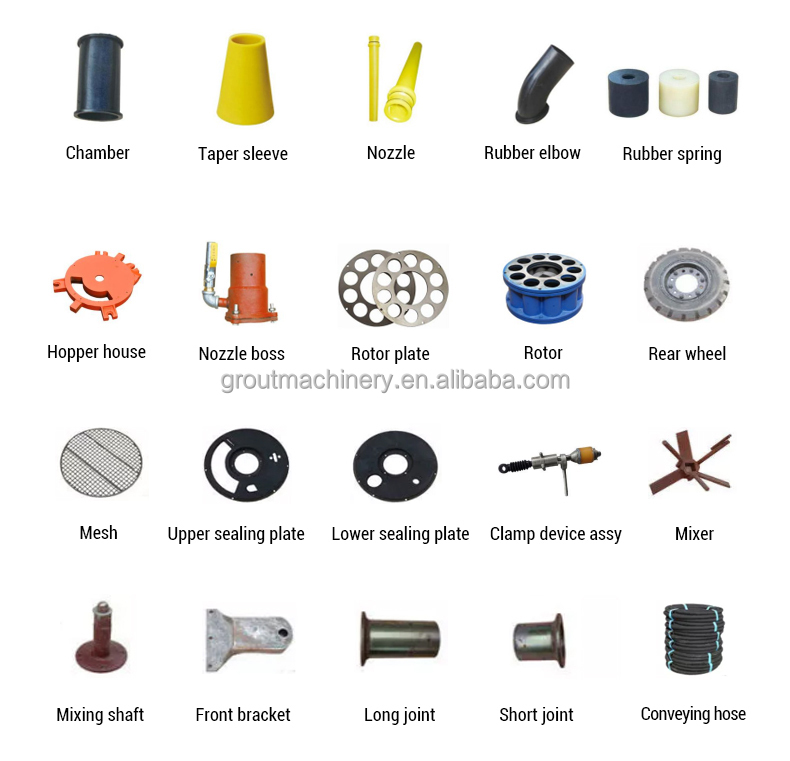

SPZ series concrete spraying machine is mainly composed of driving device, rotor assembly, air duct system, spraying system and electric control box. The mixed material is discharged from the mixer and enters the feed hopper of the spray vibrating screen. It is injected into the rotor body through the feeder and then to the outlet. Compressed air is introduced from the air chamber to blow the material into the discharge elbow. At the same time, another cyclone separator Introduce compressed air, the material is blown away and accelerated in the multi-head wind spiral state, and is output to the material pipeline to rotate and float, and then add an appropriate amount of water or liquid accelerator to spray out.

Technical Parameters

Dry spray machine
Model	SPZ-3	SPZ-5	SPZ-7
Spray amount	3 cubic meters / hour	5 cubic meters / hour	7 cubic meters / hour
horizontal	200 meters	200 meters	200 meters
vertical	20 meters	20 meters	20 meters
Water cement ratio	<0.4	<0.4	<0.4
maximum. total size	Ø20mm	Ø20mm	Ø20mm
Rotor diameter	350mm	440mm	480mm
working pressure	0.4-0.6mpa	0.4-0.6mpa	0.6-0.8mpa
Air consumption	3-4 cubic meters per minute	6-8 cubic meters per minute	12 cubic meters / minute
strength	3 kW	5.5kw	7.5kw
size	1040550950mm	13007051300mm	16007501200mm
weight	260 kg	600 kg	850 kg

Features of dry spraying machine

1. Straight-through rotor, smooth discharge and high efficiency.
2. Four-point elastic compensation compression, good sealing effect, less dust, and reinforced wearing parts.
3. The low-pressure and high-speed eddy current airflow conveying overcomes the problems of viscosity, blockage and pulse dispersion in material conveying, and the material flows evenly, continuously and stably.
4. The new nozzle and outlet elbow device improve the spray effect, less rebound and high spray layer quality.
5. The sprayed chassis can be assembled into tire type, skid type and track wheel type with various gauges
