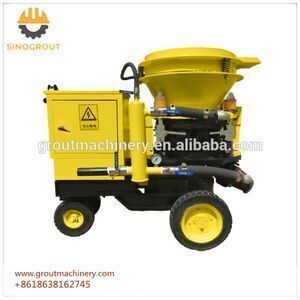

China 5m3/h dry mix shotcrete machine for sale

Product details
Service life of sealing plate:800sq meter;Voltage:220V/380V/400V/415V/440V/660V 50Hz/60Hz;
Weight:700kg;Packaging Detail:Our shotcrete machine normal package is Fumigation-free wooden cases.;
Voltage:220V/380V/400V/415V/440V/660V 50Hz/60Hz;Brand Name:SINOGROUT;
Max. Conveying Distance:Horizontal:200m Vertical: 20m;Max Aggregate Size:20mm;
Service life of steel rotor plate:3000sq meter;Product name:China dry shotcrete machine;
Hose Inner Diameter:51 mm;Payment Terms:L/C,D/A,D/P,T/T,Western Union,Cash;
Model Number:SPZ-5E;After-sales Service Provided:Engineers available to service machinery overseas;
Operating air pressure:0.2-0.4Mpa;Warranty:1 Year;
Place of Origin:Henan China (Mainland);Delivery Detail:in stock or within one week;
Drive mode:Electric motor;Other drive mode:Diesel engine or Air motor drive is available;
Port:Qingdao or as per your request;Supply Ability:500 Set/Sets per Year China dry shotcrete machine;
Certification:CE/SGS;Condition:New;
Wet shotcrete machine:Available;Power(W):5.5 KW;
Air Consumption:7~8m3/min;Application:slope stabilization,basement walls,concrete repair,etc.;
Color:Yellow,Red or Customized;Dimension(L*W*H):1520*820*1100mm;
Product Description

Product Description

SPZ series shotcrete machine is used for spraying dry mixed concrete. It is widely used for shotcrete projects, such as slope stabilization,basement walls, sea walls, drain/culvert lining, dam&dam spillways, concrete repair,etc.


SPZ-5E
SPZ-7E
Output
5m3/h
7m3/h
Max.conveying distance
200m
200m
Max.conveying height
20m
20m
The ratio(cement/sand)
1.3-5
1.3-5
Water/cement ratio
>0.2
>0.2
Max.aggregate
φ20mm
φ20mm
Conveying hose inner diameter
φ51mm
φ51/57mm
Operating air pressure
0.2-0.4Mpa
0.2-0.4Mpa
Air consumption
7-8m3/min
12m3/min
Feeding height
1.19m
1.19m
Rotor speed
11r/min
11r/min
Power
5.5kw
7.5kw
Weight
700kg
850kg
Dimension
1520*820*1100mm
1700*900*1150mm

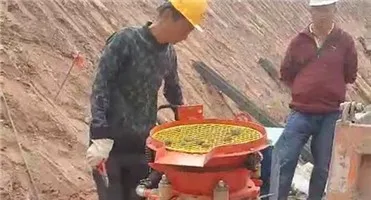

Application

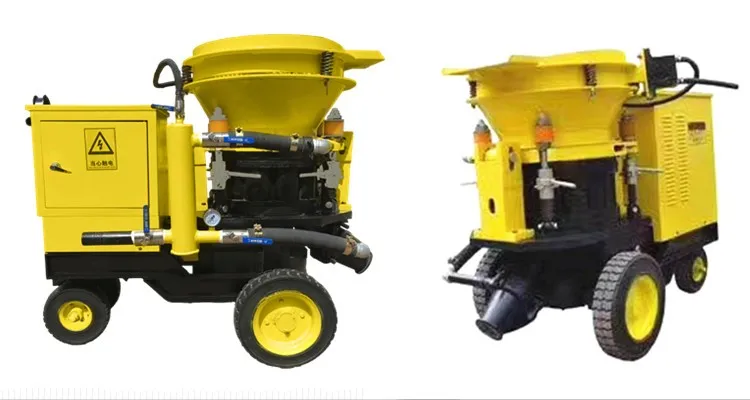

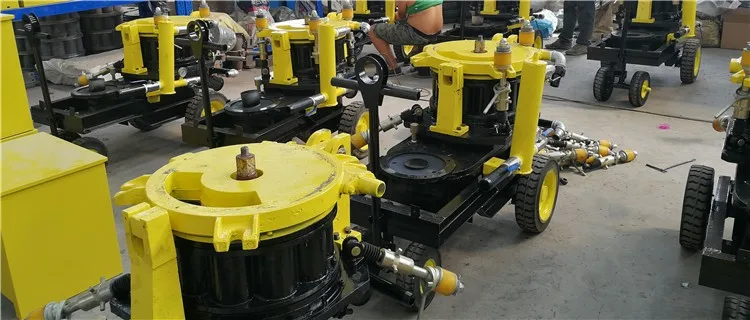

Detailed Images

Machine Parts

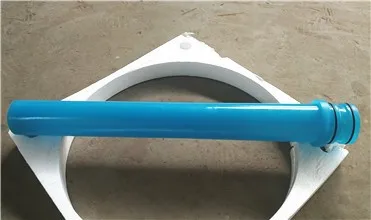

Name: Nozzle

Original: China

Inner Diameter: φ51mm or φ57mm


Main Features

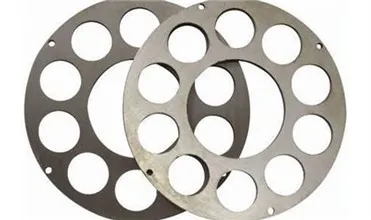

Name: Steel rotor plate
Original: China
Service life: 3000sq meter, 2000sq meter for your choice.


Machine Parts

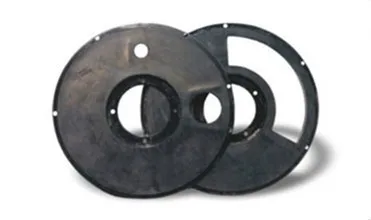

Name: Sealing plate
Original: China
Service life: 800sq meter or 300sq meter for your choice.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Professional techinical support.

* View our Factory.

After-Sales Service

* Training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Size
1620(L) * 1000(W) * 1300 (D)mm
Weight
800kg



Packaging Details
The normal package is Fumigation-free wooden cases(Size: L*W*H).
