Advanced Diesel Concrete Wet Tunnel Covering Machine for sale

Product details
payment terms:wire transferRotor diameter:350mm 440mm 480mm
Hose inner diameter:50 mmCore component warranty:1 year
Other models:HSP-5/7 wet spray machineMaximum aggregation size:20mm
Gas consumption:7~8 cubic meters/hourmaximum. Conveying distance:200 meters
port:Qingdao, Shanghai, Tianjin, Guangzhou, Shenzhen, Yiwu and other seaportsModel:PZ-3/5/7 dry spray machine
weight:400 kgmaximum. Conveying distance:200 meters
Video shipment inspection:ifapplication:sprayed concrete
Warranty:1 yearPackaging Details:Advanced Wet Revetment Tunnel Concrete Diesel Shotcrete Machine For Sale Wooden Bags
Applicable industries:Construction, Swimming Pool Shotcrete, Tunnel Shotcrete, Underground Shotcrete, Concrete TransportationState of health:new
Voltage:380v electric diesel engine sprayed concreteCore components:Rotor, rubber sealing plate
Drive mode:electric drivePackage preview:
Mechanical test report:ifplace of origin; place of origin:Henan, China
strength:7.5kwSupply capacity:600 sets/month shotcrete machine
product name:Shotcrete machine priceMarketing Type:normal product
Showroom location:Egypt, Canada, Turkey, United Kingdom, France, Germany, Vietnam, Philippines, Peru, Saudi Arabia, Indonesia, Pakistan, Mexico, Spain, Thailand, Morocco, Argentina, Chile, United Arab Emirates, Colombia, Sri Lanka, Romania, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Tajikistan, Malaysia, Australiacapacity:5 cubic meters/hour 7 cubic meters/hour
Types of:dry mix, wet mixDimensions (L*W*H):1600*750*1200
Function:Swimming pool, concrete spraying slope tunnel shotcrete machinebrand:Yu Gong
Unique selling point:High operating efficiency
Product Description

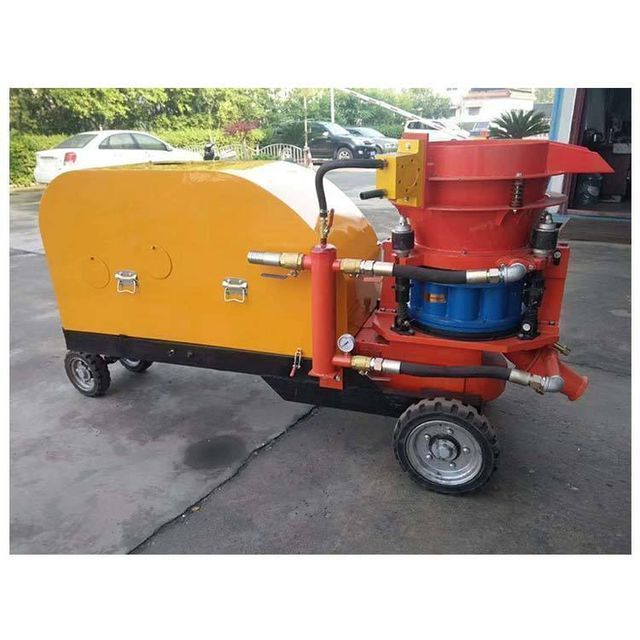

Yugong PZs rotor spraying machine, also known as spraying machine, is a concrete spraying machine that uses pneumatic or diesel power to spray concrete or cement onto certain engineering surfaces; making protective jackets for projects.
Specification
                                                         dry spray machine for sale
Model
PZ3
PZ5/PZ6
PZ7
Capacity (m3/h)
3
5/6
7
Rotor diameter (mm)
350
400
480
Maximum conveying distance
200 meters
200 meters
200 meters
Maximum aggregate(mm)
20
20
20
Air consumption
3-4 cubic meters per minute
7-8 cubic meters per minute
8-10 cubic meters per minute
                                                Wet shotcrete with shotcrete machine
Model
HSP-5
HSP-7
Capacity (m3/h)
5
7

Maximum conveying distance
30m (horizontal)
20m (vertical)
30m (horizontal)
20m (vertical)
Maximum aggregate(mm)
15
15
detailed drawing
In addition to shotcrete machines we also produce all accessories such asConcrete Shot Delivery Pipe,Upper rubber plate, lower rubber plate, rubber chamber, rotor, steel linear plate, nozzles, clamping devices, hydrocyclones, nozzle seats, etc.
application
Wide range of applications:
1. Shotcrete fortunnel, hydropower engineering, mining, underground engineering, civil engineering, etc.slope stability;
2. Artificial soil sowing is suitable for rocks, sand and other non-soil surfaces and non-fertile soil surfaces. Soil transportation and spraying in slope protection and greening construction.
3. Refractory concrete spraying repair for industrial kiln or kiln lining.
-damping concreteFor culvert construction or protection.
4. Wall spraying machine, concrete/cement spraying.
5. Dry or wet mix shotcrete is available.
6.swimming poolSurface concrete pouring spraying machine, swimming pool spraying machine.
