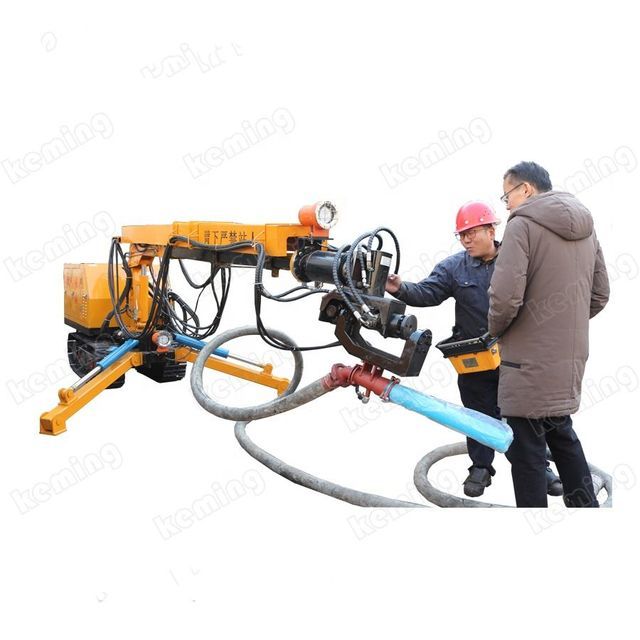

Mobile Crawler 6m Height Shotcrete Shotcrete Robot Remote Control Slope Protection

Supplier: Henan Coal Science Research Institute Keming Mechanical And Electrical Equipment Co., Ltd.
Region: Henan, China
Contact: Mr Steve Wan
Price: $10000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Package preview:		Video shipment inspection:	if
Showroom location:	Pakistan, Thailand, Morocco, UAE	Warranty:	1 year
nozzle:	50mm	Voltage:	380v, customized
port:	Shanghai, Qingdao, Tianjin port	Core components:	motor, water pump
Supply capacity:	50 sets per month	color:	custom made
maximum. Conveying distance:	7 meters	Core component warranty:	1 year
Model:	KPC-16A	Dimensions (LWH):	7850x2460x3380mm
capacity:	30 cubic meters / hour	Origin:	Chinese mainland)
Mechanical test report:	if	feature:	Spray function
product name:	concrete shotcrete machine	Marketing Type:	New Products 2020
quality:	low maintenance	payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram
strength:	55+96kw	Maximum aggregation size:	16mm
application:	sprayed concrete	Health status:	new
weight:	16 kg	Unique selling point:	High operating efficiency
Packaging Details:	Standard export packing or customized wooden case small parts packing	brand:	Ke Ming
Hose inner diameter:	50 mm	Applicable industries:	Building materials stores, machinery repair shops, manufacturing plants, construction, energy and mining

Product Description

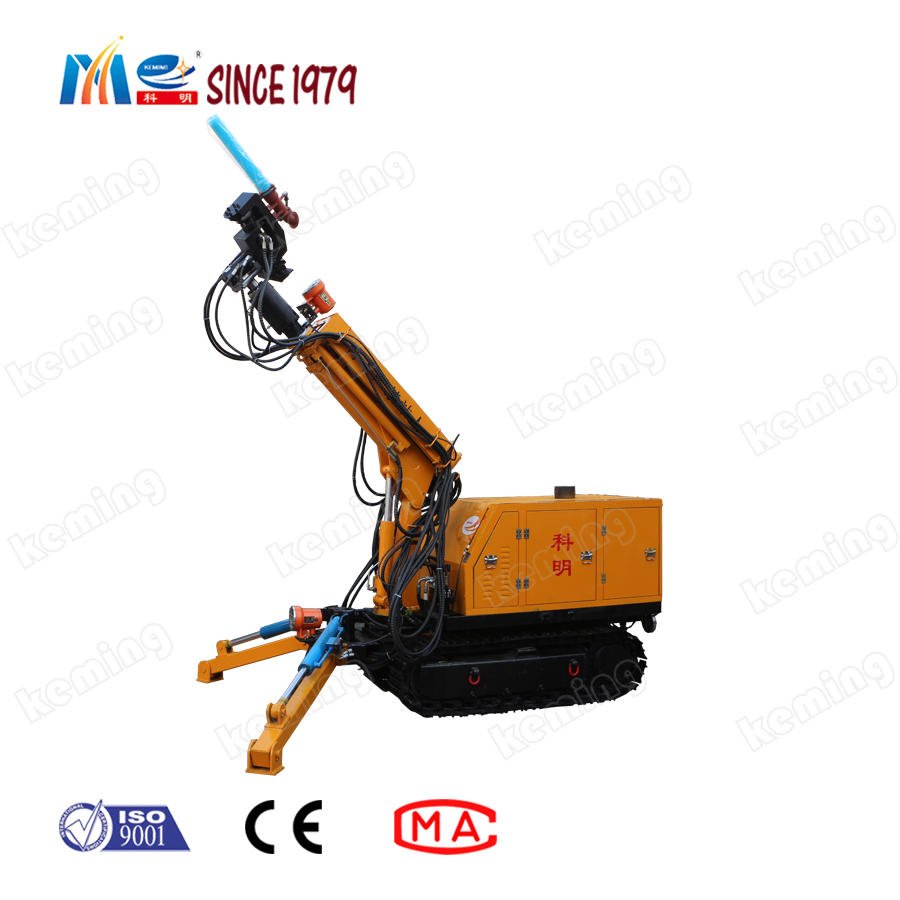

1. KPC-16A spraying robot is ideal equipment for any working space, even in narrow tunnel construction.
2. Widely used in mines, railways, hydropower stations, urban construction and other engineering constructions.
3. It can be used for slope stabilization (slope stabilization), excavation support, and spray support for small shafts in the construction of tunnels, coal mines or power stations.

1. Concrete spraying is suitable for dry, wet or dry-wet mix.

2. Independent hydraulic drive, 2 hydraulic legs, greatly improving the stability of the equipment during the spraying process.
3. The equipment adopts explosion-proof electrical design, which can be used in the underground environment of coal mines.
4. The unique protective cover can protect the mechanical arm.

Specification

complete machine	Model	KPC-16A Shotcrete Machine
		total length	7850mm
		overall width	2460mm
		total height	3380mm
		Rated weight	16 tons
		Minimum turning radius	22mm
		Maximum gradeability	15°
		Maximum Aggregate Size	≤16mm
prosperity and support	Boom structure	2-section telescopic boom ≥ 8.4m
		lifting height	Retracted length 3.4m
		prone height	16 meters
		Boom rotation angle	-2 meters
		Nozzle shaft steering angle	320°
		Nozzle vertical steering angle	360°
		Nozzle swing angle	240°
		Front leg cylinder center width	2180mm
		Rear leg cylinder center width	2180mm
		Front and rear outrigger cylinder center distance	5030mm
		control type	full remote control
		driving mode	diesel engine or electric engine
pumping system	driving mode	motor
		Motor rated power	55 kW
		motor voltage	380v
		Hopper volume	0.4 cubic meters
		concentrated	30 cubic meters / hour
		Delivery cylinder inner diameter	160mm
		Delivery cylinder effective stroke	1000mm
		Concrete discharge pressure	10MPa
		maximum. Acceleration pump theoretical capacity	9 l/min
		maximum. Acceleration pump theoretical discharge pressure	1.8 MPa
		Delivery pipe diameter	125-80mm, variable diameter tube
		Nozzle diameter	50mm
truck chassis	Diesel engines	4105 turbocharged diesel engine
		engine power	96-115 kW
		wheelbase	5100mm
		Front axle wheelbase	1940mm
		Rear axle wheelbase	1860mm
		fetal	1000 wire tire
		Fuel tank capacity	Above 160L

Other Products

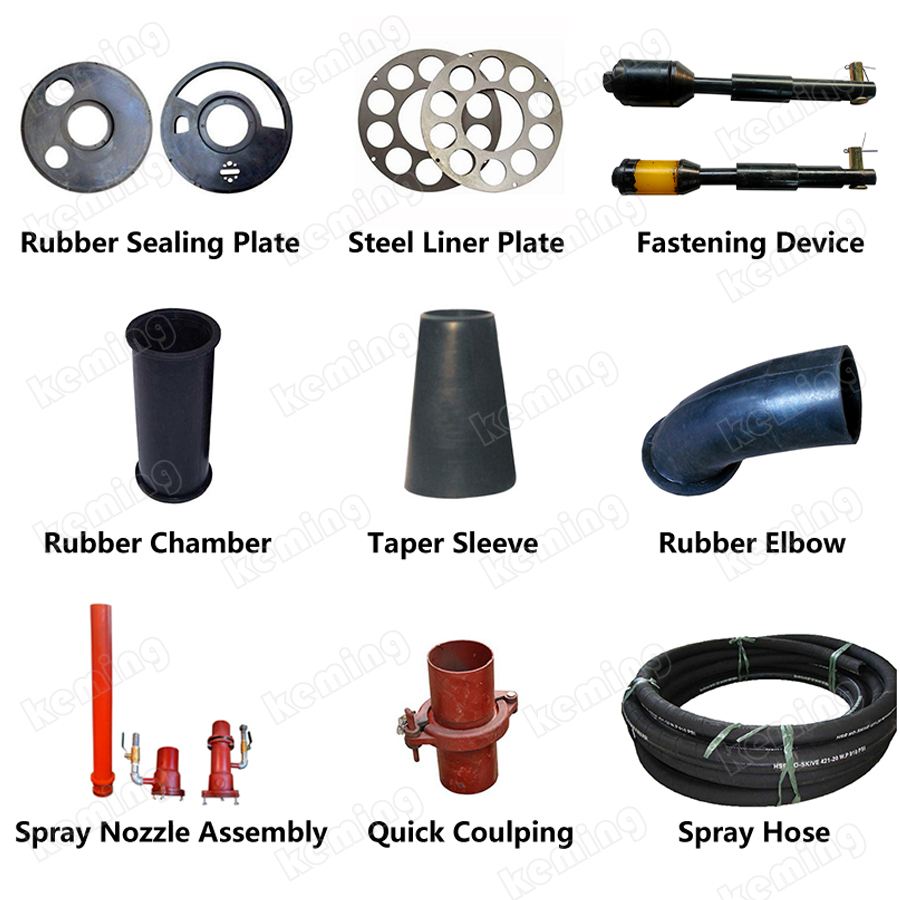

Factory direct sales of concrete shotcrete machine shotcrete machine accessories rubber sealing plate

$100.00 / set

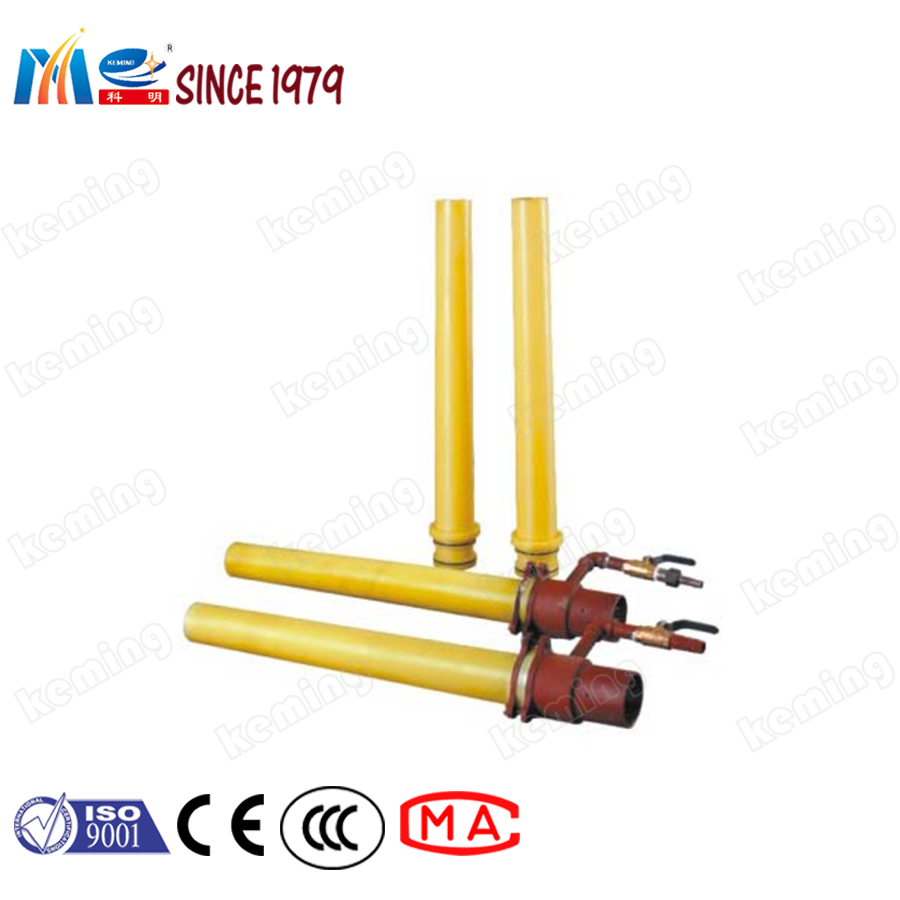

Concrete shotcrete machine accessories nozzle and rotor liner rubber elbow
