Variable output dry spraying refractory shotcrete gunning castable gunite machine applied in steel plant

Supplier: Zhengzhou Wode Heavy Industry Co., Ltd.
Region: Henan, China
Contact: Ms Linda Zhang
Price: $6500.00 /set
Min. Order: 1 set

Click here to contact

Product details

Warranty:	1 YEAR;	Model:	WZ-3ER refarctory gunning machine;
Place of Origin:	Henan China;	Air Consumption:	5~6m3/min;
Certification:	ISO CE;	Keywords:	refractory shotcrete gunning machine;
UNIQUE SELLING POINT:	High operating efficiency;	Max. Conveying Distance:	100m;
After-sales Service Provided:	Video technical support,Field installation, commissioning and training,Field maintenance and repair service,Online support;	Showroom Location:	Malaysia;
Supply Ability:	1000 Set/Sets per Month refractory shotcrete gunning machine;	Voltage:	3phase,380V,50Hz;
Local Service Location:	Malaysia;	Weight:	500kg;
Max Aggregate Size:	10mm;	Power(W):	4KW;
Output:	1-3m3/h;	Application:	steel plant;
Packaging Detail:	Refractory shotcrete gunning machine packaged with carton box, plastic bags, wooden cases or as your requirement;	Brand Name:	WODETEC;
Dimension(LWH):	1.350.71.3m;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,paypal or 30% deposits, 70% balance payment before deliverying;
After Warranty Service:	Video technical support,Online support,Field maintenance and repair service;	Port:	Tianjian ,Shanghai,Ningbo,Qingdao or other ports;
rotor speed:	13.2r/min;	Applicable Industries:	Construction works ;
Type:	Dry Mix;	Color:	Customized;
Condition:	New;	Hose Inner Diameter:	38;
operating air pressure:	0.2-0.4MPa;

Variable output dry spraying refractory shotcrete gunning castable gunite machine applied in steel plant

Product Description

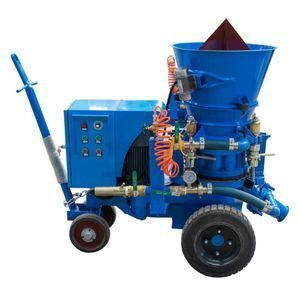

WZ-3ER electric refractory shotcrete machine is specially designed for refractory material spraying, output is 3m3/h, acceptable max. aggregate size is 10mm, driven by electric motor, with ABB frequency converter, flow could be adjustable according to needs, also equipped with booster water pump and Pre-dampening refractory nozzle to ensure you could use the machine when get it.

Product Structure:

Contact Supplier

Product Parameter

Model	WZ-3ER
Rate output	1-3m3/h(2-6 tons/h)
Max.conveying distance	100m
Motor power	4kw
Max.Aggregate size	10mm
Conveying hose ID	32/38mm
Air consumption	5-6m3/min
Operating air pressure	0.2-0.4MPa
Rotor speed	0-13.2r/min
Weight	500kg
Overall dimension	1.350.71.3m

Product Details

High pressure water pump is used for providing high pressure water for new type pre-dampening nozzle assy. There is one water ring in the nozzle assy, high pressure water go through water ring small hole and atomize. If so, water could be mixed even with materials, achieve best spraying effect.

ABB frequency converter is used for adjusting motor speed, further control refractory gunite machine output from 1m3/h to 3m3/h. When the machine begin to work, small output could effectively avoid block because of larger output.

Contact Supplier

Product Feature

WZ-3ER refractory spraying machine has the following features:

1. Variable Output with ABB variable-frequency drive

2. Bag cutter and flat hopper with vibrator

3. Collect dust bag

4. Clean dust gun

5. Heavy-duty solid wheels

6. Coupling and clamp

7. New type pre-dampening nozzle assy

8. Blast rubber hose

Contact Supplier

We are the refractory shotcrete machine factory, we can customize according to your requirements. If you have any questions, please contact us and we will provide you with the corresponding product parameters and quotations.

Contact us for more information.

1. What's the project you will use the machine do ?
2. What is the output do you need, 3m3/h, 5m3/h ?
3. Drive type mode ? Do you want electric or air motor ?
4. Do you have any other special requirments for this machine ?

Product Application

Refractory gunning machine application:

Our refractory gunite machine is popular used for widely used for spraying refractory materials for lining kilns, boilers, furnaces, steel plant, cement factory, degasser lining etc.

Refractory gunite machine application is used for heat and cold repair of vacuum degasser linings.This is achieved by spraying the refractory mixture onto the inner and outer surfaces in a highly advanced manner. This operation can be performed either automatically or manually, and is done by two refractory spray guns.
