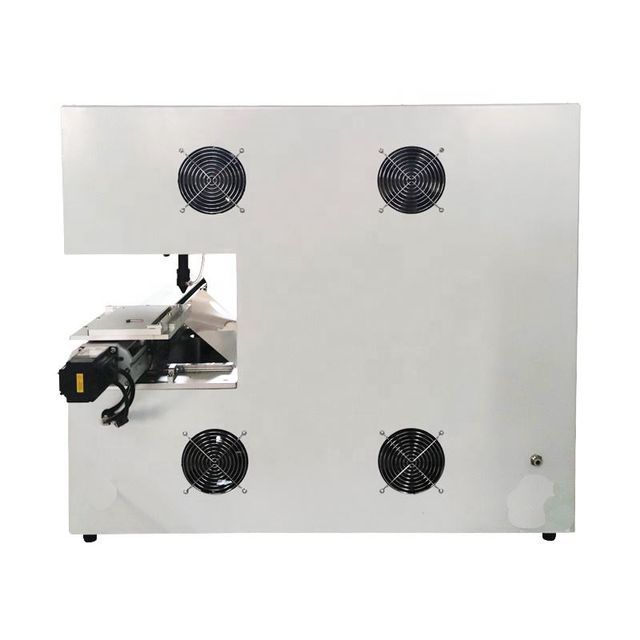

Wire Stripping Pliers Laser Wire Stripper Automatic Laser Wire Stripper

Supplier: Shenzhen Jia Jia Yong Laser Equipment Co., Ltd
Region: Guangdong, China
Contact: Mr jiayi lin
Price: $6000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Working humidity:	5% 95%	Laser head brand:	Jin Jiayuan
brand:	Jiajiayong Laser	Operating Voltage:	AC220V±10% 50HZ(60HZ)
Laser type:	carbon dioxide	Package preview:
Mechanical test report:	if	Showroom location:	not any
Control system brand:	sepuch	Origin:	Guangdong, China
Packaging Details:	Foam crash protection - wooden box fixed - wooden bag	CNC or not:	Yes
Applicable materials:	plastic, wood, paper, plastic, wood	Cutting speed:	0-48m/min
product name:	Laser wire stripper	payment terms:	D/P, T/T
Video shipment inspection:	if	cooling method:	Automatic constant temperature refrigeration/air cooling
Laser source brand:	Raycus	Main selling points:	Multifunctional/long life/high precision/high productivity
Health status:	new	Laser source:	carbon dioxide
Applicable industries:	Building material stores, manufacturing plants, machinery repair shops, construction projects	Core components:	motor, laser
Core component warranty:	3 years	Repeatability:	± 0.05 mm
Marketing Type:	New Products 2021	Weight (kg):	60 kg
Warranty:	1 year	Stripping line speed:	0-50m/min
Engine power:	<1200W

Product Description

Application industry

Laser wire stripping machine is a new application of laser in material processing.

The laser wire stripping machine is suitable for stripping small data lines and thin wires below 5mm, and can process flat wires, flat wires, coaxial wires, single wires, double-glued wires, multi-layer wires, etc.

Multipurpose stripping jackets, quilts and other non-metallic materials including vinyl polymers, fiberglass, polyester, mylar, fluoride, nylon, polyethylene, silicone, aluminum

um foil, polytetrafluoroethylene and other different hardness or high temperature insulation materials.

Part of the sample display

The pictures are for reference only, and the effect of special materials is different. Please consult customer service or call the company for specific materials to be used. The models are complete, and the products produced by special equipment and multi-functional equipment can guarantee the effect.

Parameter advantage

Device parameters:

laser power	80/100/120/130W/150W
machine type	DG-6040
working width	600X400MM
Dimensions	2180X800X1400MM
weight	170 kg
workbench	Honeycomb panel/grid panel/blade panel/flat panel
motor system	Servo motor control system/translation stage
controlling software	Offline, U disk, USB, color screen, Deguang laser multilingual professional software
supported format	CDR BMP PLT GPEP DXF DST file format
Engraving speed	0-50m/min
cutting speed	0-48m/min
cutting speed	±0.05MM
cooling method	Automatic constant temperature refrigeration/air cooling
Operating temperature	0° -45°
Working humidity	5% 95%
Operating Voltage	AC220V±10% 50HZ(60HZ)
engine power	<1200W

Traditional process and laser automation

Equipment category	fervent pliers	Laser wire stripper
operator	1 person	1 person
process	The processing is in contact with the wire, the processing is stressed, and the inner core is easily broken. b. Product quality will be affected by factors such as worker skills and emotions.	No contact with the wire, no processing stress, no breaking of the inner core, laser processing of the insulating layer, no damage to the metal layer, no influence on product performance
process	Strip only the end of the cable harness	Segmentable stripping
Passing rate	The pass rate is about 85%	The pass rate is about 99%

Equipment structure elements and characteristics:

Packaging and Shipping

We are three-layer, and the inner machine is wrapped with waterproof shrink film. The outer layer is a solid fumigation-free wooden box. Between these two layers, we will fill EPE foam, bubble bag, cardboard, etc. to avoid the machine from being damaged due to shaking.
