GPRS Wireless water pressure sensor for fire safety
-
Supplier: Shaanxi Topsail Electric Technology Co., Ltd. -
Region: Shaanxi, China -
Contact: Mr Sam Peng -
Price: $250.00 /piece -
Min. Order: 1 piece
| Selling Units: | Single item; | Package Type: | 1 unit GSM water pressure sensor per carton, carton 26*24*17cm. Gross weight 2.5kgs, Volume weight 3.0kgs; |
| Model Number: | TD-P05; | Operating humidity range: | <90%RH; |
| Overpressure: | 150%~300%FS; | Delivery Detail: | 0 days after payment; |
| Power: | Battery for 2~3 years; | Brand Name: | Topsail; |
| Single package size: | 18X13X18 cm; | Long Term Stability: | 0.1%FS/year; |
| Protection: | IP65; | Application: | Water, Hydrant, Irrigation etc.; |
| Place of Origin: | Shaanxi China (Mainland); | Operating temperature range: | -20~70℃; |
| Pressure range: | 0~2.5Mpa, Customized; | Pressure interface: | G1/2, M20*1.5mm, Customized; |
| Accuracy: | 0.2%, 0.5%FS; | Single gross weight: | 2.5 KG; |

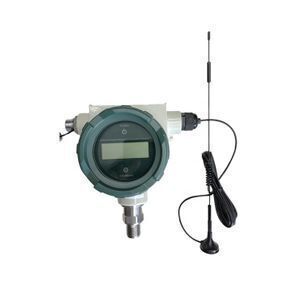

GPRS Wireless water pressure sensor for fire safety
Model: TD-P05
Brief introduction:
It will monitor pipeline inside water pressure and report to cloud server (someone call it "portal") automatically and wirelessly at set interval when measured pressure is normal;
once it detect critical pressure, it will report the data packet to cloud server at once;
meanwhile the GPRS wireless pressure sensor could alert user with SMS alarm.
Usually TOO HIGH pressure may damage the shelf life of the pipe;
but TOO LOW pressure means shortage of supply, or leakage problem occurs.
Advantages:
1. GPRS communication for global market
2. Super low power consumption design
3. Battery powered for outdoor working 2~3 years
4. Customized settings, data could be sent to server of clients
Technical details:
Range | 0~10KPa......100MPa Customized |
Accuracy | 0.2%, 0.5% Customized |
Long-term stability | 0.1%FS/year |
Overpressure | 3X or 120MPa (the smaller one) |
| Network | GPRS: 850/900/1800/1900MHz for Global |
Display | 5 digit reading value, 7 digit display |
Protection | IP65, waterproof, dust-resistance |
Power | Battery 38000mAh 3.6V, one-time use |
Working environment | |
Operating temperature | -20℃~70℃ |
Operating humidity range | <90% |
Storage temperature | -20℃~70℃ |
Physical materials | |
Process thread | G1/2, M20*1.5mm, NPT1/4 Customized |
Material of housing | Aluminum alloy |

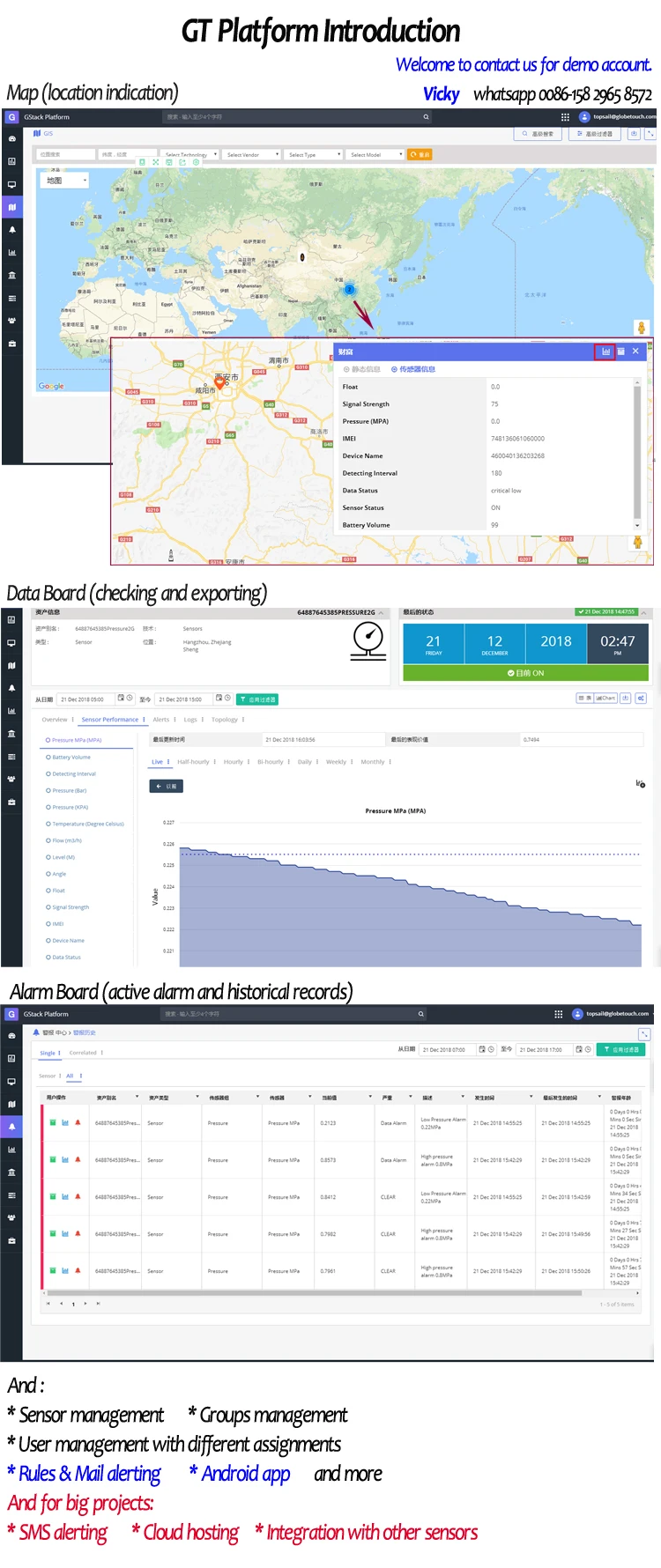

Where to track and know real-time pressure data?
1. Your own software platform (need integration)
2. Free simple platform
3. Better platform provided by 3rd party
Carton Packaging:
Express or Air shipping
Answers for the Questions you may have:
** MOQ?
1 unit.
** LOGO service?
Yes
** FREE sample?
No.
** Quality gurantee?
1 year.
** PAYMENT support?
T/T, Visa, Master, WestUnion, MoneyGram
** WHEN could we receive goods?
Goods Preparation: up to your requirements & order quantity.
Courier shipment days: about 7~15 days, up to courier express service.
** DISCOUNT offer?
1) If you have bigger quantity order, pls. mail us details to get discount offer.
2) COUPON valid always:
Clients bought from us, and share on-site photos of our devices ( 5 shots at least) on SNS, and @our FB/Instagram/Linkedin , then will enjoy 5% discount off (no more than 20$) in the next order.
BUT one buyer enjoy once only.
3) COUPON time-limited for March & Sept. EXPO: 2% discount off
Your inquiries would be responded in 0~10 hours during March/Sept. Expo!
Please share more information with us, including while not limited to:
Application and environment, Requirements, Quantity, software.
Close model will be introduced with your answers, so does CIF cost.
We are An IHV (IoT Hardware Vendor) of
1. Wireless IoT Pressure Transmitters
2. Temperature Humidity Data Loggers, Wireless IoT Temperature Humidity Sensors
3. Wireless IoT Level Transmitters, data logger
4. Multi-way data loggers, wireless IoT sensors
-
