weight: | 20 | Dimensions (L*W*H): | depends on customer |
pressure: | 16Mpa-70Mpa(2250PSI-10150PSI) | brand: | Dongai |
Package preview: | Material: | ST52, CK45, 4140, 20MnV6, 42CrMo, Duplex2205, stainless steel 304/316 | |
Packaging Details: | (1) The surface of the bar is coated with anti-rust oil, and each bar is packed in a paper roll, and then packed into a wooden box; (2) 20/GP or 40/GP container. A container loads 25 tons. | Certificate: | ISO9001 |
structure: | Piston cylinder | Outer diameter: | 25mm to 500mm |
Warranty: | 1.5 years | strength: | hydraulic and pneumatic |
Supply capacity: | 500 tons/month hollow piston rod | Roughness: | Ra <= 0.2u |
Chrome layer: | 20 to 100 microns | length: | up to 13m |
Free samples: | usable | Showroom location: | not any |
port: | Shanghai or other ports in China | payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram |
Straightness: | <= 0.2/1000 | Origin: | Jiangsu, China |
Diameter Tolerance: | ISO f7 | Health status: | new |

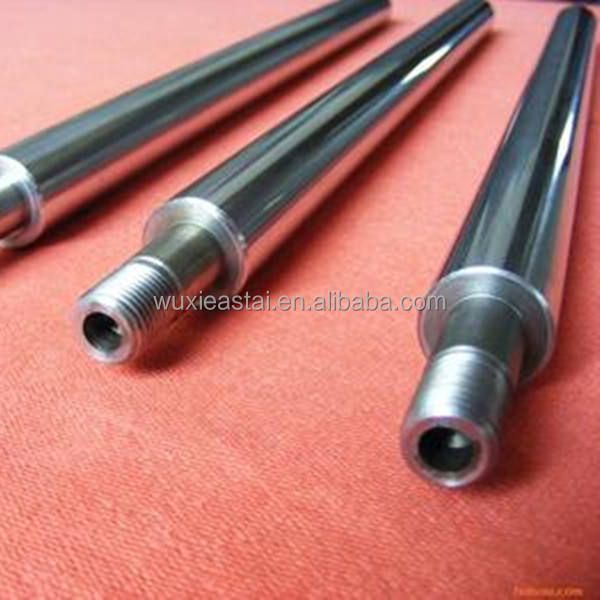

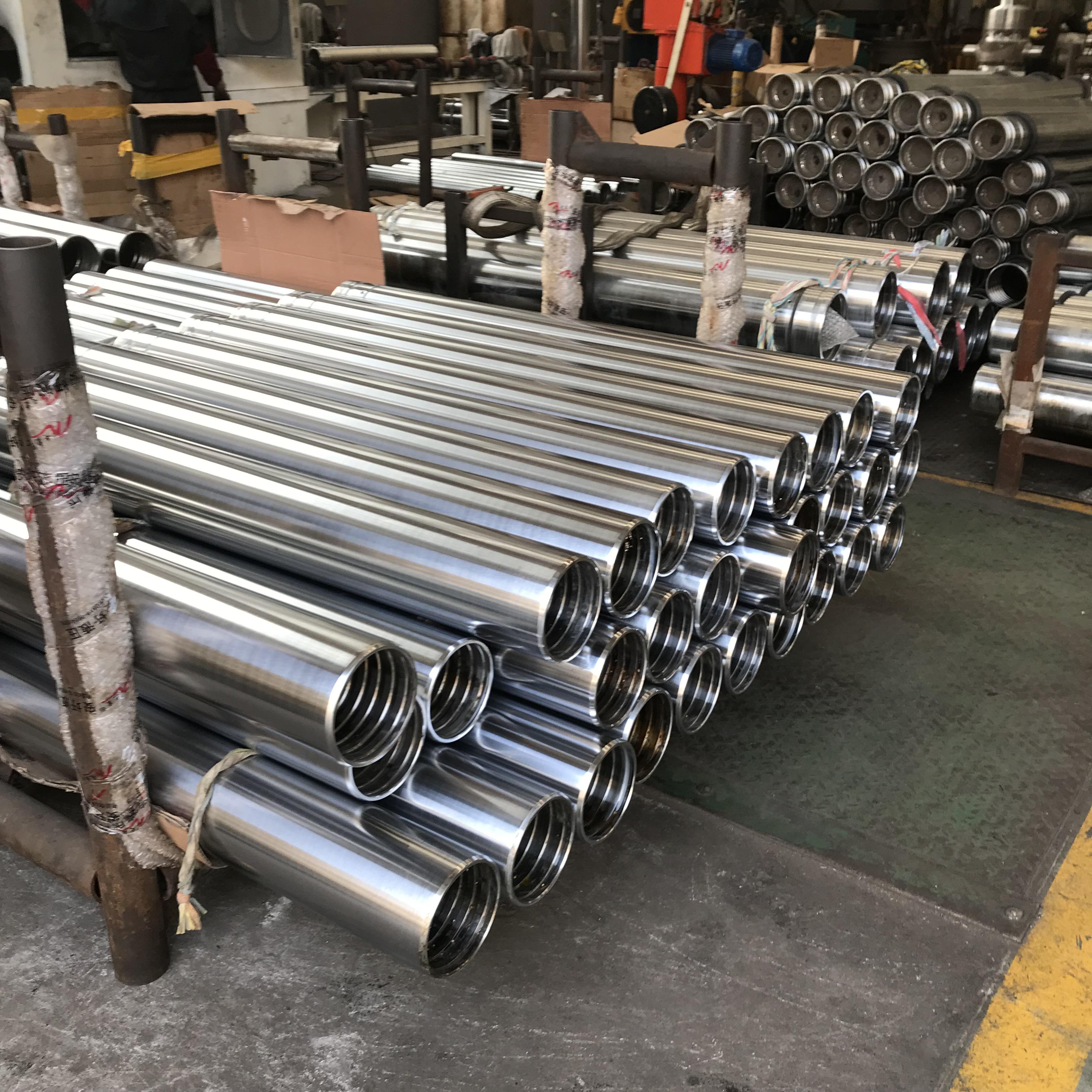

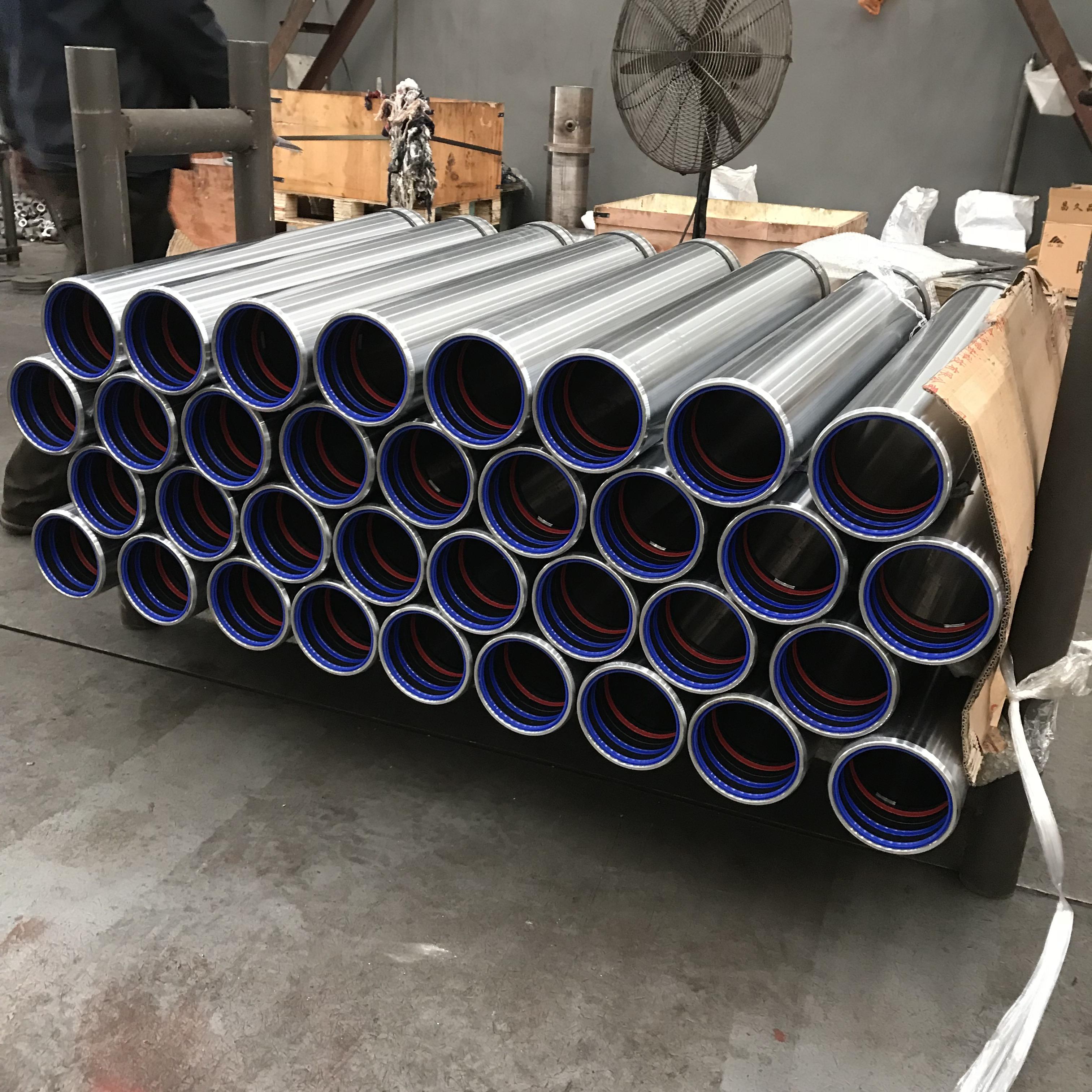

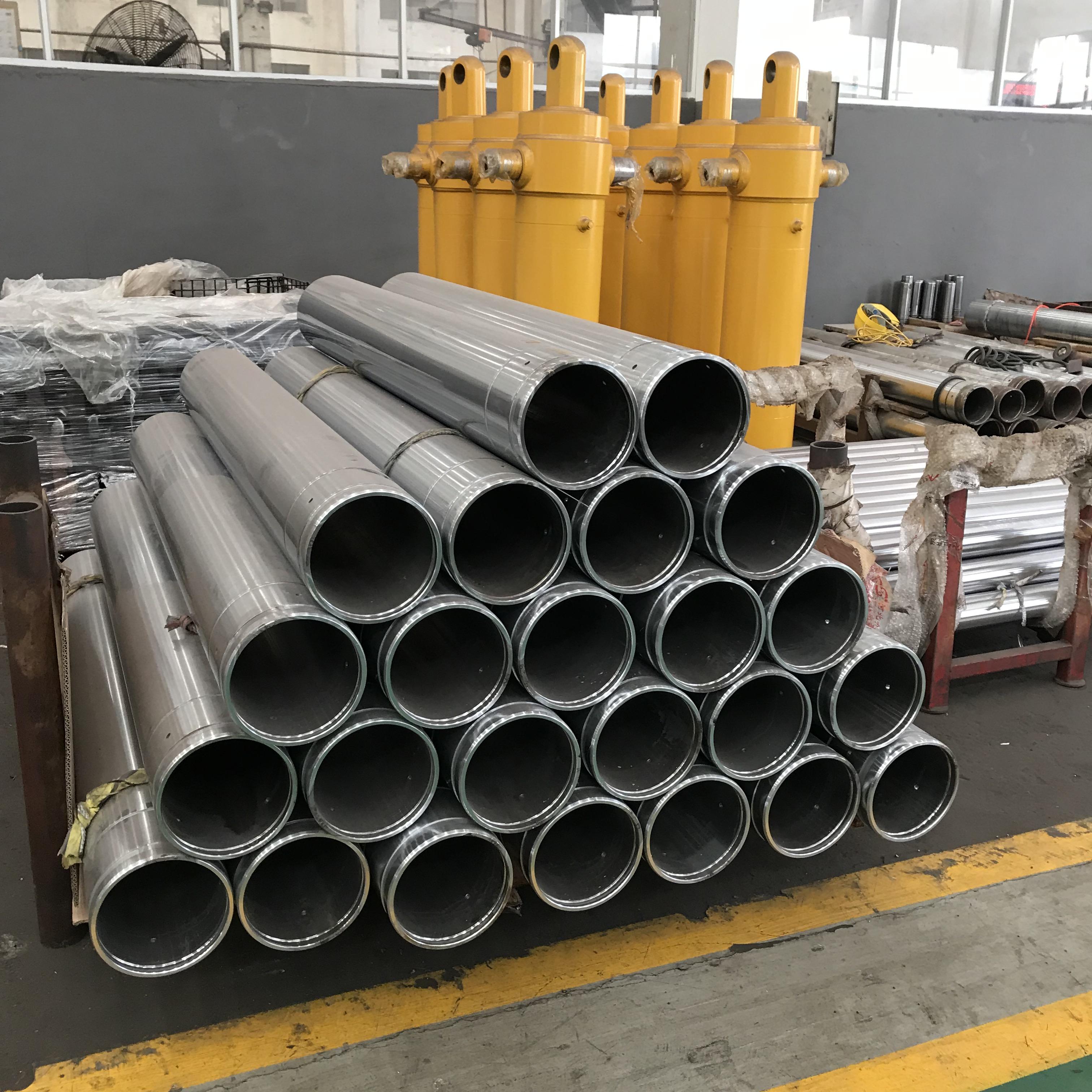

type: | hollow piston rod |
CK45 / chemical composition (%) | ||||||||
C | manganese | silicon | small | P | ||||
0.40-0.50 | 0.60-0.90 | 0.035 | 0.035 | 0.035 |
CK45 / mechanical properties | ||||||
Total pressure (MPa) | YS (MPa) | % | Health status | |||
≥630 | ≥380 | ≥15% | Normalized |
ISO f7 | ||||||
Outer diameter (mm) | Tolerance (mm) | |||||
< | ≤ | ≤ | ≤ | |||
6 | 10 | -0.013 | -0.028 | |||
10 | 18 | -0.016 | -0.034 | |||
18 | 30 | -0.02 | -0.041 | |||
30 | 50 | -0.025 | -0.05 | |||
50 | 80 | -0.03 | -0.06 | |||
80 | 120 | -0.036 | -0.071 |
