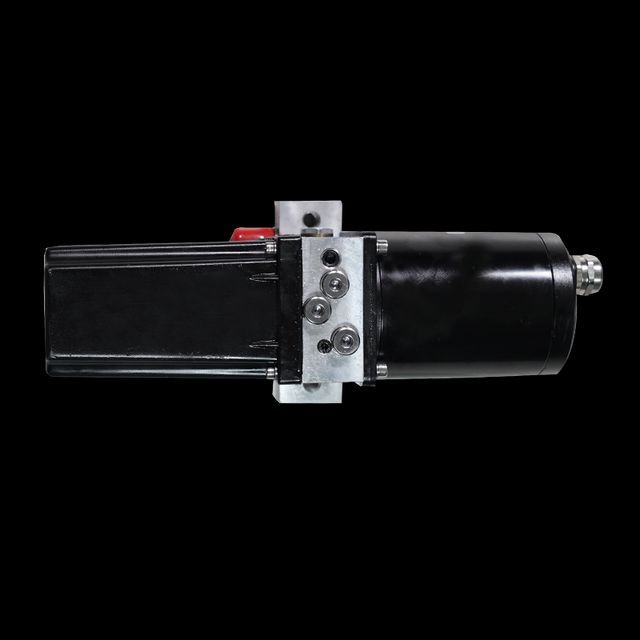

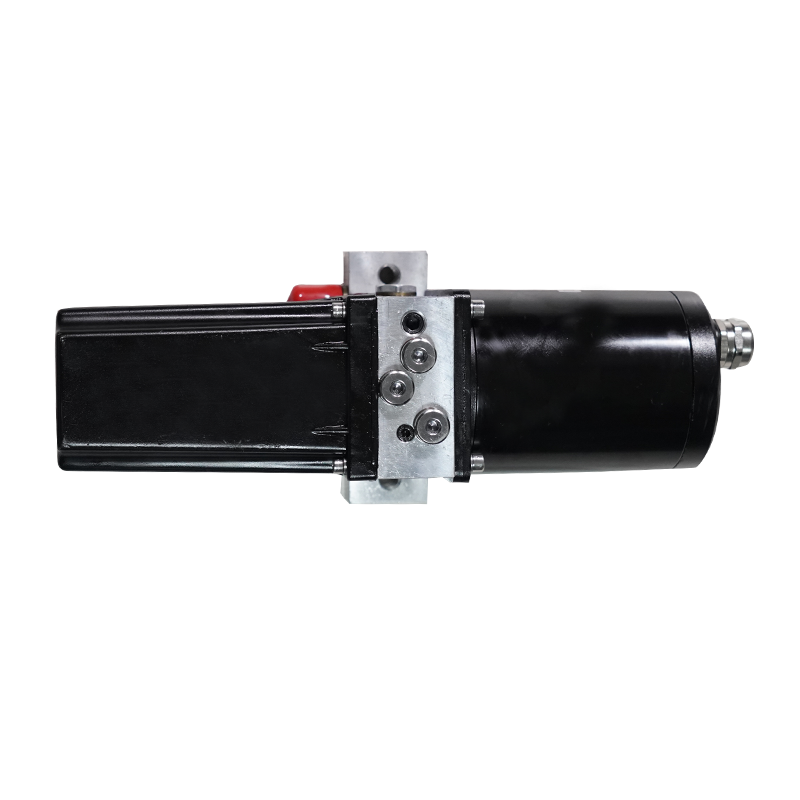

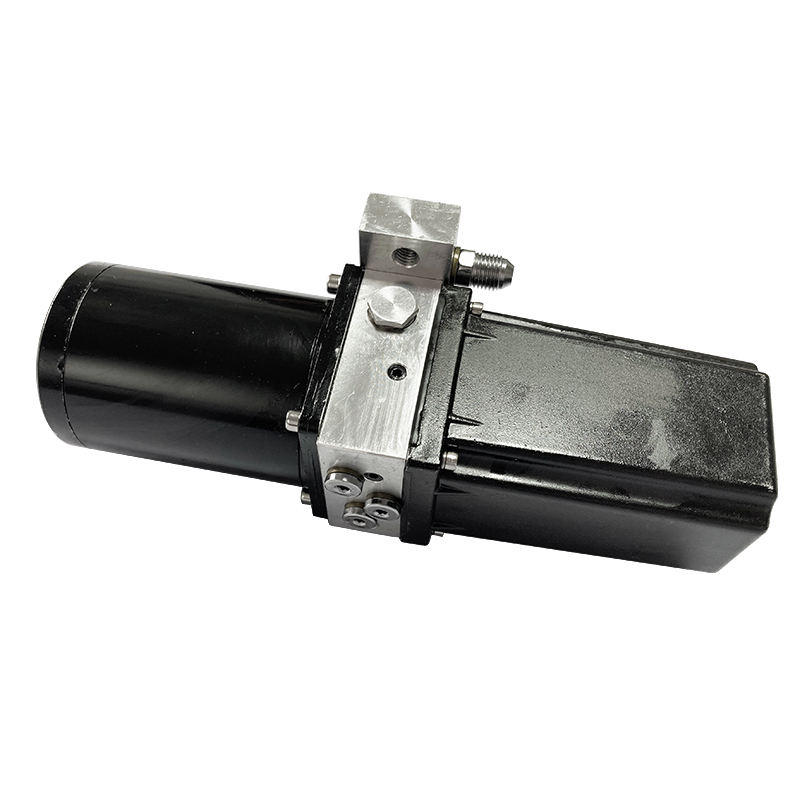

New hydraulic station for small hydraulic power unit of light fuel micro hydraulic system

Product details
Voltage:12V, 24V, 48V, 220Vtype:hydraulic power unit
greatest pressure:15MpaPackaging Details:Wooden box or pallet.
Maximum current:7A/14A/25Aweight:3
strength:300Wpayment terms:L/C, Western Union, D/P, T/T, MoneyGram
Supply capacity:500 boxes per daystrength:300
Origin:Zhejiang, Chinaport:Ningbo
waterproof level:IPX6.5Warranty:1.5 years
Health status:newShowroom location:not any
brand:red planetnoise:<80 dB
Product Size:290*140*​​130Oil pressure:350ml
Dimensions (L*W*H):290*140*​​130
OEM/Design and Manufacturing
Product Description

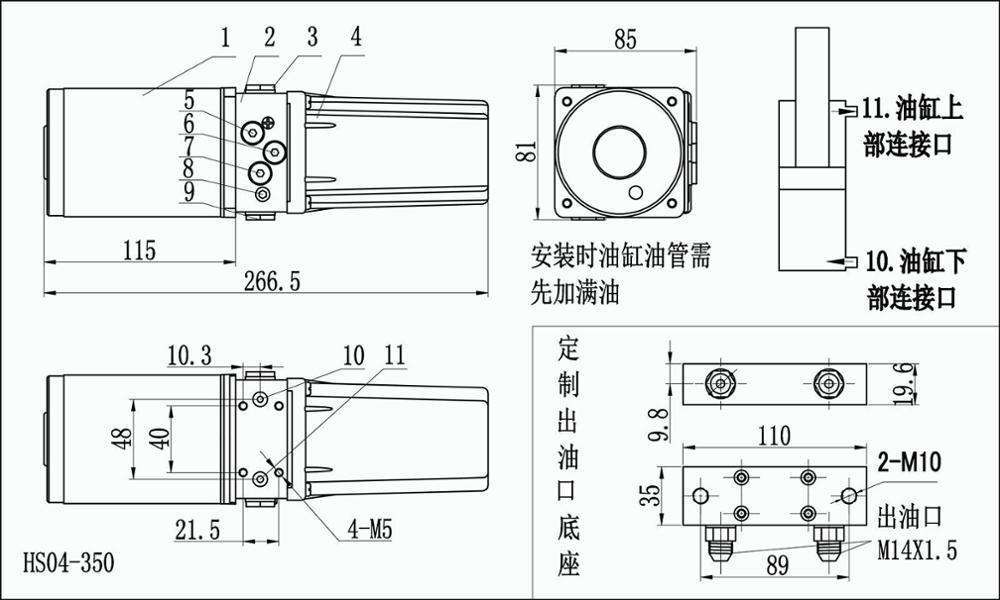

Model
HS04-350X
Specification
DC voltage
working environment
-10 degrees Celsius to 50 degrees Celsius
Mounting hole size
12.3mm
Reduce mounting hole size
12.3mm
Minimum installation center distance
530mm/customized
Advantage
Overcurrent, overload, overheat protection, hydraulic cylinder two-way self-locking
Product Manual
The micro-hydraulic station is driven by a DC motor, which controls the DC motor to rotate in both directions.
pressure output. Internal integrated relief valve, check valve, reversing valve, safety valve, two-way pressure self-locking
, widely used in various DC micro-hydraulic machinery, such as robots, electro-hydraulic platforms, electric dump trucks, marine
Hydraulic systems and automotive hydraulic control systems. Pressure output interface and installation size can be
According to customer customization.
