American ICS reinforced concrete diamond hydraulic chain saw stone cutting chain saw

Product details
COLOR:Black;Selling Units:Single item;
Type:Hydraulic diamond chain saw;Application:Roadside stone;
Application for:Concrete cutting;Engine:Hydraulic power unit;
Hydraulic power source horsepower:11 HP;Cutting depth:610 mm;
Package Type:plywood case guarantee;Product name:Diamond hydraulic chain saw;
Single package size:100X30X30 cm;Single gross weight:15 KG;
Delivery Detail:0 days after payment;Engine type:hydraulic power;
Place of Origin:United States;Weight:12.4 kg;
Product Description

Product Application

Scope of application: cutting concrete, reinforced concrete, pipes, masonry, stone and other stone.

parameter
Guide size
380 (mm)
Place of origin
American
 Cutting depth
380 mm
Brand
ICS
flow
30 lpm
product name
Diamond chain saw
Working pressure
140 bar
use
Roadside stone cutting
 Length
590  mm
advantage
Powerful function
width
235  mm
weight
12.4 kg
height
260  mm

Main Features

Hydraulicstrong power, need to be cut with water, mainly for concrete blocks and red bricks, can be cut into irregular shapes of concrete and masonry, even if it contains steel bars. Such as: wall opening, cement pipe cutting, building demolition, house renovation, ground finishing and other on-site maneuvering operations.

Detailed Images

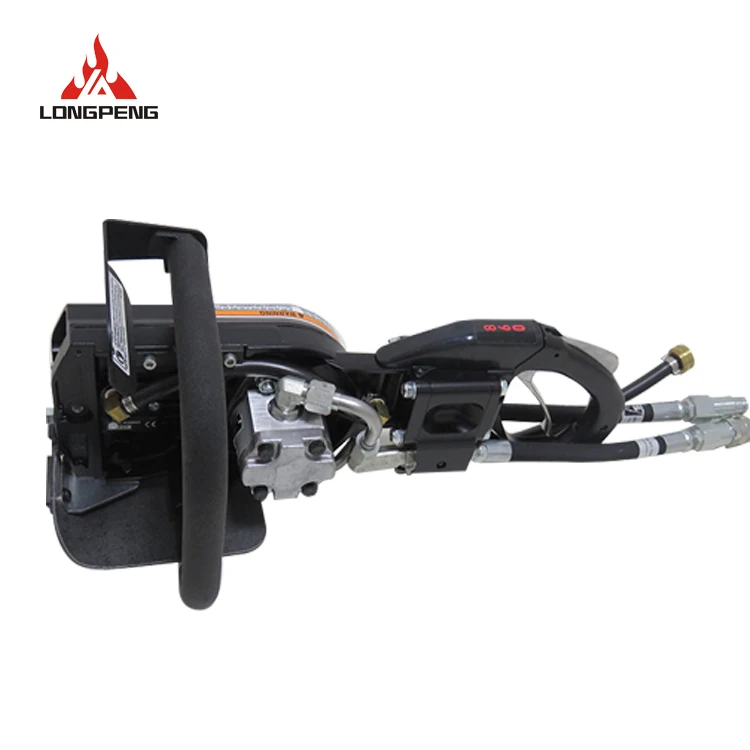

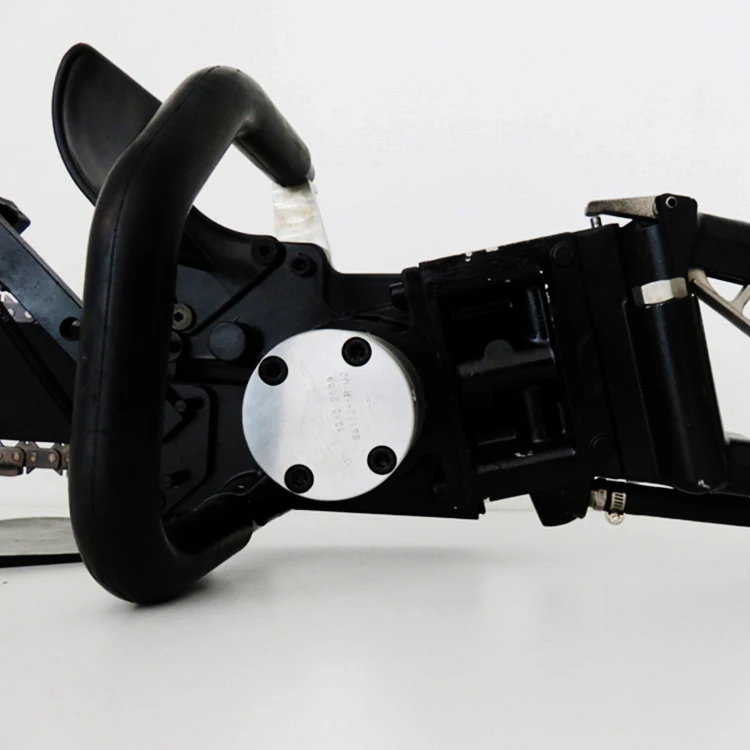

Hydraulic motor



Using imported hydraulic motors

Built-in flow control valve prevents overspeed

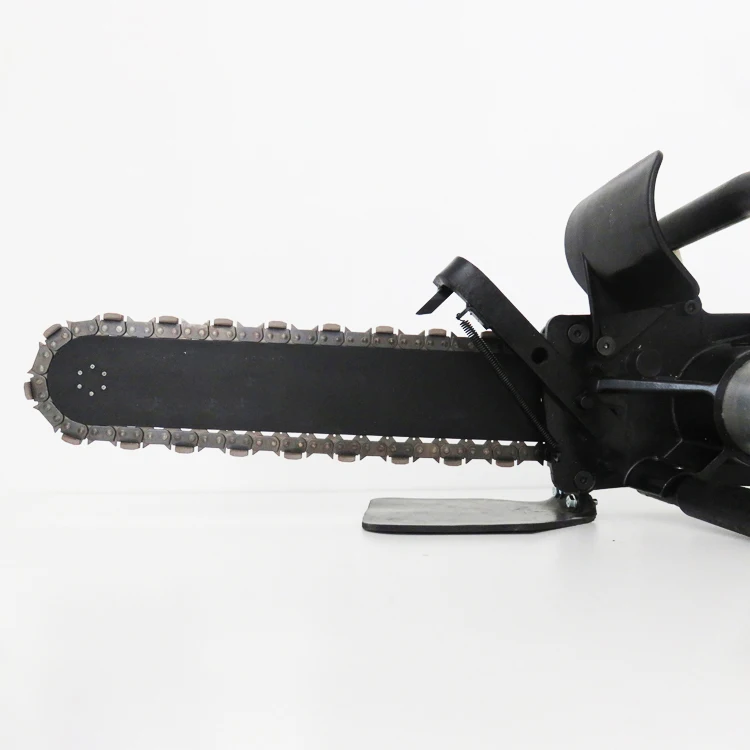

Alloy steel chain



With imported alloy steel chains and baffles, the efficiency


of cutting stone is increased by a hundred times.

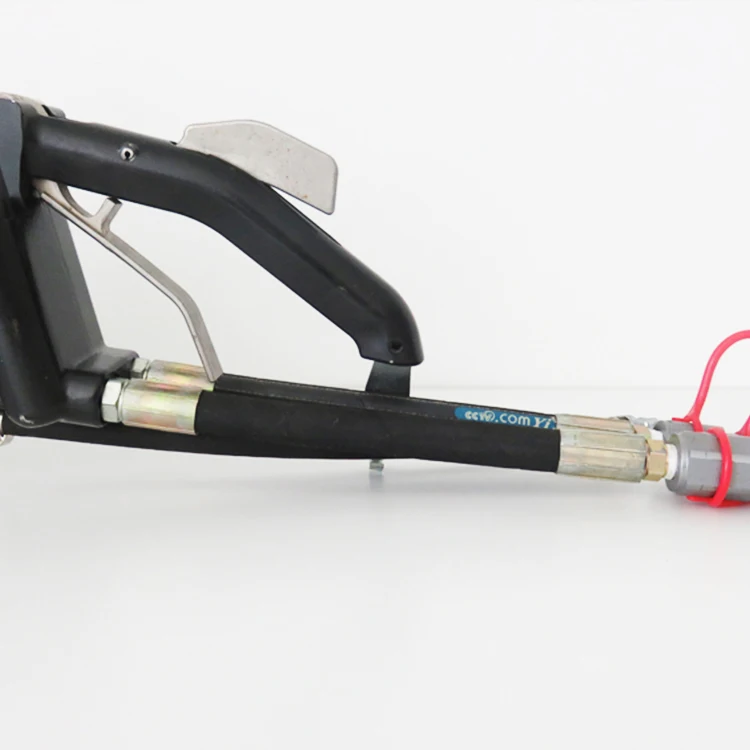

Control handle



The large handle is equipped with a safety switch and a control switch to prevent the machine from accidentally starting, even with gloves for easy handling

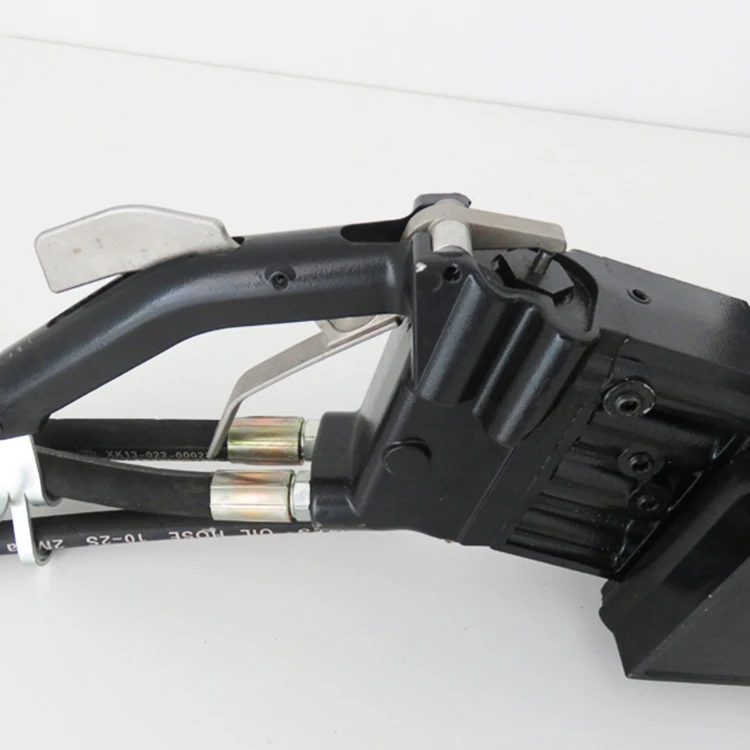

Connector



Imported rubber hydraulic pipe fittings with alloy steel quick joints for efficiency

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery




The polyethylene foam is made of polyethylene foam board for inner packaging, the outer box is packed with wooden box, and the outside is packed in wooden box.
