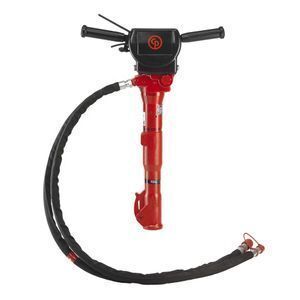

Construction Equipment Portable Hydraulic Concrete Breaker For Municipal Engineering

Product details
Working pressure(bar):105-125;Single package size:70X50X30 cm;
Delivery Detail:0 days after payment;Weight With Hoses(kg):22.3;
Single gross weight:35 KG;Selling Units:Single item;
EHTMA Class:C/D;Sound Pressure Level (Lp, r=1m) dB(A):95;
Length(mm):690;Oil flow(l/min):20-30;
Maximum Return Line Pressure(bar):15;Sound Power Level Guaranteed:107 Lw dB(A);
Place of Origin:Illinois United States;Package Type:The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.;
Impact Rate(bpm):1,500-2,100;Vibration Level 3 Axes(m/s2):16.6;
Product Description

Product Application

1 , Small volume, light weight, great impact energy and efficiency 2~3 times of air pick.

2 , Low noise, excellent quality, high reliability and durability.

3 , It can install various forms of pick, shovel, tamping head and so on.

4 , It can equipped with a shock-absorbing handle with excellent shock absorption. The vibration intensity is only 4.6M/S2, which is comfortable to operate, ensuring that the operator can work for a long time without feeling tired.

Hydraulic Breakers

BRK 55
BRK 55 VR
BRK 55 HBP
Weight With Hoses
kg
22.3
28.2
22.3
Length
mm
690
690
690
Oil Flow
l/min
20-30
20-30
20-30
Working Pressure
bar
105-125
105-125
115-130
Maximum Return Line Pressure
bar
15
15
35
Impact Rate
bpm
1,500-2,100
1,500-2,100
1,500-2,100
Vibration Level 3 Axes (ISO 28927–10)
m/s²
16.6
4.6
17.3 (20 lpm)
17.4 (30 lpm)
Sound Power Level Guaranteed (2000/14/EC)
Lw dB(A)
107
107
107
Sound Pressure Level (2000/14/EC)
(Lp, r=1m) dB(A)
95
95
95
EHTMA Class

C/D
C/D
C/D
Part Number
Chuck Size
Hex 25 x 108 mm
1801 3546 05
1801 3547 23
1801 3547 42
Part Number
Chuck Size
Hex 28 x 152 mm
1801 3547 43
Part Number
Chuck Size
Hex 28 x 160 mm
1801 3546 63
1801 3547 31
Part Number
Chuck Size
Hex 32 x 152 mm
1801 3547 24
1801 3547 44
Part Number
Chuck Size
Hex 32 x 160 mm
1801 3546 68
1801 3547 25

BRK 50 - Medium weight, multi-purpose breakers

A favorite with rental companies, BRK 55 breakers are the ideal choice for road building and maintenance applications. Whether it's asphalt, brickwork, frozen soil, or concrete, the BRK 55 gives you reliable performance, especially when using a wide asphalt chisel on medium to hard asphalt. Can be used with both 30 l/min and 20 l/min power packs.

Main Features

The brk-55 hydraulic breaker is the most commonly used choice for road construction, maintenance and earthquake rescue.It has 85J of impact energy and is reliable for asphalt, bricks, permafrost and concrete.It can be used together with various power stations of CP.

Standard flow is 30 l/min.After making a simple adjustment they can also work at 20 l/min, or 25 l/min of flow.

It can be equipped with standard handlebar or shock absorbing handlebar (code VR).The newly designed shock-absorbing handle has simple structure, better shock-absorbing effect and more durable, greatly reducing the labor intensity of the operator.

Certifications
Detailed Images



Whether in harsh conditions or in cities with harsh environmental and noise requirements, concrete, reinforced concrete, asphalt, rock, frozen soil, and beatings can be efficiently completed.






The hydraulic breaker is operated by high-pressure hydraulic oil to compress the energy released by the nitrogen chamber.



Hydraulic power combination

Products have hydraulic power station and hydraulic rotary saw

Packing & Delivery
Packaging
Size
700 (L) * 450 (W) * 180 (D)
Weight
 25 kg



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
