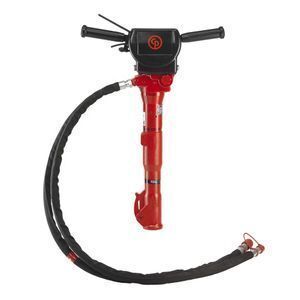

Construction Equipment Handheld Hydraulic Breaker For Municipal Construction

Supplier: Jining Longpeng Machinery Co., Ltd.
Region: Shandong, China
Price: $2730.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Working pressure(bar):	105-125;	Place of Origin:	Illinois United States;
EHTMA Class:	C/D;	Single gross weight:	35 KG;
Sound Power Level Guaranteed:	107 Lw dB(A);	Delivery Detail:	0 days after payment;
Vibration Level 3 Axes(m/s2):	4.6;	Impact Rate(bpm):	1,500-2,100;
Weight With Hoses(kg):	28.2;	Selling Units:	Single item;
Single package size:	70X50X30 cm;	Maximum Return Line Pressure(bar):	15;
Sound Pressure Level (Lp, r=1m) dB(A):	95;	Package Type:	The normal package is wooden box(Size: LWH). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.;
Oil flow(l/min):	20-30;	Length(mm):	690;

Product Description

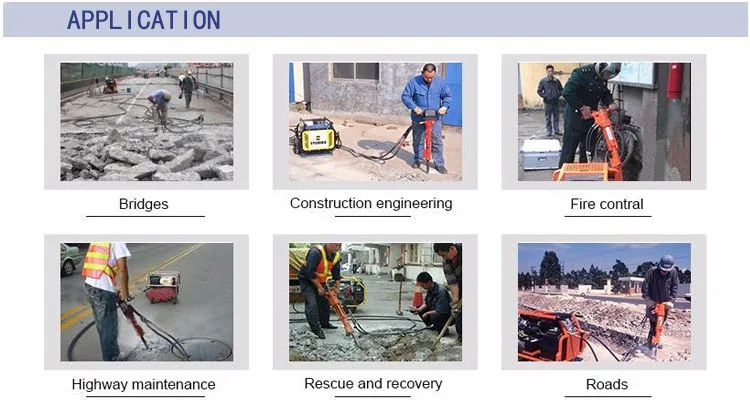

Product Application

1 , Small volume, light weight, great impact energy and efficiency 2~3 times of air pick.

2 , Low noise, excellent quality, high reliability and durability.

3 , It can install various forms of pick, shovel, tamping head and so on.

4 , It can equipped with a shock-absorbing handle with excellent shock absorption. The vibration intensity is only 4.6M/S2, which is comfortable to operate, ensuring that the operator can work for a long time without feeling tired.

Hydraulic Breakers		BRK 55	BRK 55 VR	BRK 55 HBP
Weight With Hoses	kg	22.3	28.2	22.3
Length	mm	690	690	690
Oil Flow	l/min	20-30	20-30	20-30
Working Pressure	bar	105-125	105-125	115-130
Maximum Return Line Pressure	bar	15	15	35
Impact Rate	bpm	1,500-2,100	1,500-2,100	1,500-2,100
Vibration Level 3 Axes (ISO 28927–10)	m/s²	16.6	4.6	17.3 (20 lpm) 17.4 (30 lpm)
Sound Power Level Guaranteed (2000/14/EC)	Lw dB(A)	107	107	107
Sound Pressure Level (2000/14/EC)	(Lp, r=1m) dB(A)	95	95	95
EHTMA Class		C/D	C/D	C/D
Part Number	Chuck Size Hex 25 x 108 mm	1801 3546 05	1801 3547 23	1801 3547 42
Part Number	Chuck Size Hex 28 x 152 mm	–	–	1801 3547 43
Part Number	Chuck Size Hex 28 x 160 mm	1801 3546 63	1801 3547 31	–
Part Number	Chuck Size Hex 32 x 152 mm	–	1801 3547 24	1801 3547 44
Part Number	Chuck Size Hex 32 x 160 mm	1801 3546 68	1801 3547 25	–

BRK 50 - Medium weight, multi-purpose breakers

A favorite with rental companies, BRK 55 breakers are the ideal choice for road building and maintenance applications. Whether it's asphalt, brickwork, frozen soil, or concrete, the BRK 55 gives you reliable performance, especially when using a wide asphalt chisel on medium to hard asphalt. Can be used with both 30 l/min and 20 l/min power packs.

Main Features

The brk-55 hydraulic breaker is the most commonly used choice for road construction, maintenance and earthquake rescue.It has 85J of impact energy and is reliable for asphalt, bricks, permafrost and concrete.It can be used together with various power stations of CP.

Standard flow is 30 l/min.After making a simple adjustment they can also work at 20 l/min, or 25 l/min of flow.

It can be equipped with standard handlebar or shock absorbing handlebar (code VR).The newly designed shock-absorbing handle has simple structure, better shock-absorbing effect and more durable, greatly reducing the labor intensity of the operator.

Certifications

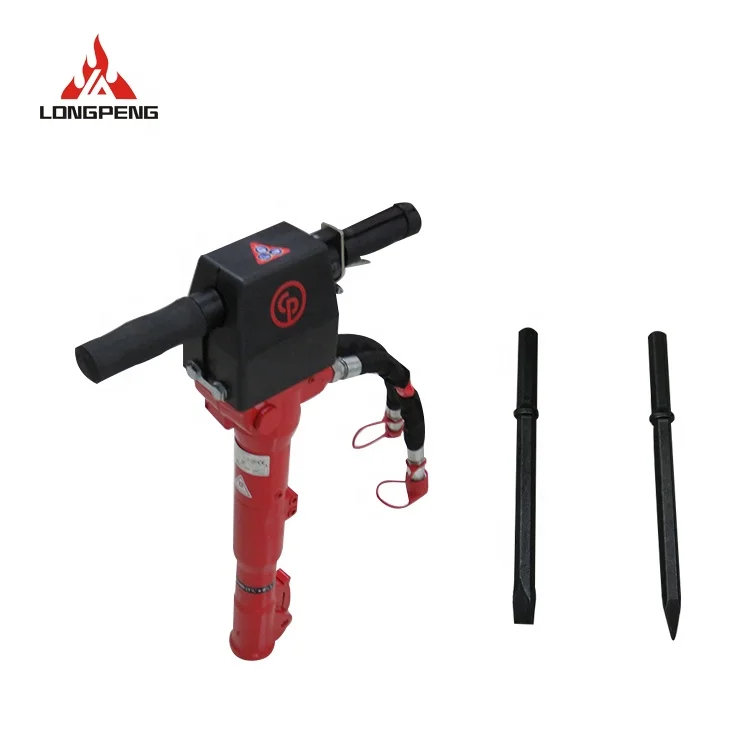

Detailed Images

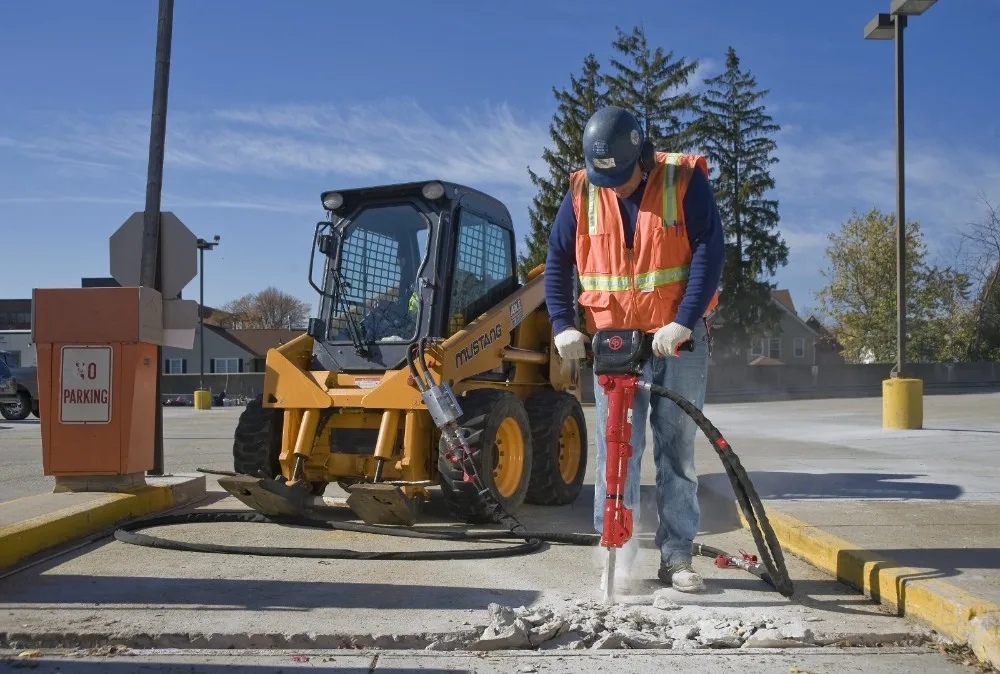

Whether in harsh conditions or in cities with harsh environmental and noise requirements, concrete, reinforced concrete, asphalt, rock, frozen soil, and beatings can be efficiently completed.

The hydraulic breaker is operated by high-pressure hydraulic oil to compress the energy released by the nitrogen chamber.

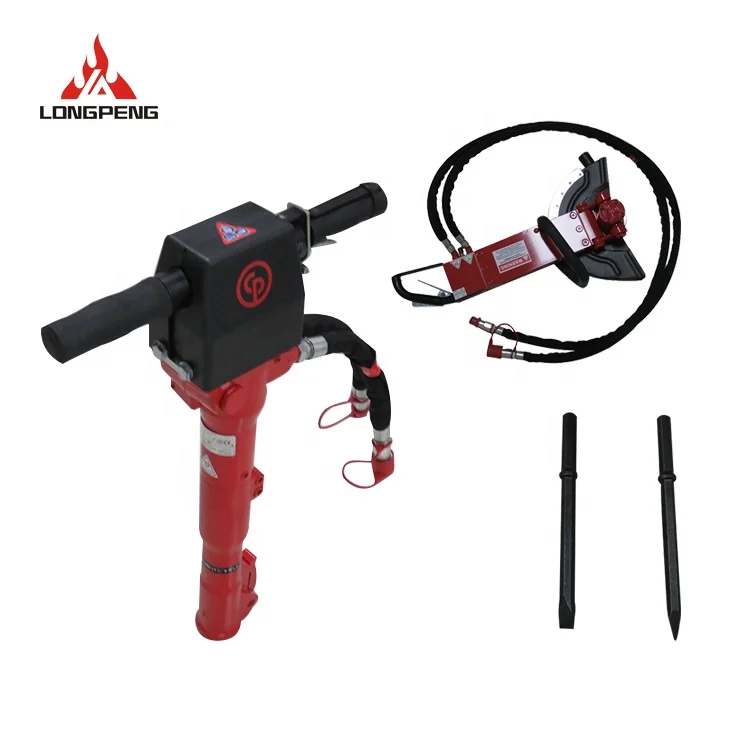

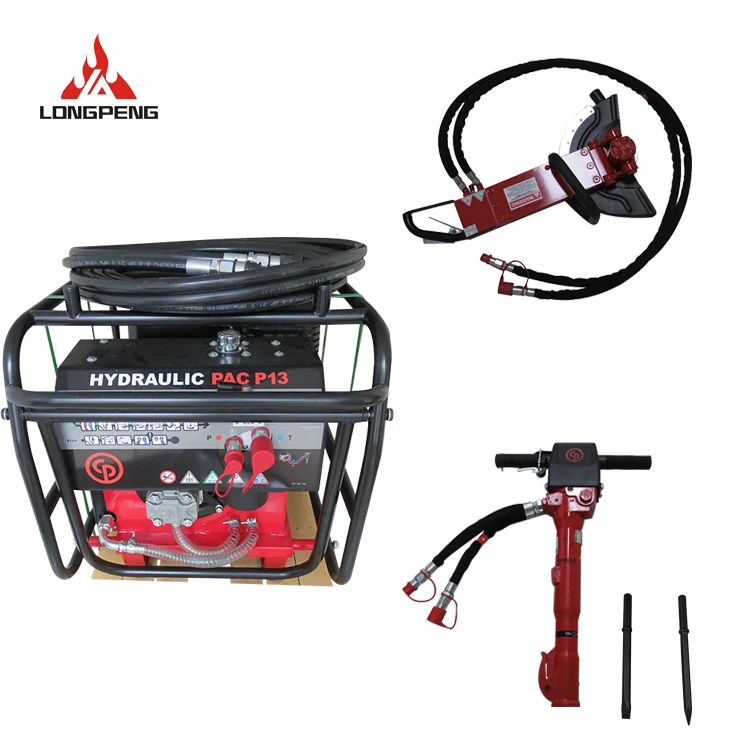

Hydraulic power combination

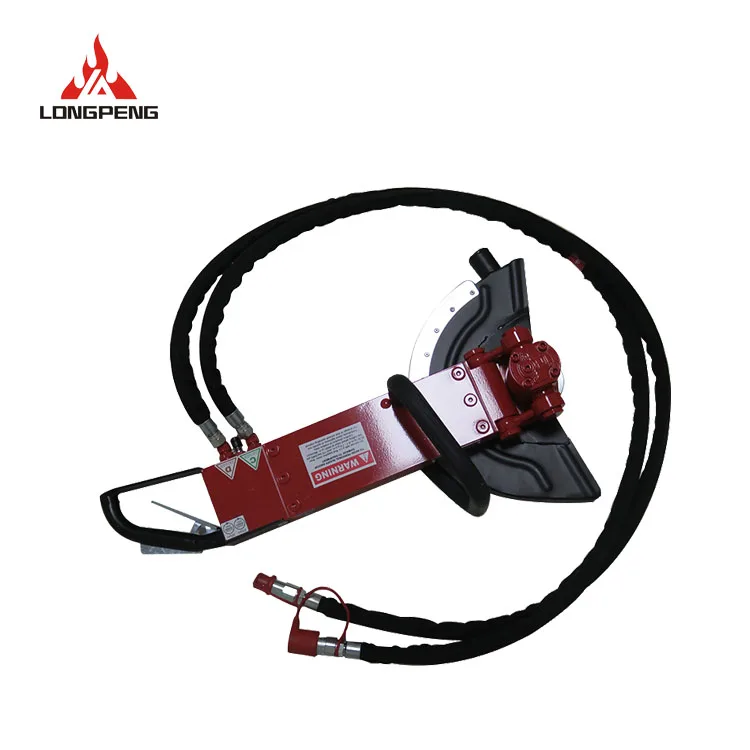

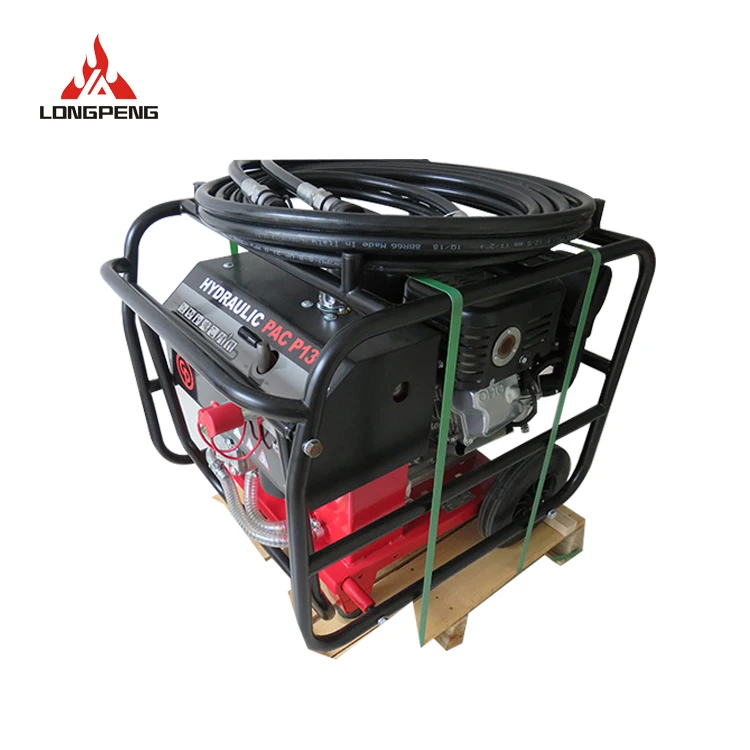

Products have hydraulic power station and hydraulic rotary saw

Packing & Delivery

Packaging
Size	700 (L) * 450 (W) * 180 (D)
Weight	25 kg
Packaging Details	The normal package is wooden box(Size: LWH). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
