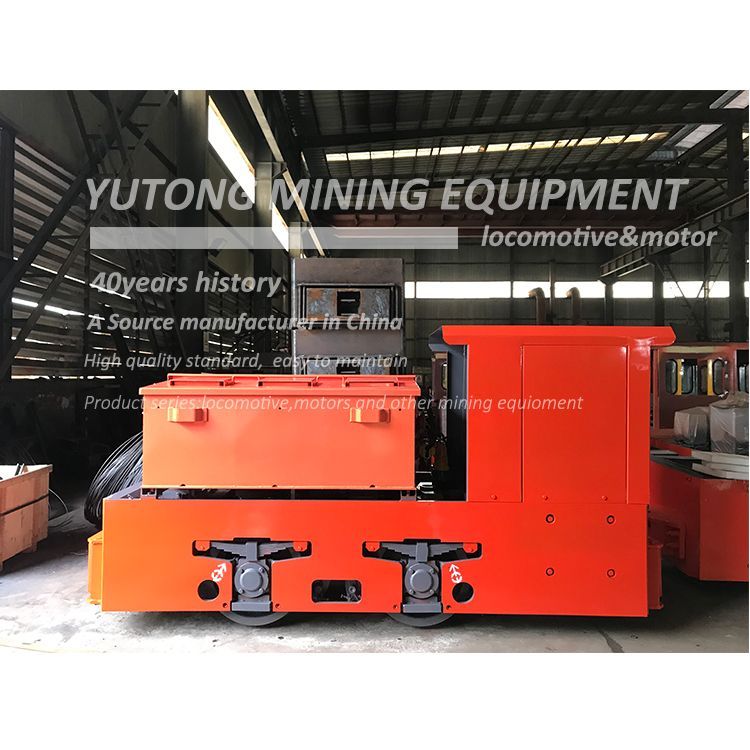

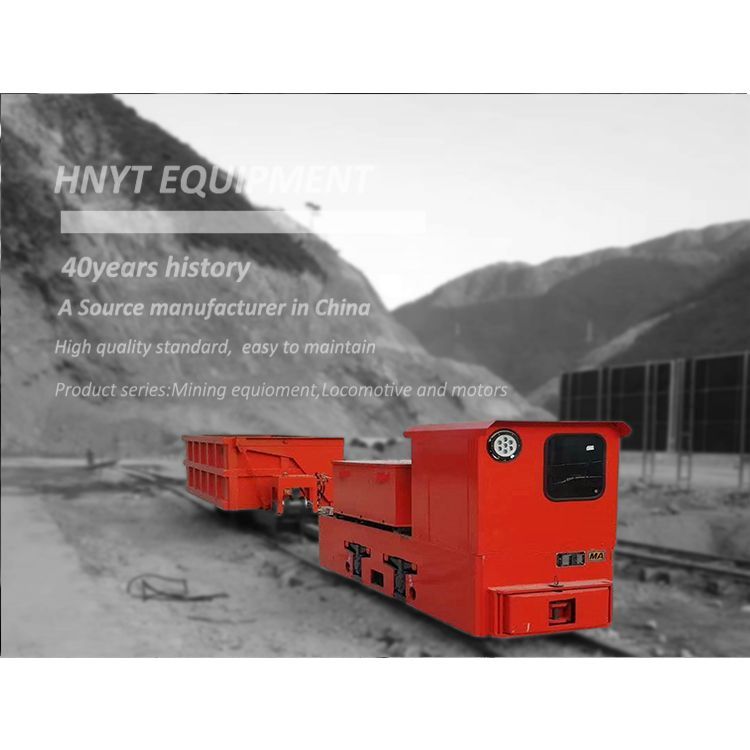

5 Ton Underground Mining Battery Locomotive

Supplier: HNYT Equipment Co., Ltd.
Region: Hunan, China
Contact: Ms Lily Wang
Price: $30000.00 /set
Min. Order: 1 set

Click here to contact

Product details

5 Ton Underground Mining Battery Locomotive, battery powered locomotive for gold mining

Battery electric locomotive is a kind of track traction equipment powered by batteries, which is generally used in mines. There are two types of battery electric locomotives, explosion-proof type and ordinary type. The explosion-proof type is mainly used in coal mines. There are also many options in terms of speed regulation and braking methods. Speed control methods include resistance speed control, chopping speed control and frequency conversion speed control. Braking methods include pure mechanical braking, hydraulic braking and compressed air braking. In addition, electric braking can also be selected as an auxiliary braking method.

5 Ton Battery locomotive	Adhesive / total weight (t)	5 t
	Track gauge (mm)	500.600.762.900
	Traction (KN)	7.06
	Max. Traction (KN)	12.26
	Speed(km/h)	7
	Battery Voltage (V)	90 or 96
	Battery Capacity (Ah)	385
	Power (KW)	7.5KWx2
	Dimensions Length(mm)	2860
	Width(mm)	920,1082 or 1220
	Height(mm)	1550
	Wheelbase (mm)	850
	Wheel diameter (mm)	520
	Min Curve radius (m)	6
	Controller	Resistencia o IGBT
	Braking method	Mechanical or hydraulic brake

Locomotive Spareparts

Detailed Photos

Advantages of our product

1.Using high-quality steel plates, special rust removal process make sure it more anti-corrosion and suitable for harsh mining environment.
2. Producing motors ourselves, using high lever insulation material and pure copper, ensure the powerful traction force, and suitable for harsh mining environment.
3.Gear anastomosis surface to reach more than 80%, which is far more exceeding the standard.
4.Professionally designed and adjusted frame ensure safe driving and avoids falling off rails.
5.A variety of braking methods can be choose, air brake, hydraulic brake, electric brake, mechanical brake to ensure the safety drive.
6. 40 years richful experience with the ability to design and make customized product according to your requirements.
7. Proving factory online-visiting

Product Factory Test

Mining Locomotive test
1.Before Running the locomotive,carry out gear debugging, lighting, gear, and brake adjustment etc.To ensure the normal operation of the locomotive.
2.Carry out a tensile test before leaving the factory to ensure the load performance of the locomotive meets the standard. Our design standards generally exceed the national standard by 10%-20%.
3.Carry out different type running test before leaving the factory to ensure the performance and normal operation of the whole locomotive. It can adapt to various harsh conditions under simulated working conditions.

Motor test
The motor has to go through many inspection procedures before leaving the factory, and each motor has to be carried out with load running experiments.
Explosion-proof motors are carried out with water pressure test.
All the test of motor is to ensure that can adapt to harsh working conditions.

5 Ton Underground Mining Battery Locomotive, Battery Powered Locomotive for Gold Mining

Clients Feedback and Cases

1. A good feedback of our lithium battery locomotive from a client of Latin America
2. In order to solve the exist problems of lead-acid batteries. More than 30 lead-acid battery electric locomotives in this large mining were changed into lithium battery electric locomotives, which improved the work enthusiasm and production efficiency of employees, reduced costs,and more environment-friendly.
3. The mining rock drill car designed by Sunward Co., has a small size and simple structure, so the space for placing the lithium battery on the body is very limited.
According to the limitation size, our company design a lithium power supply power plan, which
perfectly solves the problem of lithium power supply space.
In order to adapt to the special industrial and mining environment and improve transportation efficiency, a batch of 2.5-ton lithium battery electric locomotives are designed to Myanmar Clients.
