1500GPD Reverse Osmosis Water treatment machine for tap water to pure water

Supplier: Bnko Environmental Technology (Shanghai) Co., Ltd.
Region: Shanghai, China
Contact: Ms NINA LEE
Price: $650.00 / >=2 sets
Min. Order: 2 sets

Click here to contact

Product details

Product name:	1500 GPD Water Filtration Reverse Osmosis System;	Application:	Direct Drinking Water;
Applicable Industries:	Hotels,Manufacturing Plant,Food & Beverage Factory,Food Shop,Food & Beverage Shops;	Supply Ability:	200 Set/Sets per Month;
Control Valve:	Auto / Manual Optional;	Port:	Shanghai;
Pipe:	UPVC;	Material:	Carton;
Size:	6505001550mm;	Capacity:	250LPH;
Warranty:	1year;	Place of Origin:	Shanghai China (Mainland);
Brand Name:	BNKO;	Membrane Vessel:	SS304;
RO Membrane:	DOW / Vontron/BNKO;	After-sales Service Provided:	Video technical support,Online support;
Packaging Detail:	Plastic film+Carton,6505001550mm;	Pretreatment:	Sand filter,activated carbon filter;
Payment Terms:	L/C,T/T,Western Union;	Weight:	60;
Material:	Iron spray paint;	Warranty:	1 Year;
Power:	1.1KW;

Product Description

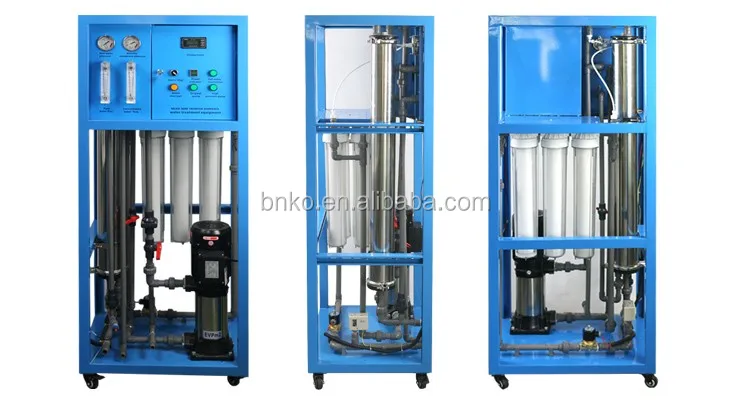

1500 GPD Industrial Water Filtration Membrane Purifier Reverse Osmosis System

Flow chat
Raw water→ 1. Booster pump→ 2. Sand(multi-medium) filter→3. Active carbon filter→4. Softener (optional)→ 5. Security(micron) filter→6. High pressure pump→7. Reverse osmosis system→ 8. UV sterilizer (ozone generator) →Pure water storage tank

Function of each part of water treatment plant
1.Booster pump– provide the pressure to quartz sand filter/active carbon filter
2.Multi-medium filter– get rid of turbidity, suspended matter, organic matter, colloid, ect.
3.Active Carbon filter–Remove the color, free chloride, organic matter, harmful matter, ect.
4.Softener–exchange "ions" of calcium and magnesium with the most common and easiest method.
5.Security filter–prevent large particles, bacteria, viruses into RO membrane, accuracy is 5um
6.High pressure pump– Provide the high pressure to RO membrane
7.RO system– main part of the plant. The RO membrane's desalting rate can reach 99%, removing over 99% ions
8.UV sterilizer or ozone generator- kill bacteria

Model NO.	Capa Bility(Liter)	Operation(MPa)	Membrane(lnch)	Membrane(Qty)	Power(KW)
BK-RO800	125	1.0-1.4	4021	1	1.1
BK-RO1500	250	1.0-1.4	4040	1	1.1
BK-RO3000	500	1.0-1.4	4040	2	1.5
BK-RO4500	750	1.0-1.4	4040	3	2.2
BK-RO6000	1000	1.0-1.4	4040	4	2.2
BK-RO9000	1500	1.0-1.4	4040	6	3
BK-RO12000	2000	1.0-1.4	4040	8	3
BK-RO18000	3000	1.0-1.4	4040	12	4
BK-RO30000	5000	1.0-1.4	8040	5	5.5
BK-RO60000	10000	1.0-1.4	8040	10	11
BK-RO90000	15000	1.0-1.4	8040	15	15
