DITRON Sino DRO 2/3/4 Axis Digital Readout System with 1um 5um High Precision Glass Linear Scale for Milling Machine Grinding etc.

Product details
Package preview:application:Lathe milling machine
Customization support:OEM,ODM,OBMOrigin:Sichuan, China
quality:durableMain ingredients:plastic shell
Warranty:3 yearspayment terms:L/C, Western Union, D/P, D/A, T/T, MoneyGram, Paypal
voltage range:AC 80V-260V/50HZ-60HZReading box input signal:5V TTL/RS422
brand:DichuangSupply capacity:10000 pairs per month
After promotion:Warrantymodel:D80/DC
port:Shanghaitechnology:advanced
Packaging Details:cartonprice:reasonable

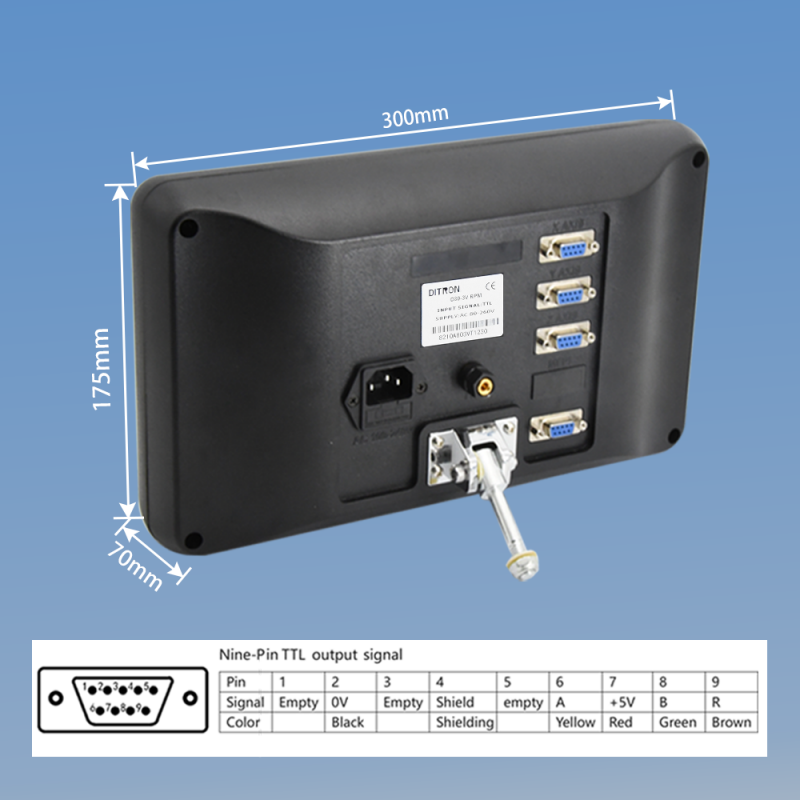

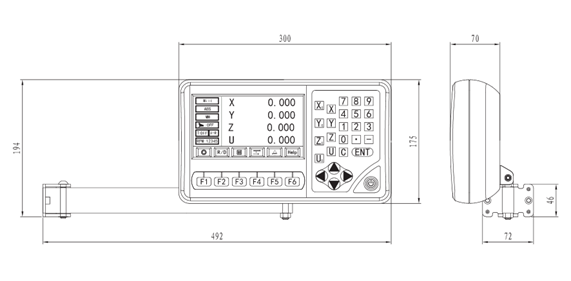

Coordinates display:2,3,4,5 axissize:300*70*180mm
Technical Parameters

Technical Parameters:

voltage range

AC80V-260V / 50HZ-60HZ

power consumption

15W

Operating temperature

-10℃-60℃

coordinate

2/3/4 or 5 axes

multiplier

4X

input signal

5V TTL / 5V EIA-422-A

input frequency

≤4MHZ

Operation keyboard

mechanical keyboard

solve

0.1μm, 0.2μm, 0.5μm, 1μm, 5μm, 10μm, 50μm



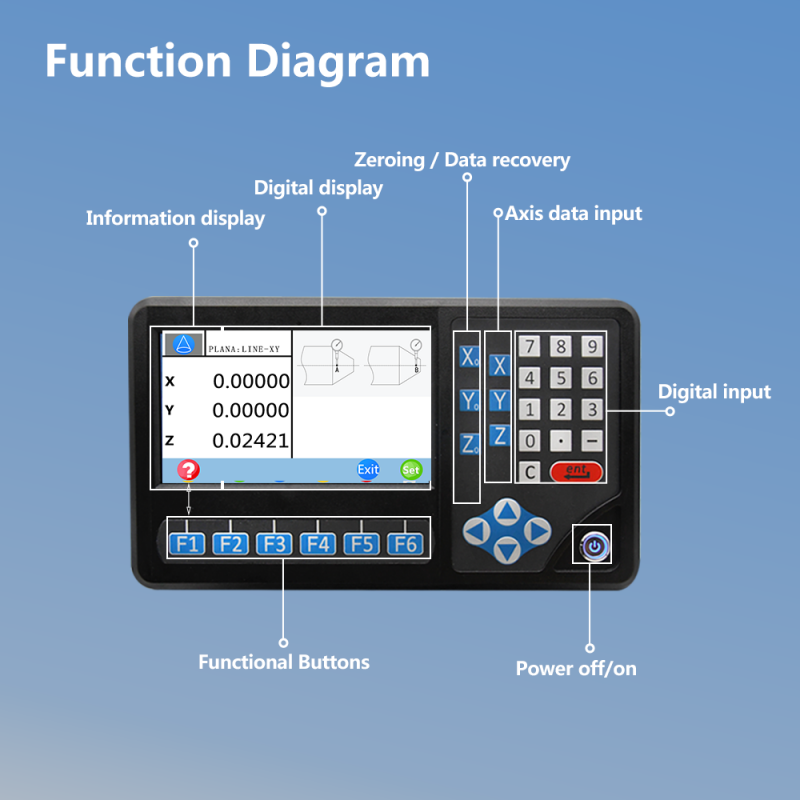

Function

function list:

basic skills

Reset, data recovery

value input

Metric and Imperial Switches

Power off memory

nonlinear compensation

calculator

Encoder selection (rotary or linear)

linear compensation

Count direction setting

ABS/INC coordinates

200 sets of SDM coordinates

REF centered

special function

Programmable Logic Device Function

PCD function

simple R function

smooth R function

Radius/Diameter Toggle

axis summation

Digital filter function

RS232 interface

Taper measurement function

EDM function

ramp function

Rectangular cavity function

16 groups of tool memories

motion graphics

speed measurement

Linear Measurement Base Rotary Encoders

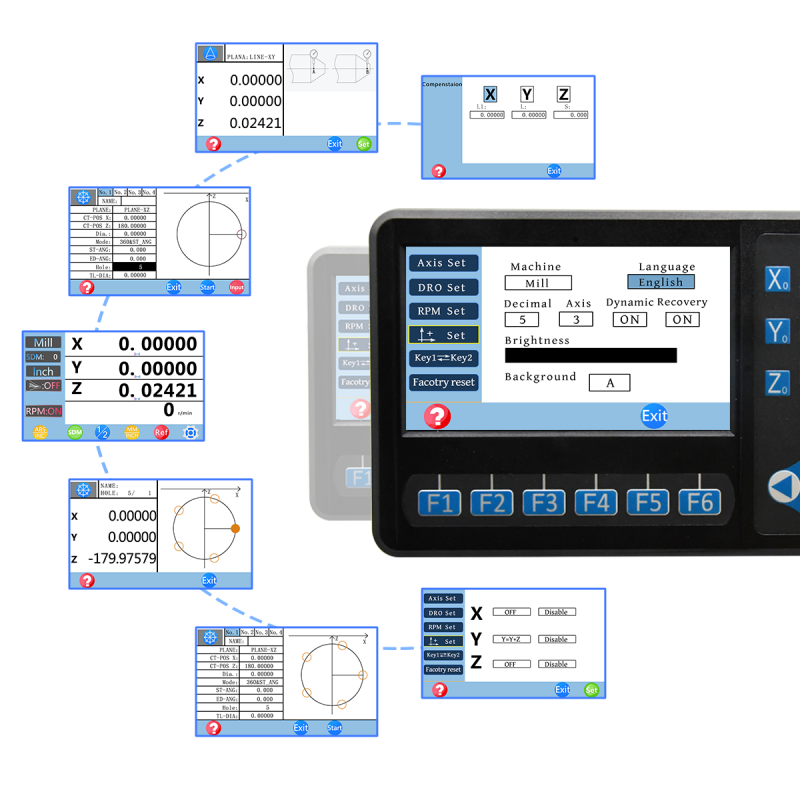

preview drawing



feature
  1. 7-inch true color LCD screen, clear at a glance.

  2. Save drawing function, DRO allows drawing to be saved into the system, making processing more convenient.

  3. It has a unique preview drawing function. After setting the parameters, the digital display will display the finished processing effect, making the operation more intuitive.

  4. The function of displaying the current position of the tool, during the processing, the system will display the current position of the tool according to the drawing, making the processing easier.

  5. Help function, if you have any questions during processing, press the help button to help you solve them.

  6. Shortcut key custom setting, the operator can set the shortcut key according to their own operating habits.

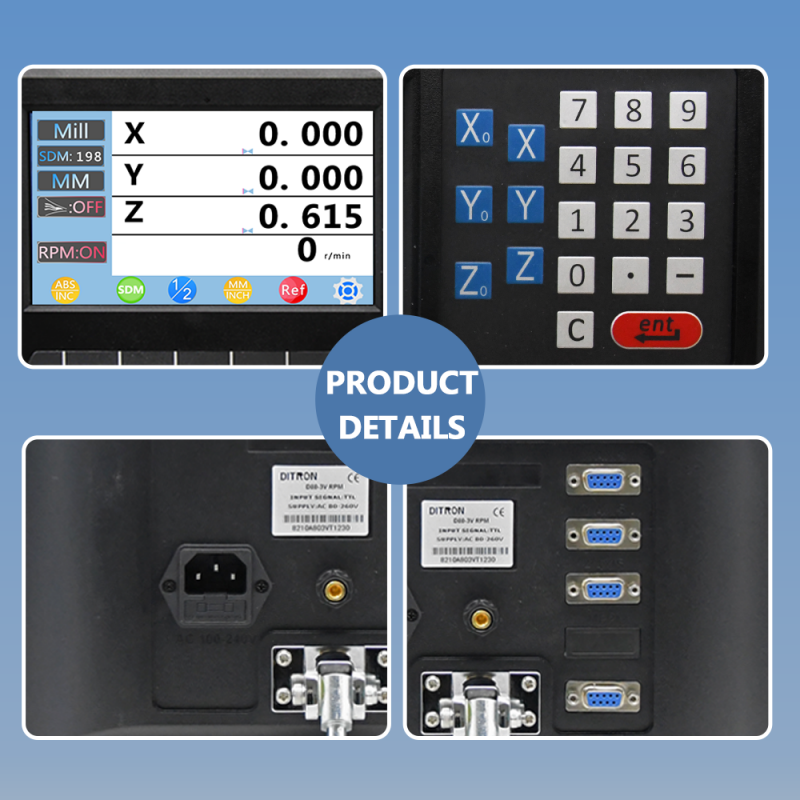

detailed image

instructions

instructions:
