Automatic fuel tank pressure gauge system at gas station automatic fuel tank pressure gauge atg probe

configuration and conditions

1. Gas station

Gas stations should have an internet connection.

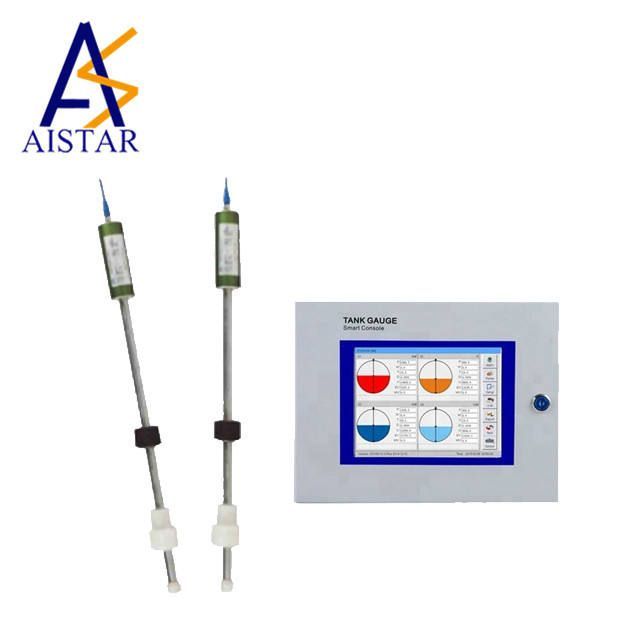

The station is equipped with computers, SP300 probes, SS160 consoles, PC remote software 200 safety devices: sound and light alarms, which can prevent overfilling when oil tankers are filling underground oil tanks

2. Head office

A fixed IP address is required.

For servers, ordinary models are fine.

work rules

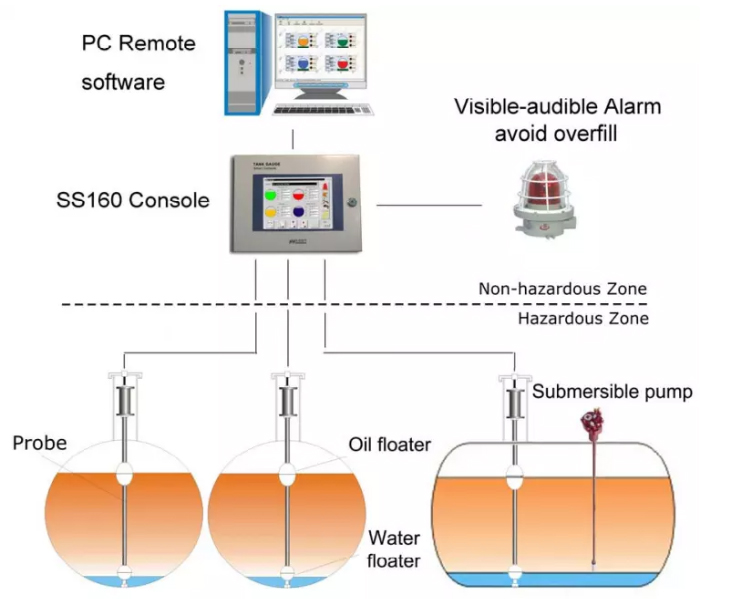

The SP probe is installed in the fuel tank, and the main board in the probe sends high-frequency signals to the product float and water float, generally at the millisecond level, and the float responds and feeds back to the probe main board.

Connected via the RWP4x0.5 shielded cable, the SS console also interrogates the tank information (oil level, water level and temperature) from the SP probe in milliseconds. An important feature of the SS console is that the user can input the tank volume chart into the program, and the SS console program will automatically and accurately simulate a tank module and calculate the storage volume based on the measured oil height, water height and temperature values.

The SS console is connected to the field computer via RS232,PC remote background softwareThe computer installed in the field will ask the tank information from the SS console at the frequency of milliseconds, so the user can monitor the tank information from the PC screen.

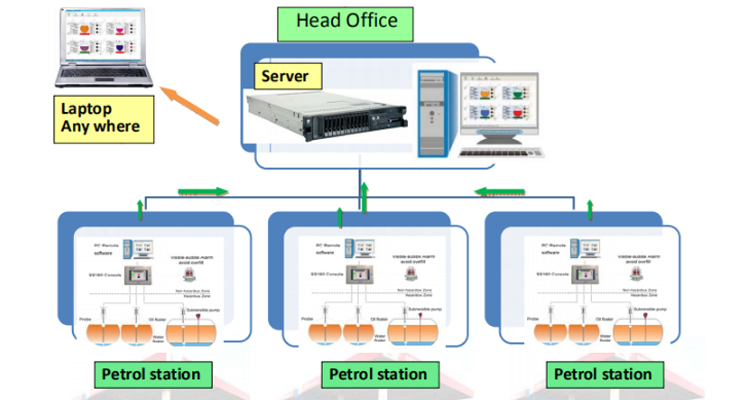

Based on the Internet connection between the site and the headquarters, the server at the headquarters can receive the tank information transmitted by the PC remote background software, and store each record for future query.

The more we can do for you is that it is easy to see the current condition of each tank when you are traveling or at home, as long as you have internet and a pre-installed computer or notebookQuery software GAS-01.

(data format IP packet, DES encryption)

What if there is no network or fuel tank 4ruckor on site?

SS ce, to send oil tank information such as oil level, oil volume, water level, temperature, etc. of each oil tank to the head office; there is also a GSM module to receive text messages from various sites and store them in the central management system for query and analysis.

Features and Benefits

-Operation console authority, high level of control

    - Strong future expansion capabilities, more sites share the same head office software,        save costs

    -History records for query and analysis

    - High precision data, accuracy 0.05mm

    -Real-time monitoring provides the safest and most efficient management

    -Support shift duty, automatically generate duty report after shift

    -Support export history as .xls, text or PDF format for recording

    - Support built-in printer to print reports (optional)

    - Audible and visible explosion proof alarm perfectly prevents from            oil tanker
