Best price Al alloy pressure vacuum vent popularly available in oil tank

Supplier: Cangzhou Aistar International Trading Co., Ltd.
Region: Hebei, China
Contact: Mr Ryan Yang
Price: $15.00 / >=2 pieces
Min. Order: 2 pieces

Click here to contact

Product details

Temperature of Media:	Normal Temperature;	Media:	oil;
Supply Ability:	10000 Piece/Pieces per Quarter;	Model Number:	vacuum valve;
Size:	2'';	Brand Name:	aistar;
Warranty:	One Year;	Packaging Detail:	International package;
Power:	manual;	Port:	shanghai or ningbo;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;	Certificates:	ISO9001:2008;
Name:	pressure vocuum vent;	Place of Origin:	China;
Function:	pressure release;	Product name:	pressure vent;
Color:	Silver;	Pressure:	VACUUM;
Port Size:	2'';	Usage:	Oil;
Material:	ALLOY,Aluminum;	Structure:	Safety;
Application:	General,Gas Station;

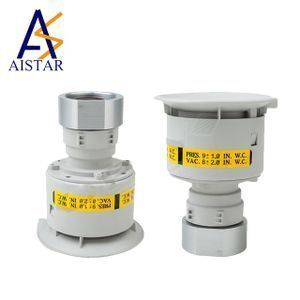

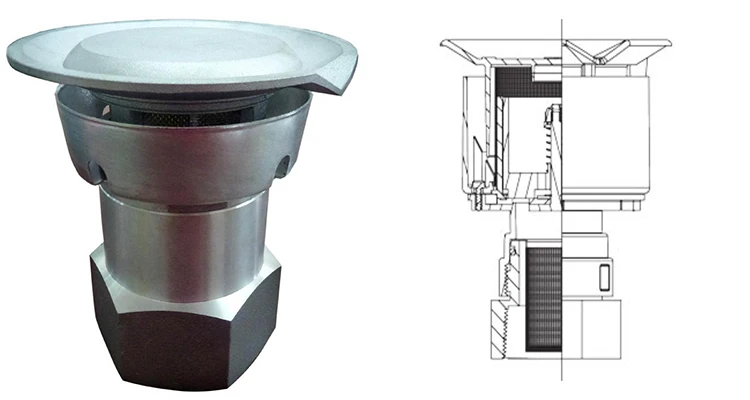

Aluminum Vacuum Vent Relief Valve is installed on the top of vent pipes from underground or above ground fuel storage tanks. The vent cap and internal wire screen are designed to protect the tank vent lines against intrusion and blockage from water, debris or insects. A normally closed poppet in the valve opens at a predetermined pressure or vacuum setting to allow the tank to vent.

Product Name	Aluminum Vacuum Vent Relief Valve
Material	Body	Aluminum Alloy
Technics	Casting
Nominal Diameter	DN50 /2"
Tempreture Range	-20°C ~ +70°C
Medium	gasoline,kerosene,diesel,water,etc

1. The vacuum pressure valve is installed at the top of the sump of the storage tank

2. The exhaust cover and the internal net are designed to protect the fuel tank ventilation line from external insects. The valve body will open/close when a predetermined pressure or vacuum setting is reached

3. Vacuum pressure valve is used in conjunction with centralized oil and gas recovery system or distributed oil and gas recovery system

4. When used for oil and gas recovery, maintain a certain tank pressure and reduce gasoline volatilization loss

Installation Notes:

1. The thread of the venting nozzle should be coated with a non-hardening and oil-resistant thread sealant.

2. When connecting, please note that the wrench only acts on the clamping plane of the pipe joint, not on the composite valve body.

Note: 1. Do not cover the venting port 2. The annual inspection is necessary for the normal operation of the venting valve. Remove the filter and observe that the filter is intact and can be cleaned or replaced if necessary
