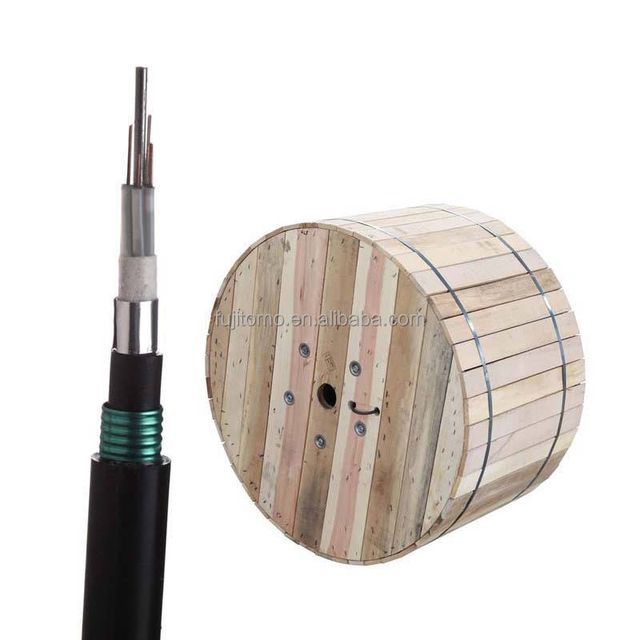

GYTA53 12-core 24-core outdoor direct buried loose tube double G652D single-mode armored optical fiber cable

Supplier: Shenzhen Emd Technology Co.,ltd.
Region: Guangdong, China
Contact: Ms Shenzhen EMD Optronics
Price: $0.10 / >=2000 meters
Min. Order: 2000 meters

Click here to contact

Product details

Fiber mode:	single mode	Number of Conductors:	≥ 10
jacket:	PVC LSZH PE High Density Polyethylene	Supply capacity:	5,000,000 sets per month
brand:	Fuji Friends and Customozied	product name:	optic fibre cable
length:	custom length	application:	Telecommunications
Packaging Details:	1KM per carton or 2Km per carton	type:	optic fibre cable
Package preview:		Origin:	Guangdong, China
Fiber Type:	G652D/G657A/G655	Warranty:	10 years

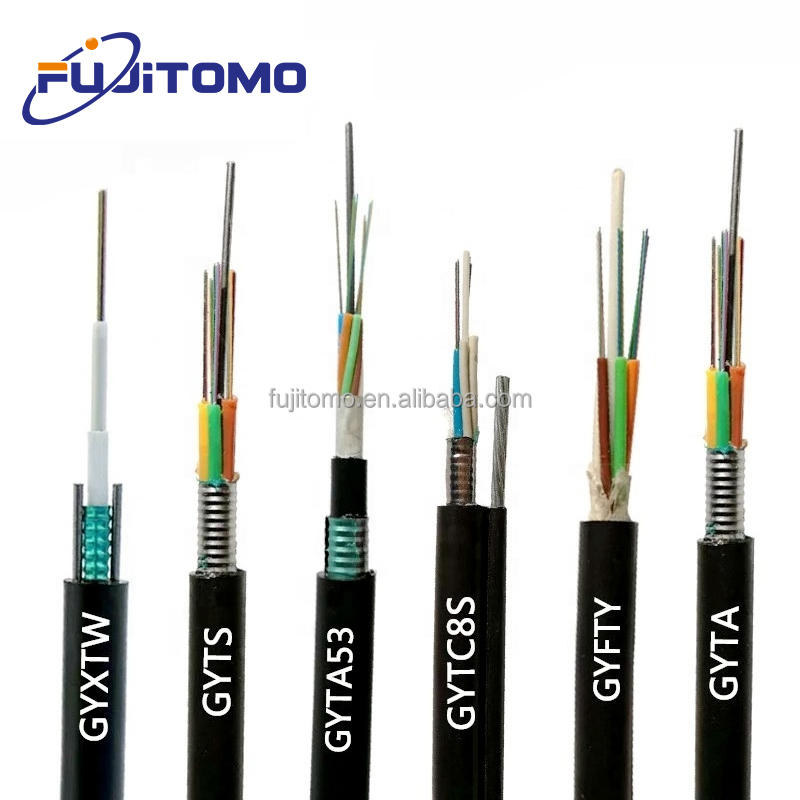

model:	GYTA/GYTS/GYXTW/GYTA53/ADSS/OPGW	Fiber core:	2-288 cores
port:	Shenzhen/Hong Kong/Guangzhou	Certification:	RoHS, ce, ISO9001
Processing:	support	payment terms:	Western Union, T/T, Trade Assurance
color:	Black

Product Description

2~24-core single-mode multi-mode outdoor armored GYXTW optical cable
describe
The 250 μm optical fiber is placed in a loose tube made of high modulus plastic. The tubes are filled with waterproof filling compound. The tube is longitudinally wrapped with a layer of PSP. A water-blocking material is applied between the PSP and the loose tube to keep the cable compact and waterproof. Two parallel steel wires are placed on either side of the steel belt. Parallel steel wires are placed on both sides of the tape. The cables are equipped with a polyethylene (PE) sheath.
feature
Good mechanical and temperature properties
Hydrolysis-resistant high-strength loose tube
Special tube filling compound ensures critical protection of fibers
Compression resistance and flexibility
PSP enhanced moisture resistance
Two parallel steel wires ensure tensile strength
Small diameter, light weight, easy installation
Storage/working temperature: -40℃~+70℃

Fiber parameters

No.	project			unit	Specification
No.	project			unit			G.652D
1	Mode Field Diameter	1310nm	Micron	9.2±0.4
1	Mode Field Diameter			1550nm	Micron	10.4±0.5
2	Cladding diameter			Micron	124.8±0.7
3	Cladding out of roundness			%	≤0.7
4	Core cladding concentricity error			Micron	≤0.5
5	Coating diameter			Micron	245±5
6	Coating out of roundness			%	≤6.0
7	Cladding layer concentricity error			Micron	≤12.0
8	Optical cable cut-off wavelength			Nano	λcc≤1260
9	Attenuation (maximum)	1310nm	dB/km	≤0.36
9	Attenuation (maximum)			1550nm	dB/km	≤0.24

Fiber parameters

project			Specification
Fiber count			2~24
colored coated fibers	aspect	250µm±15µm
colored coated fibers		color	blue, orange, green, brown, gray, white
Loose tube	aspect	2.10mm±0.05mm
		Material	PBT
		color	Nature
Strength member	diameter	1.0mm
Strength member		Material	steel
coat	aspect	8.0mm±0.1mm
		Material	polyethylene
		color	Black

Mechanical and Environmental Properties

project	to unite	Specification
tension (long term)	no	600
nervous (short term)	no	1500
crush (long term)	Newton/10cm	300
crush (short term)	Newton/10cm	1000
min bending radius (dynamic)	mm	20D
min bending radius (static)	mm	10 days
installation temperature	℃	-20~+60
Operating temperature	℃	-40~+70
Storage temperature	℃	-40~+70

Fiber count	Cable Diameter (mm)	Cable weight (kg/km)	tensile strength length tenure (N)	Stress resistance length Deadline (N/100mm)	bending Radius Static/Dynamic (mm)
2~12	10.6	124	1000/3000	1000/3000	10 days/20 days
14~24	12.0	147	1000/3000	1000/3000	10 days/20 days
